Class I, Div 2Class II, Div 1IES
EX-B High Bay
Rated power20 to 400 W
Lumen output2,600 to 52,000 lm
ProtectionIP66 / IK08
Up to 140 lm/W · UL 844, UL 1598, UL 924 · emergency option on 150 to 200 W · ceiling, wall, pendant, surface, stanchion
Explosion Proof LED Lighting for Class I, II, III Sites
Division 1 and Division 2 fixtures, certified, with a spec sheet on every product. Send your Class, Division and fixture count, we quote within one business day.
- Certified Class I, II, III
- Spec sheet on every fixture, IES files on most
- Quote within one business day
On the spec sheetsUL 844CSA C22.2 No. 137IP66IK08 / IK10
Canadian supplier, ships worldwideCopper-free aluminum or stainless housingsA specialist replies within one business day
Hazardous-location fixtures
22 series, grouped by fixture type
Class I, Div 1Class II, Div 1IES

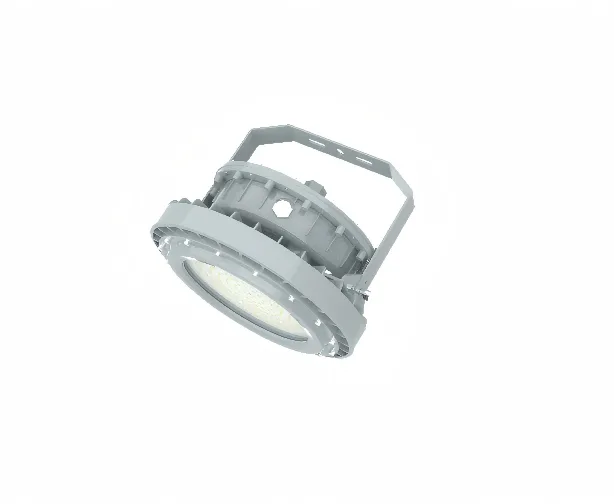

EX-C High Bay
Rated power20 to 280 W
Lumen output2,800 to 39,200 lm
ProtectionIP66 / IK08
140 lm/W · T4, −40 to +60 °C · UL 844, CSA C22.2 No. 137 · ceiling, wall, hook, pole
Class I, Div 2Class II, Div 1

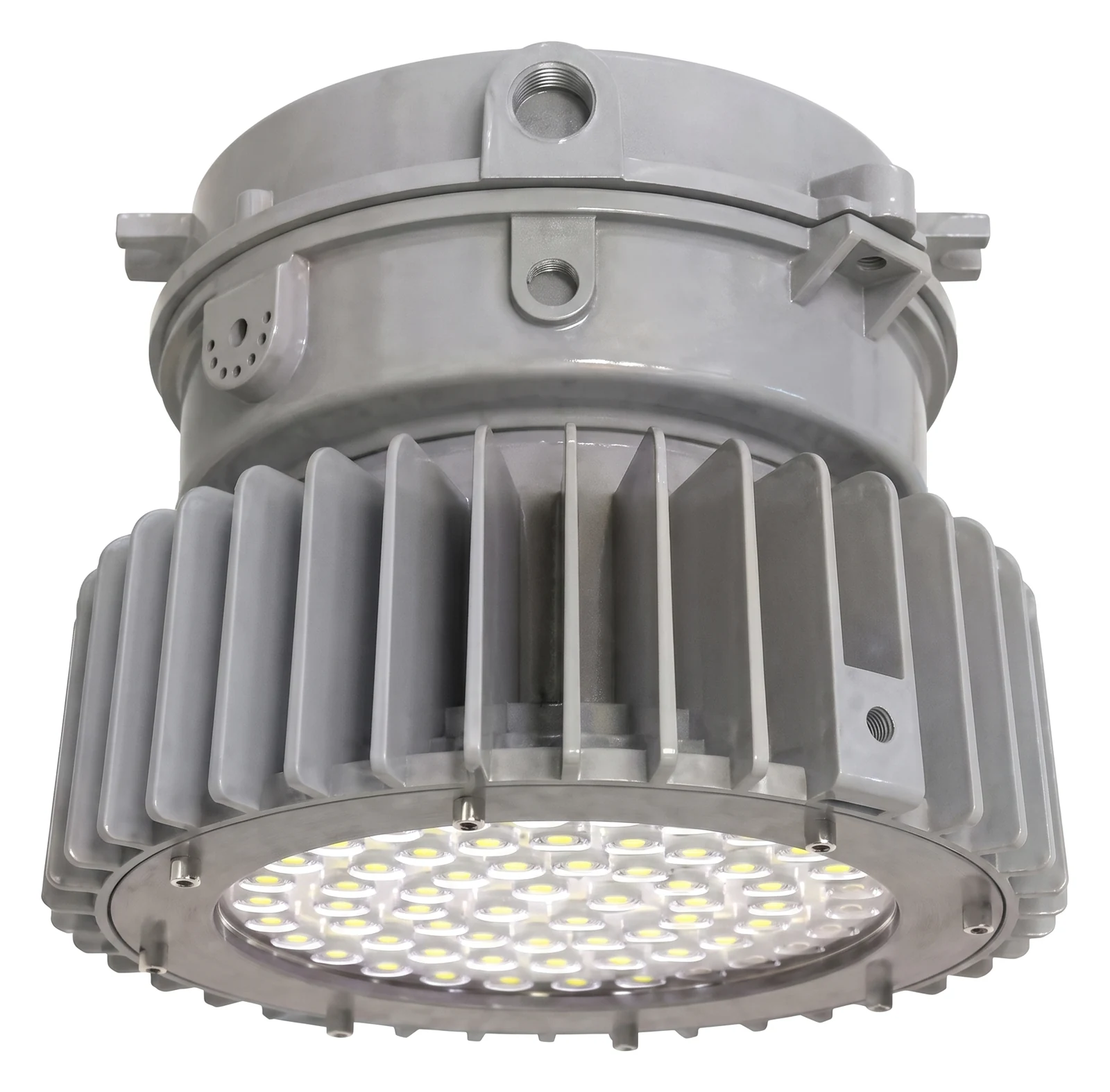

EX-Q1/Q2 High Bay
Rated power20 to 200 W
EfficacyUp to 160 lm/W
ProtectionIP66 / IK08
−40 to +65 °C · 120-277 V, 120-347 V or 200-480 V · Class II, Div 1, Class III, Zone 2
Class I, Div 2Class II, Div 1IES
EX-Q1A Low Bay
Rated power20 to 60 W
Lumen output3,000 to 9,000 lm
ProtectionIP66 / IK08
150 lm/W · adjustable power and CCT · ceiling, surface, pendant, wall, stanchion 25°
Class I, Div 1Class II, Div 1IES

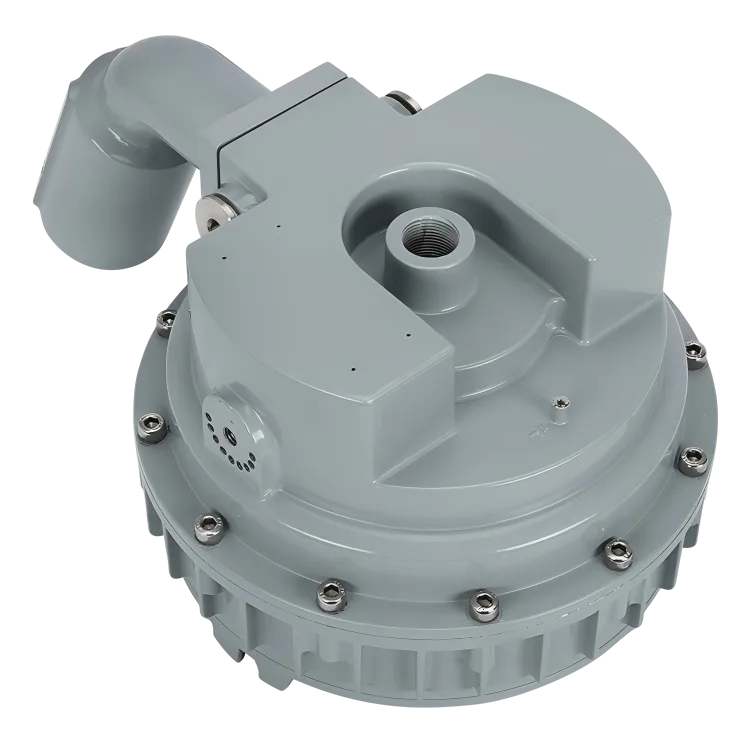

EX-S High Bay
Rated powerUp to 100 or 200 W
Lumen outputUp to 26,000 lm
ProtectionIP66 / IK08
130 lm/W · −40 to +65 °C · 3G vibration · pole 25° / 90°, jib, U-bracket, pendant
Class I, Div 2
EX-FLH Linear
Rated power5 to 45 W
Lengths1 to 4 ft
EfficacyUp to 124 lm/W
Slim linear · 1700 K to 7500 K · 240° tilt · 6063 aluminum · ceiling or pendant
Class I, Div 2IES
EX-H Linear
Rated power20 to 80 W
Lumen output2,800 to 11,200 lm
ProtectionIP66 / IK08
140 lm/W · −40 to +60 °C · UL 844, CSA C22.2 No. 137, ETL · ceiling, wall, pole, pendant, chain
Class I, Div 2IES
EX-HL Linear
Rated power20 to 200 W
Lumen outputUp to 30,000 lm
EfficacyUp to 150 lm/W
−40 to +65 °C · IK07 / IK10 · Groups A, B, C, D · UL 1598, UL 1598A · ceiling, wall, pole, hook, pendant, stanchion, trunnion
Class I, Div 1Class II, Div 1IES
EX-I Linear
Rated power20 to 200 W
Lumen output3,900 to 26,000 lm
ProtectionIP66 / IK08
130 lm/W · adjustable power and CCT · ceiling, pole, wall, chain, pendant
Class I, Div 2Class II, Div 1IES
EX-R Linear
Rated power20 to 60 W
Lumen output3,000 to 9,000 lm
ProtectionIP66 / IK10
150 lm/W · stainless steel housing · ATEX, DLC 5.1 · ceiling, rope, pole · microwave sensor option
Class I, Div 2IES

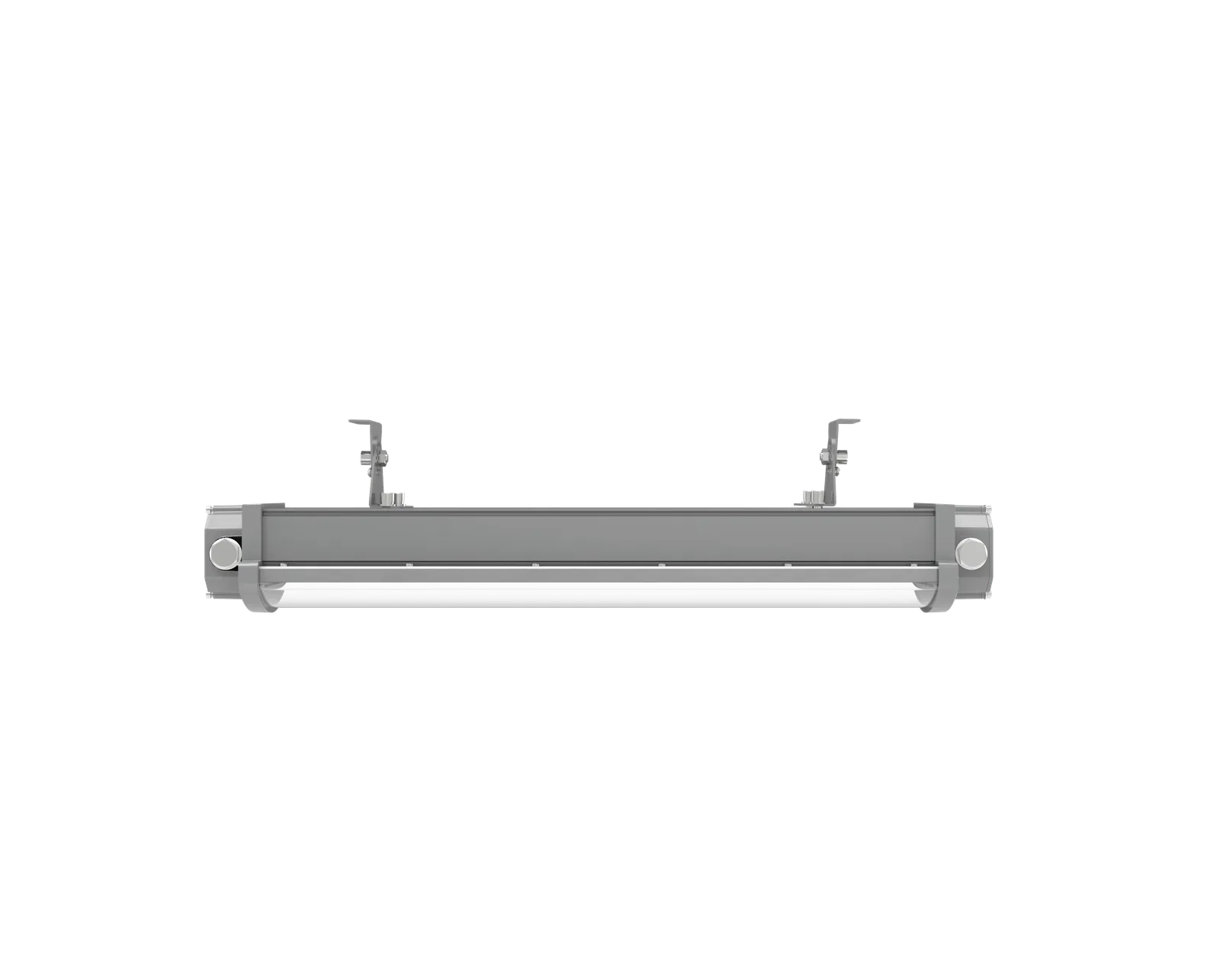

FLF Linear
Rated power20 to 100 W
Lumen output2,400 to 14,000 lm
ProtectionIP66 / IK10
120 to 140 lm/W · four lengths · UL 844, CSA C22.2 No. 137, ETL · pole, hook, wall, pendant
Class I, Div 2IES

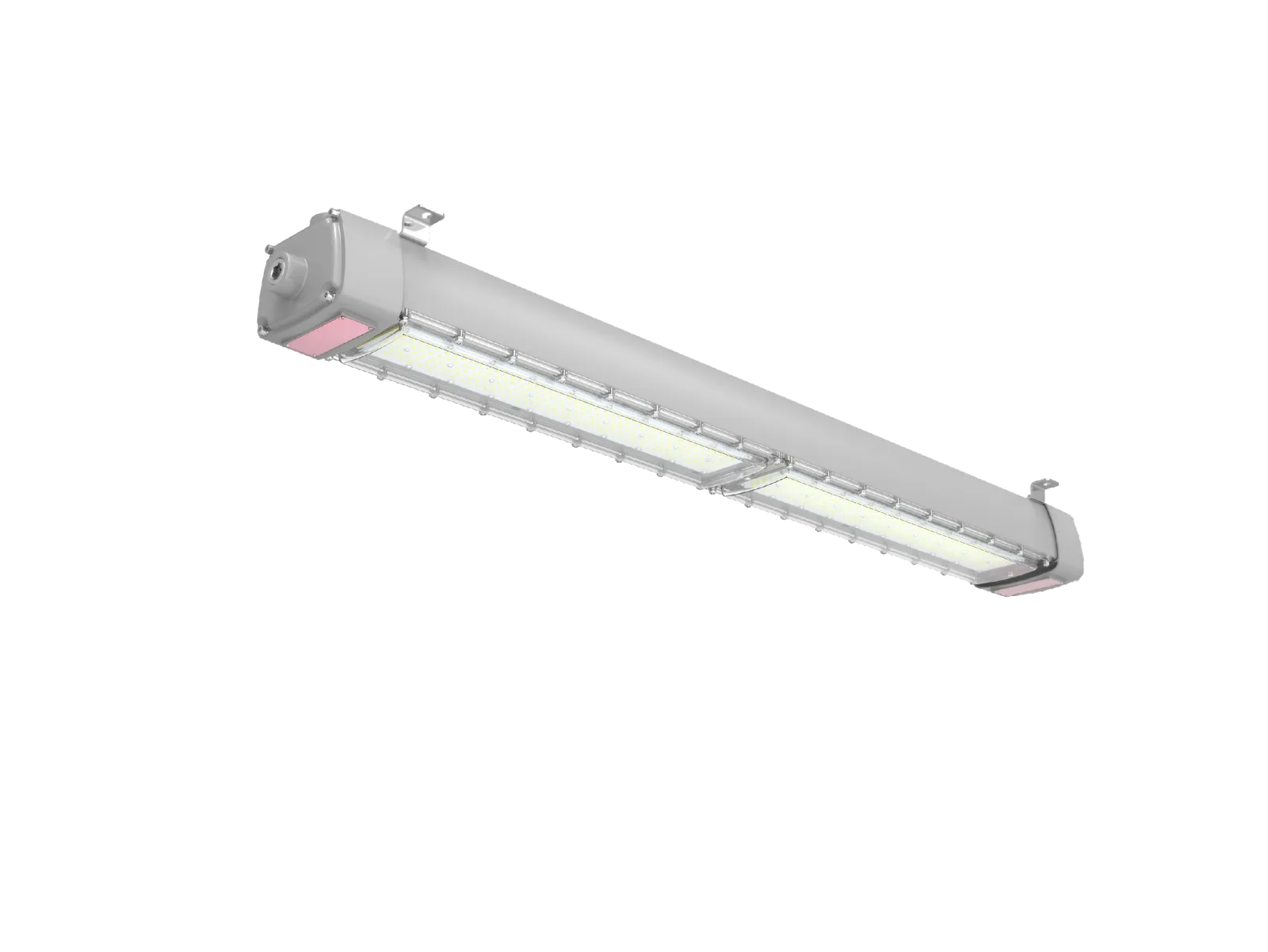

FLG Linear
Rated power40 to 140 W
Lumen output7,400 to 25,000 lm
Efficacy175 lm/W
IP66 / IK10 · adjustable power and CCT · emergency 1.5 hours · ceiling, pole, guide rail
Class I, Div 1Class II, Div 1IES

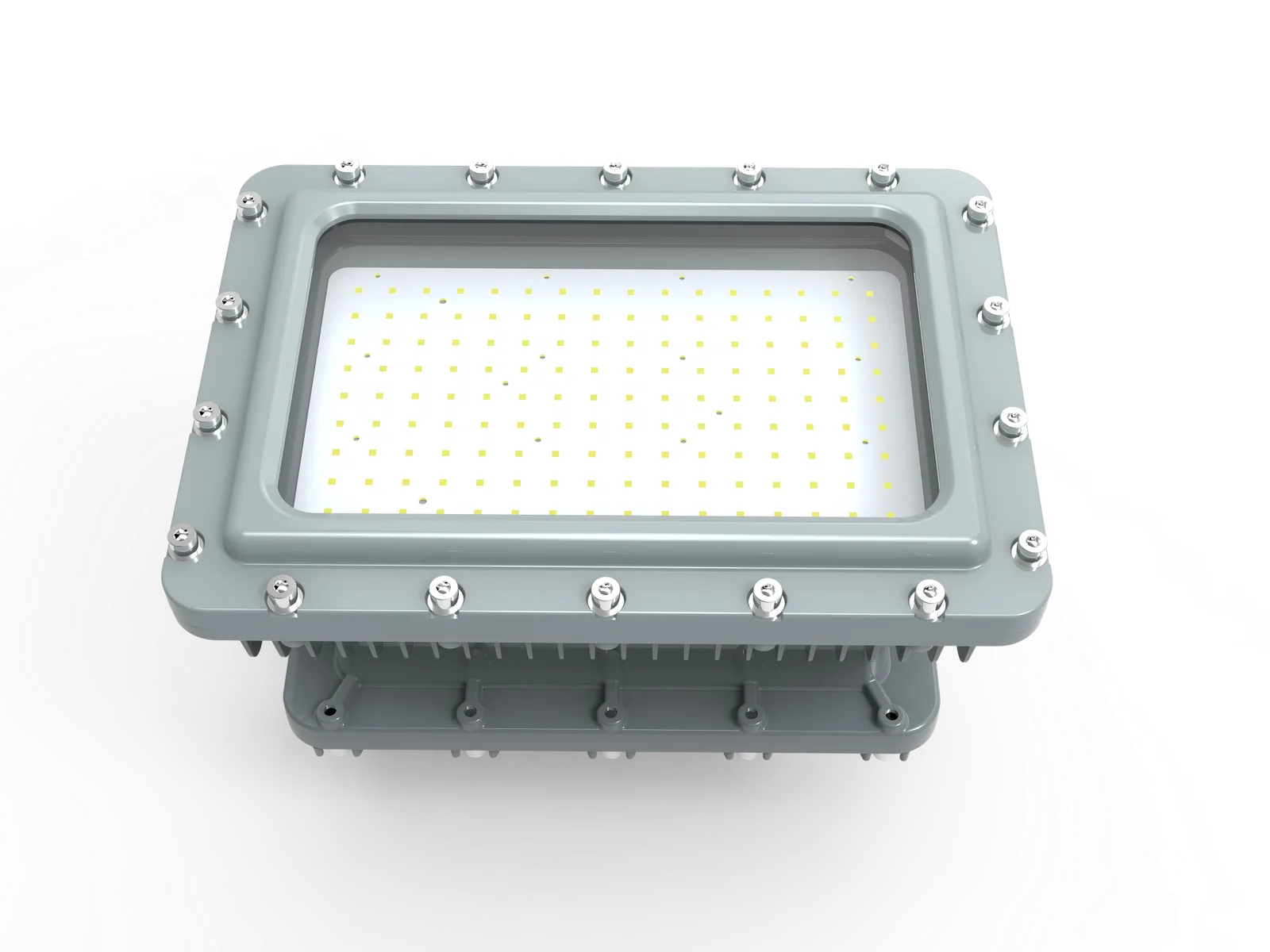

D3-D4 Flood Light
Rated power40 to 240 W
Lumen output5,600 to 33,600 lm
ProtectionIP66 / IK10
140 lm/W · Class I, Division 1 · IECEx / ATEX version (D3e) · wall, ceiling, pole, trunnion
Class I, Div 2Class II, Div 1IES
EX-A Flood Light
Rated powerFrom 20 W
Lumen output2,800 to 56,000 lm
ProtectionIP66 / IK08
140 lm/W · beam 30° to 120° and T2, T3, T5 · ceiling, wall, hook, trunnion, pole, stanchion
Class I, Div 1Class I, Div 2

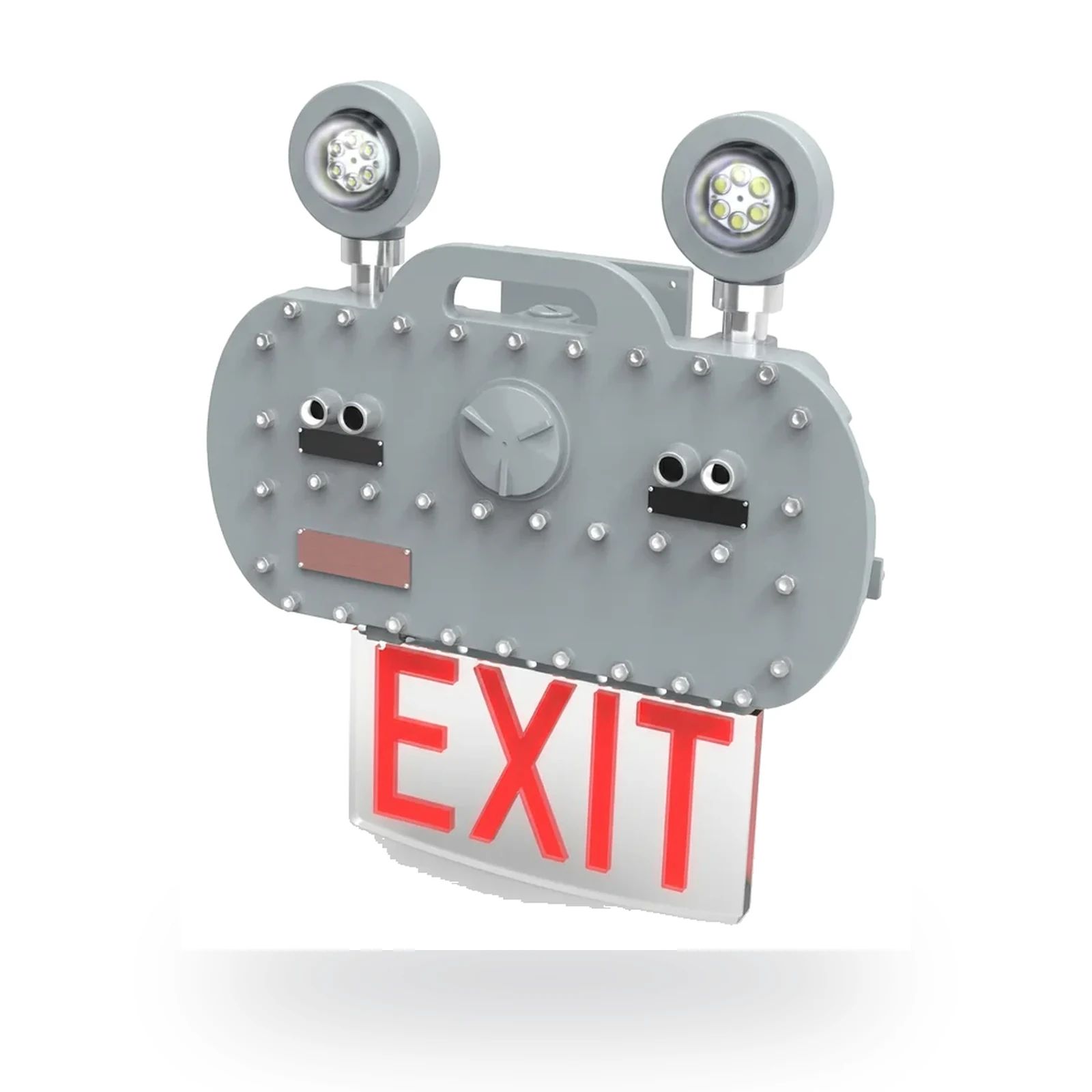

ES03 Emergency Light / Exit Sign
Rated power2 × 5 W spots · 3 to 5 W sign
Emergency backup3 hours
ProtectionIP66 / IK10
Emergency light, exit sign, or both · wall mount · UL 844, UL 924
Class I, Div 2

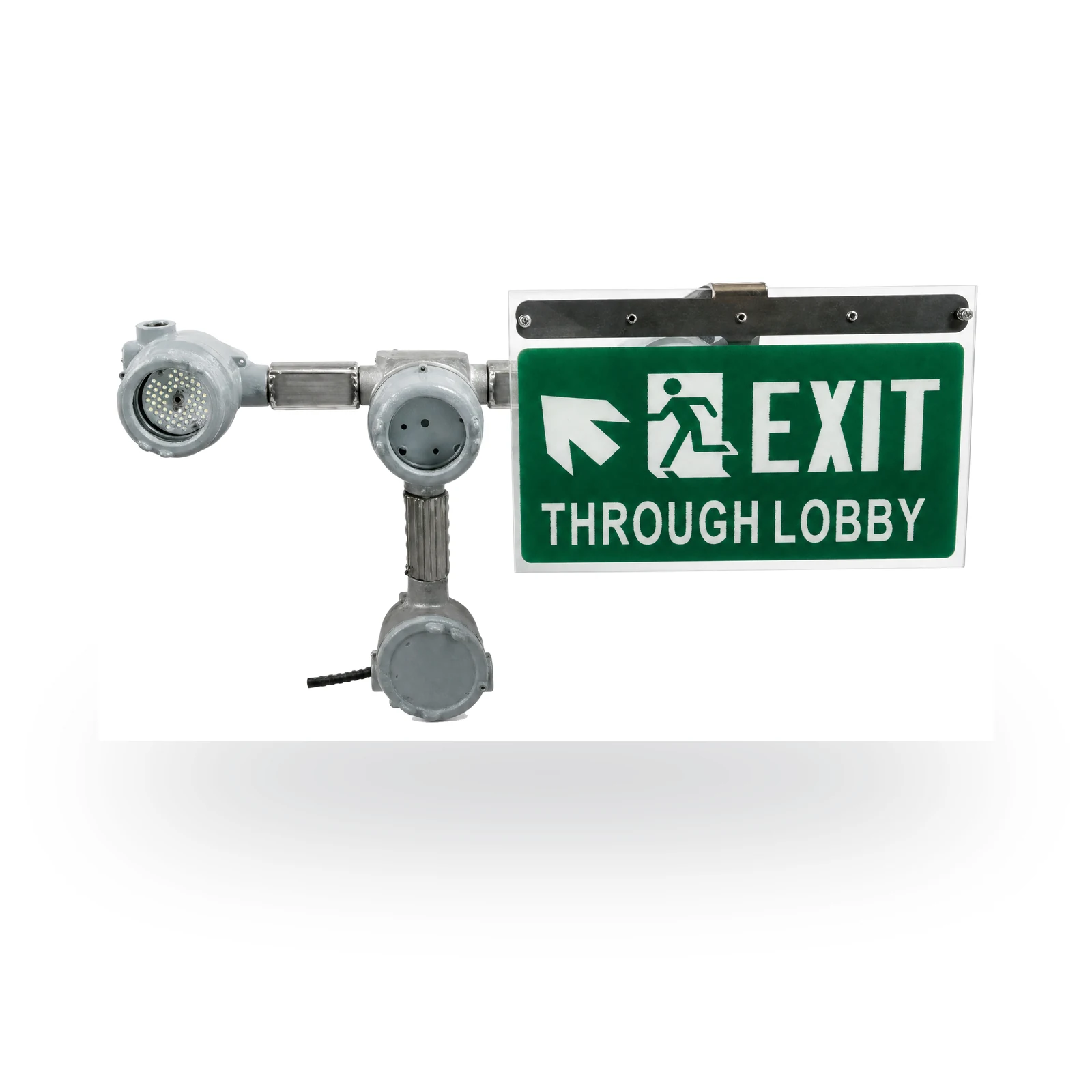

ES05 Exit Sign
Emergency backupUp to 1.5 hours
Ingress protectionIP66
Ambient temperature0 to +45 °C
Explosion-proof exit sign and bug-eye emergency fixture · extruded copper-free aluminum, powder coated
Class I, Div 2Class II, Div 1
V-Series Exit Sign
Rated power5 W
Emergency backup3 hours
Ingress protectionIP66
Edge-lit explosion-proof exit sign · pendant, wall or pipe mount · UL 844, UL 924
Class I, Div 2IES

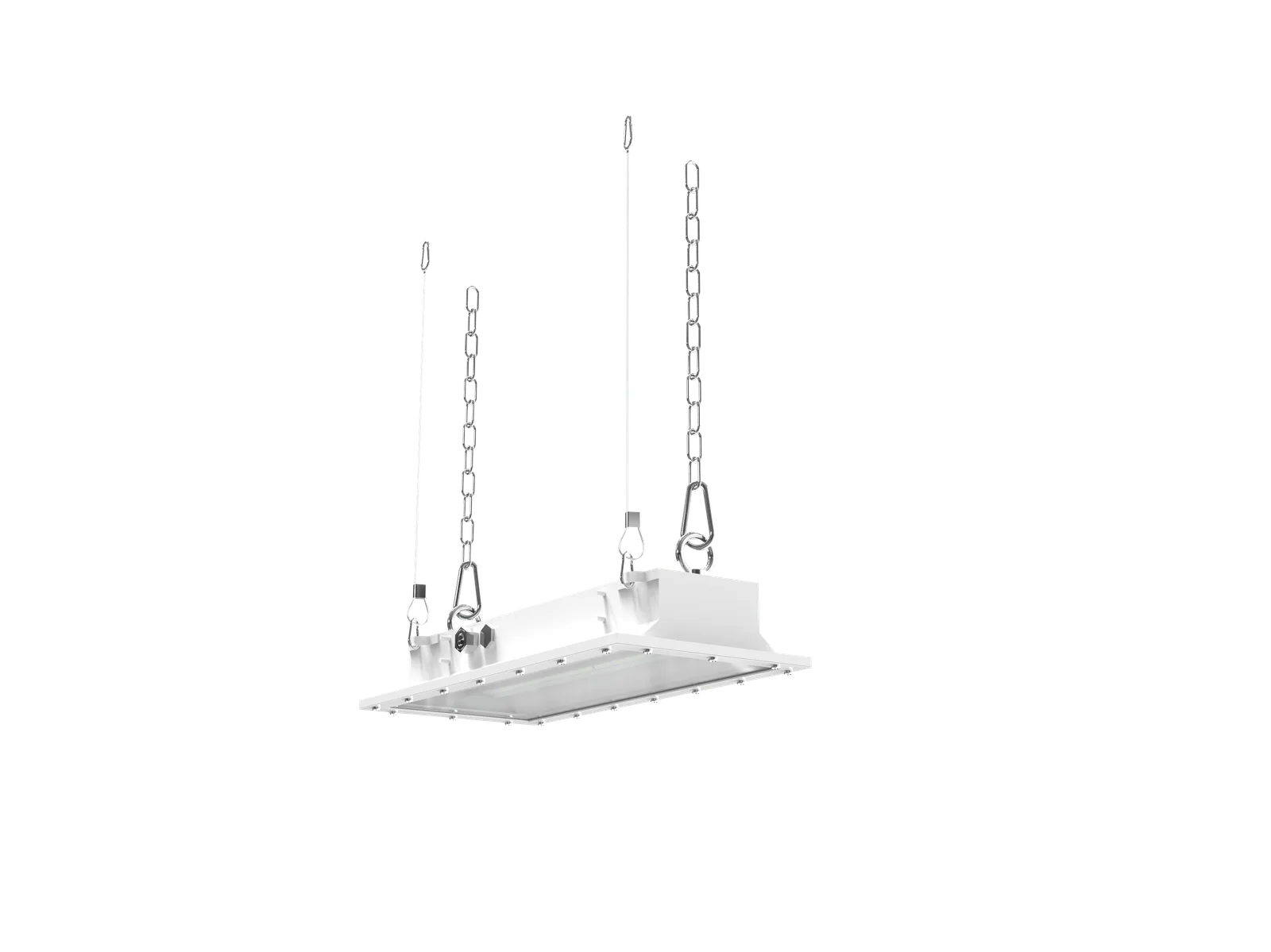

FLD Ceiling Pendant Paint Booth
Rated power15 to 200 W
Lumen output2,600 to 26,000 lm
ProtectionIP66 / IK10
130 lm/W · paint booth · emergency 3 hours · UL 844, UL 924, ETL, IECEx, ATEX · ceiling, pendant
Class I, Div 2IES
FLD Recessed Paint Booth
Rated power15 to 120 W
Lumen output1,950 to 15,600 lm
ProtectionIP66 / IK10
130 lm/W · recessed paint booth · emergency 3 hours · UL 844, UL 924, ETL, IECEx, ATEX
Class I, Div 2IES
EX-O2 Jam Jar
Rated power15 to 40 W
Lumen output1,500 to 4,000 lm
ProtectionIP66 / IK08
100 lm/W · 120-347 V · ceiling, pole, wall 90° or rotatable · UL 844, UL 1598, UL 8750
Class I, Div 2Class II, Div 1IES
STA1-STA2 Shoe Box
Rated powerUp to 240 W
Lumen output14,400 to 33,600 lm
ProtectionIP66 / IP67
120 to 140 lm/W · Zones 1, 2, 21, 22 · ATEX, IECEx · pole, trunnion, arm, slip fitter, bracket, stanchion
Every fixture ships with its spec sheet
Open on the product page, no form. IES photometric files on the product pages that have them, install guides on request.
Class and Division in three lines
Class I, Division 1
Flammable gases or vapours present in normal operation. Explosion-proof enclosures, Groups C and D, Group B on some series. EX-C, EX-S, EX-I, D3-D4 and ES03 series.
See the Class I, Division 1 pageClass I, Division 2
Flammable atmosphere only under abnormal conditions. Groups A, B, C, D. Most high bays, linears, floods, paint-booth and exit fixtures in the range.
See the Class I, Division 2 pageClass II, Division 1
Combustible dust: grain, coal, metal powders. Groups E, F, G. The same housings with dust-ignition-proof ratings.
See the Class II, Division 1 pageSend your Class, Division and fixture count.
A specialist replies within one business day with budgetary pricing, lead time and the spec match.
