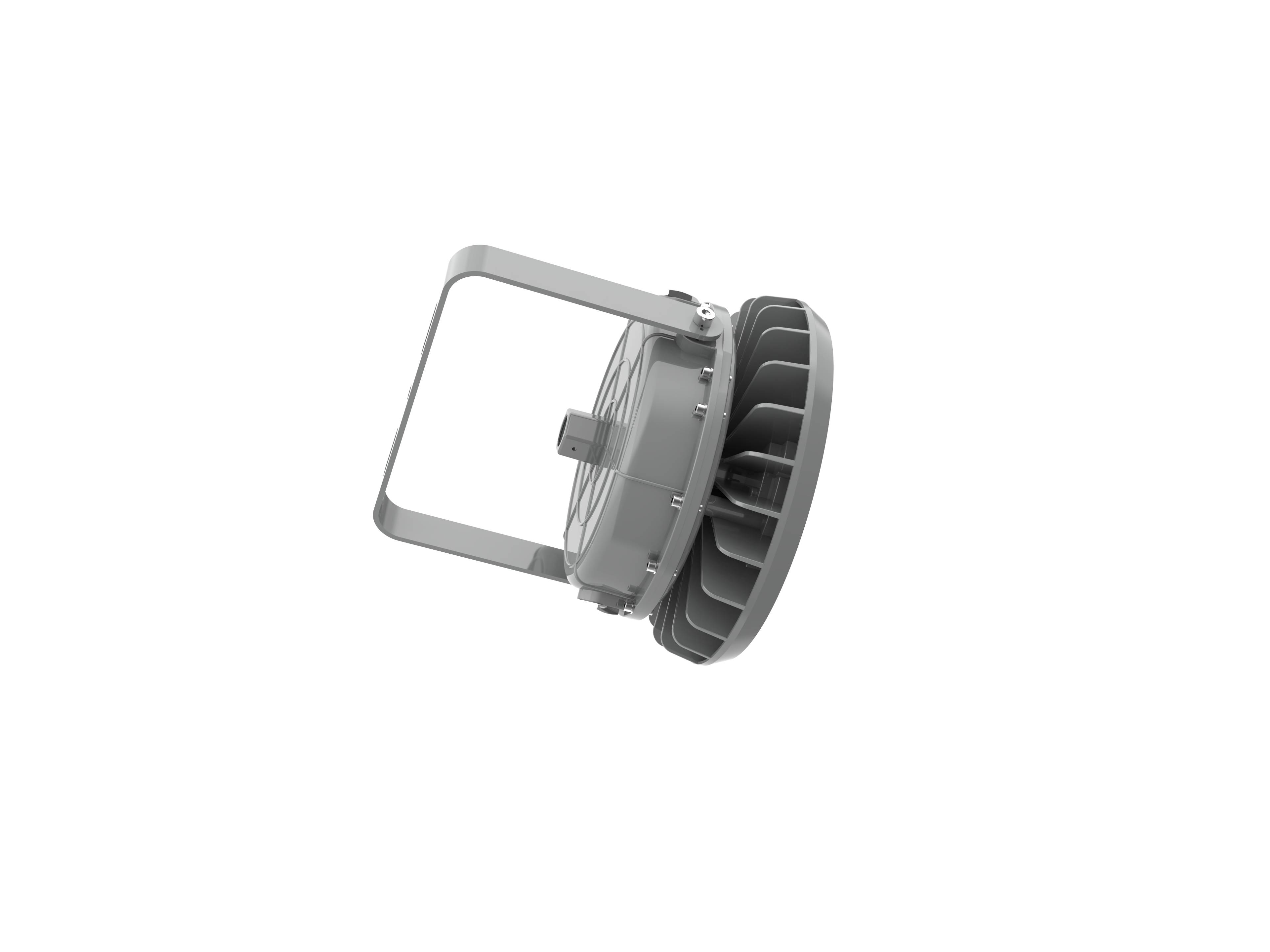

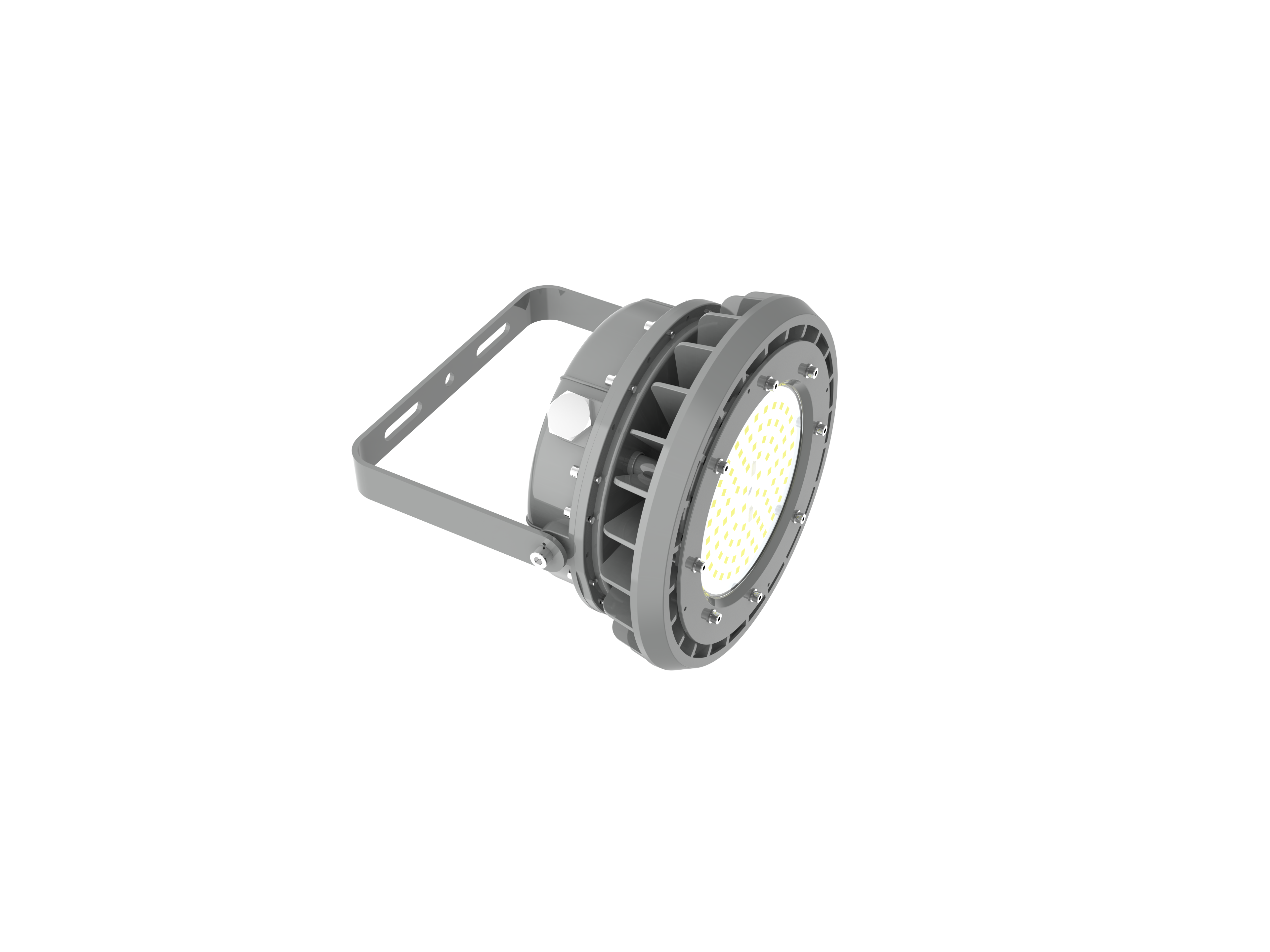

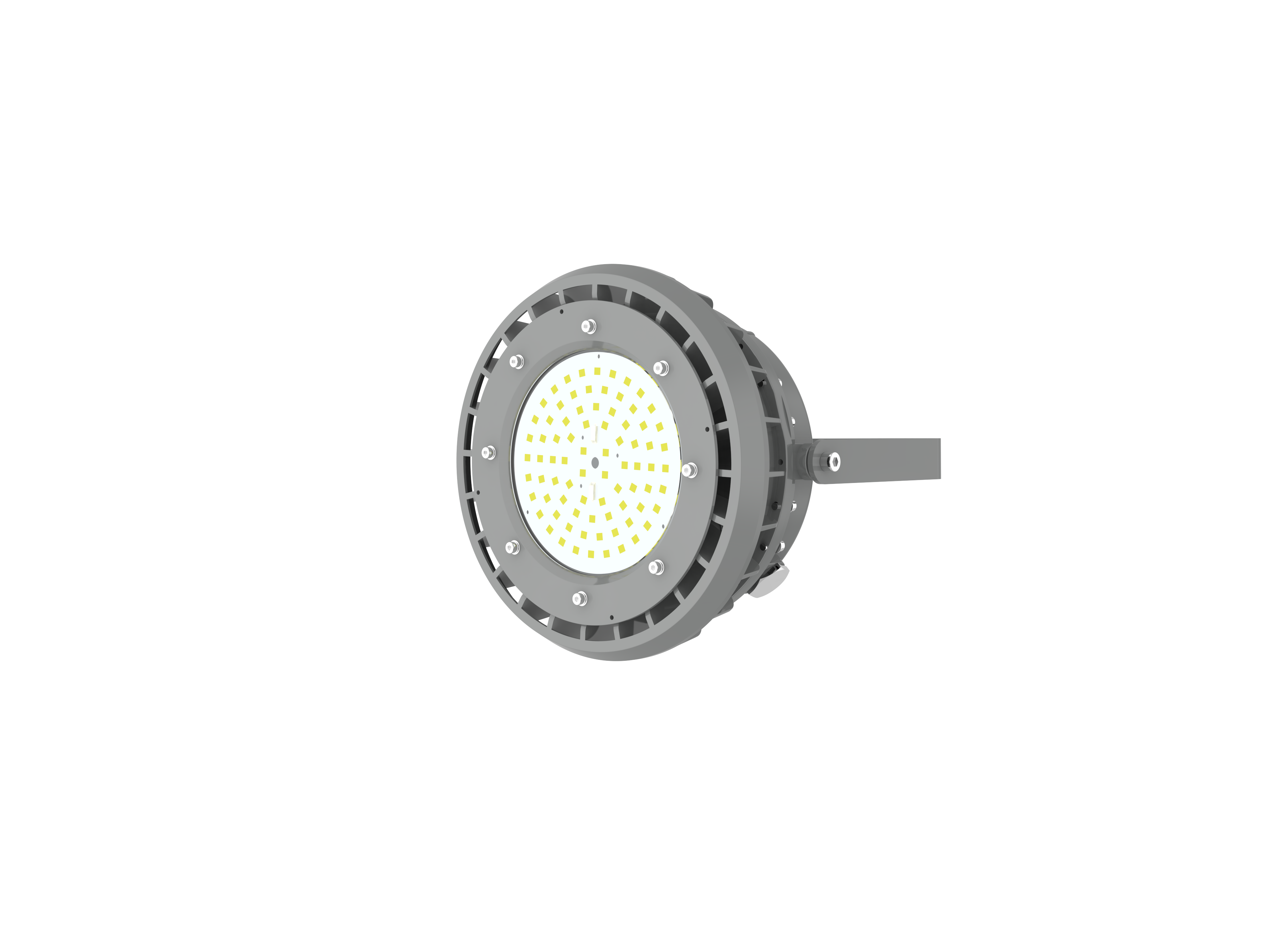

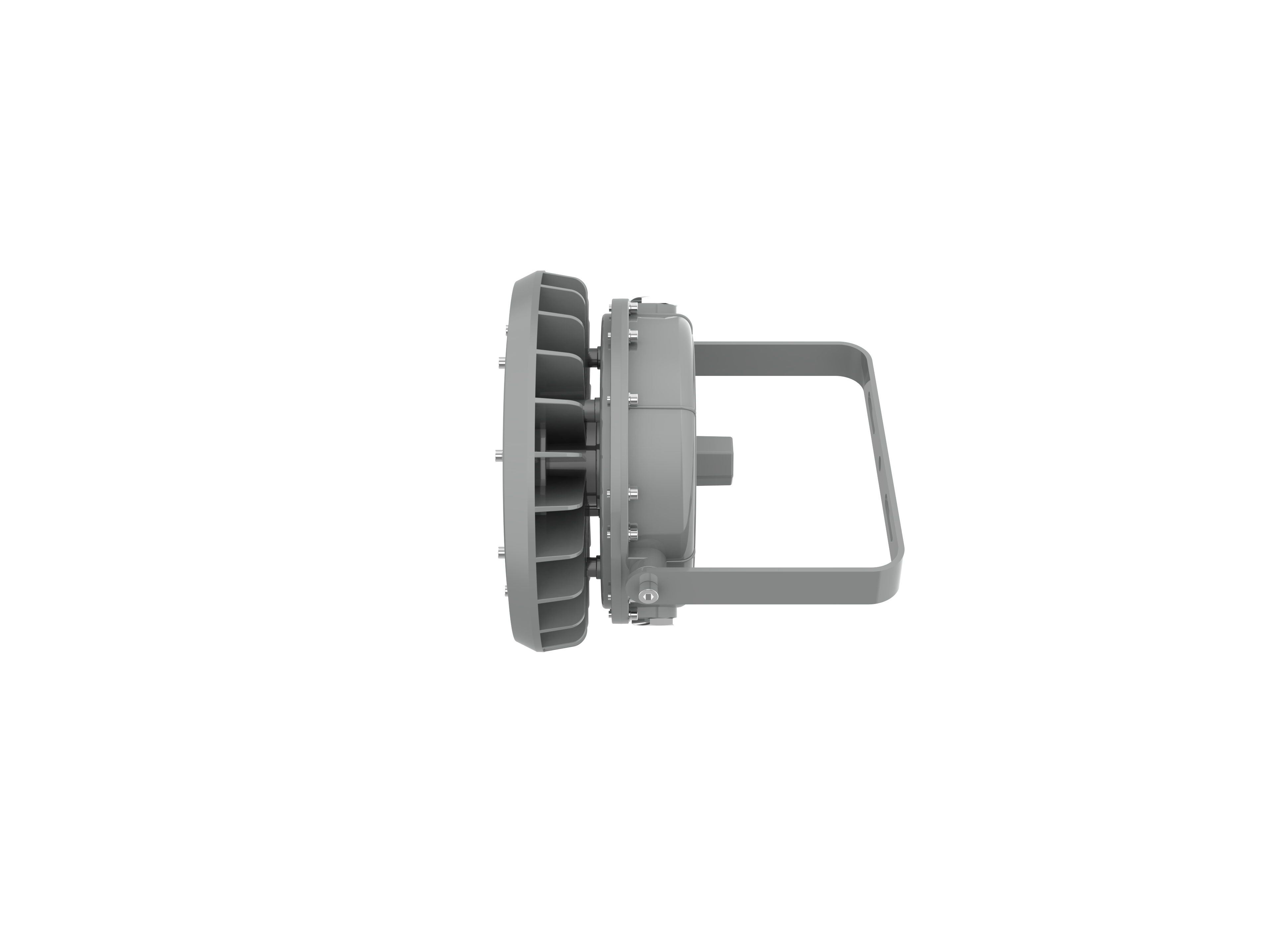

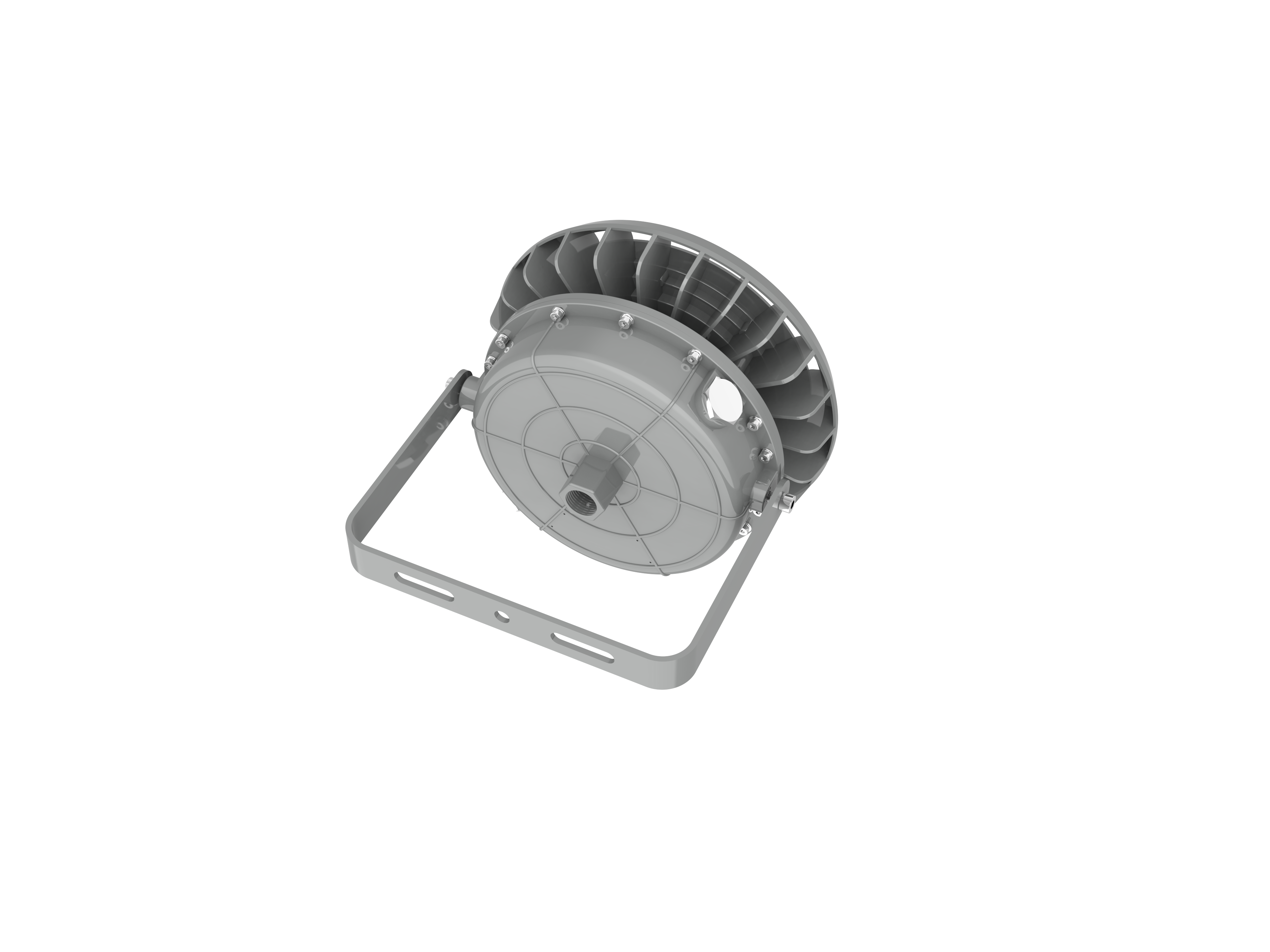

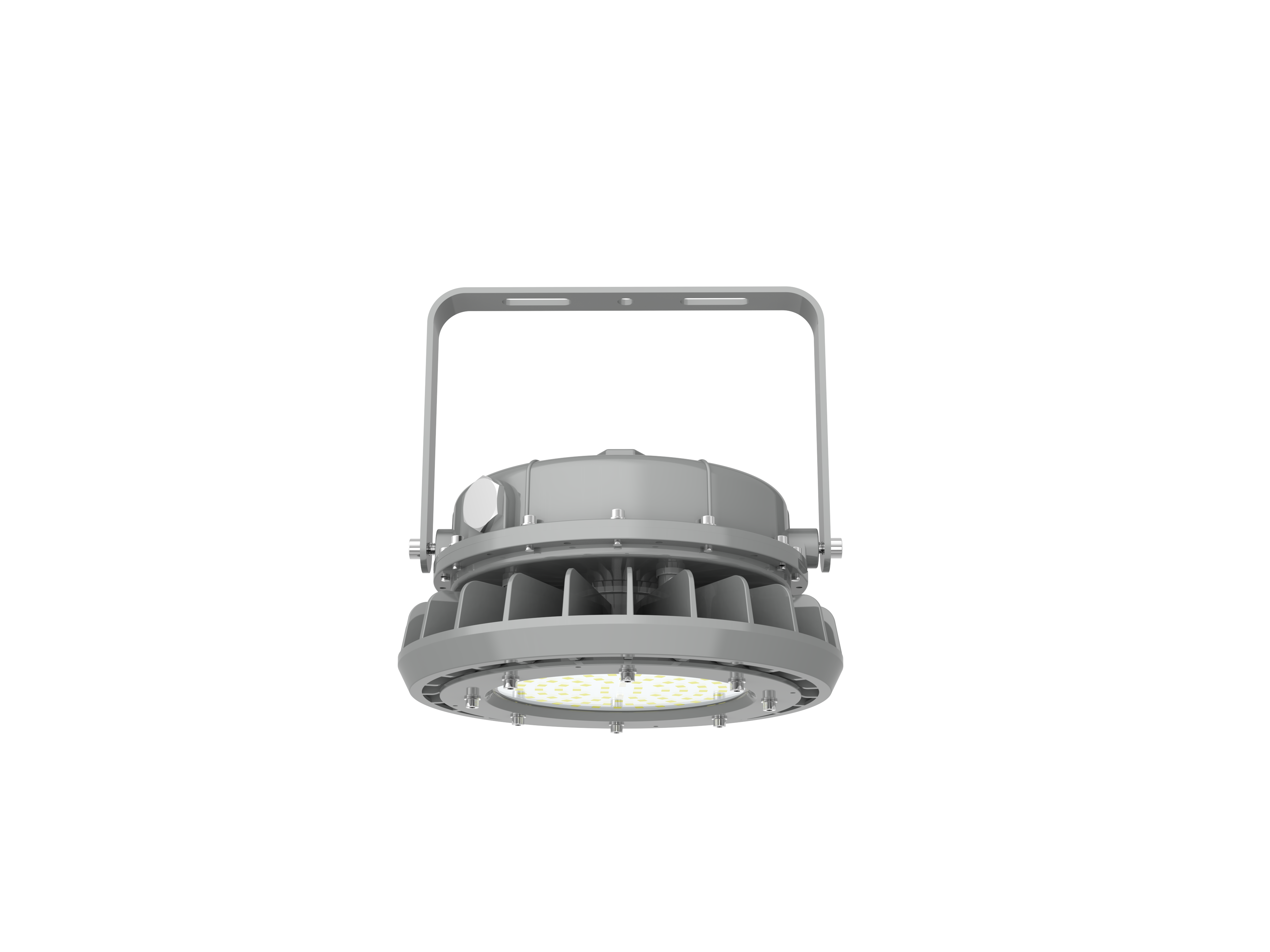

B1 / 6EX-B High Bay
Class I, Division 2 High Bay Low Bay
Up to 140 lm/W · UL 844, UL 1598, UL 924 · emergency option on 150 to 200 W · ceiling, wall, pendant, surface, stanchion
A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.
Key Features- 0-10V dimming
- High luminous efficacy - Up to 140 lumens per watt
- Battery backup function available
- Compact and robust structure, excellent reliability
Product Description
The B Series LED luminaire is an explosion-proof choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
Class I, Division 2 covers areas where flammable gases or vapours are present only under abnormal conditions, such as a leak or a ventilation failure. The Class II, Division 1 and 2 ratings extend the same housing to combustible-dust locations, and the Class III listing to ignitable fibres. Typical applications include marine and offshore installations, fuel and solvent handling, chemical processing and wastewater treatment.
For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.
Technical specifications
From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.
| Series | EX-B, four housing sizes, 20 to 400 W |
|---|---|
| Hazardous rating | Class I, Division 2, Groups A, B, C, D · Class II, Division 1, Groups E, F, G · Class II, Division 2, Groups F, G · Class III · Class I, Zone 2, Group IIC · Class II, Zone 21, Group IIIC |
| Listings and standards | UL 844 · UL 1598 · UL 1598A · UL 924 · DLC on listed variations · ATEX II 3G Ex ec IIC T6…T3 Gc · IECEx PCET 22.0008X (Zones 2, 21, 22) |
| Housing | Copper-free aluminum |
| Warranty | 5-year standard · L70 > 150,000 hours at 55 °C |
| Rated power | 20 to 400 W across four housing sizes (see the ordering guide) |
|---|---|
| Input voltage | 120-277 V AC · 100-277 V AC on Zone 2 models |
| Lumen output | 2,600 to 52,000 lm |
| Efficacy | Up to 140 lm/W |
| Colour temperature | 3000 K to 6500 K |
| CRI | > 70 |
| Dimming | 0-10 V, optional |
| Emergency backup | Optional on 150 to 200 W models |
| Mounting | Ceiling, wall, stanchion 25°, pendant, surface |
|---|---|
| Diffuser / lens | Flat or convex, glass or polycarbonate |
| Beam angle | 40°, 60°, 90°, 120°, T2, T3, T5 |
| Ingress protection | IP66 |
|---|---|
| Impact rating | IK08 · IK10 with wire guard |
| Ambient temperature | −40 °C to +40 / +50 / +55 / +60 / +65 °C by model · T3: −40 °C to +55 °C on Zone 2 models |
Class I, Division 2 area, site photographyDownloads
Photometric Files (IES)
IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 31 IES files
B
B2
B3
B4
