PENDANT1 / 3FLF Linear
Class I, Division 2 Linear
120 to 140 lm/W · four lengths · UL 844, CSA C22.2 No. 137, ETL · pole, hook, wall, pendant
A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.
Key Features- ●High luminous efficacy - Up to 120-140 lumens per watt
- ●Beam angles are optional from 40°, 60°, 90°, and 120°
- ●Smooth housing for easy cleaning
- ●Emergency model optional - 1.5 hours emergency time
Product Description

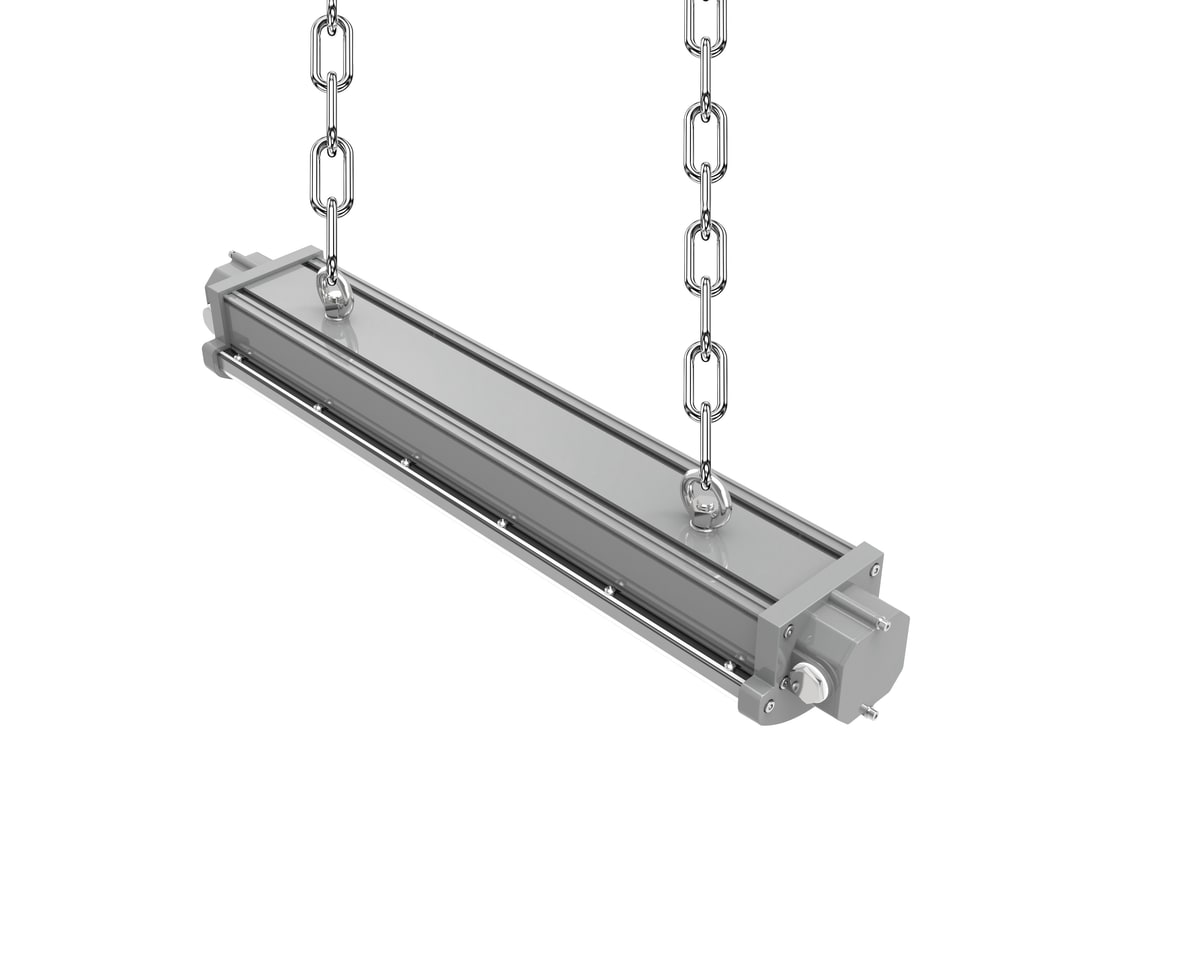

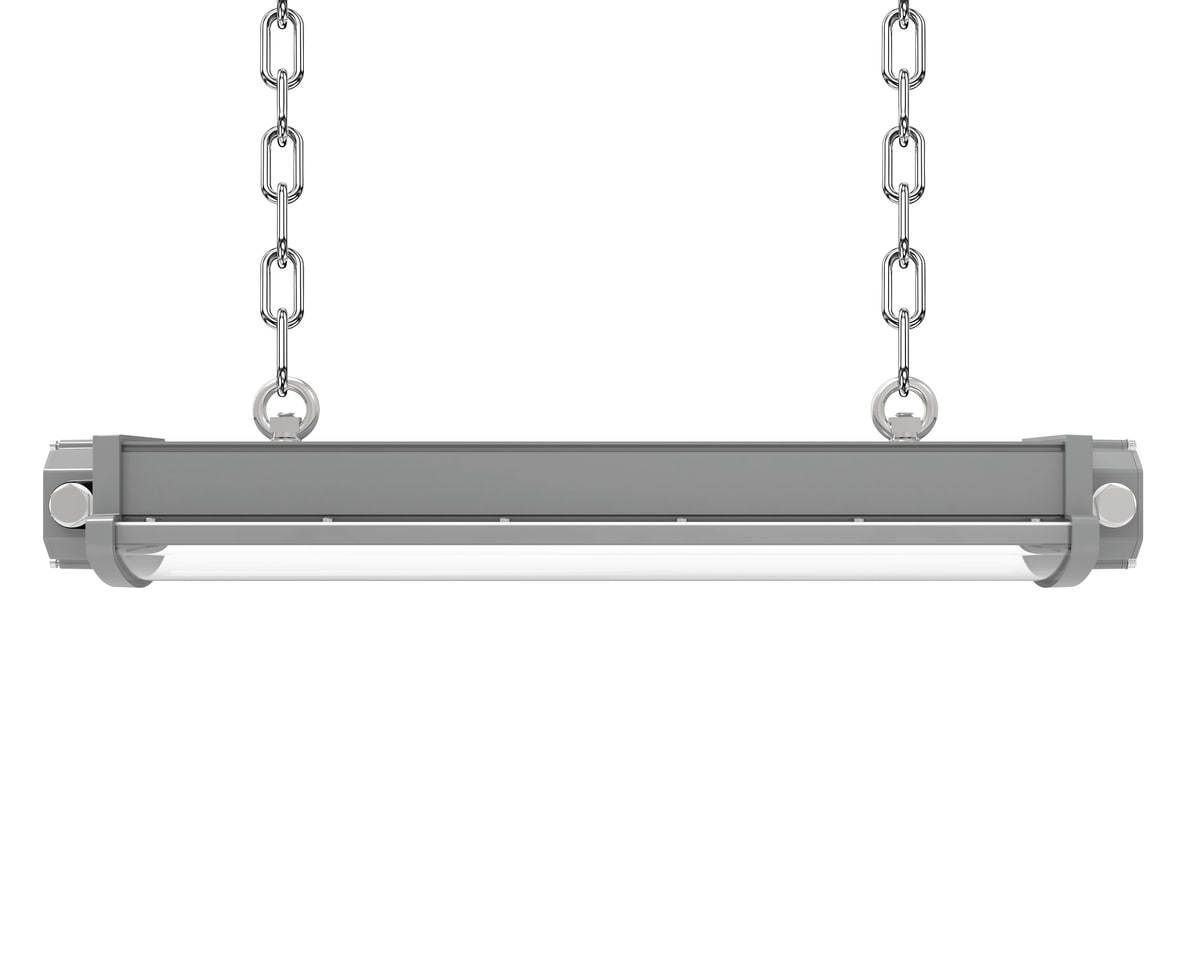

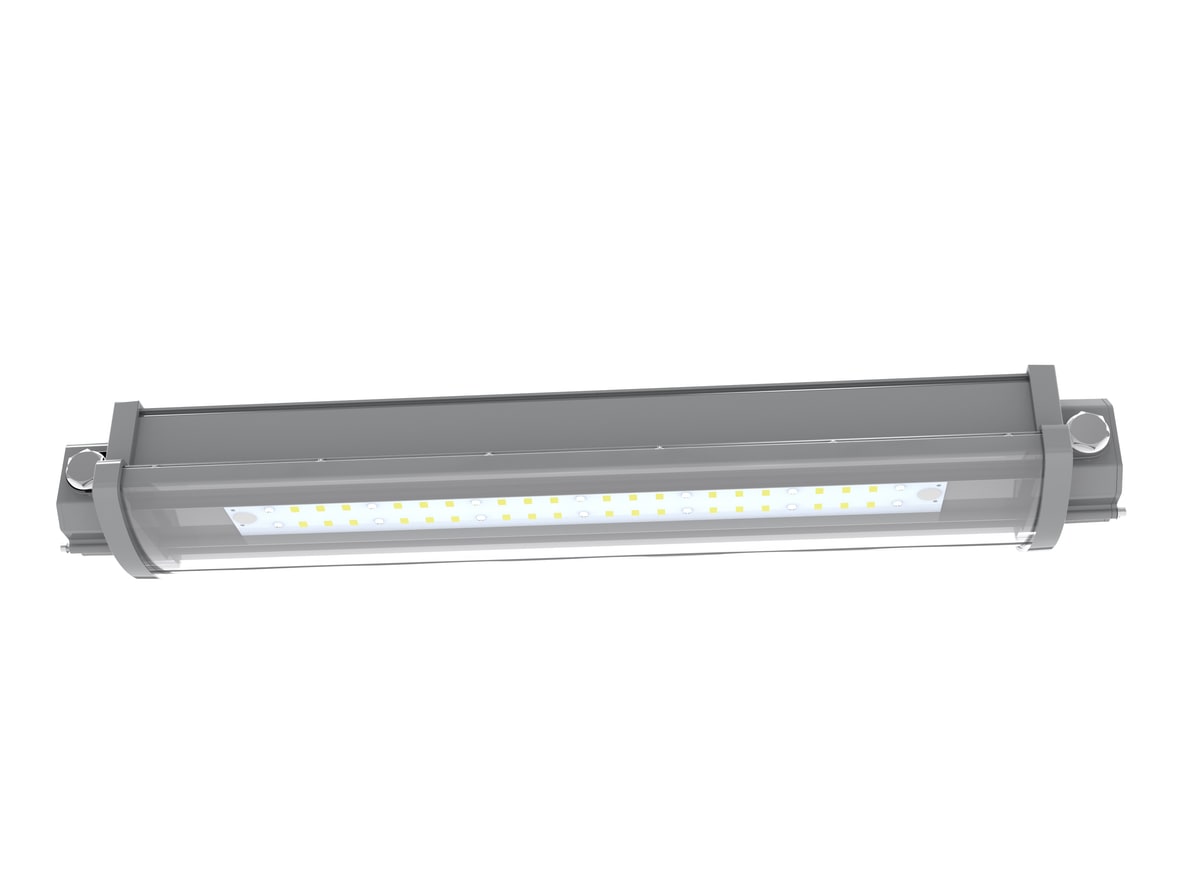

The FLF Series LED fixture is an explosion-proof choice for marine and hazardous applications requiring a linear design. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected. Features two wiring accesses on each side of the fixture, wiring is available from both side, which means that it is more flexible to meet different installation requirements, such as multiple lamps installed side by side. Additionally, the lamp can be directly powered from the mains electricity.
Class I, Division 2 covers hazardous gas and vapor environments where ignitable concentrations are present only under abnormal conditions — typical applications include oil & gas processing, paint booths, chemical handling, cannabis extraction, and pharmaceutical manufacturing.
For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.
Technical specifications
From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.
| Series | FLF, four lengths |
|---|---|
| Hazardous rating | Class I, Division 2, Groups A, B, C, D · Class I, Zone 2, Group IIC |
| Listings and standards | UL 844 · UL 924 · CSA C22.2 No. 141-15 · CSA C22.2 No. 137:2018 · ABS · ETL |
| Housing | Aluminum 6063, smooth for easy cleaning |
| Warranty | 5-year standard · L70 > 150,000 hours at 55 °C |
| Rated power | 20 to 40 W · 20 to 60 W · 20 to 80 W · 20 to 100 W, by length |
|---|---|
| Input voltage | 100-277 V AC |
| Lumen output | 2,400 to 14,000 lm |
| Efficacy | 120 to 140 lm/W |
| Colour temperature | 2700 K to 6500 K |
| CRI | > 70 |
| Dimming | 0-10 V |
| Emergency backup | Optional, 1.5 hours |
| Mounting | Pole, hook, wall, pendant, surface |
|---|---|
| Diffuser / lens | PMMA chip lens |
| Beam angle | 40°, 60°, 90°, 120° |
| Notes | Wiring from either end of the fixture |
| Ingress protection | IP66 |
|---|---|
| Impact rating | IK10 · 500 hours salt spray |
| Ambient temperature | T5: −40 °C to +40 °C · T4: −40 °C to +55 °C |
Class I, Division 2 area, site photographyDownloads
Photometric Files (IES)
IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 9 IES files
FLF2
FLF4
