A21 / 8FLG Linear
Class I, Division 2 Linear
IP66 / IK10 · adjustable power and CCT · emergency 1.5 hours · ceiling, pole, guide rail
A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.
Key Features- Fixed mounting bracket for easy installation.
- Cable entry on the top
- Excellent quality optics, longer installation distance between luminaires for lower costs.
- One wiring access cover with captive screws on both sides.
Product Description

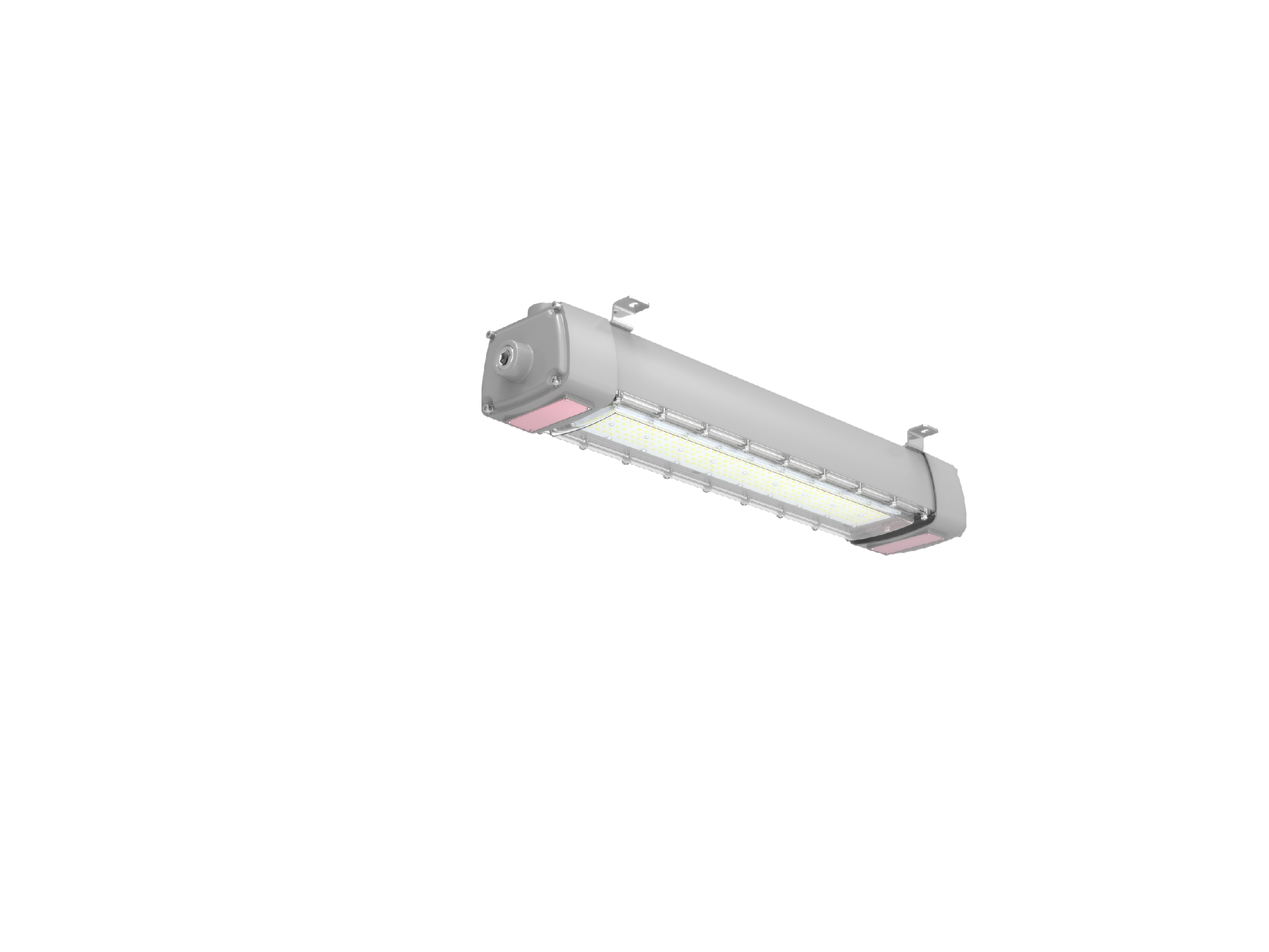

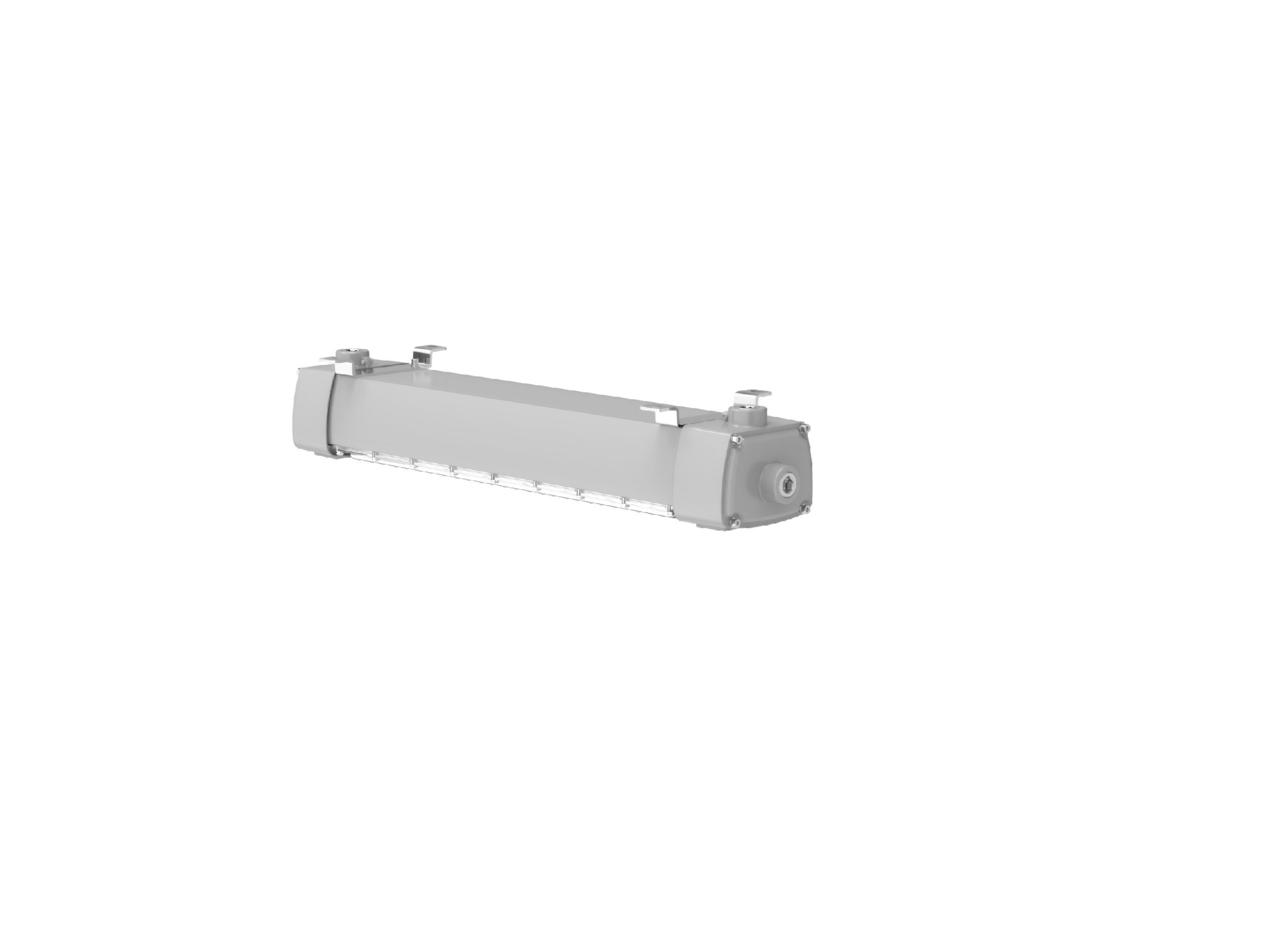

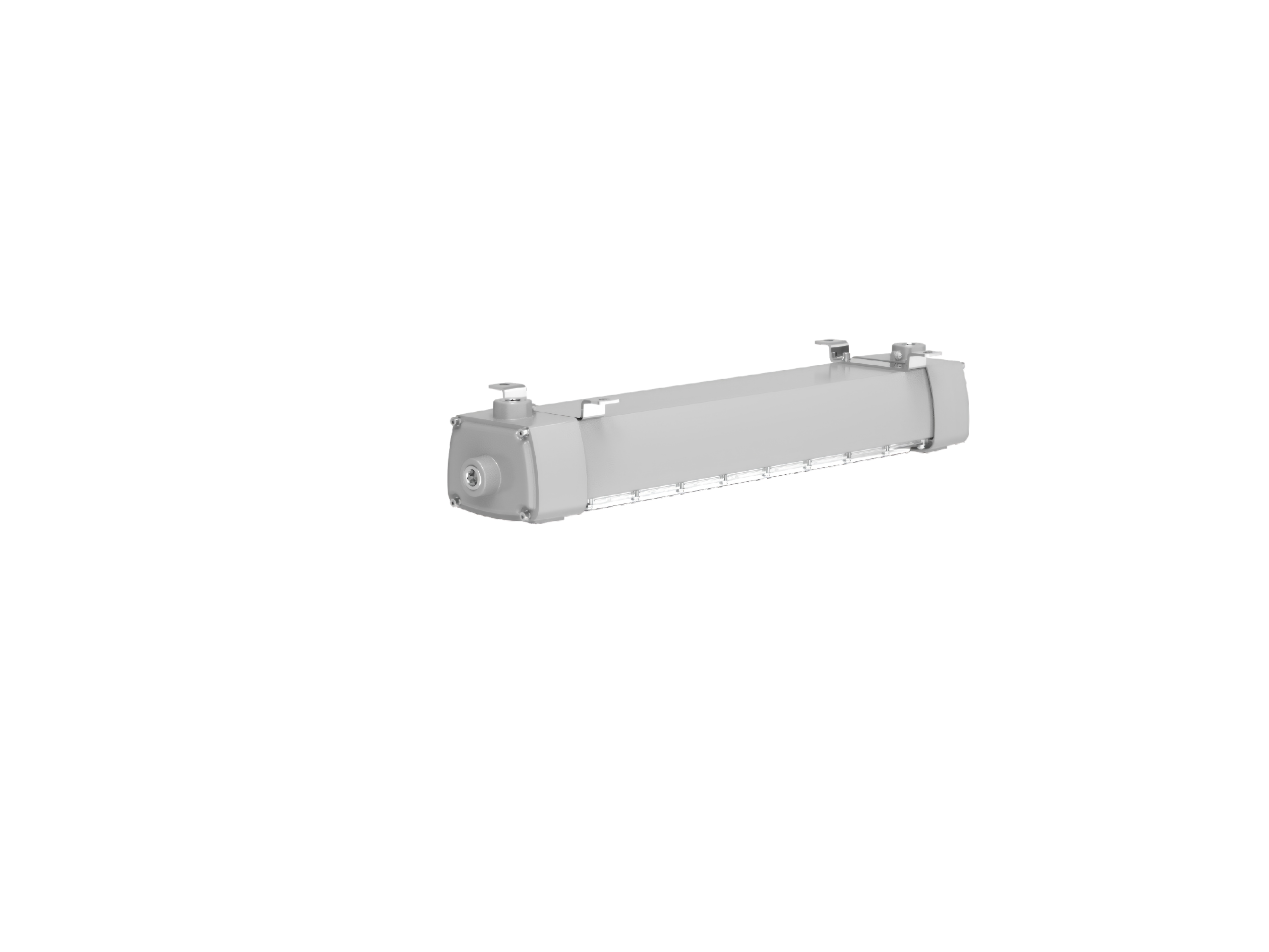

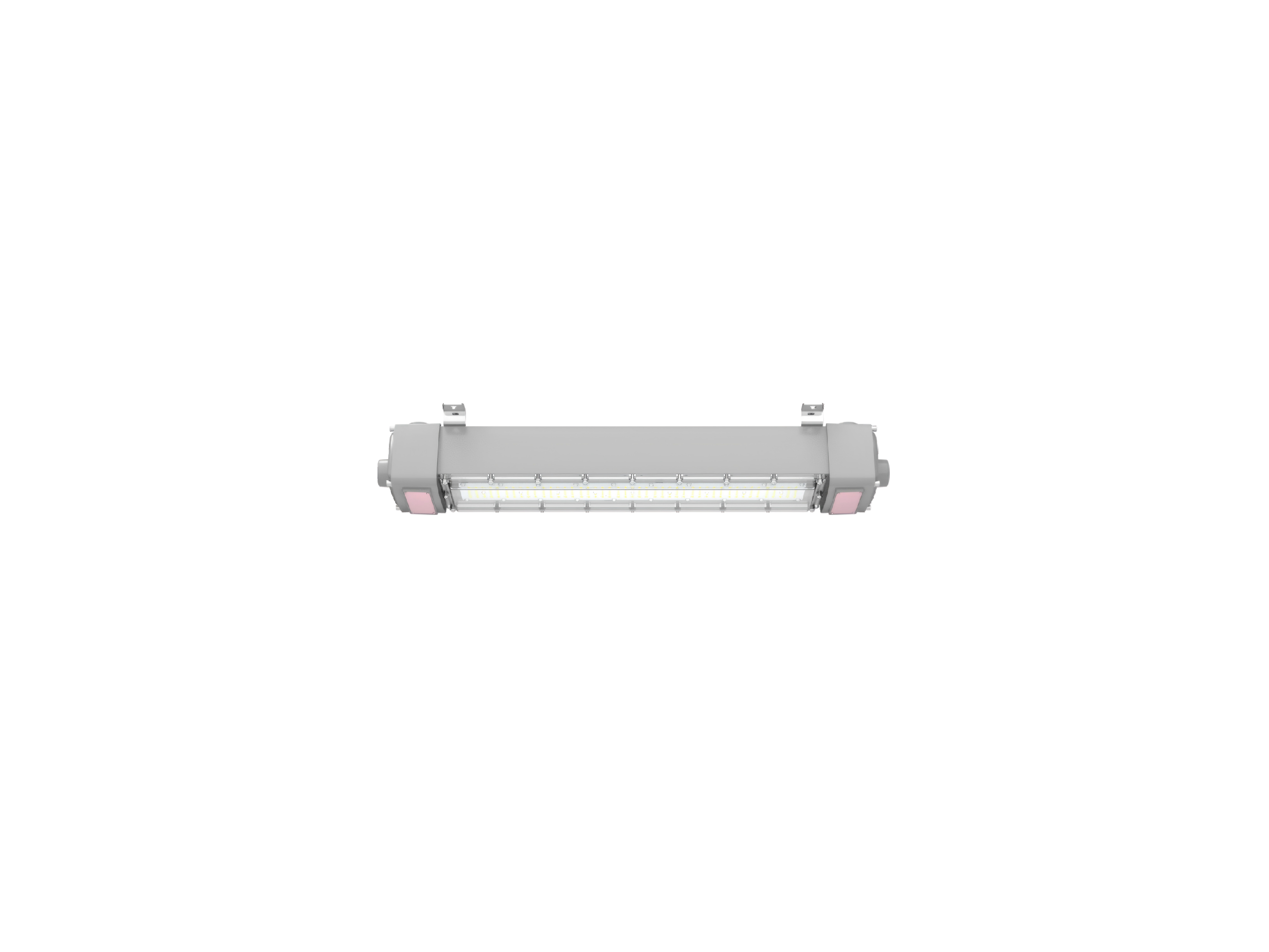

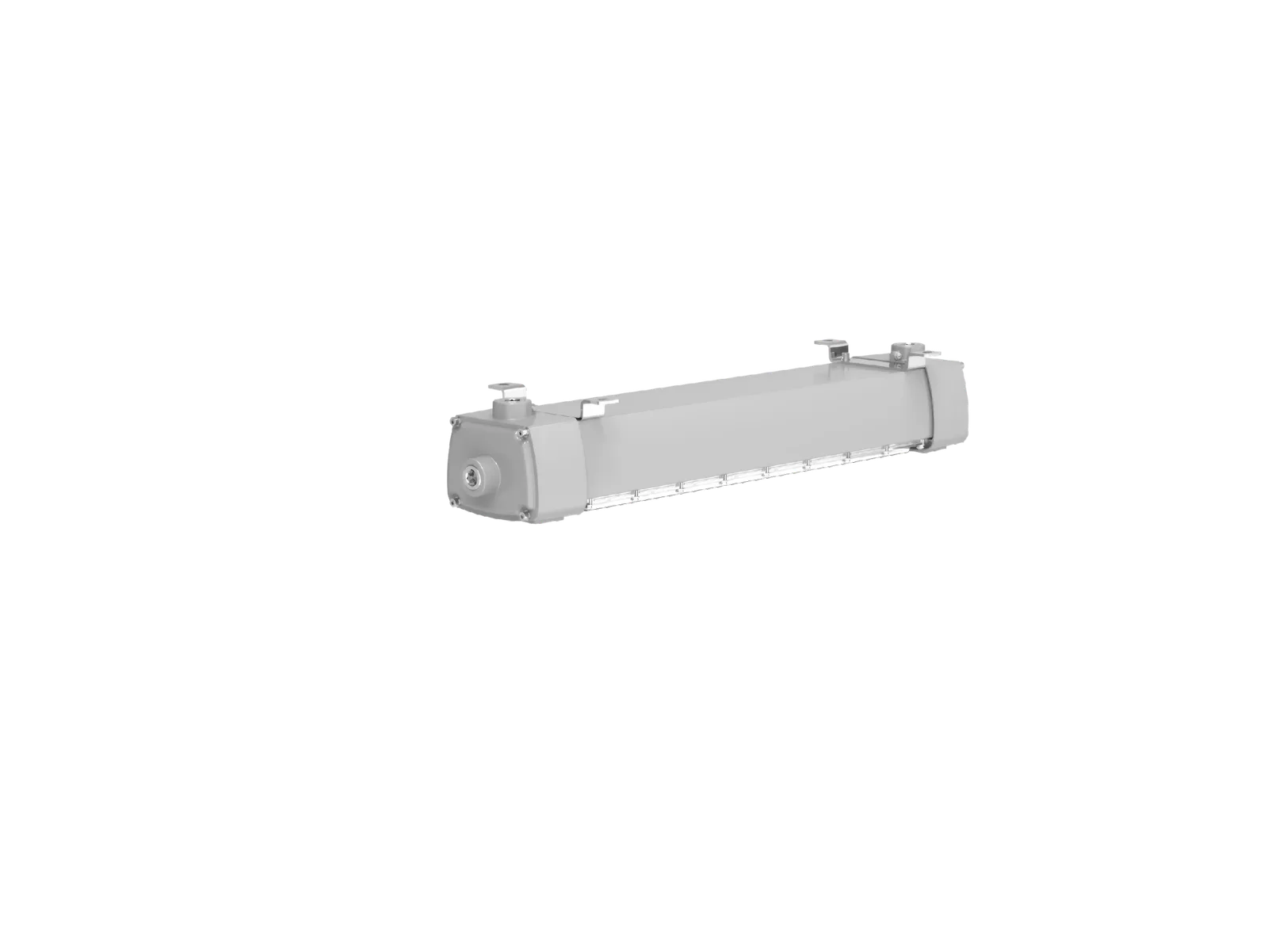

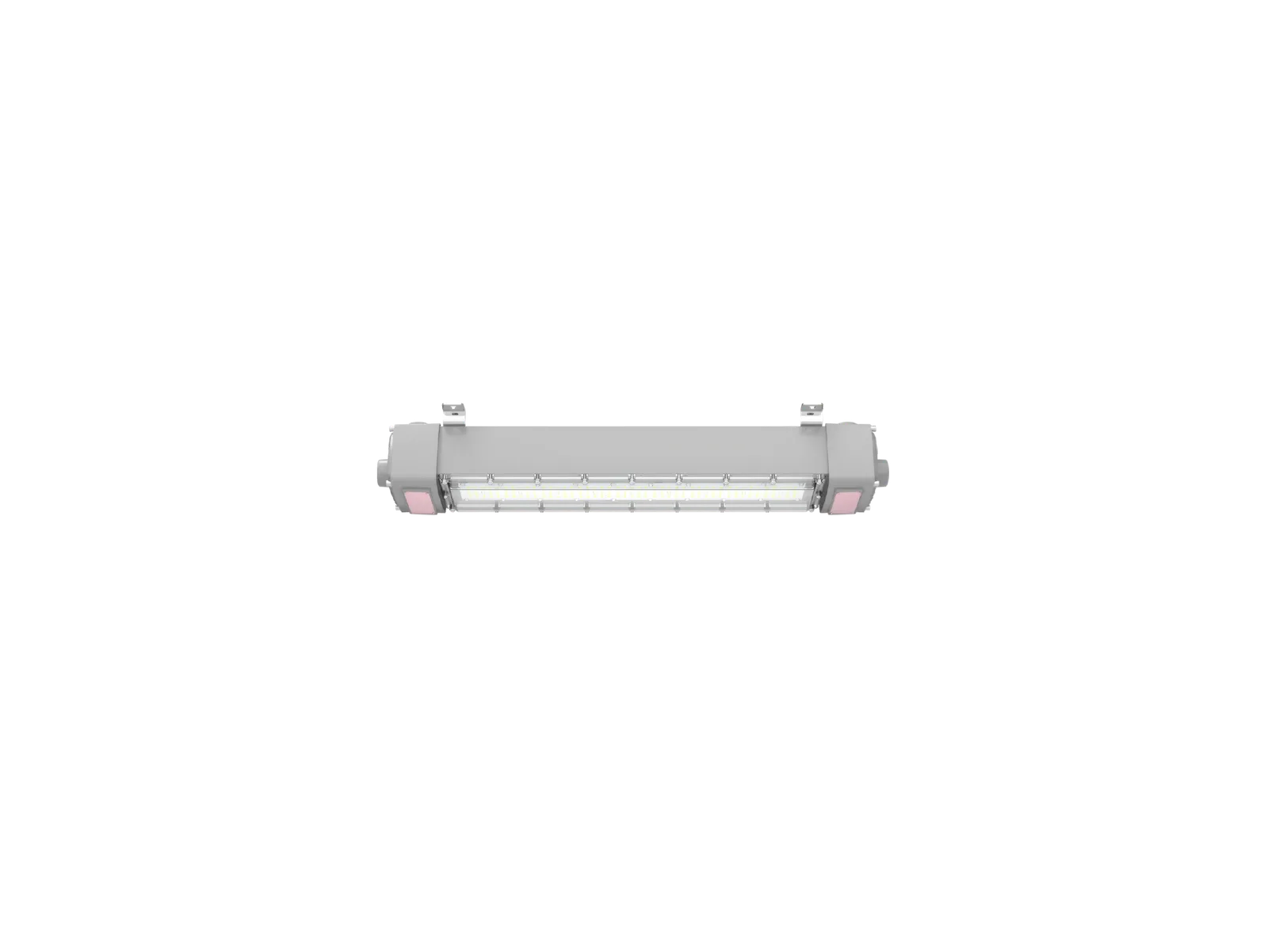

The EX-FLG series LED fixture is an explosion-proof choice for hazardous applications requiring a linear design. It is designed to be installed in areas where flammable gases, vapors, or dusts are expected to create a risk of explosion or fire.
Class I, Division 2 covers hazardous gas and vapor environments where ignitable concentrations are present only under abnormal conditions — typical applications include oil & gas processing, paint booths, chemical handling, cannabis extraction, and pharmaceutical manufacturing.
For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.
Technical specifications
From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.
| Series | EX-FLG2 (40 to 75 W), EX-FLG4 (60 to 140 W) |
|---|---|
| Hazardous rating | Class I, Division 2, Groups A, B, C, D |
| Listings and standards | UL 844 · 500 hours salt spray |
| Housing | Aluminum |
| Warranty | 5 years · L70 > 71,000 hours at 25 °C |
| Rated power | FLG2: 40 to 75 W · FLG4: 60 to 140 W, adjustable |
|---|---|
| Input voltage | 100-277 V, 100-347 V or 200-480 V AC |
| Lumen output | FLG2: 7,400 to 12,500 lm · FLG4: 19,000 to 25,000 lm |
| Efficacy | 175 lm/W |
| Colour temperature | 4000 K, 5000 K, 6000 K, adjustable |
| CRI | Ra 70 |
| Dimming | 0-10 V, optional |
| Emergency backup | Yes, 8 W, 1.5 hours |
| Mounting | Ceiling, pole, guide rail |
|---|---|
| Diffuser / lens | Polycarbonate |
| Beam angle | 120° |
| Ingress protection | IP66 |
|---|---|
| Impact rating | IK10 |
| Ambient temperature | T6: −40 °C to +40 °C · T5: +50 °C · T4: +55 °C · emergency 0 °C to +55 °C |
Class I, Division 2 area, site photographyDownloads
Photometric Files (IES)
IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 18 IES files
FLG2
FLG4
