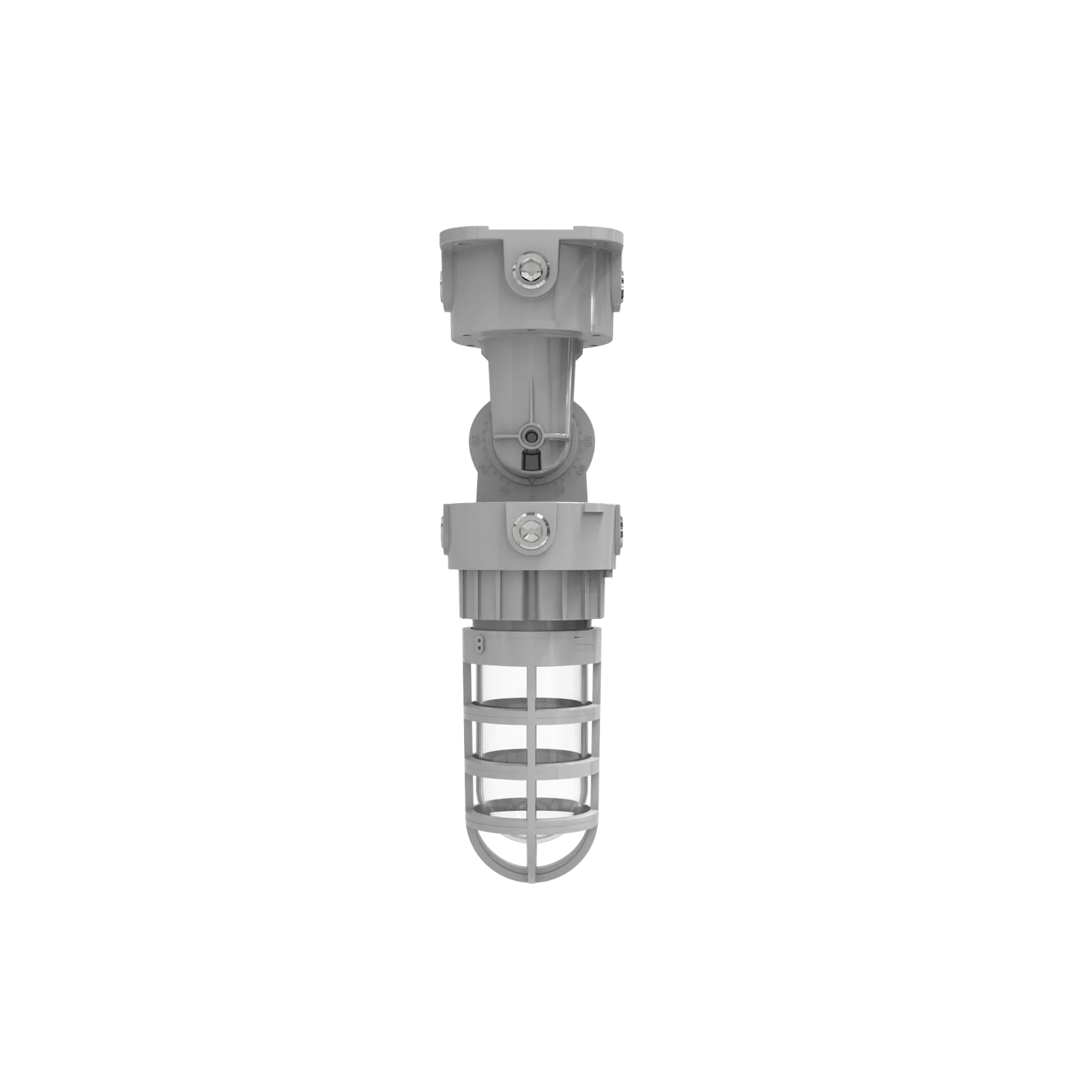

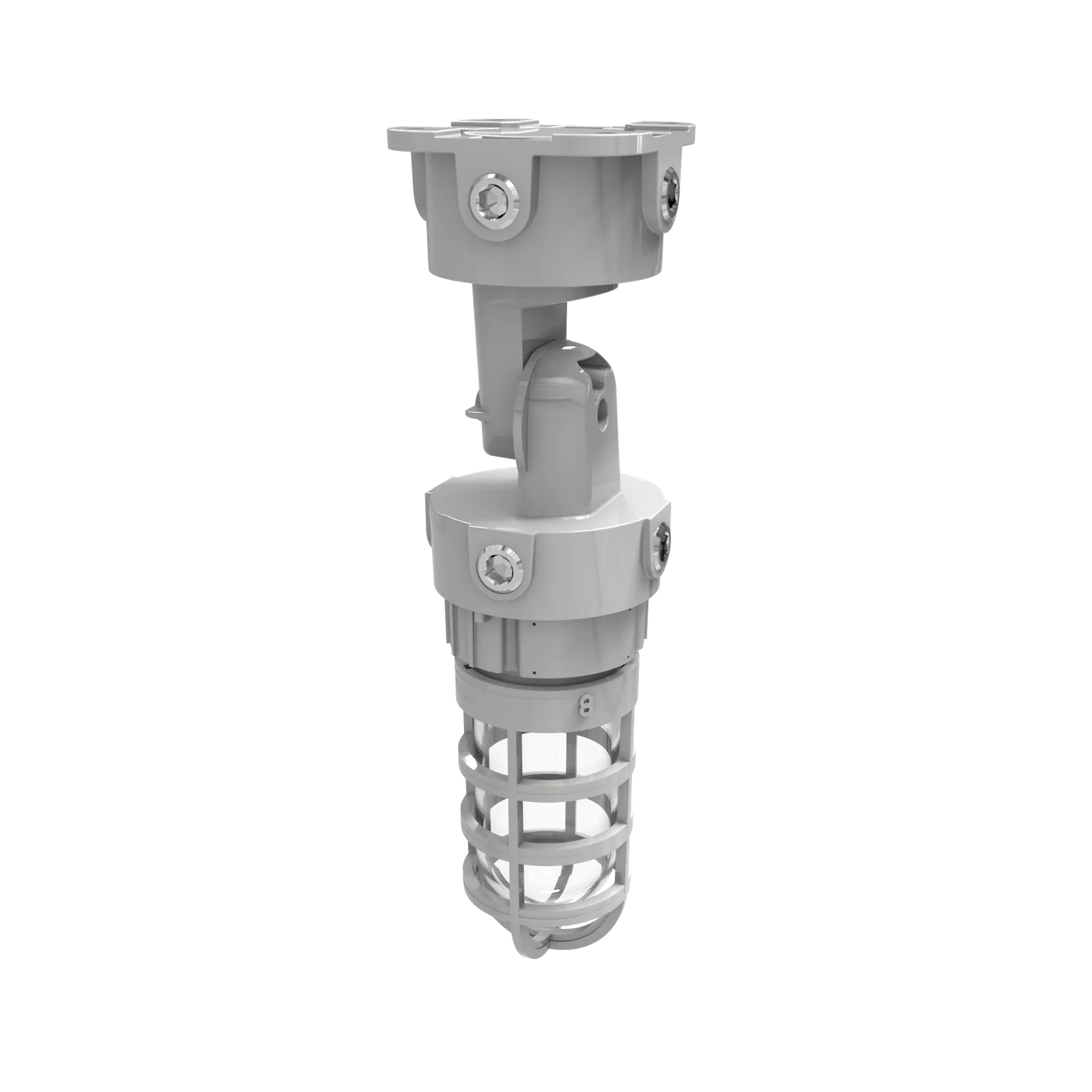

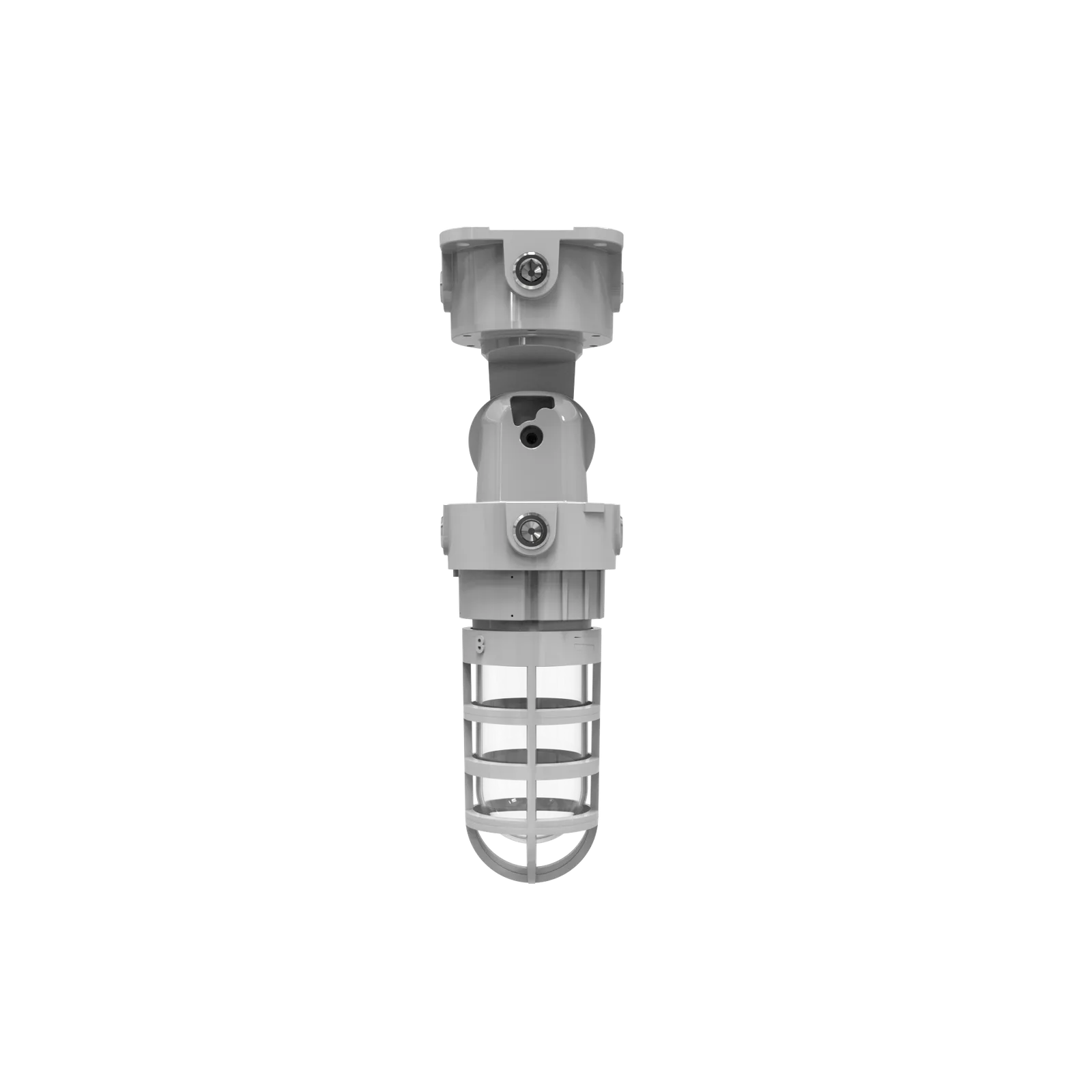

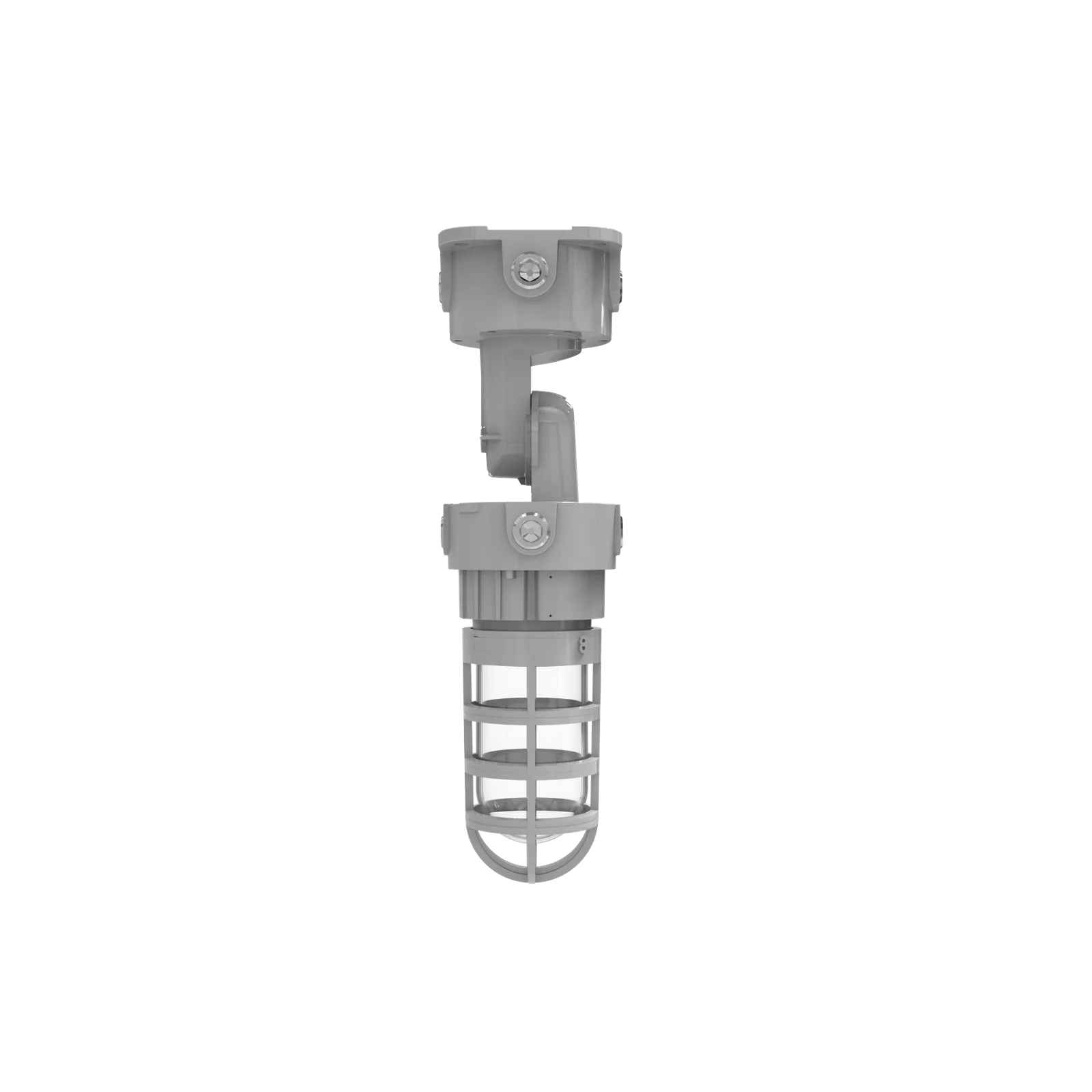

O21 / 10EX-O2 Jam Jar
Class I, Division 2 Jam Jar
100 lm/W · 120-347 V · ceiling, pole, wall 90° or rotatable · UL 844, UL 1598, UL 8750
A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.
Key Features- Metal guard included for additional protection
- Tempered glass lens and PC lens optional. Tempered glass lens available in different colors

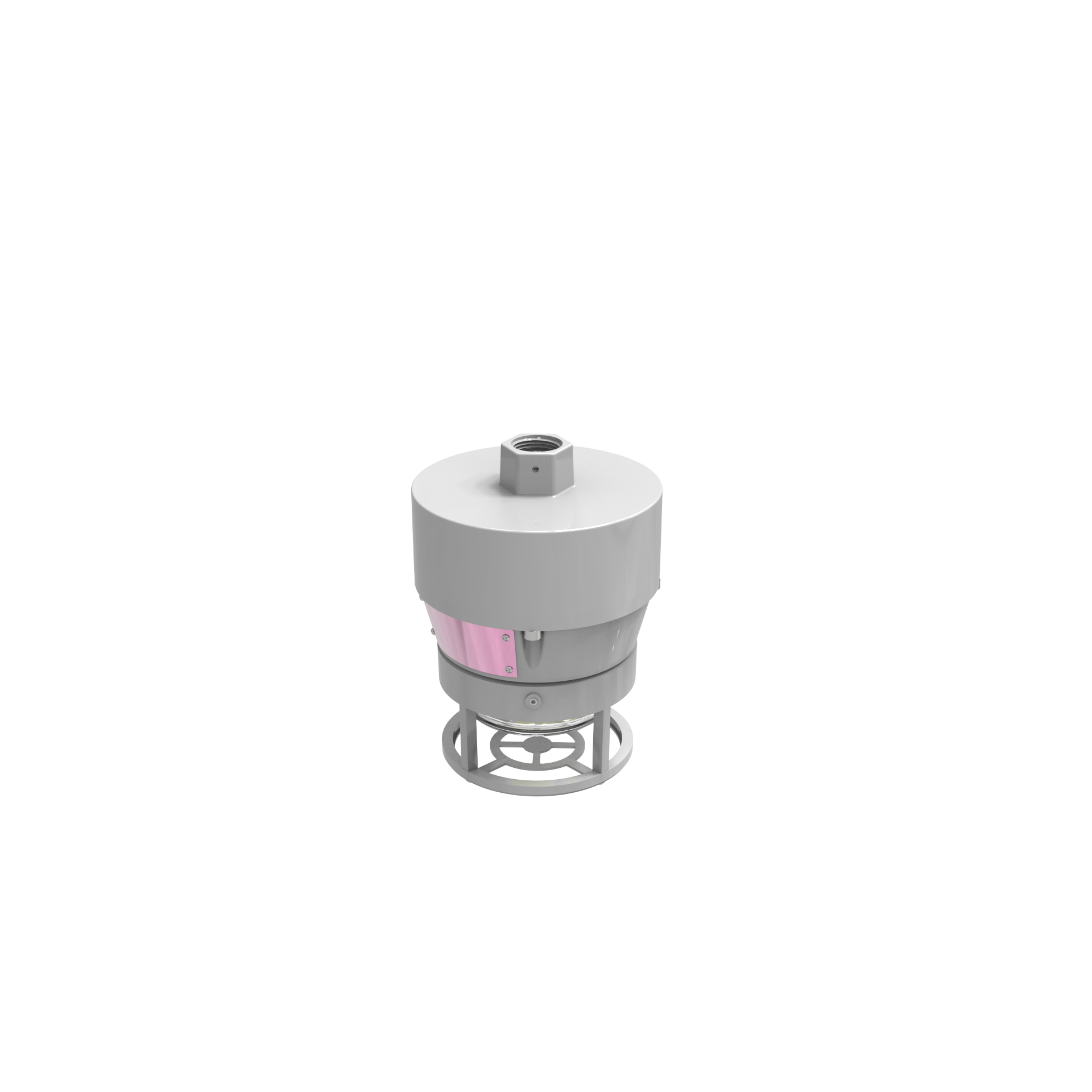

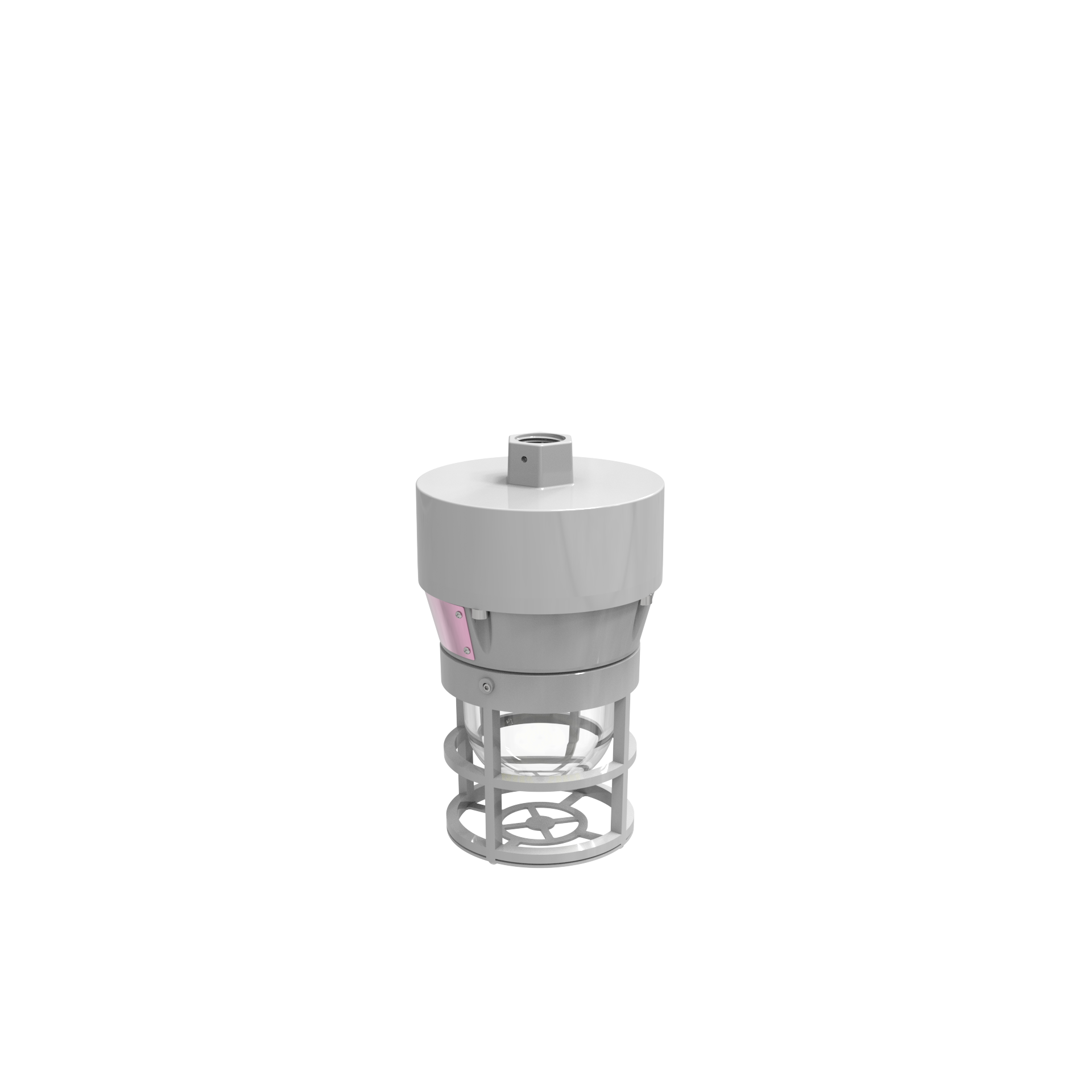

- Three options of length: long, medium, short
- Compact structure, small size and light weight design for easy installation
Product Description
The EX-O2 Series LED luminaire is an explosion-proof, vapor-tight choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected. Compact structure and small size, ideal for use in various places where spot light is required, such as mine, brewery, aisle, etc.
Class I, Division 2 covers hazardous gas and vapor environments where ignitable concentrations are present only under abnormal conditions — typical applications include oil & gas processing, paint booths, chemical handling, cannabis extraction, and pharmaceutical manufacturing.
For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.
Technical specifications
From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.
| Series | EX-O2 jam jar |
|---|---|
| Hazardous rating | Class I, Division 2, Groups A, B, C, D |
| Listings and standards | UL 844 · UL 1598 wet locations · UL 1598A marine outside type · UL 8750 LED safety · ABS |
| Housing | Copper-free aluminum |
| Rated power | 15, 20, 25, 30, 35, 40 W |
|---|---|
| Input voltage | 120-347 V AC |
| Lumen output | 1,500 to 4,000 lm |
| Efficacy | 100 lm/W |
| Colour temperature | 2000 K to 6500 K, red or green |
| CRI | > 70 |
| Dimming | 0-10 V |
| Emergency backup | Optional, 1.5 hours |

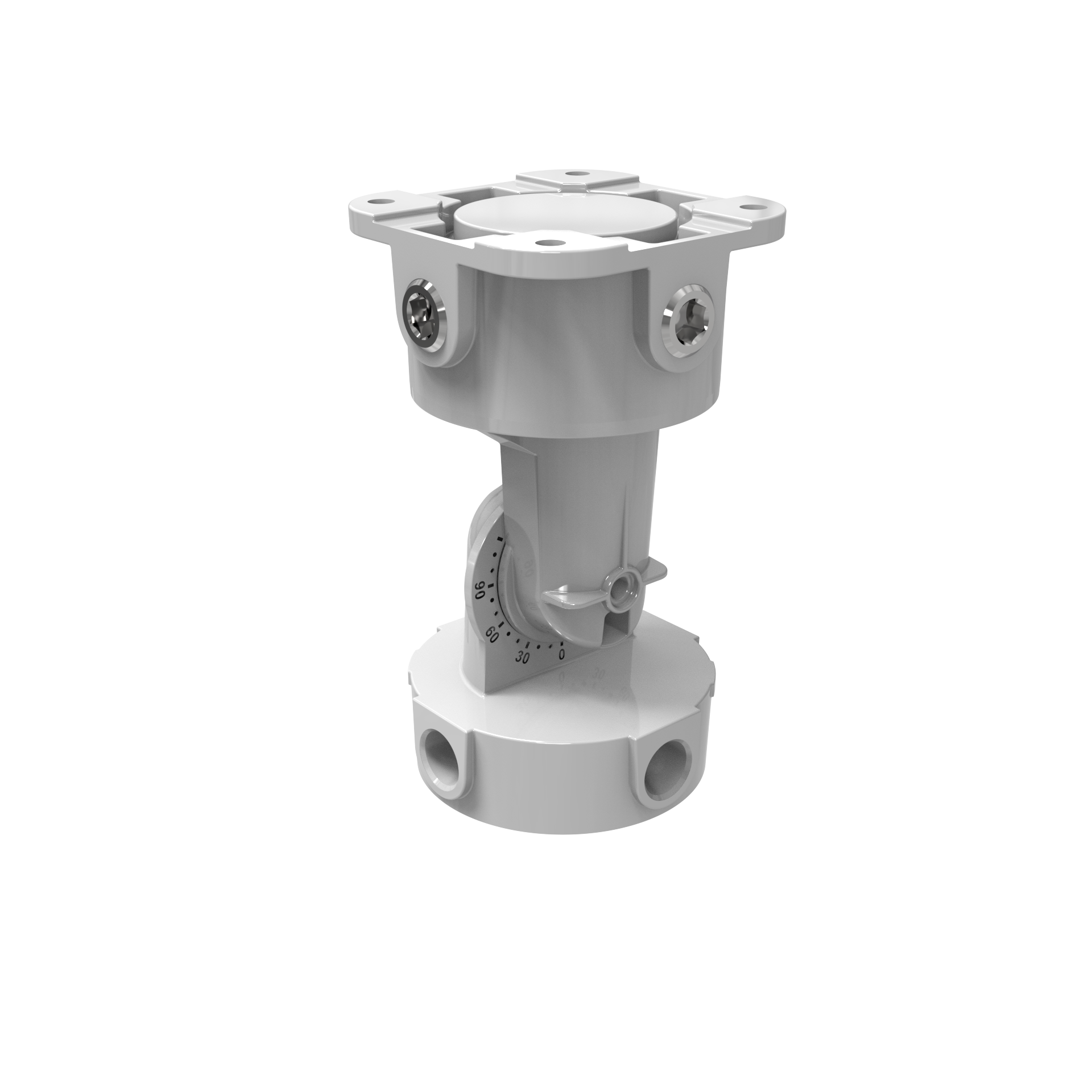

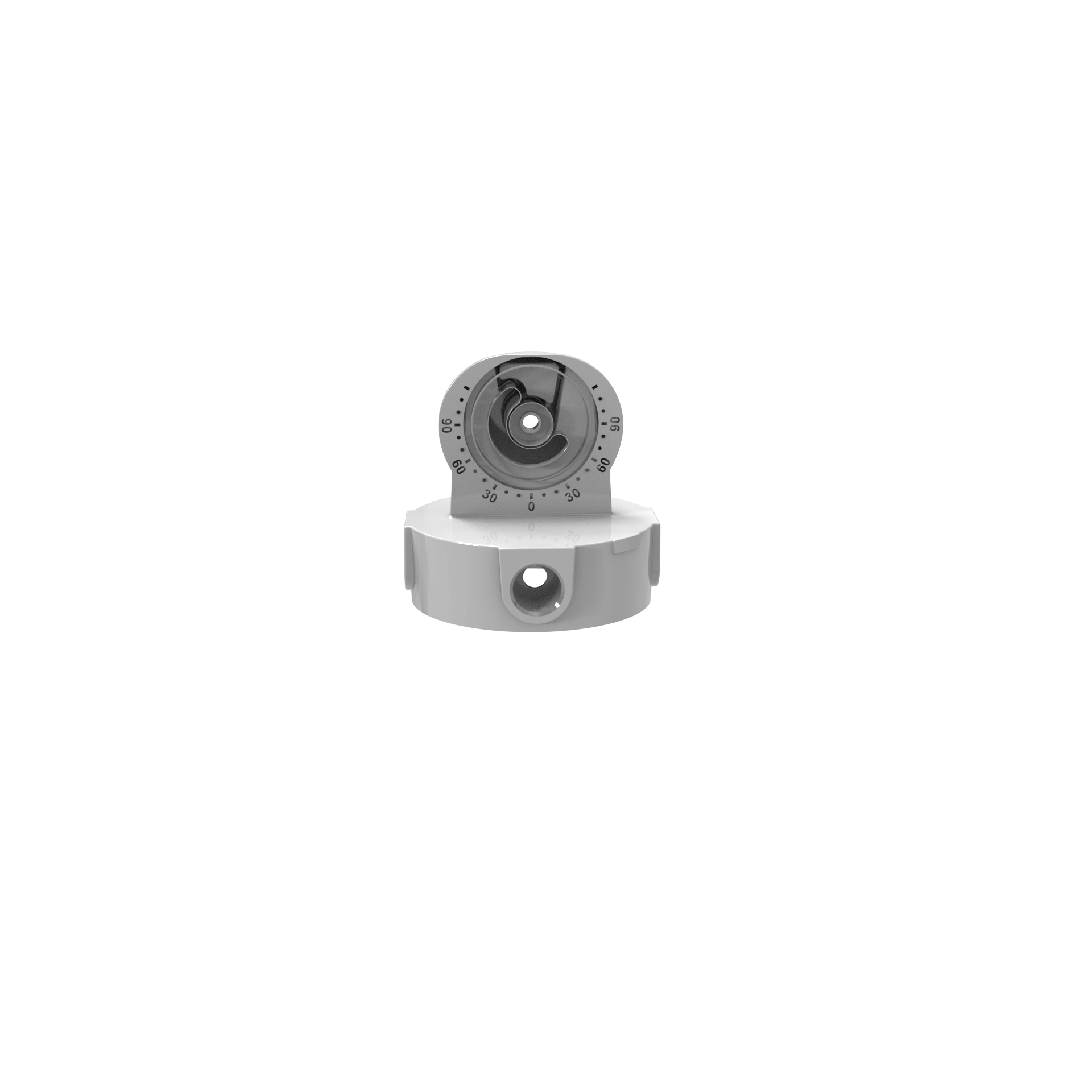

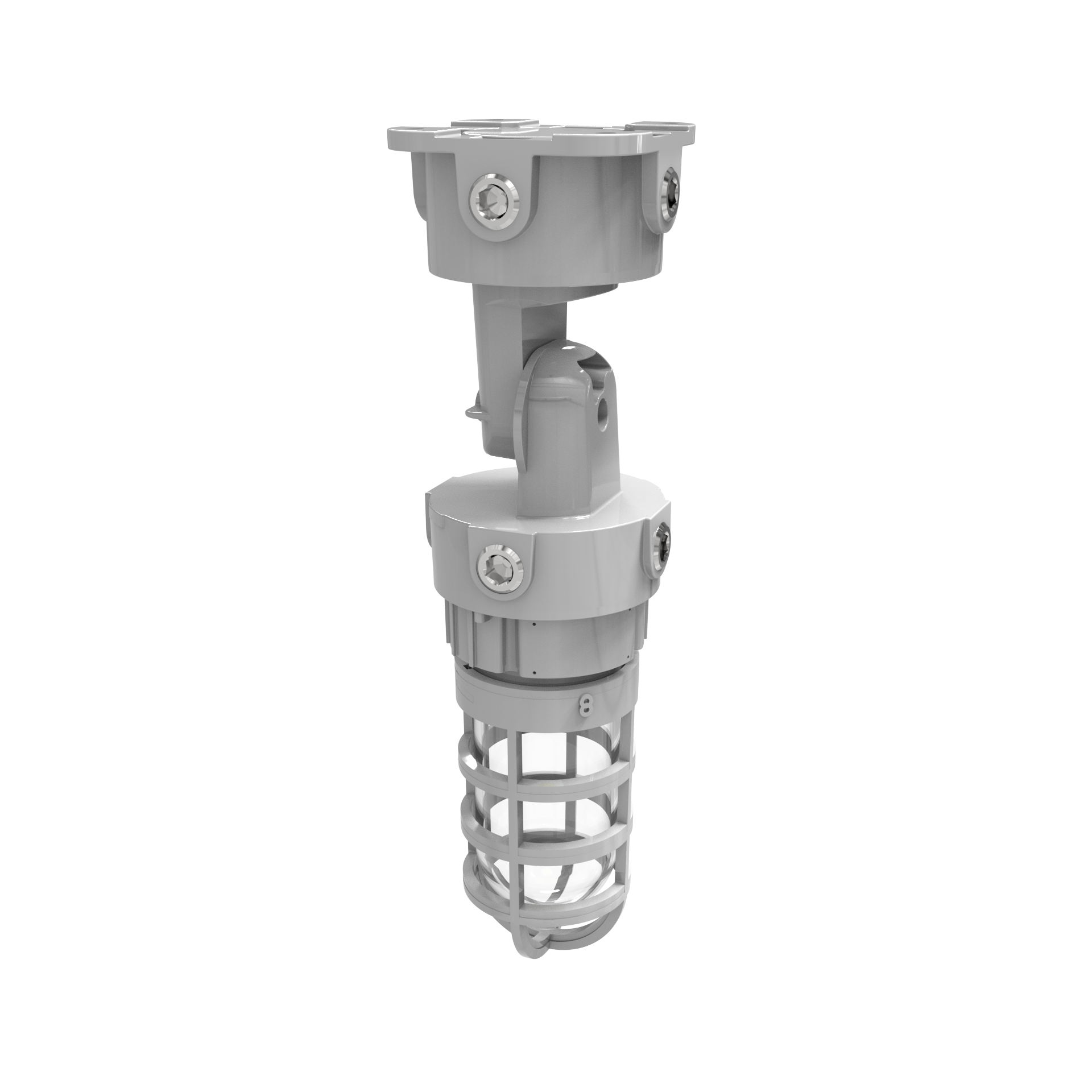

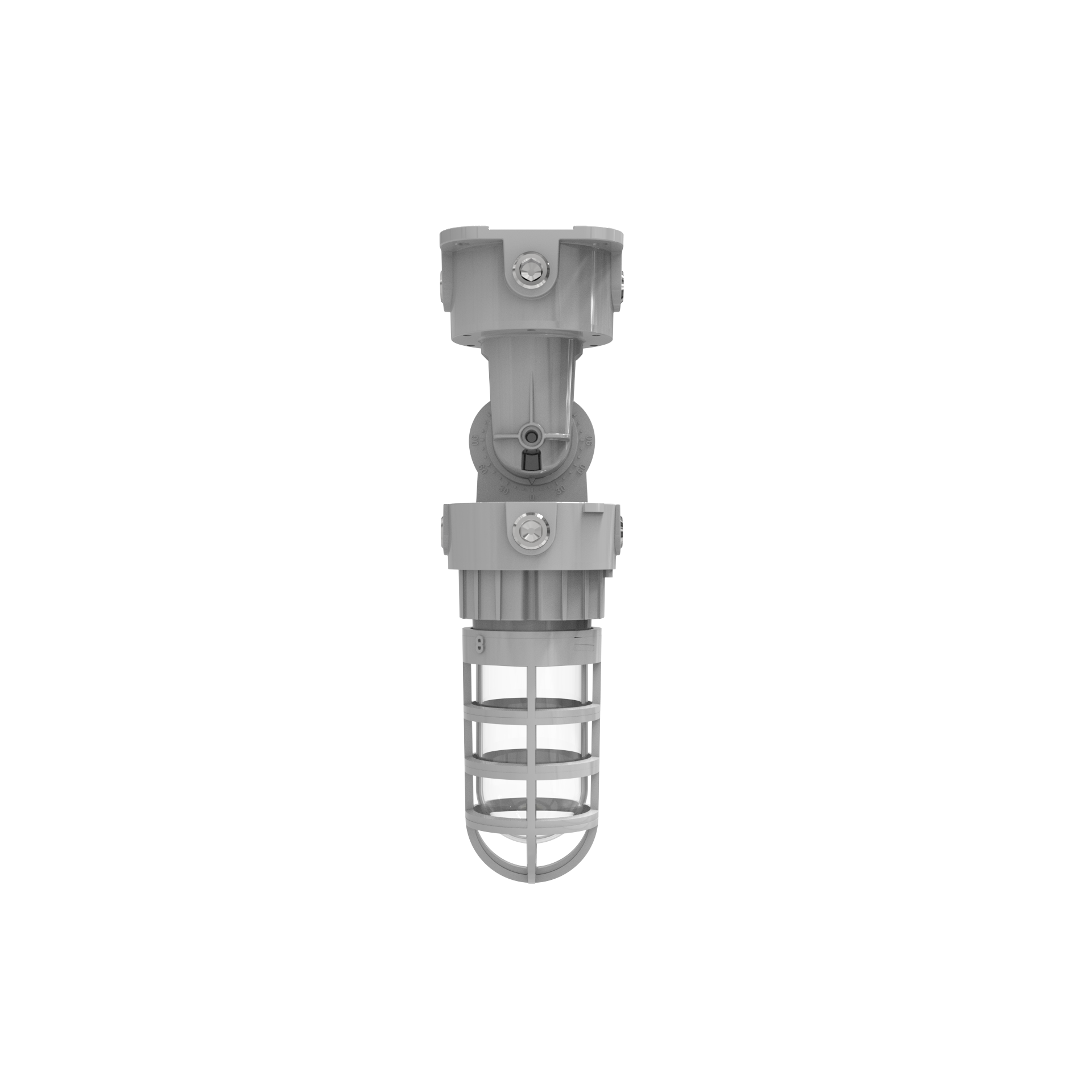

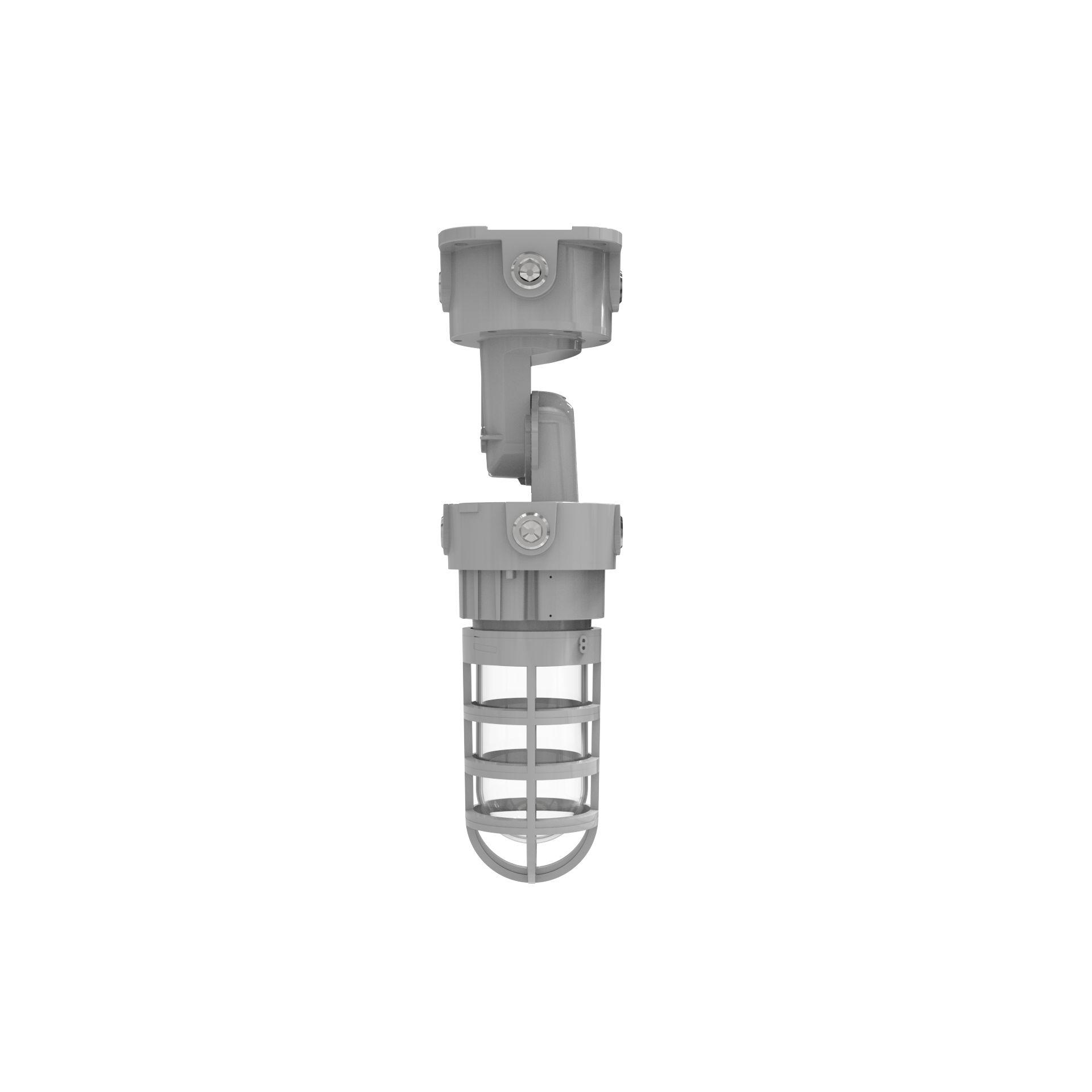

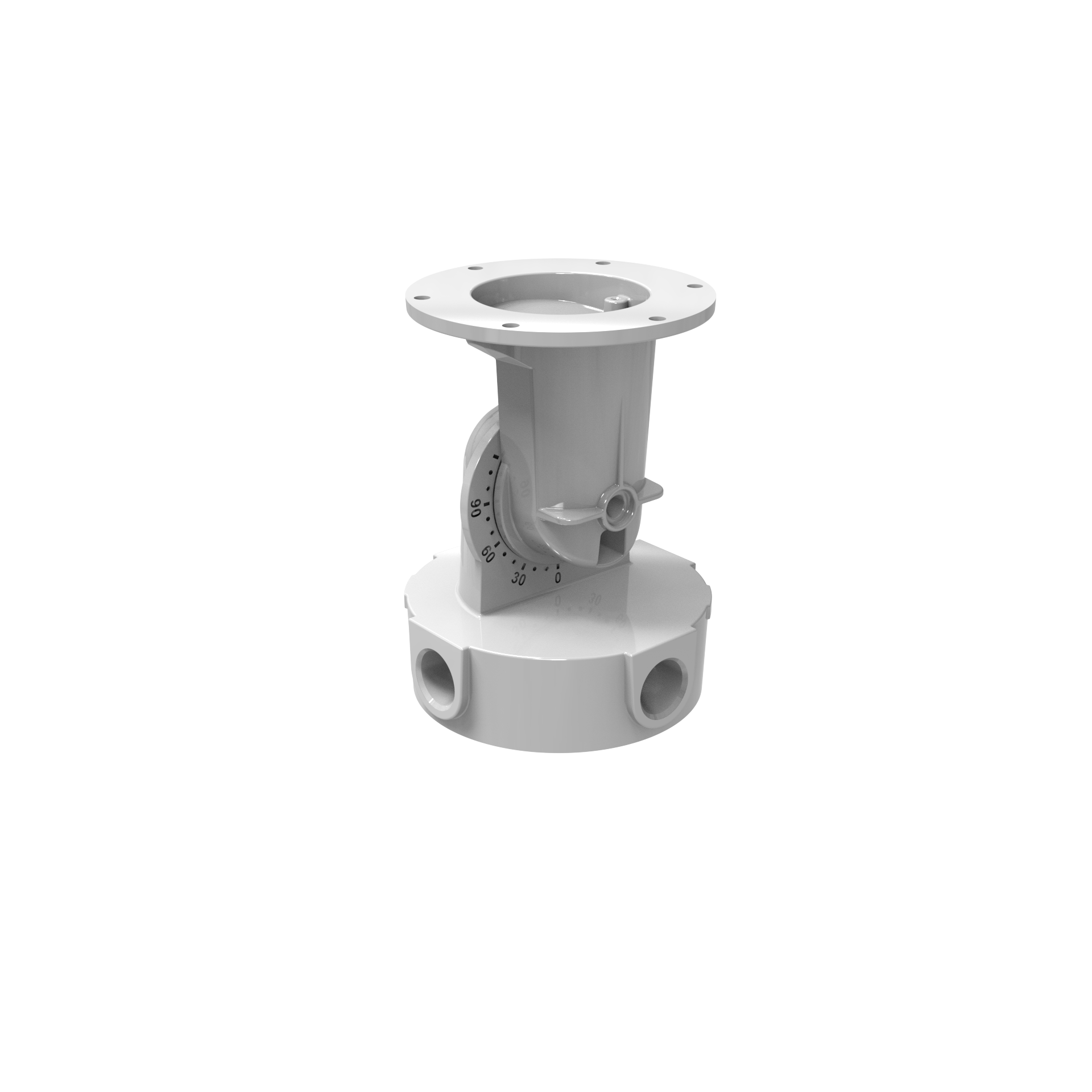

| Mounting | Ceiling, pole, wall 90° or rotatable · reflector available |
|---|---|
| Diffuser / lens | Tempered glass or polycarbonate, clear or frosted · three lengths |
| Notes | Four cable entries for M25, M20, 1/2 in. or 3/4 in. NPT glands |
| Ingress protection | IP66 |
|---|---|
| Impact rating | IK08 |
| Ambient temperature | −40 °C to +25 °C (T6) · +40 °C (T5) · +60 °C (T4) · emergency mode −10 °C to +40 °C |
Class I, Division 2 area, site photographyDownloads
Photometric Files (IES)
IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 4 IES files
