FLD11 / 8FLD Ceiling Pendant Paint Booth
Class I, Division 2 Paint Booth
130 lm/W · paint booth · emergency 3 hours · UL 844, UL 924, ETL, IECEx, ATEX · ceiling, pendant
A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.
Key Features- ●Suitable for use in Class I, Division 2 and Zone 2/22 environments
- ●Emergency function is optional with emergency time 3 hours
- ●Outstanding water and dust proof performance (IP66)
- ●High luminous efficacy - up to 130 lumens per watt
Product Description
Pan american FLD series LED linear luninaires are explosion-proof fixtures designed to provide ideal illumination in the harshest environments, also suitable for marine applications. Available in four common sizes, it is certified for use in Class I, Division 2 and Zone 2 locations and others made hazardous by the presence of flammable vapors or gases or combustible dusts.
Class I, Division 2 covers hazardous gas and vapor environments where ignitable concentrations are present only under abnormal conditions — typical applications include oil & gas processing, paint booths, chemical handling, cannabis extraction, and pharmaceutical manufacturing.
For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.
Technical specifications
From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.
| Series | FLD, four sizes: FLD1-2, FLD1-4, FLD2-2, FLD2-4 |
|---|---|
| Hazardous rating | Class I, Division 2, Groups A, B, C, D · Class I, Zone 2, Groups IIA, IIB, IIC · Zone 22 |
| Listings and standards | UL 844 · UL 1598 · UL 924 · ETL · IECEx CSAE 21.0013X · ATEX CSANe 23ATEX1213X: Ex db ec IIC T6/T5/T4 Gc, Ex tc IIIC Dc |
| Housing | Aluminum 6063 standard · SUS304, SUS316 or SPCC optional |
| Warranty | 5-year standard · L70 > 150,000 hours at 55 °C |
| Rated power | 15 to 50 W · 15 to 100 W · 15 to 100 W · 15 to 200 W, by size |
|---|---|
| Input voltage | 120-277 V / 200-480 V AC (Class I, Division 2) · 100-277 V AC (Zone 2) |
| Lumen output | 2,600 to 26,000 lm |
| Efficacy | 130 lm/W |
| Colour temperature | 2700 K, 3000 K, 4000 K, 5000 K, 5700 K, 6500 K |
| Dimming | 0-10 V |
| Emergency backup | Available · 9 W, 3 hours, built-in |

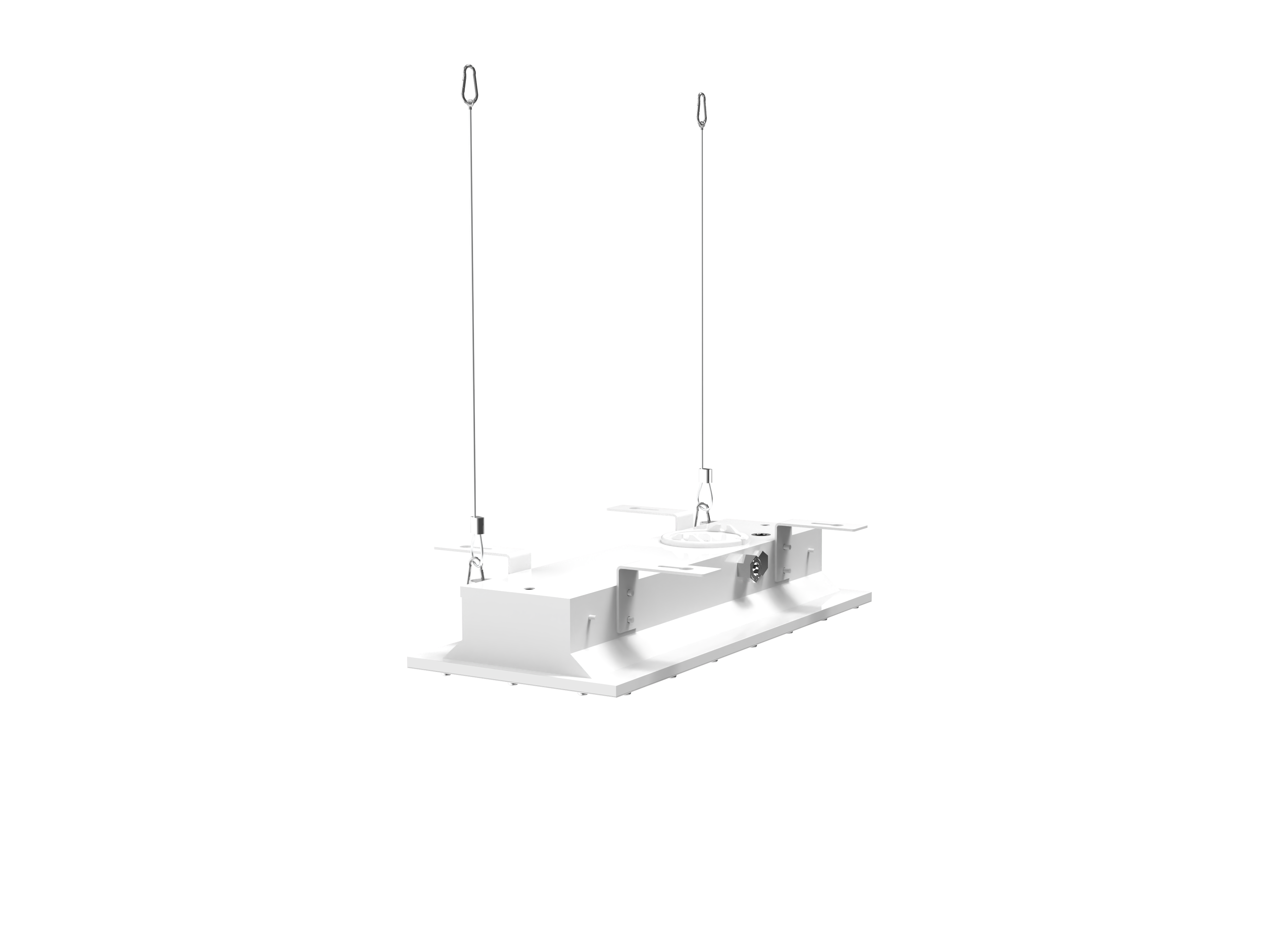

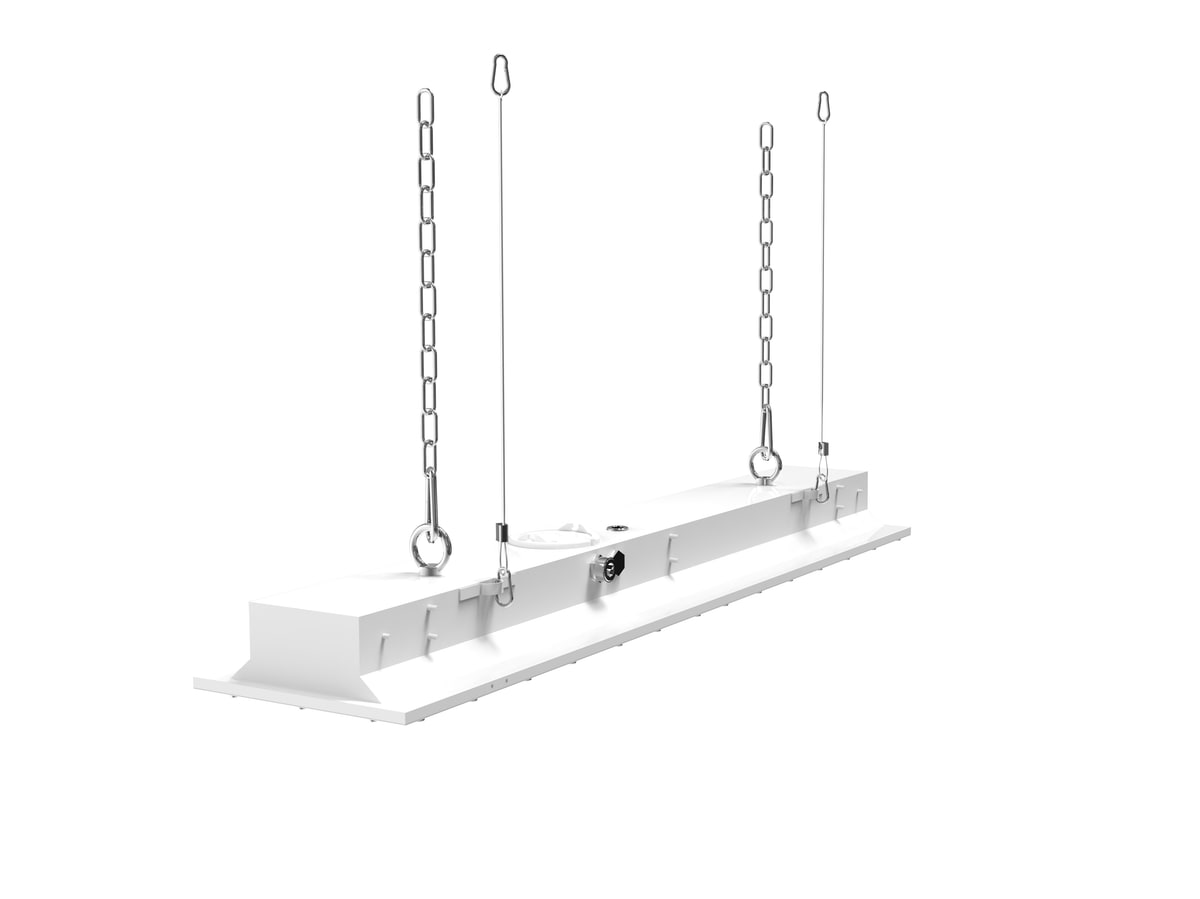

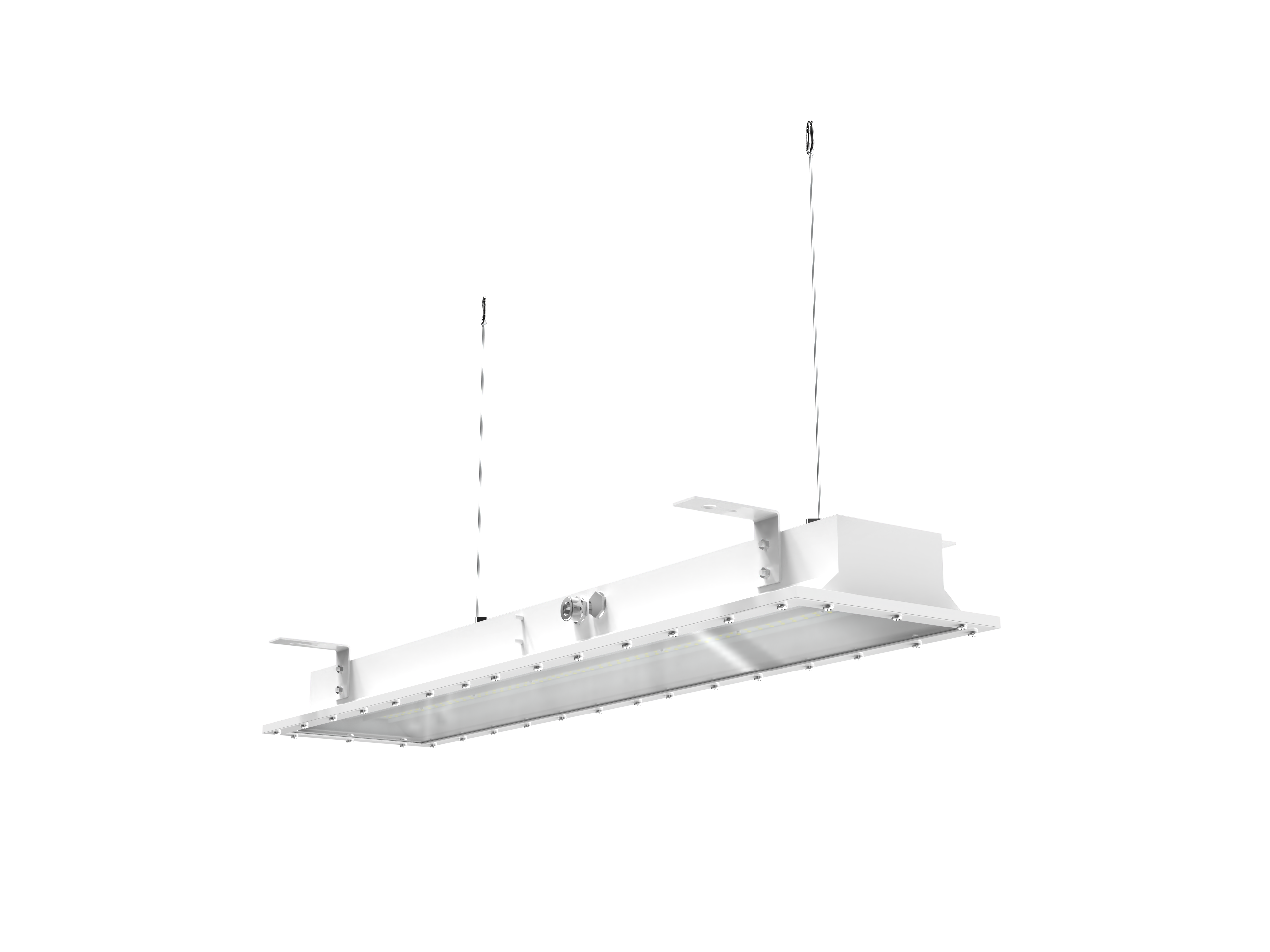

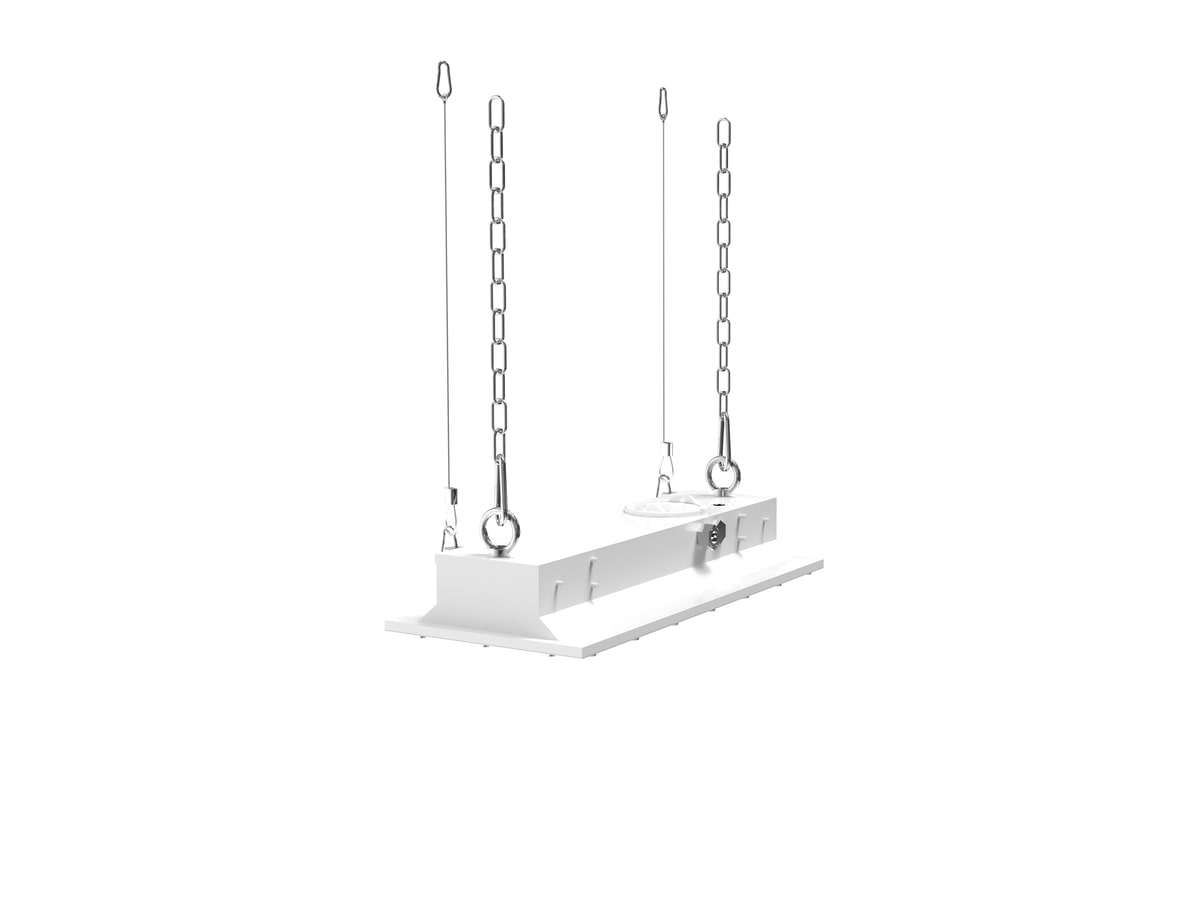

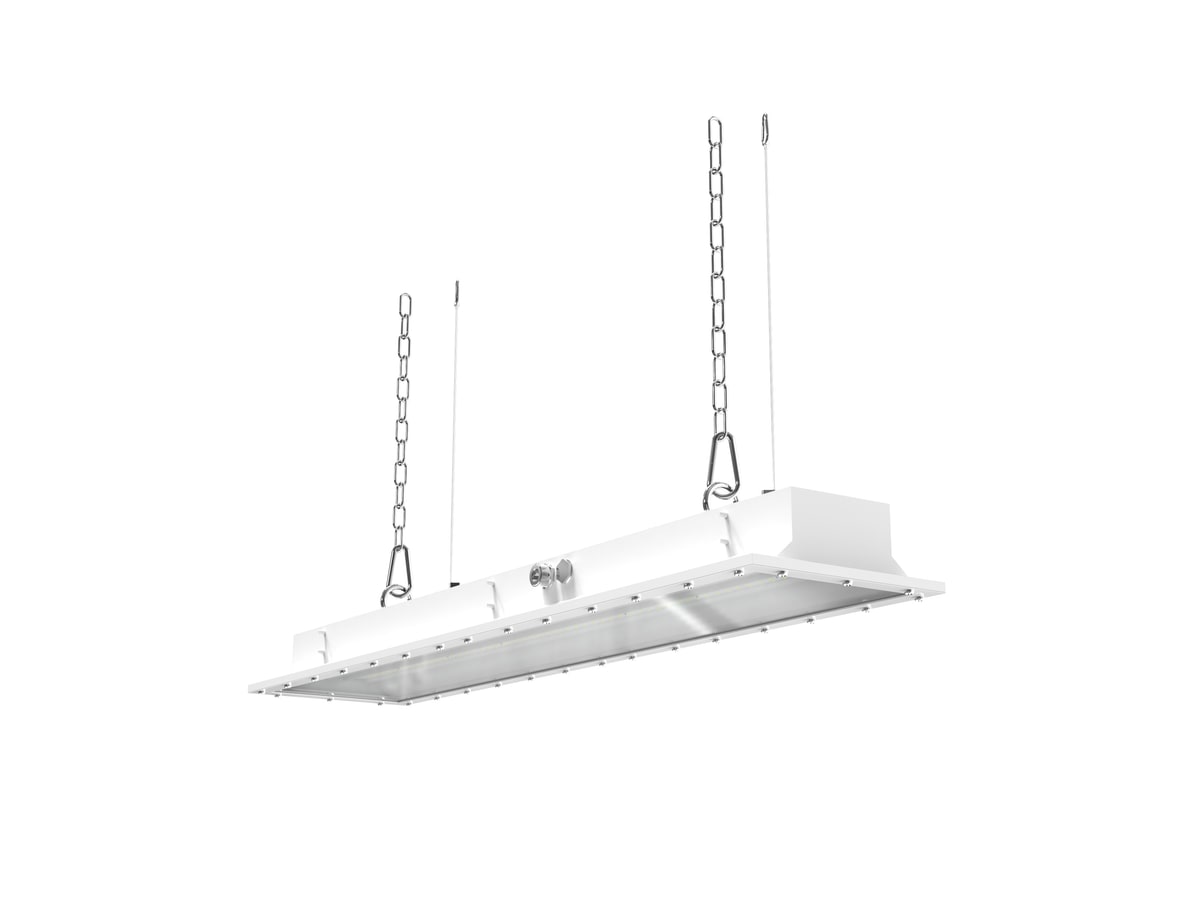

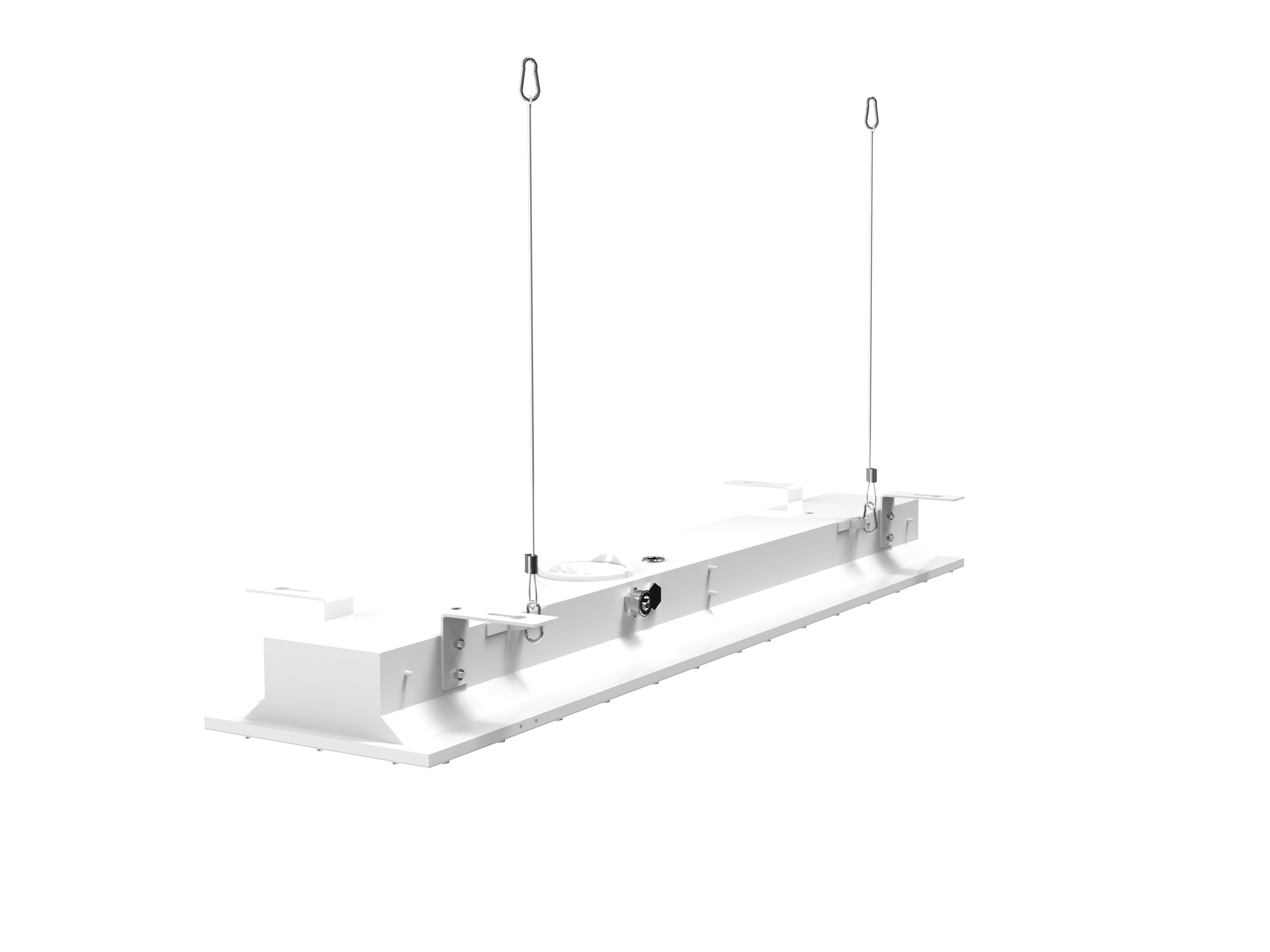

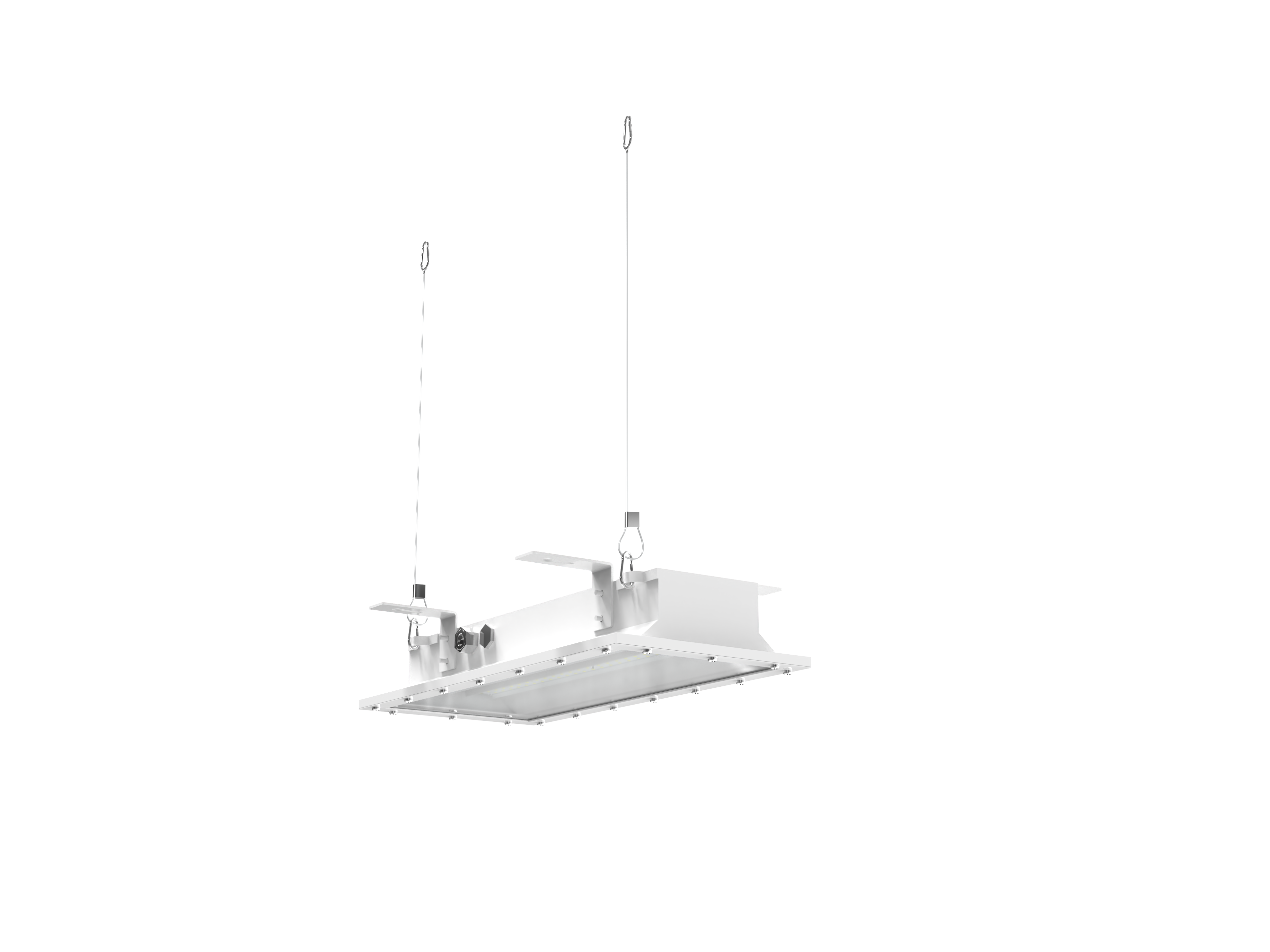

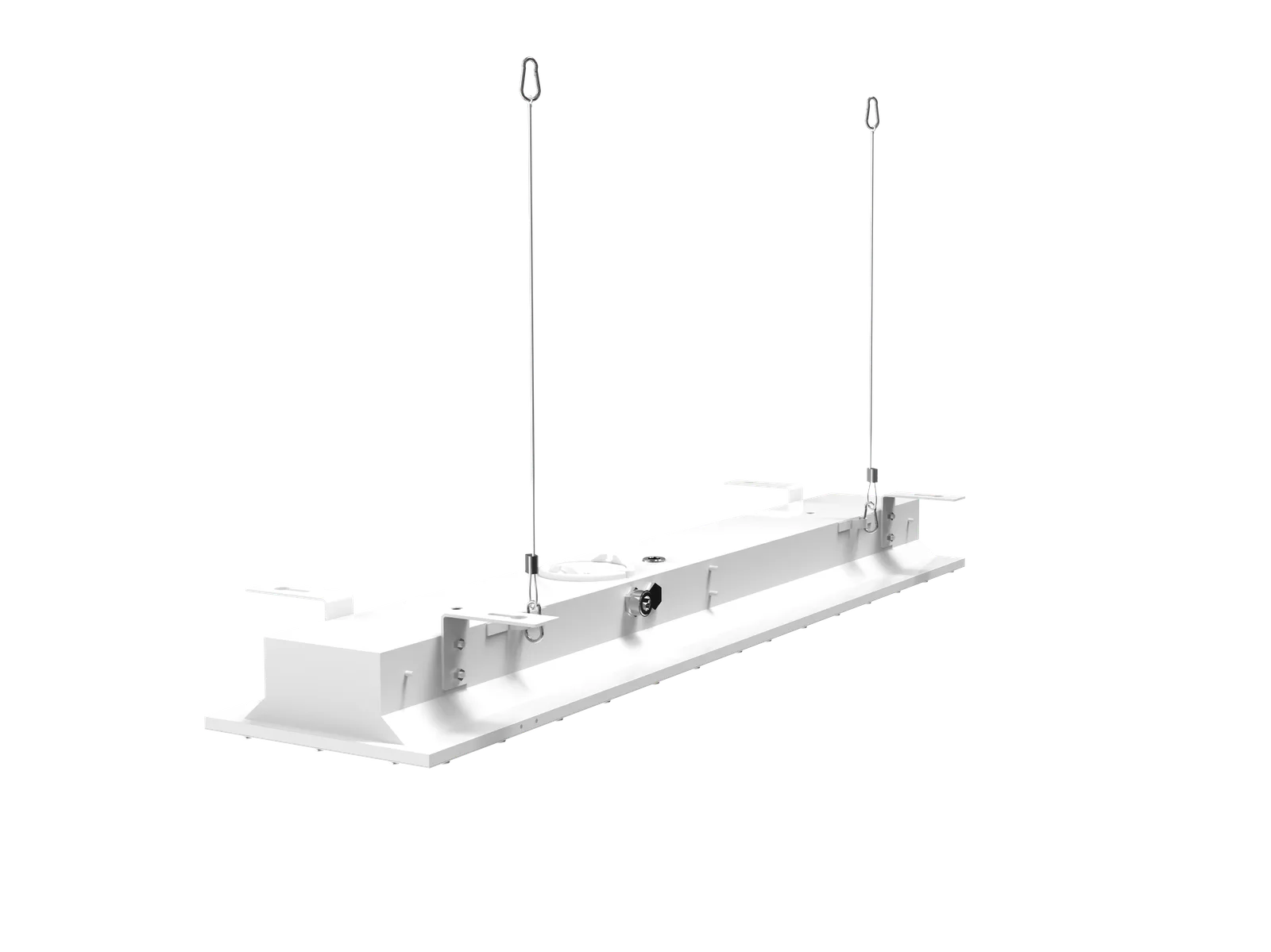

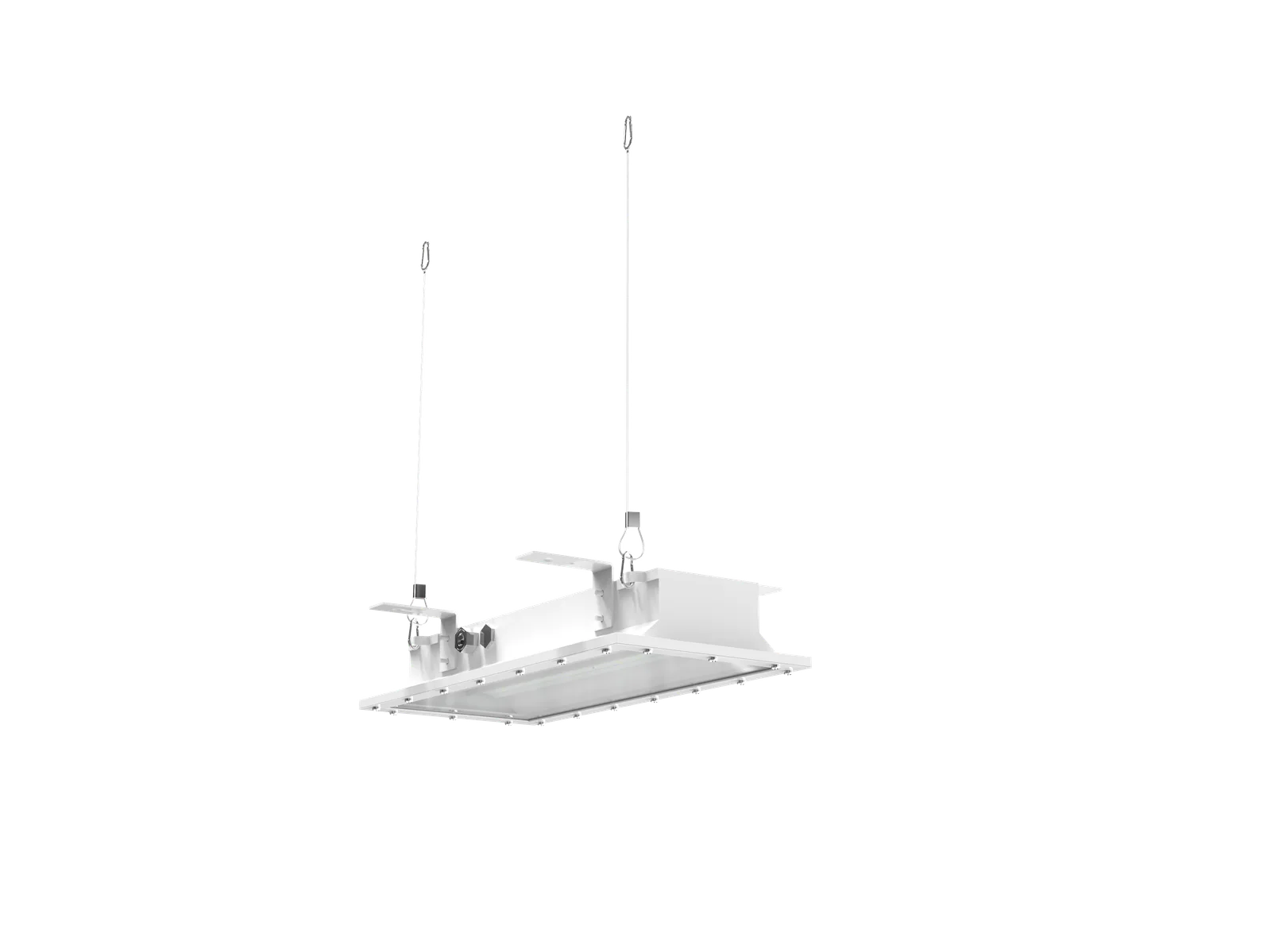

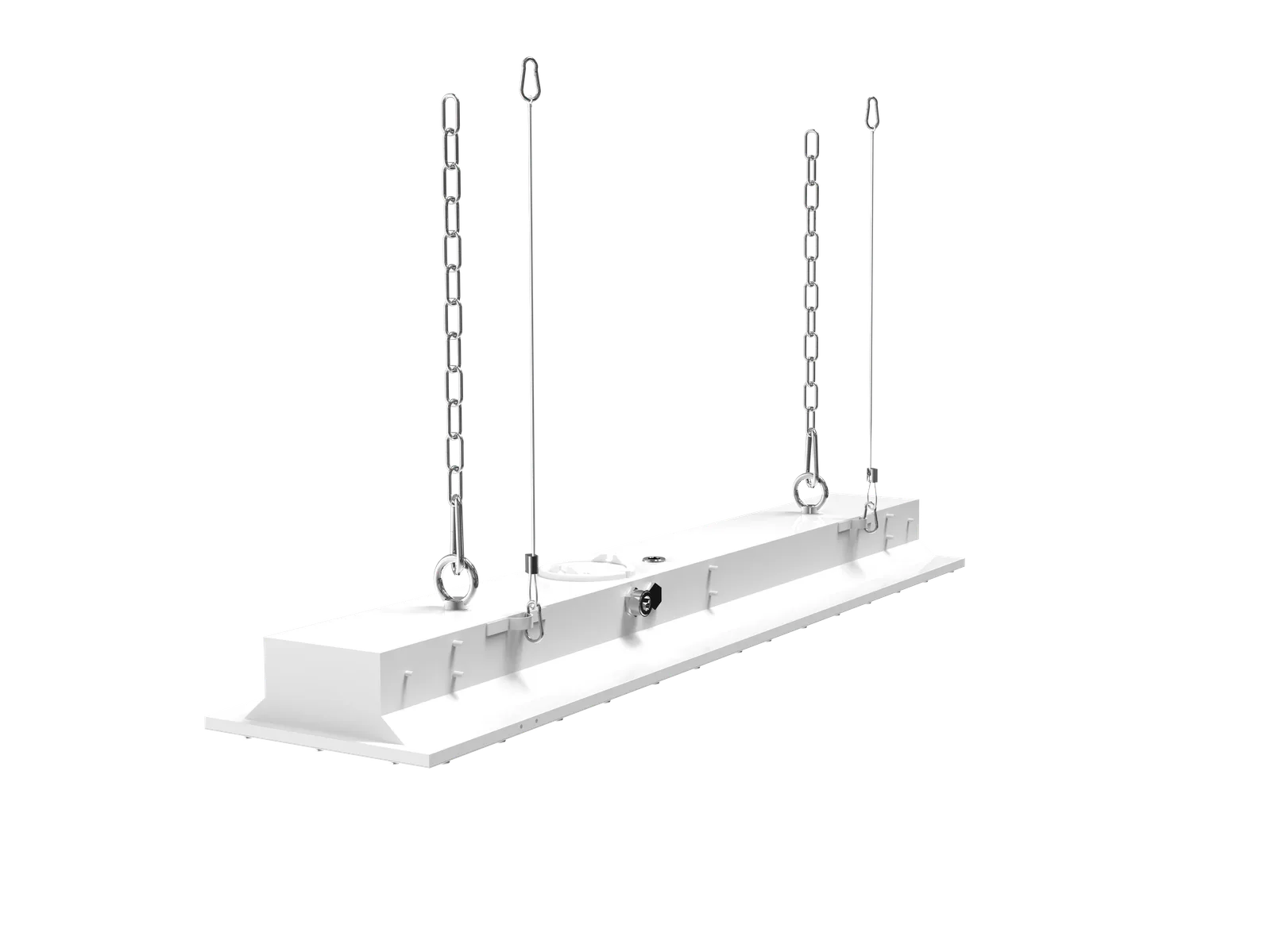

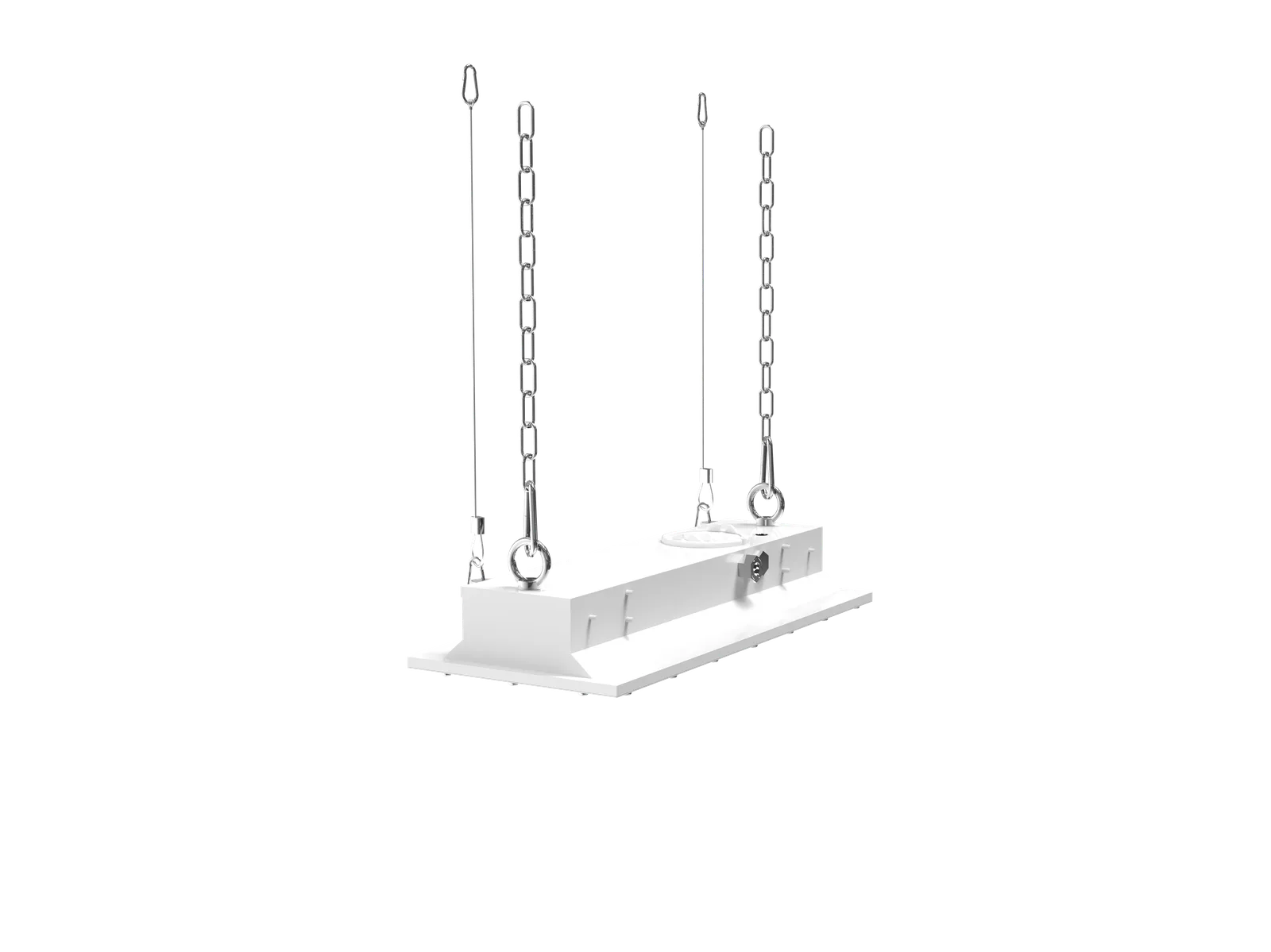

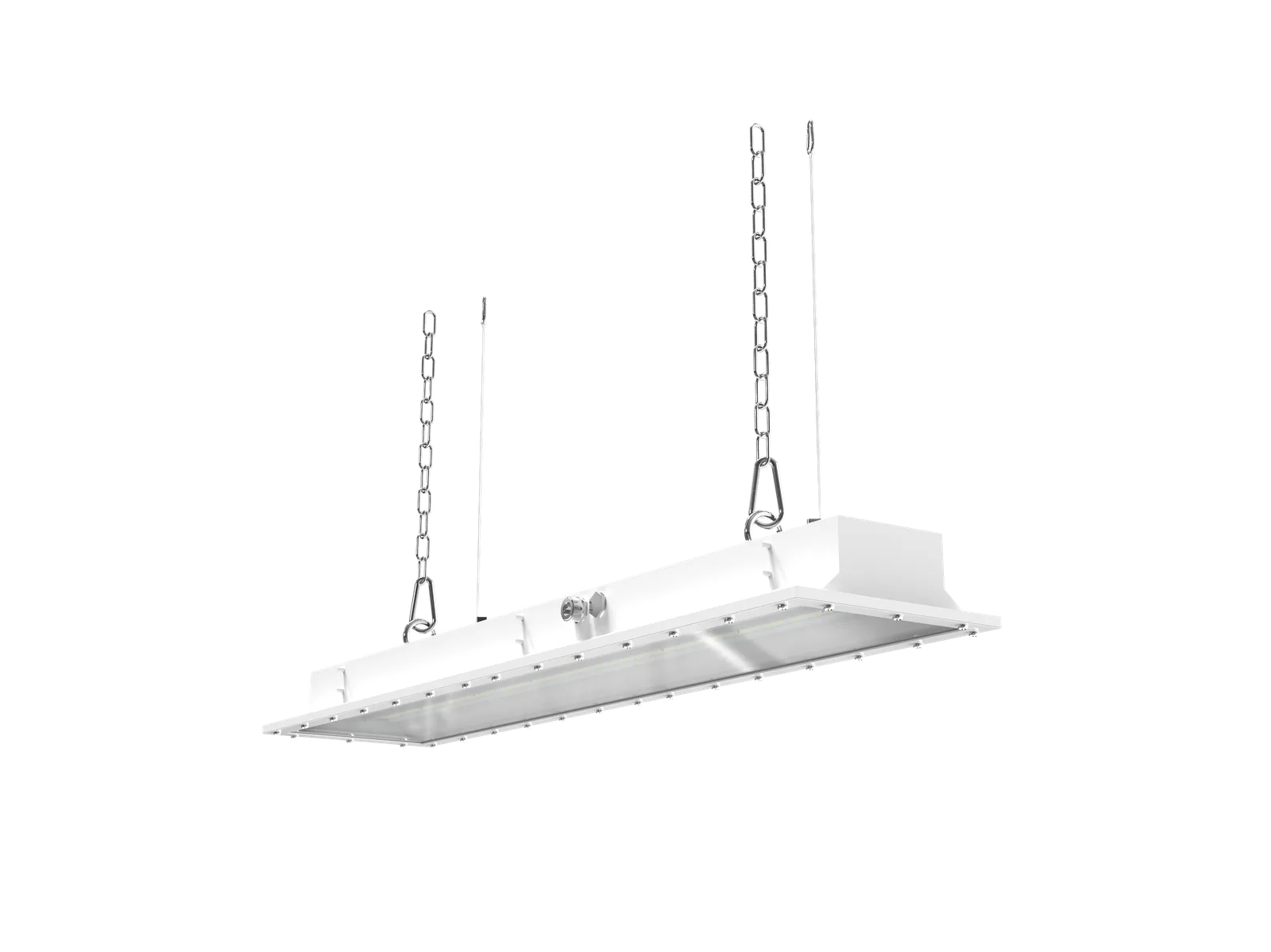

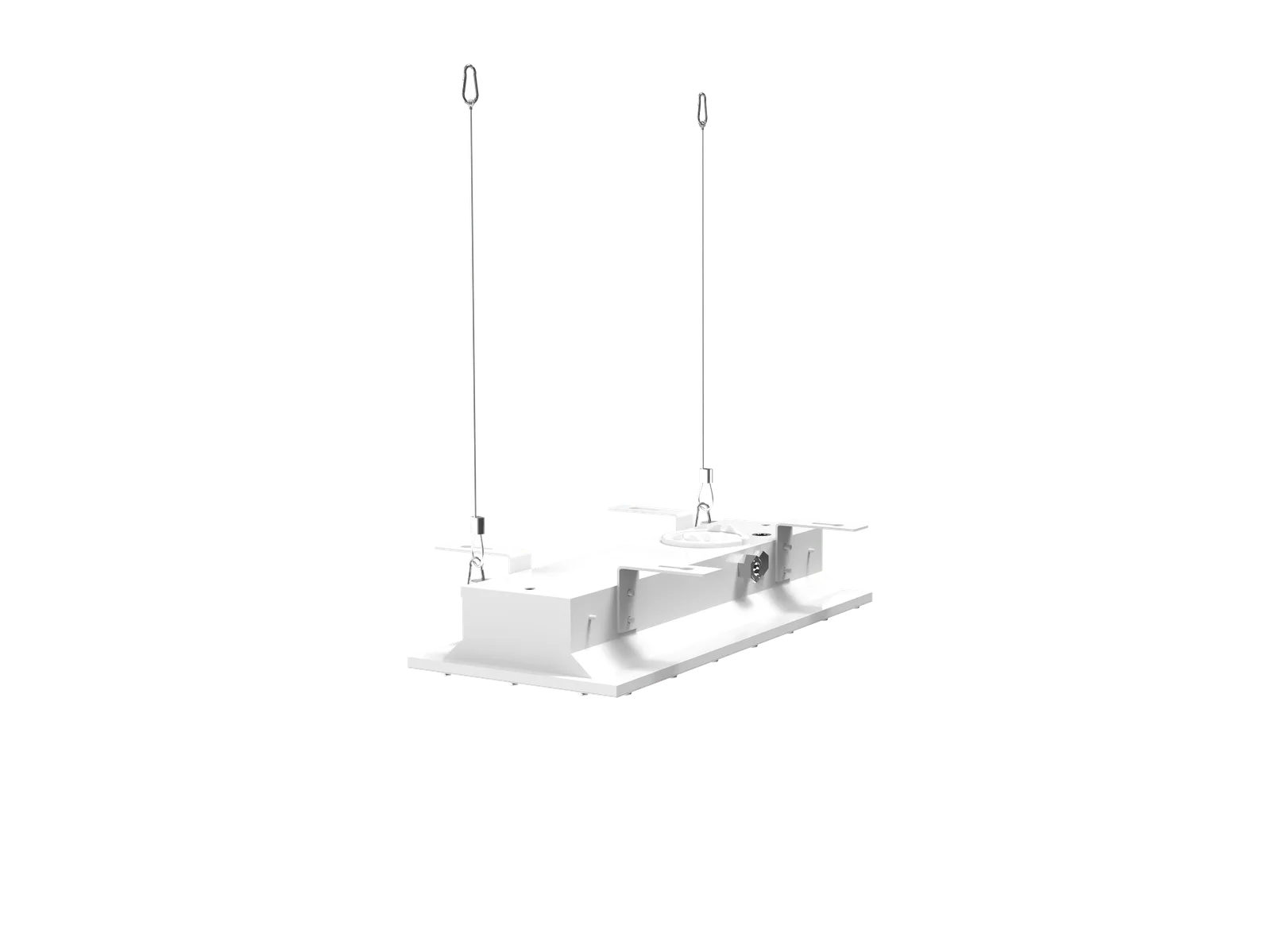

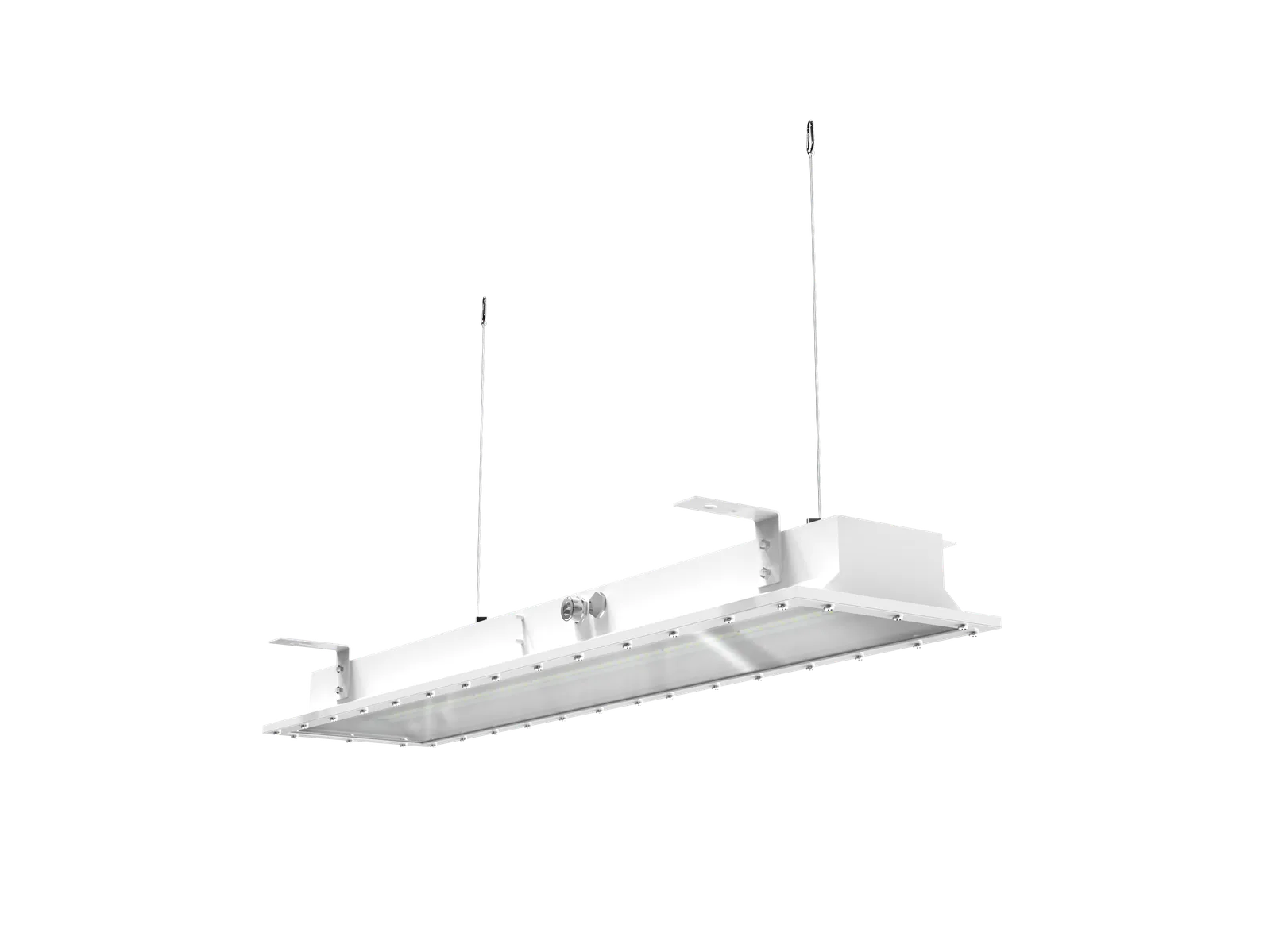

| Mounting | Ceiling, pendant (lifting ring, chain, safety rope) |
|---|---|
| Beam angle | 120° |
| Notes | Motion sensor and photocell option (PC cover) |
| Ingress protection | IP66 |
|---|---|
| Impact rating | IK10 |
| Ambient temperature | Class I, Division 2: −40 °C to +60 °C (T4) · Zone 2: up to +45 / +55 / +60 °C by T-code |
Class I, Division 2 area, site photographyDownloads
Photometric Files (IES)
IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 4 IES files
