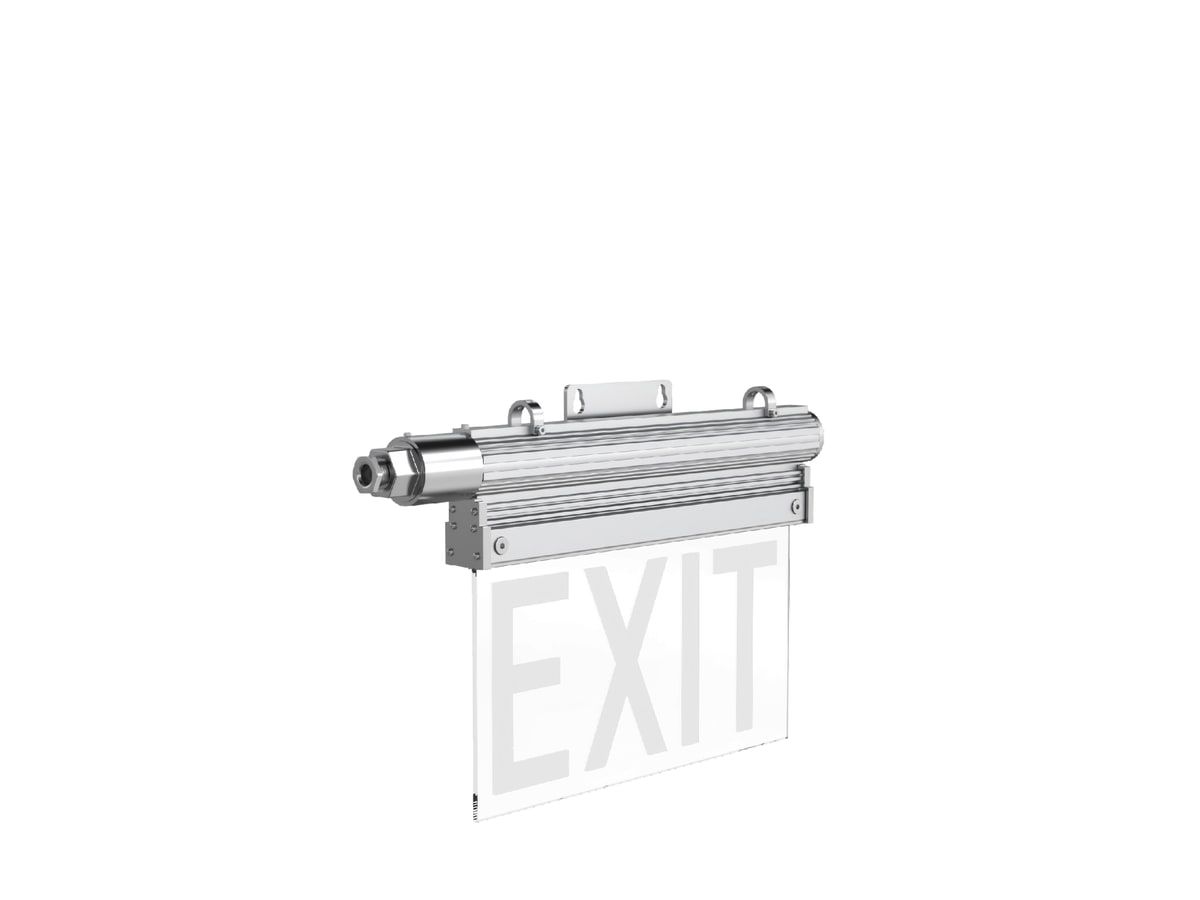

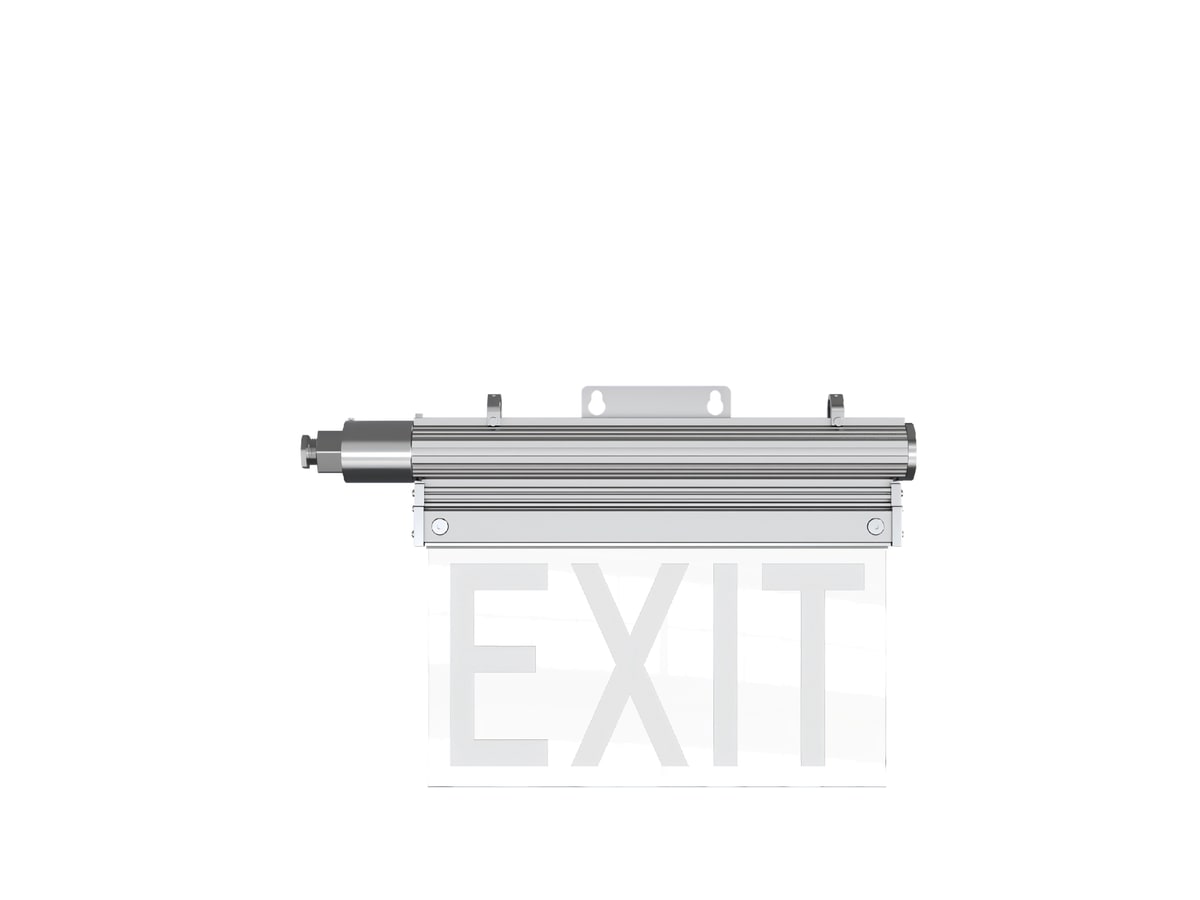

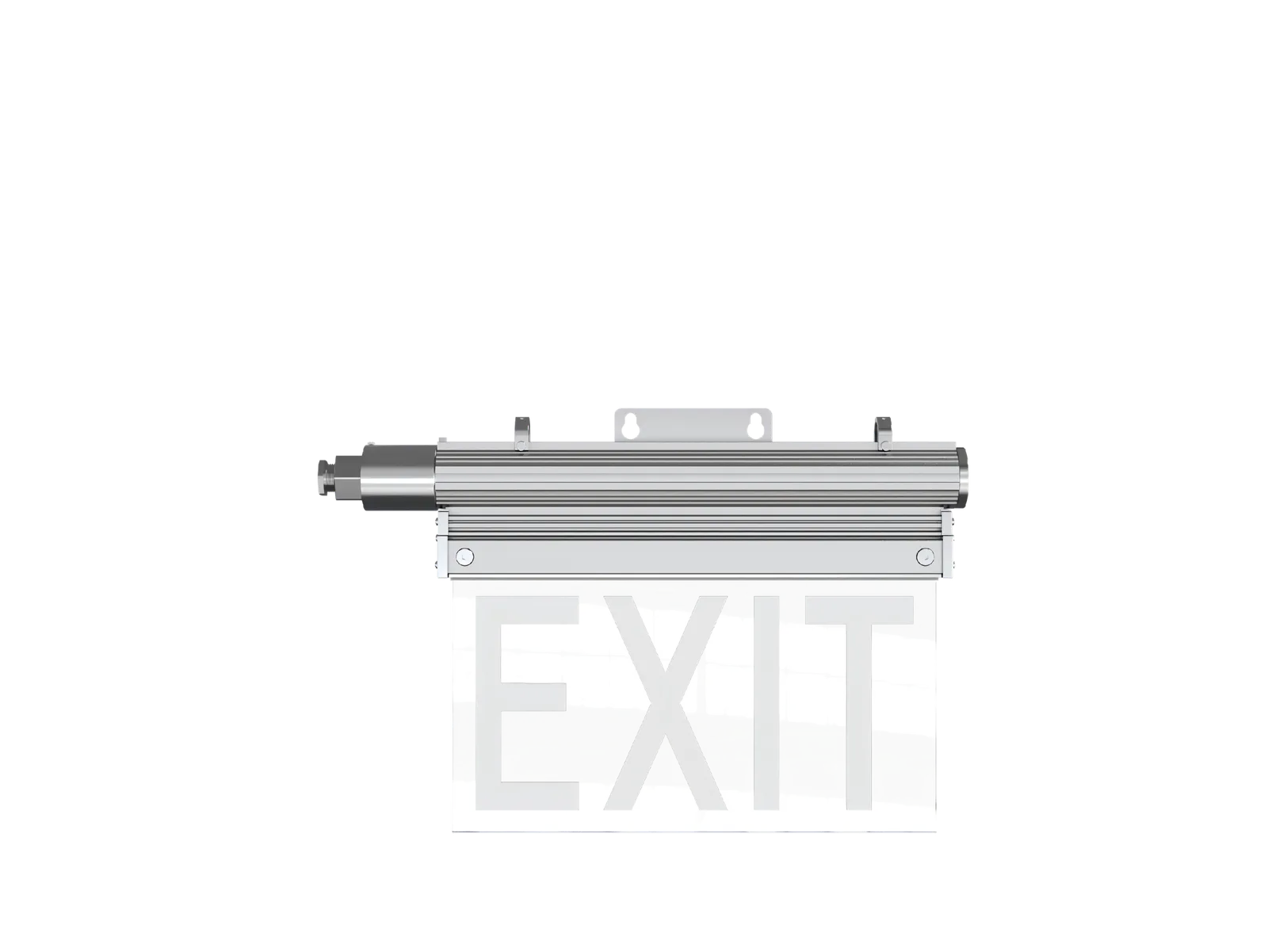

EX1 / 8V-Series Exit Sign
Class I, Division 2 Exit Signs
Edge-lit explosion-proof exit sign · pendant, wall or pipe mount · UL 844, UL 924
A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.
Key Features- Light weight and compact structure.
- Integrated junction box for driver with emergency backup.
- Ingress protection rating IP66.
- Low energy consumption.
Product Description
The V-Series Exit Sign is an explosion-proof fixture engineered for hazardous-area and demanding industrial use. Class I, Division 2 covers hazardous gas and vapor environments where ignitable concentrations are present only under abnormal conditions — typical applications include oil & gas processing, paint booths, chemical handling, cannabis extraction, and pharmaceutical manufacturing.
For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.
Technical specifications
From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.
| Series | V Series edge-lit LED exit sign |
|---|---|
| Hazardous rating | Class I, Division 2, Groups A, B, C, D · Class II, Division 1, Groups E, F, G · Class II, Division 2, Groups F, G · Class III |
| Listings and standards | UL 844 · UL 924 · ABS |
| Housing | Aluminum · tempered glass sign plate · stainless steel hardware and sling |
| Warranty | 5-year limited |
| Rated power | 5 W |
|---|---|
| Emergency backup | 3 hours · sealed unit, battery not replaceable |
| Dimming | Non-dimmable |
| Mounting | Pendant, wall, pipe |
|---|---|
| Beam angle | 180° |
| Ingress protection | IP66 |
|---|---|
| Ambient temperature | −20 °C to +60 °C |
Class I, Division 2 area, site photographyDownloads
