HL21 / 16EX-HL Linear
Class I, Division 2 Linear
−40 to +65 °C · IK07 / IK10 · Groups A, B, C, D · UL 1598, UL 1598A · ceiling, wall, pole, hook, pendant, stanchion, trunnion
A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.
Key Features- High-quality SMT LED and Meanwell driver.
- Heavy-duty and high impact resistance.
- Replaceable LED board and drivers.
- Integrated junction box for driver.
Product Description
The HL Series LED luminaire is an explosion-proof choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
Class I, Division 2 covers hazardous gas and vapor environments where ignitable concentrations are present only under abnormal conditions — typical applications include oil & gas processing, paint booths, chemical handling, cannabis extraction, and pharmaceutical manufacturing.
For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.
Technical specifications
From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.
| Series | EX-HL2 (20 to 100 W), EX-HL4 (40 to 200 W) |
|---|---|
| Hazardous rating | Class I, Division 2, Groups A, B, C, D |
| Listings and standards | UL 1598 · UL 1598A wet location |
| Housing | Copper-free aluminum, grey RAL 7040 |
| Warranty | 5-year standard · L70 > 150,000 hours at 55 °C |
| Rated power | HL2: 20 to 100 W · HL4: 40 to 200 W |
|---|---|
| Input voltage | 120-277 V / 200-480 V AC |
| Lumen output | HL2: max. 15,000 lm · HL4: max. 30,000 lm |
| Efficacy | Up to 150 lm/W |
| CRI | > 70 standard · > 80 optional |
| Dimming | 0-10 V |
| Emergency backup | Battery backup available, 1.5 hours |

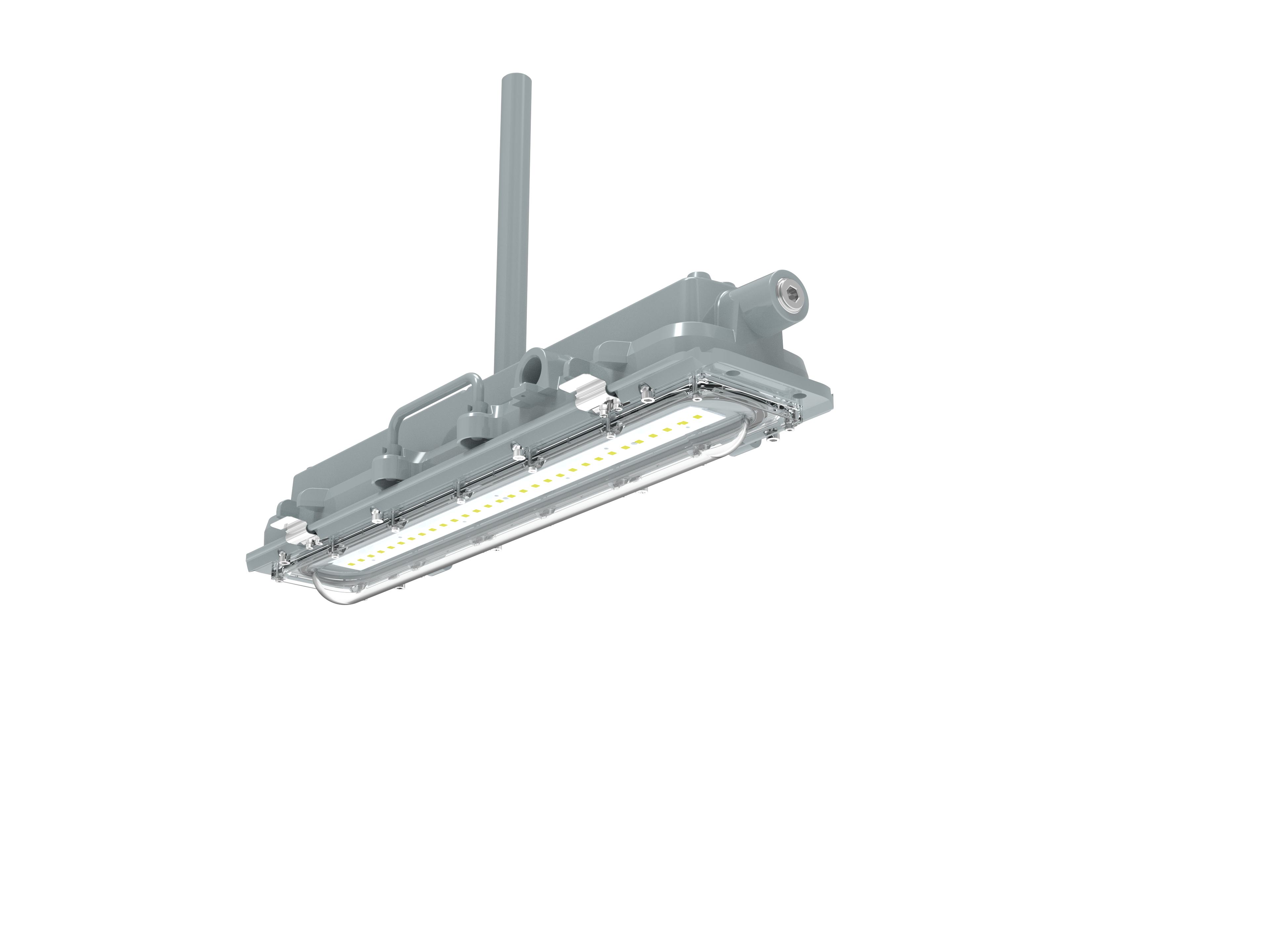

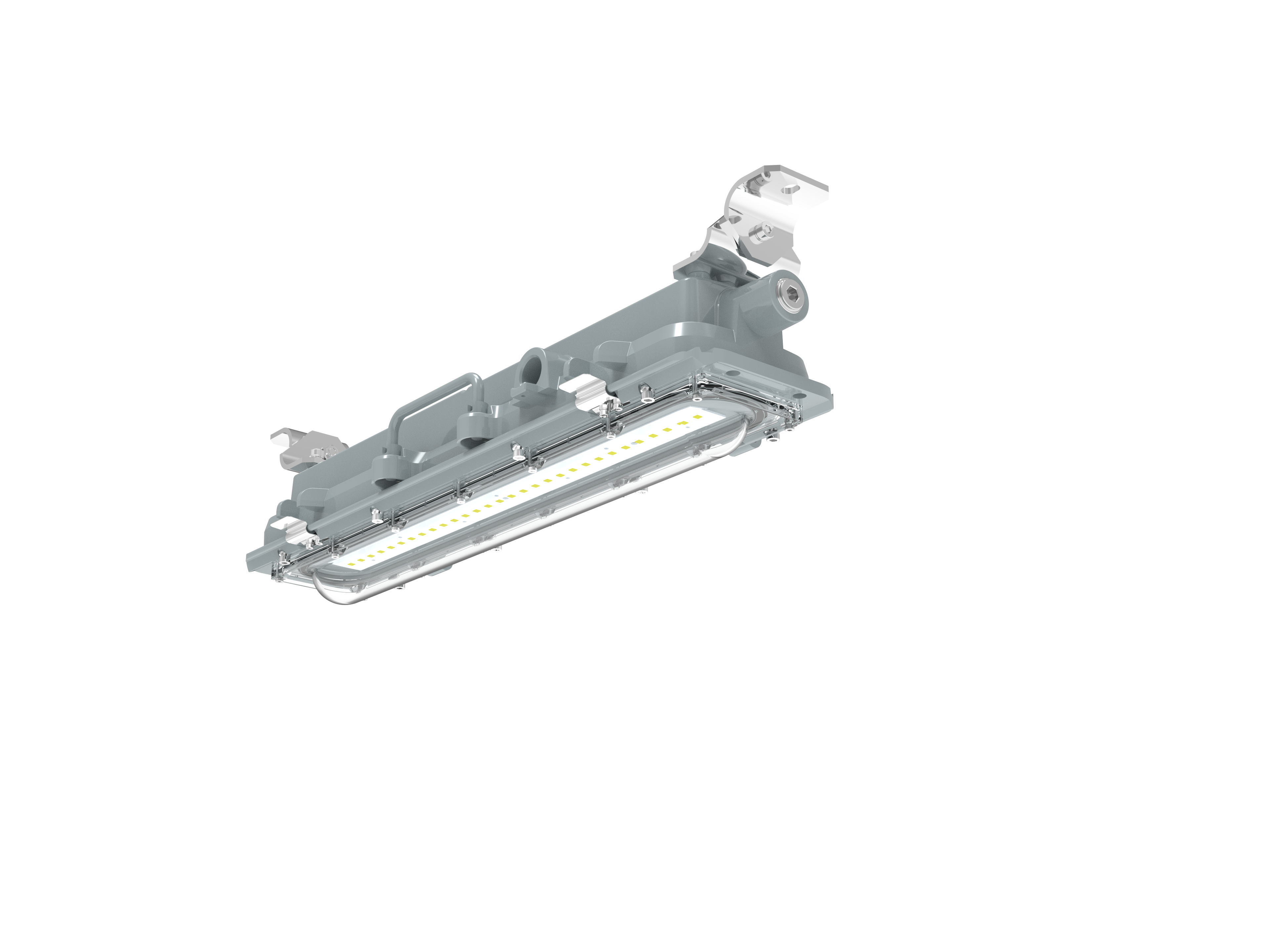

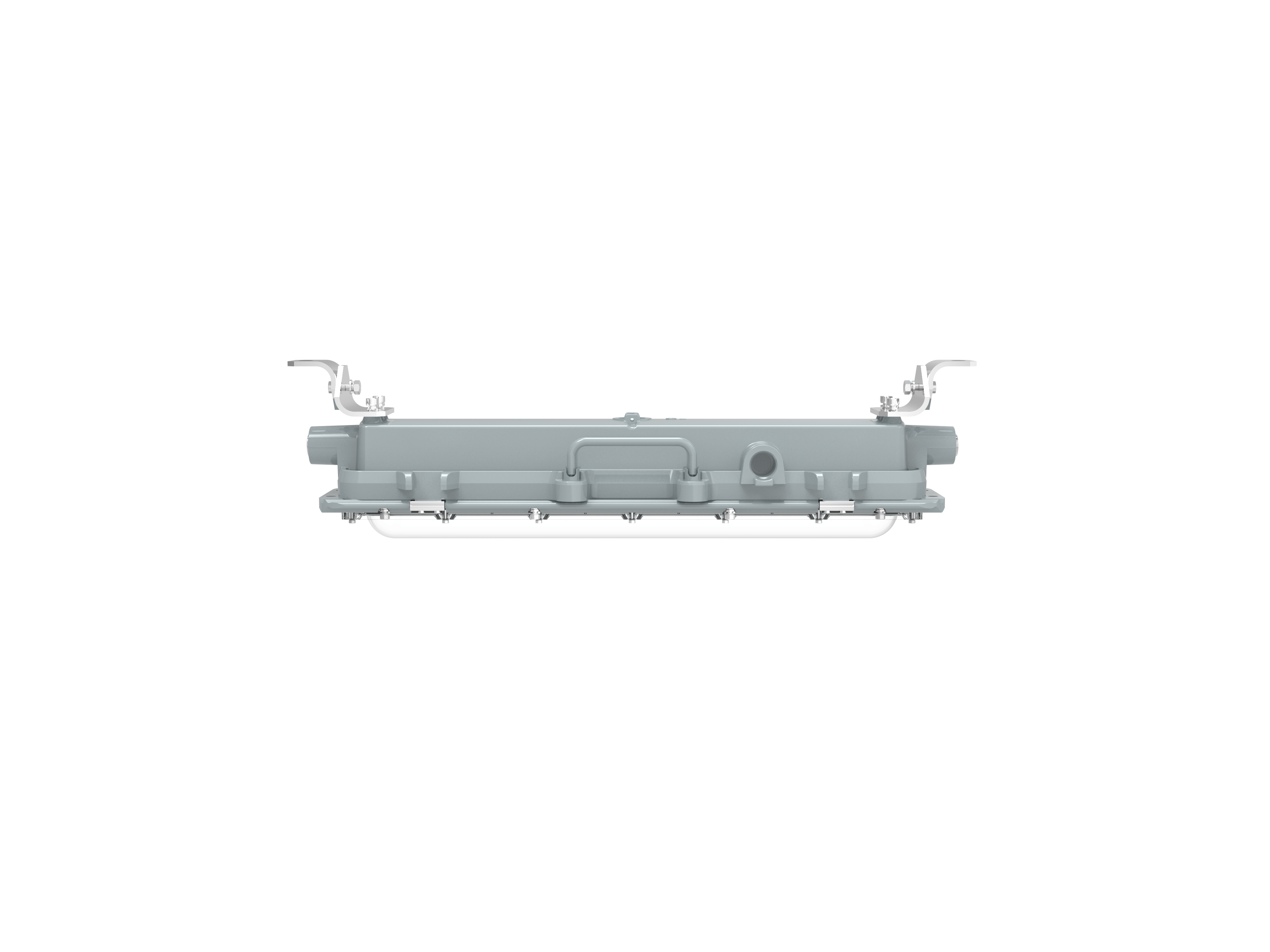

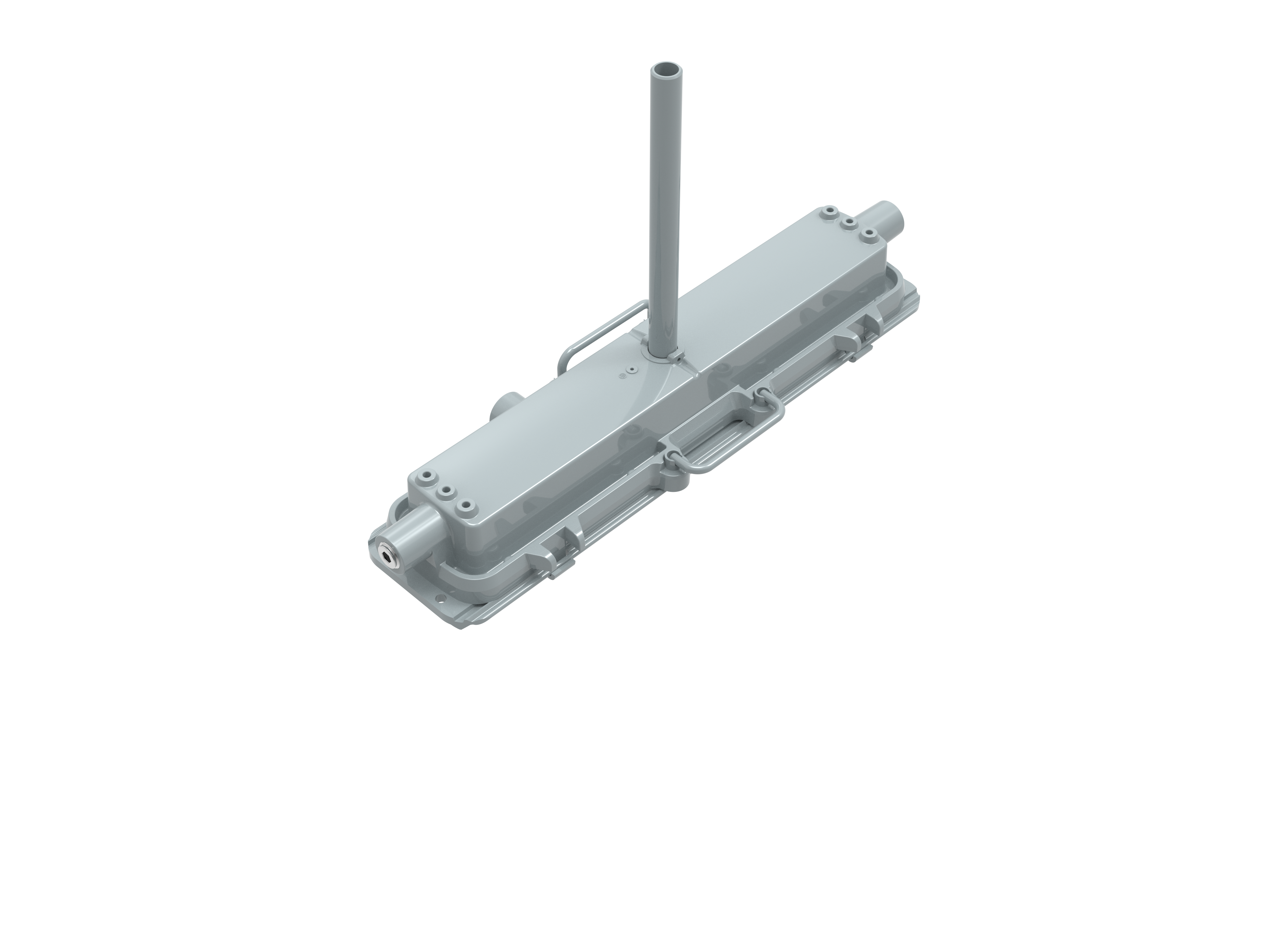

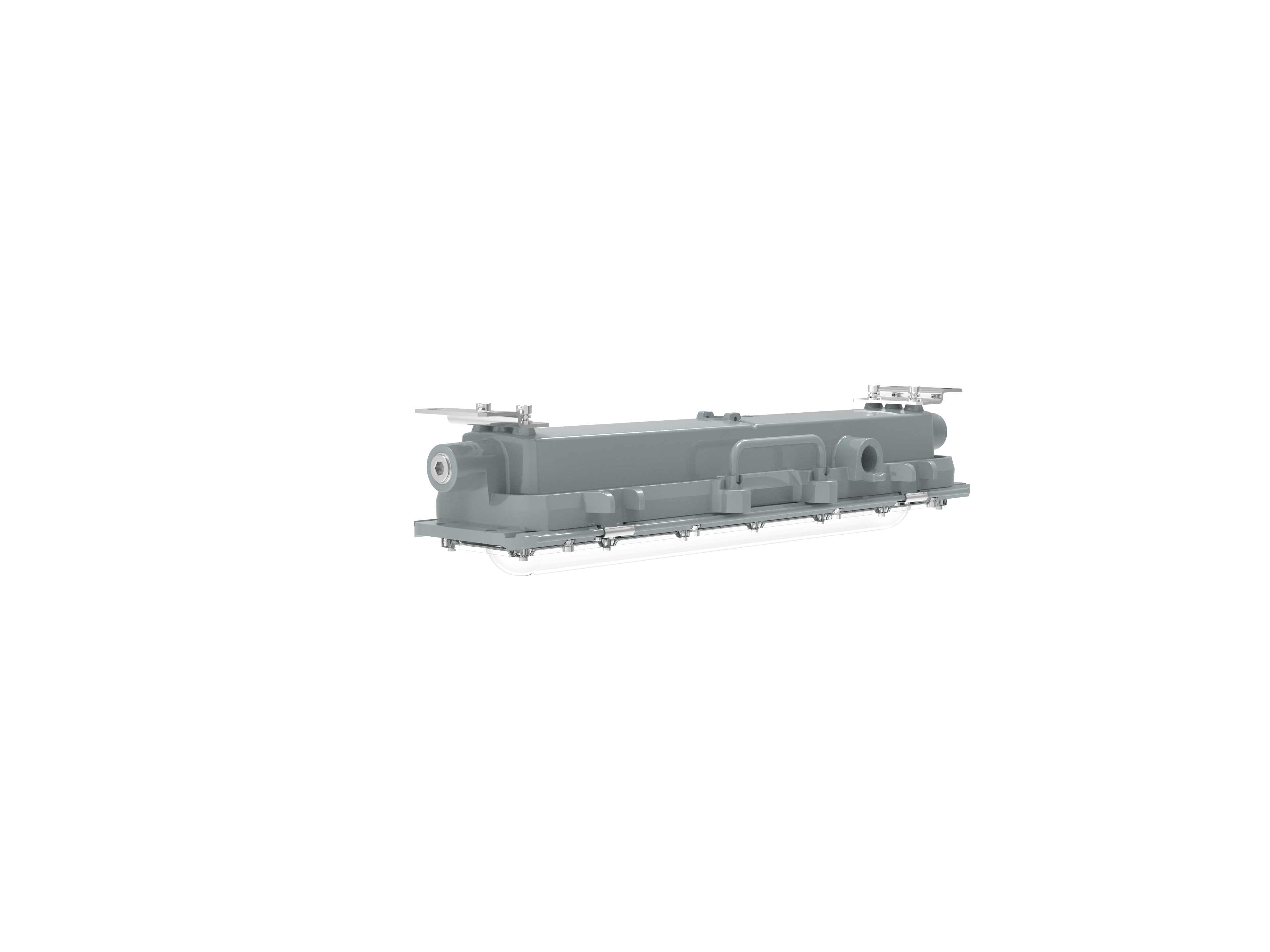

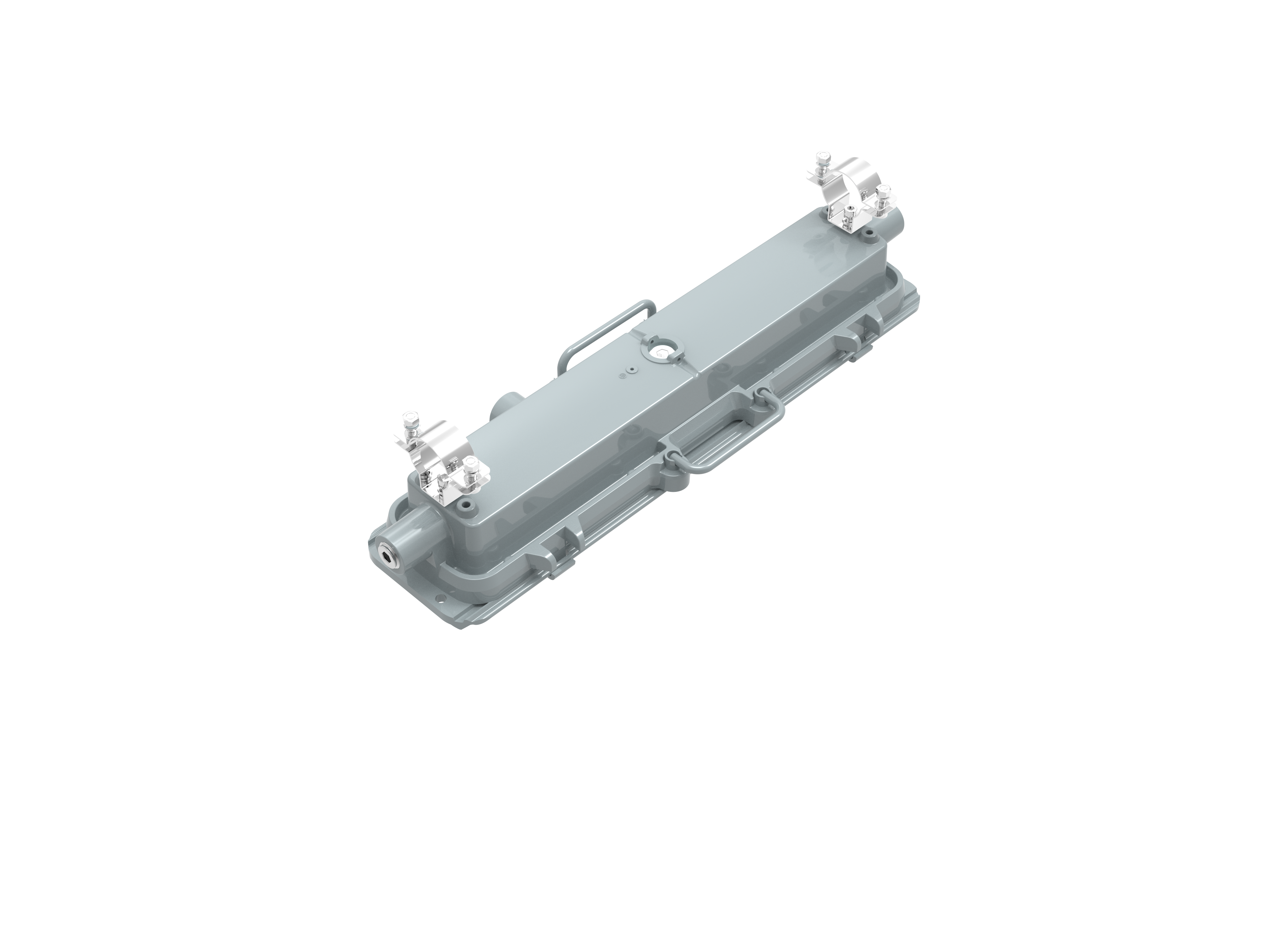

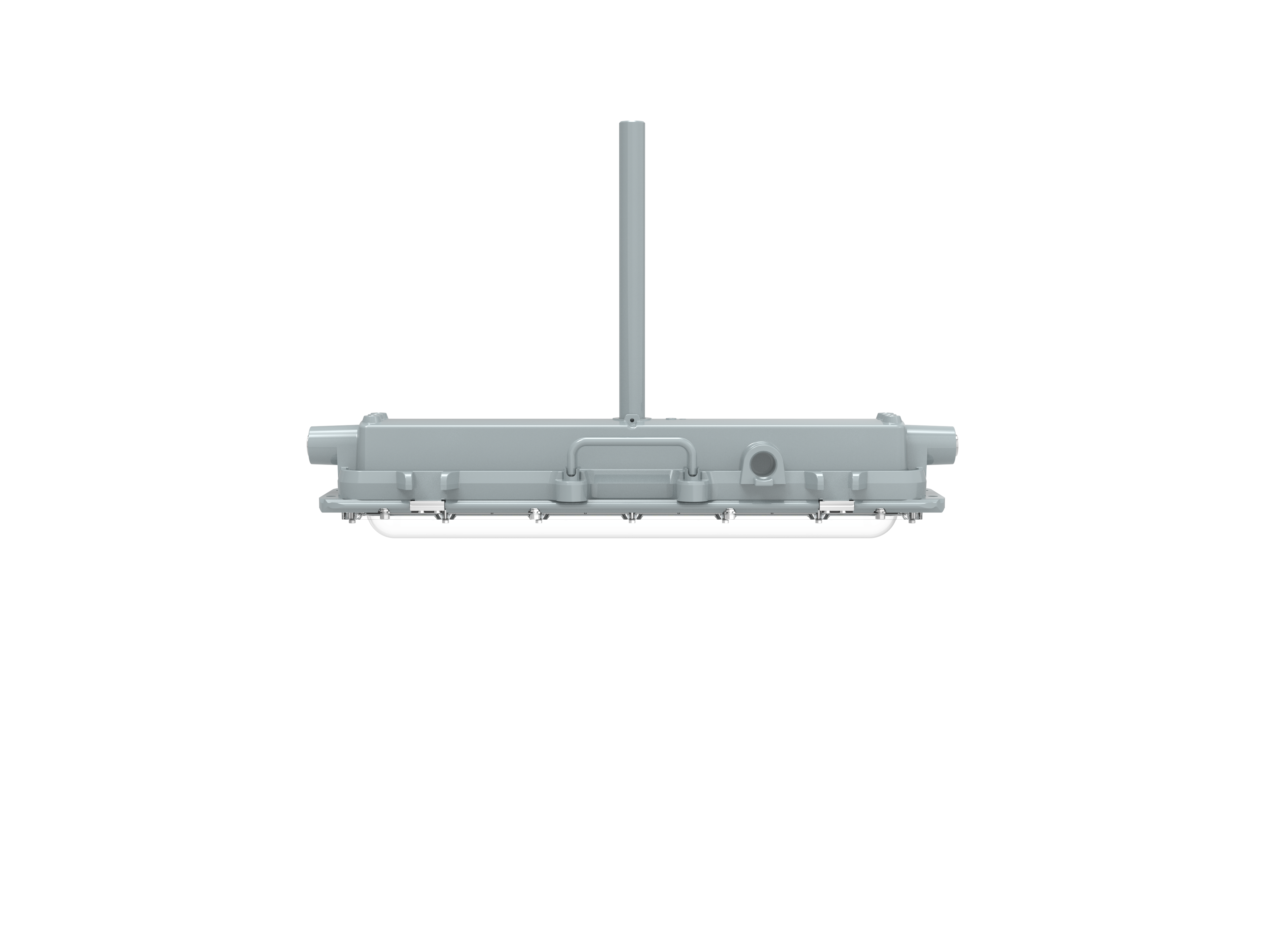

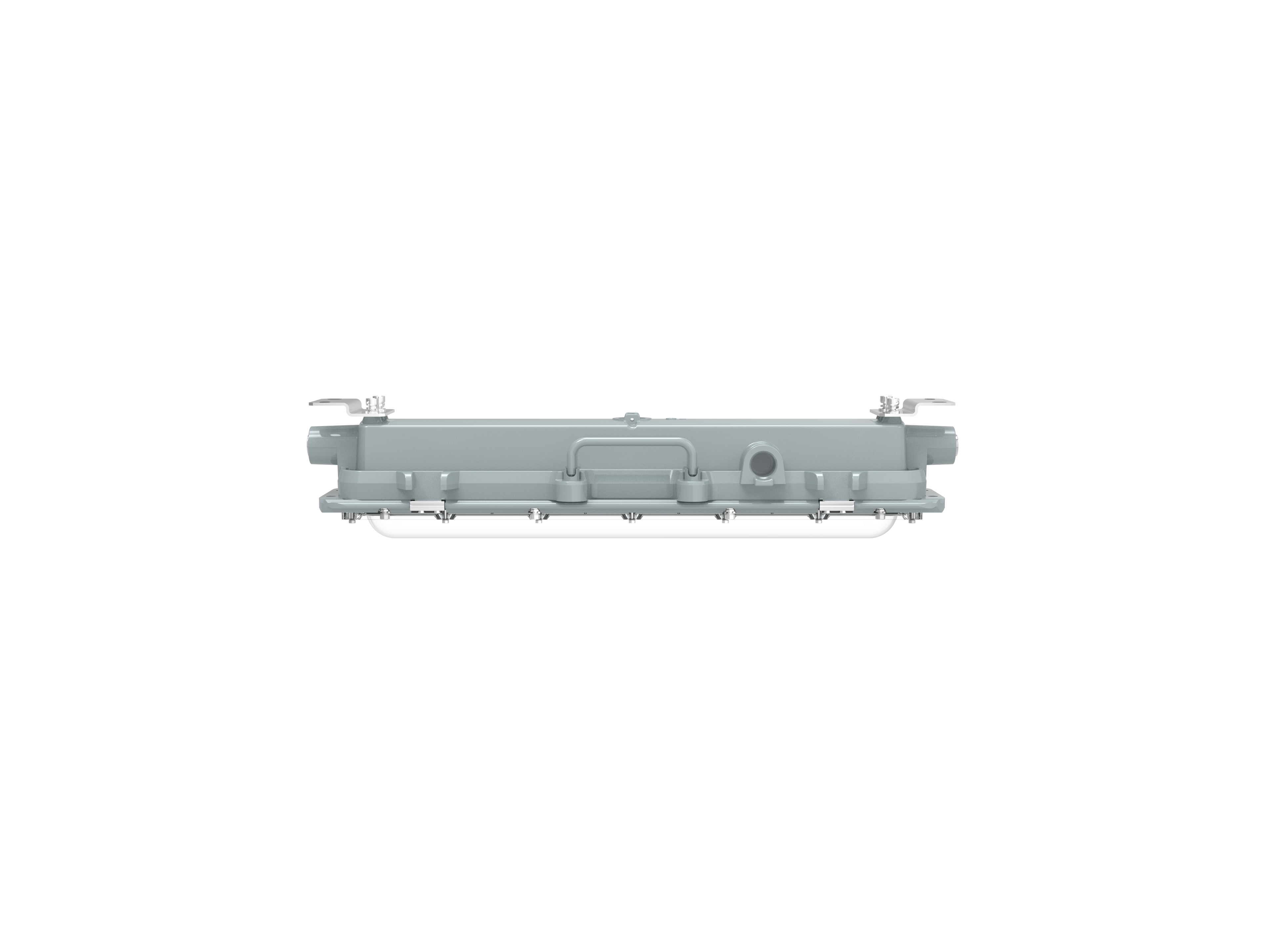

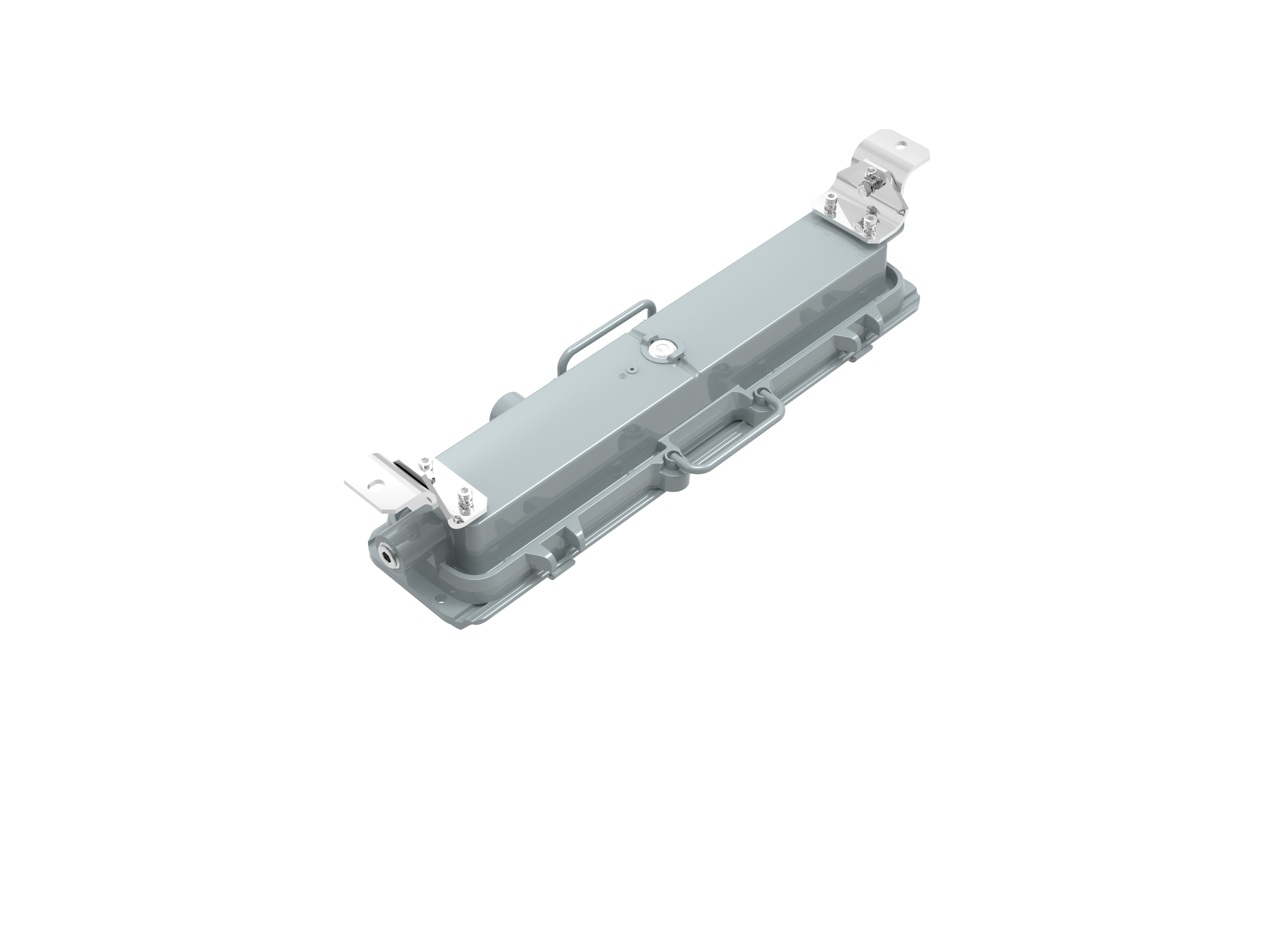

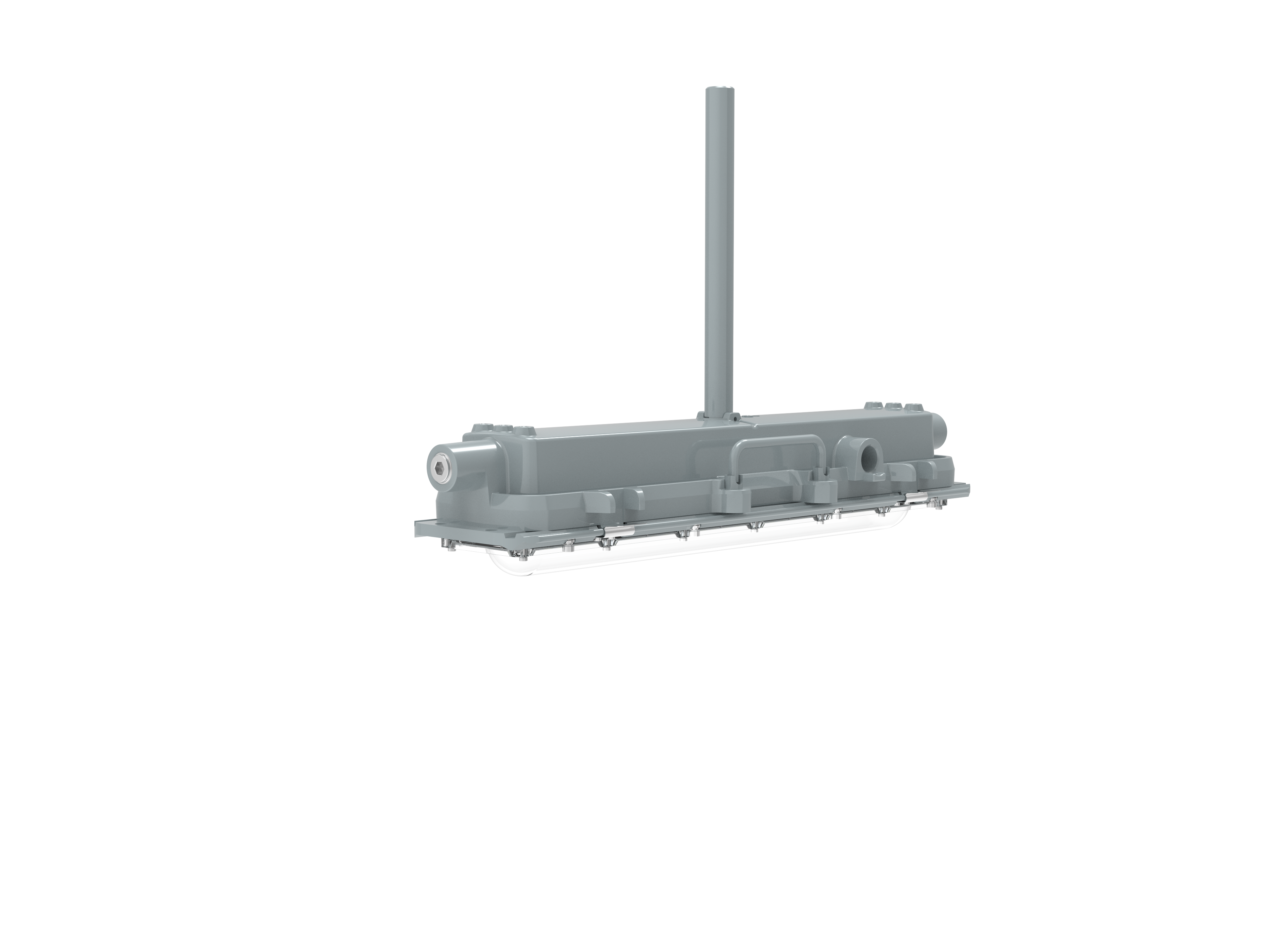

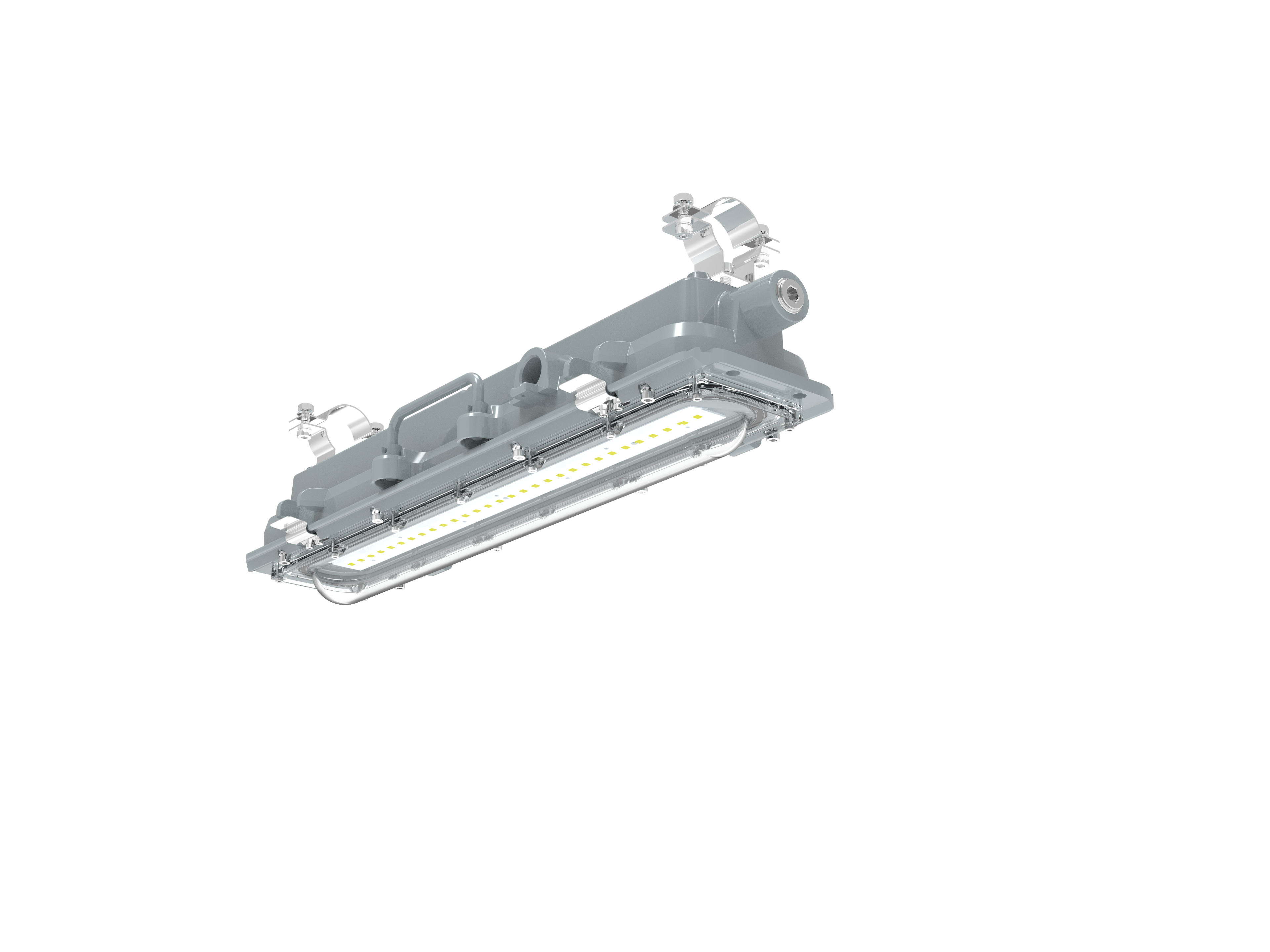

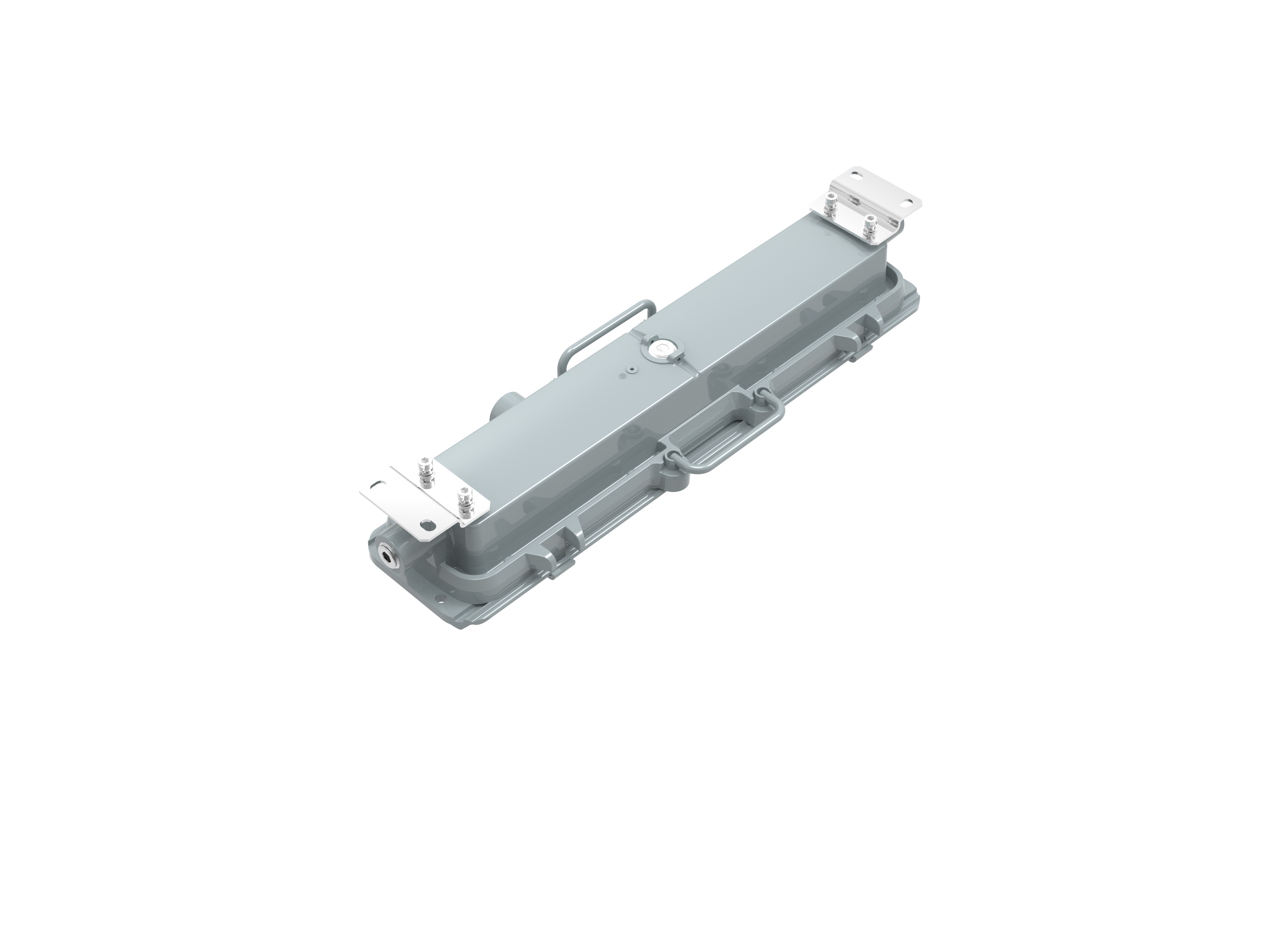

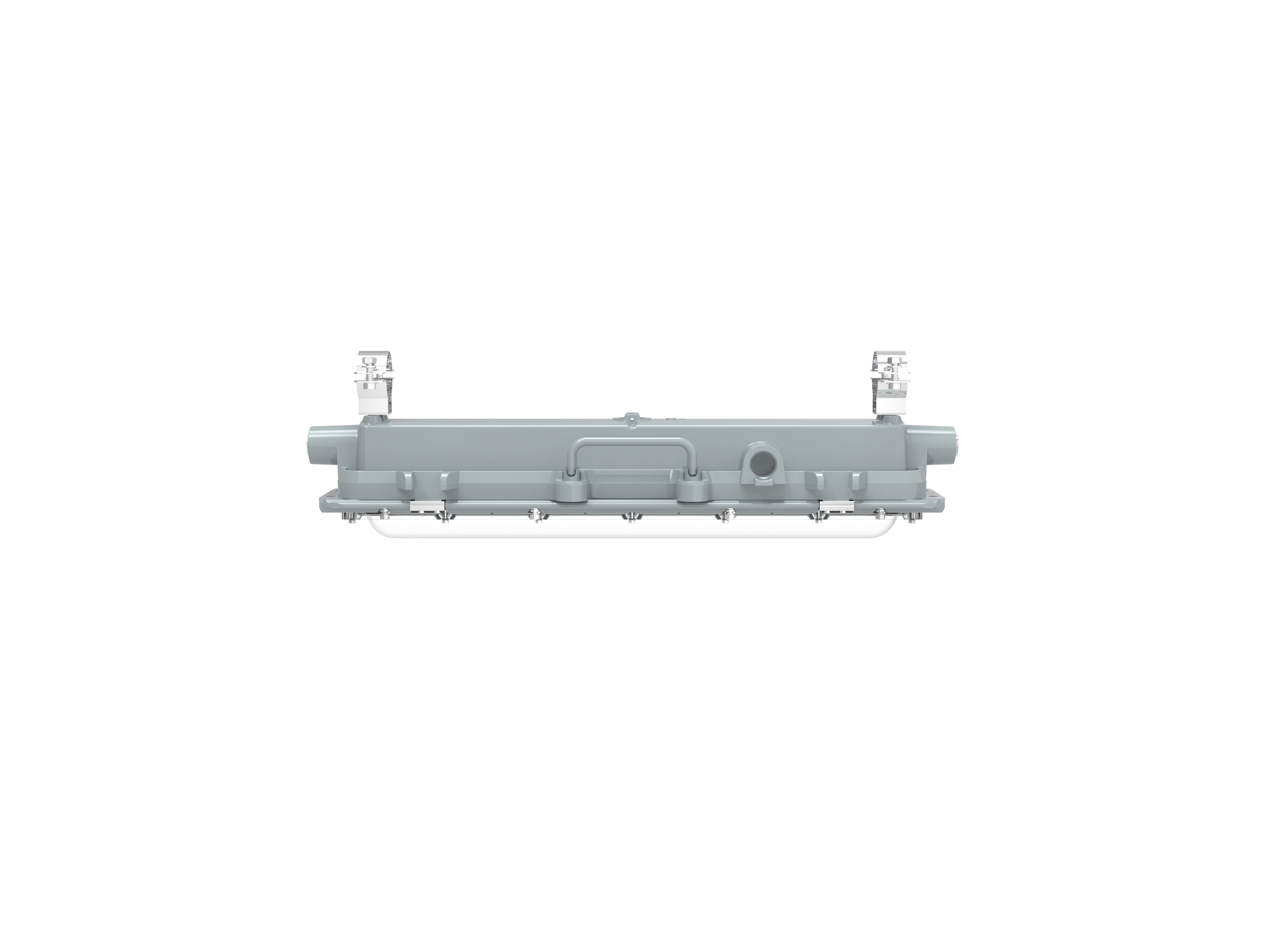

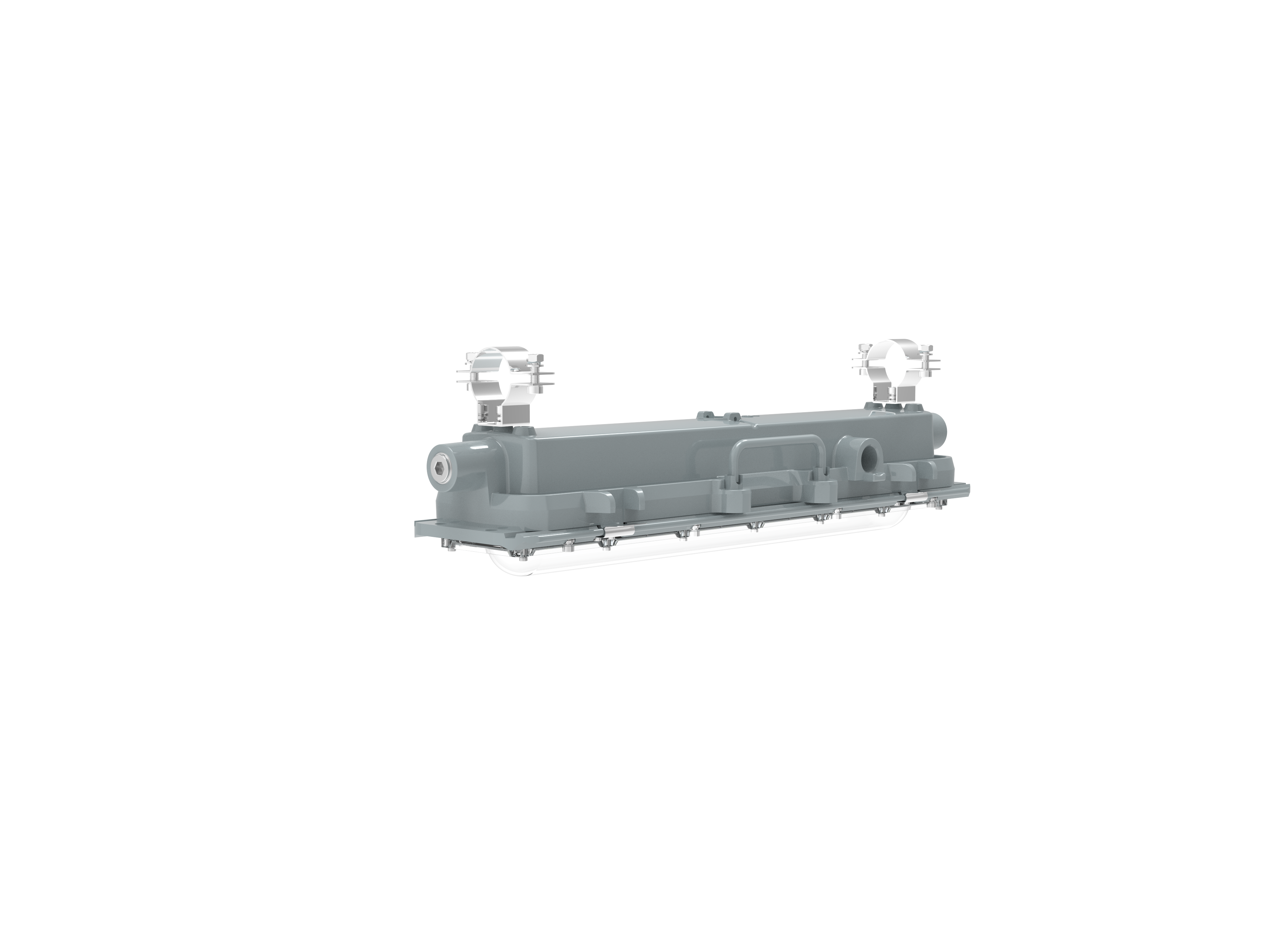

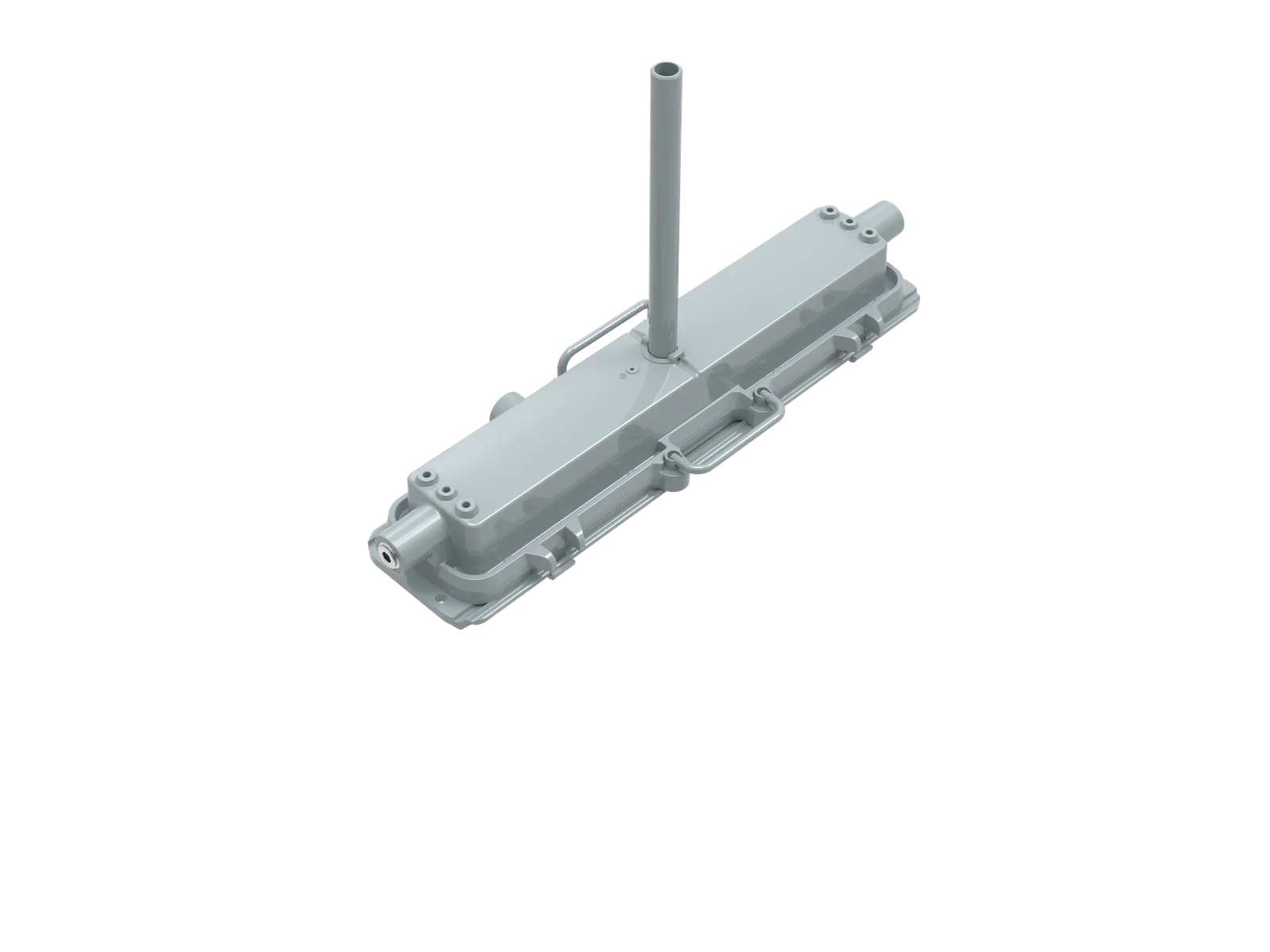

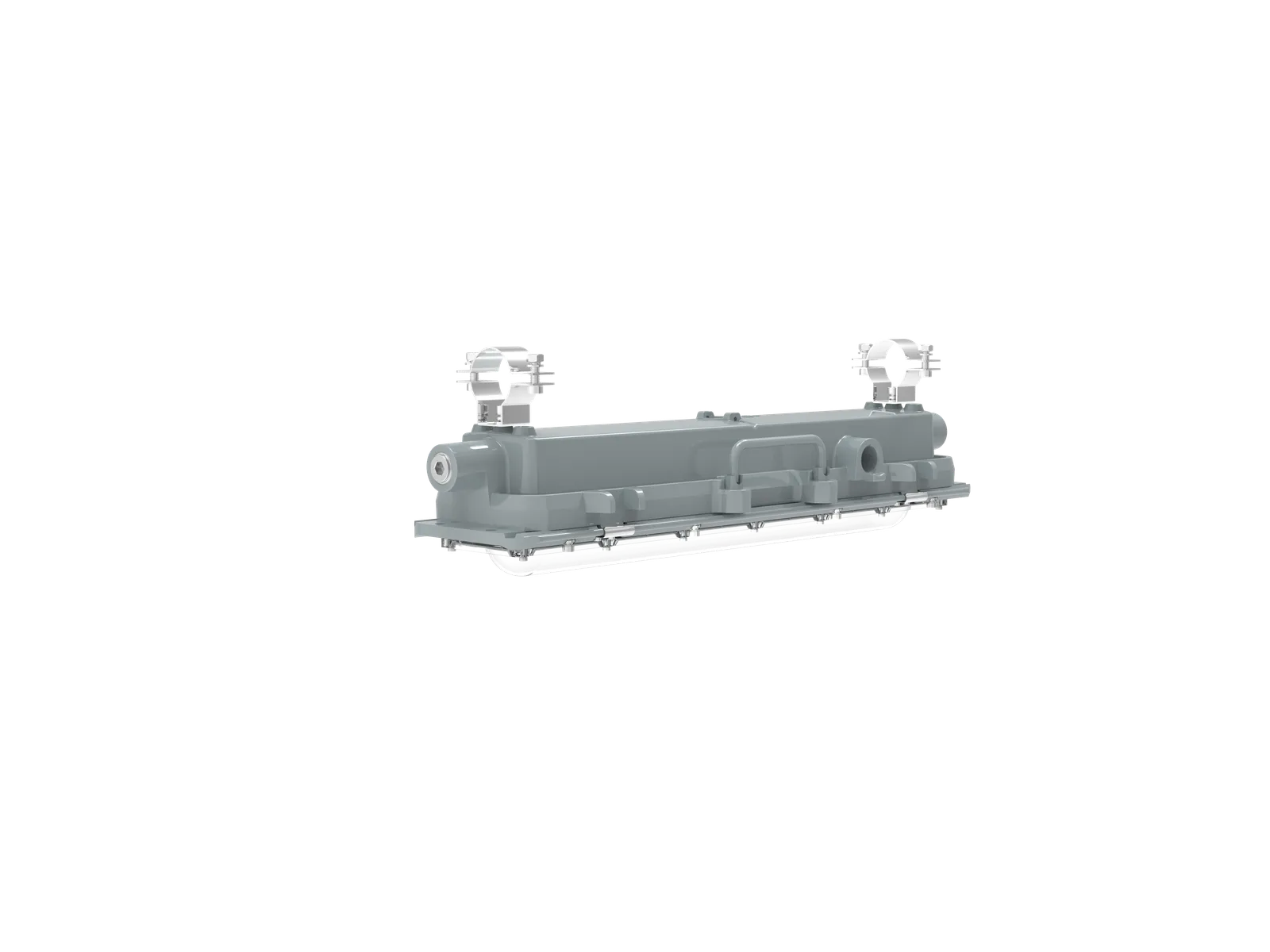

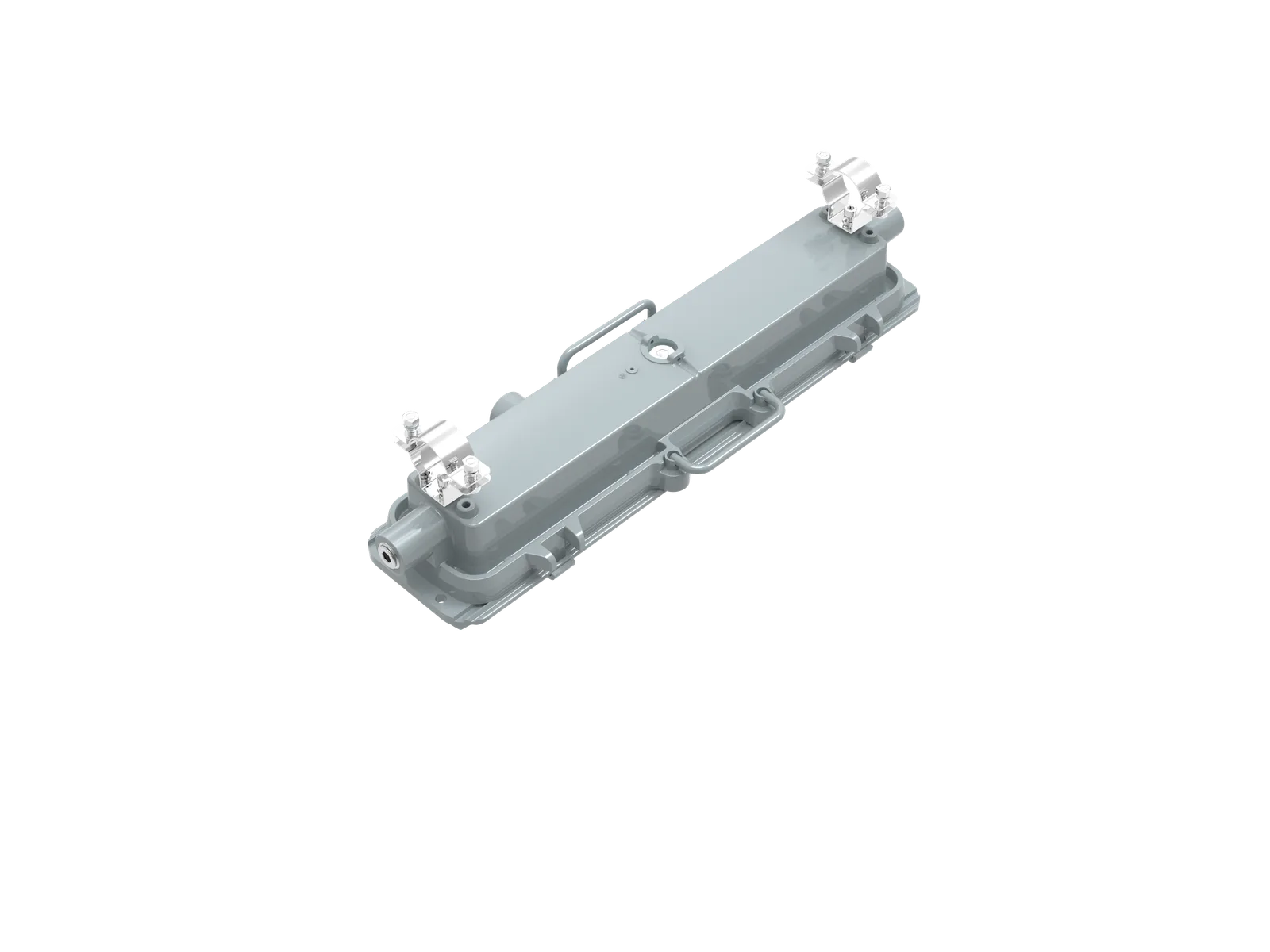

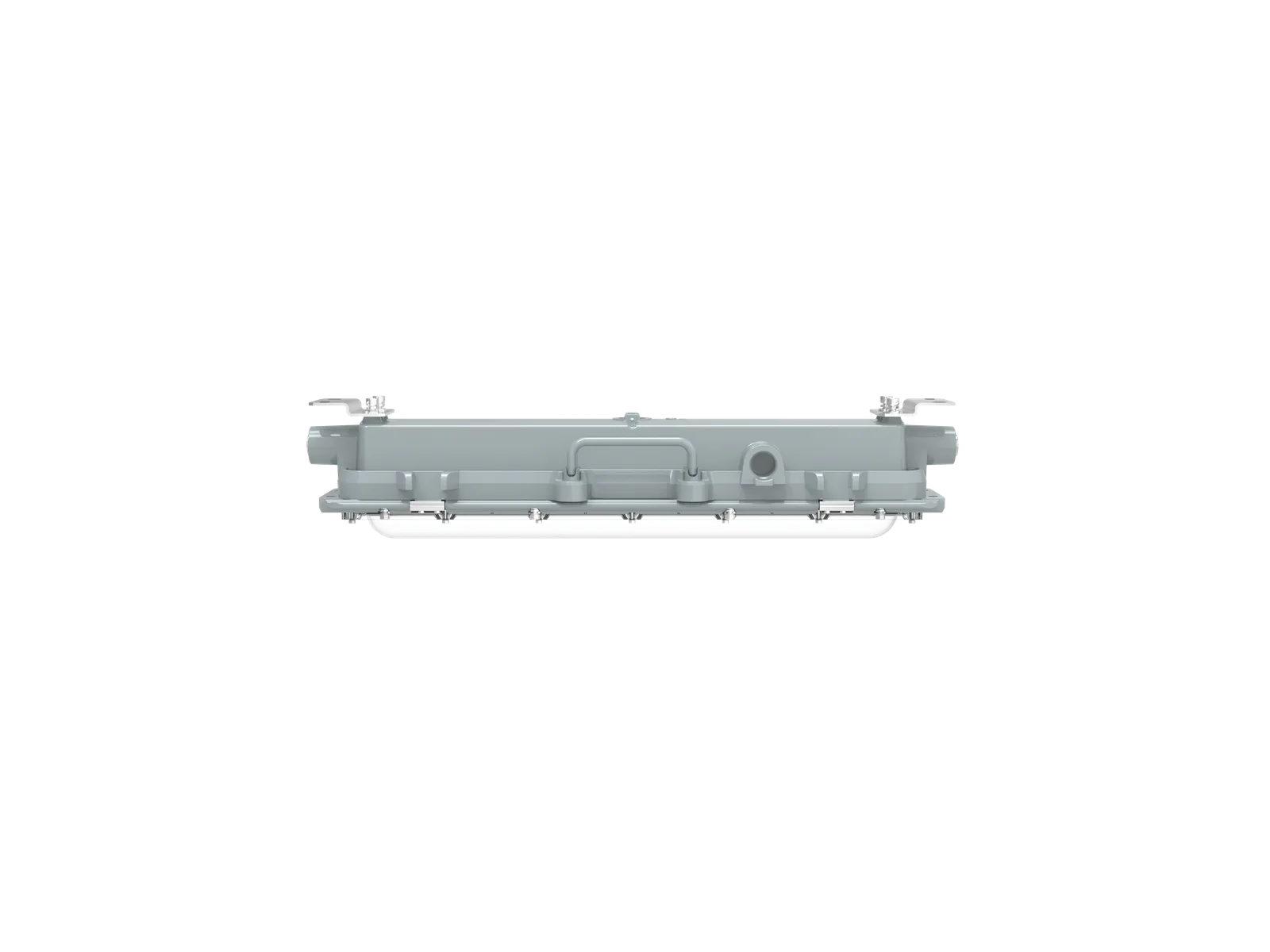

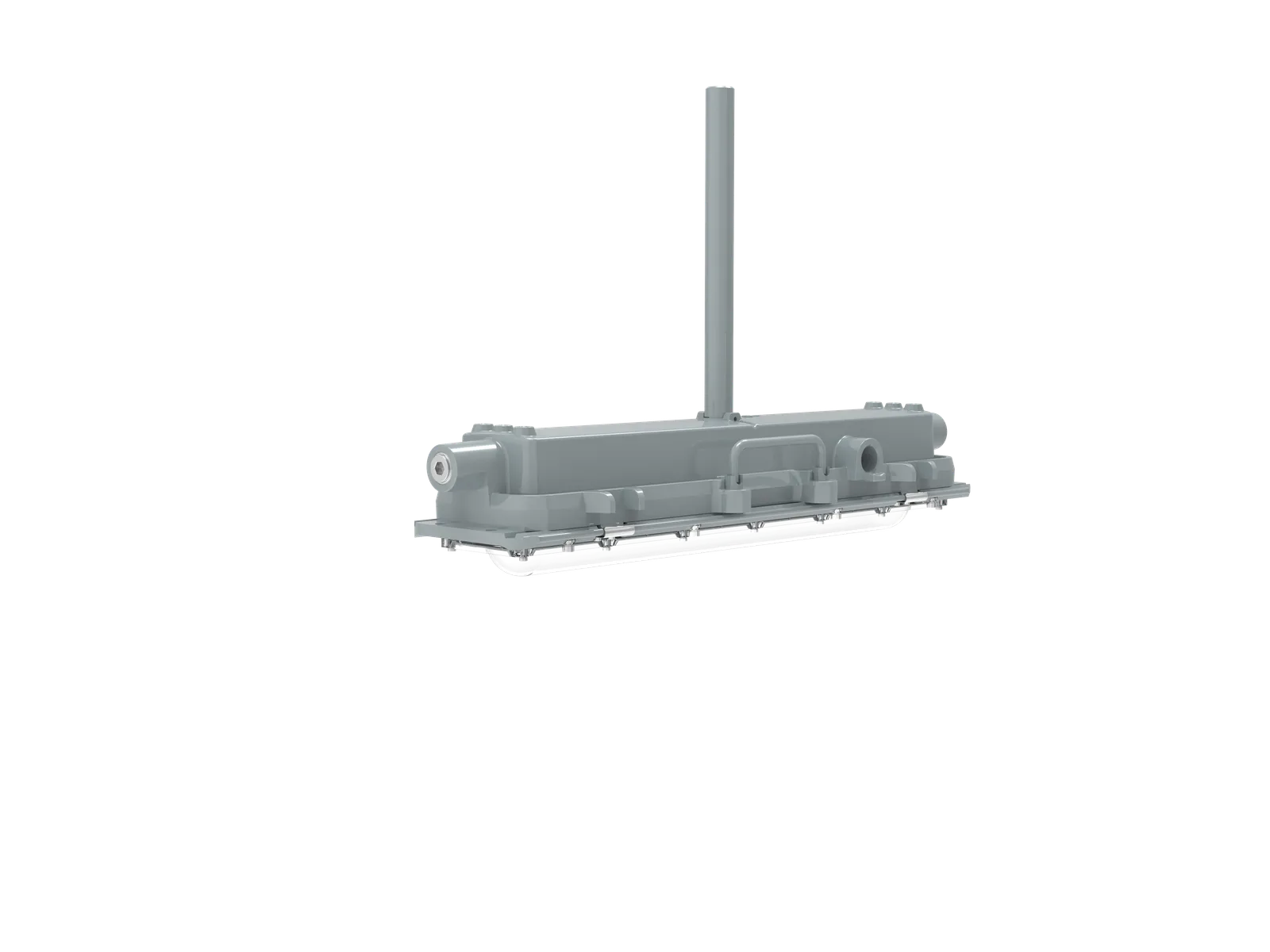

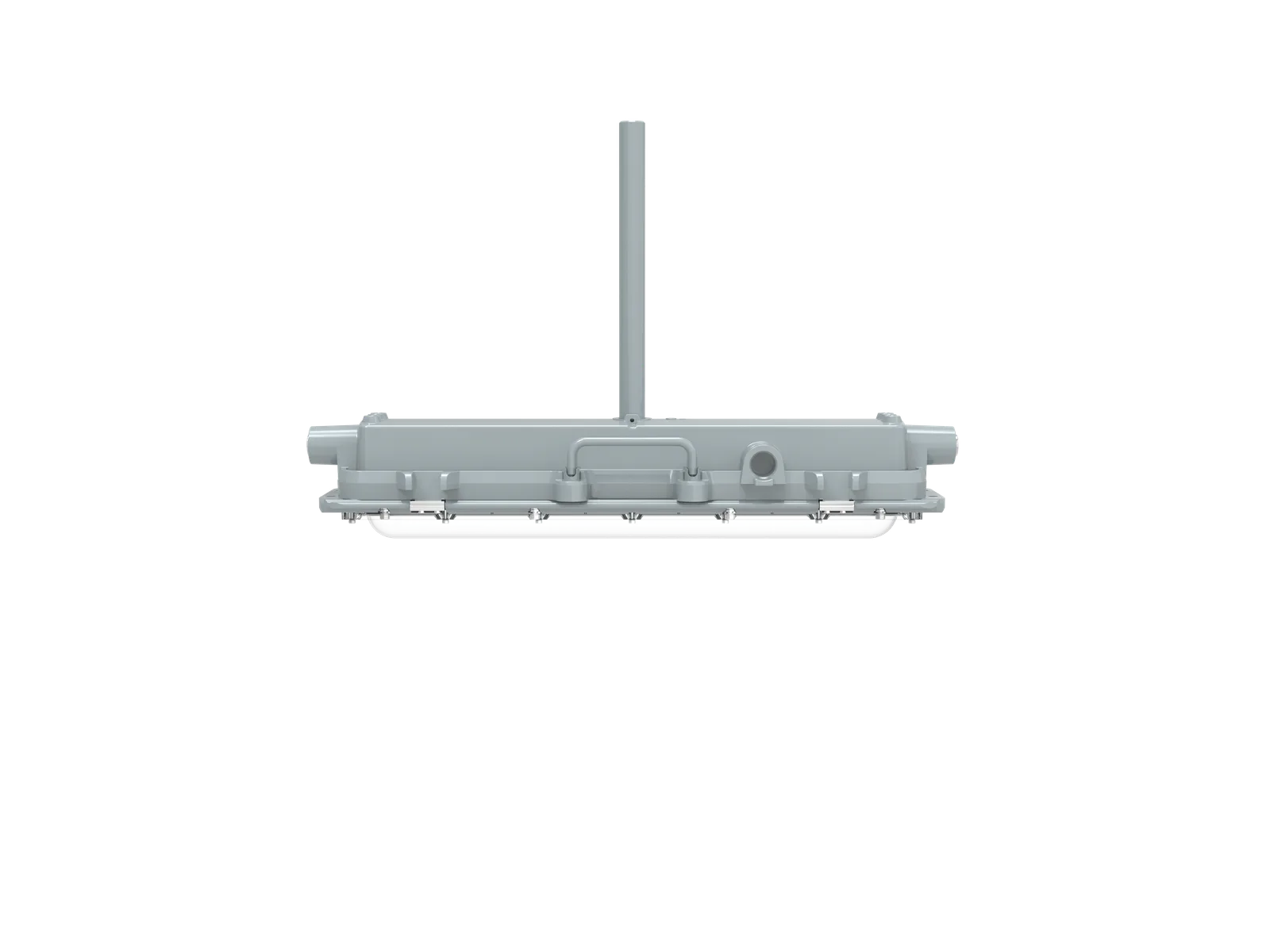

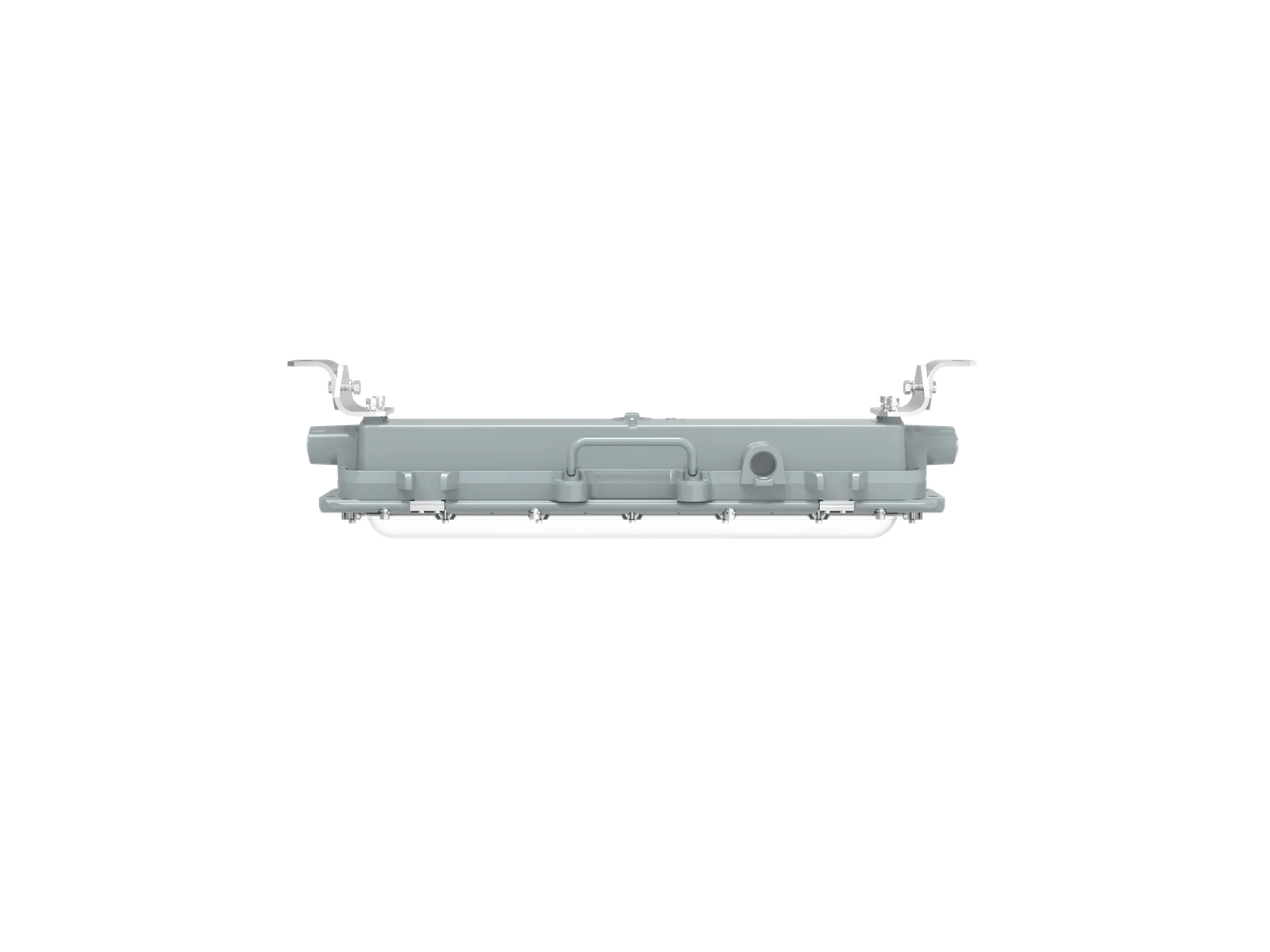

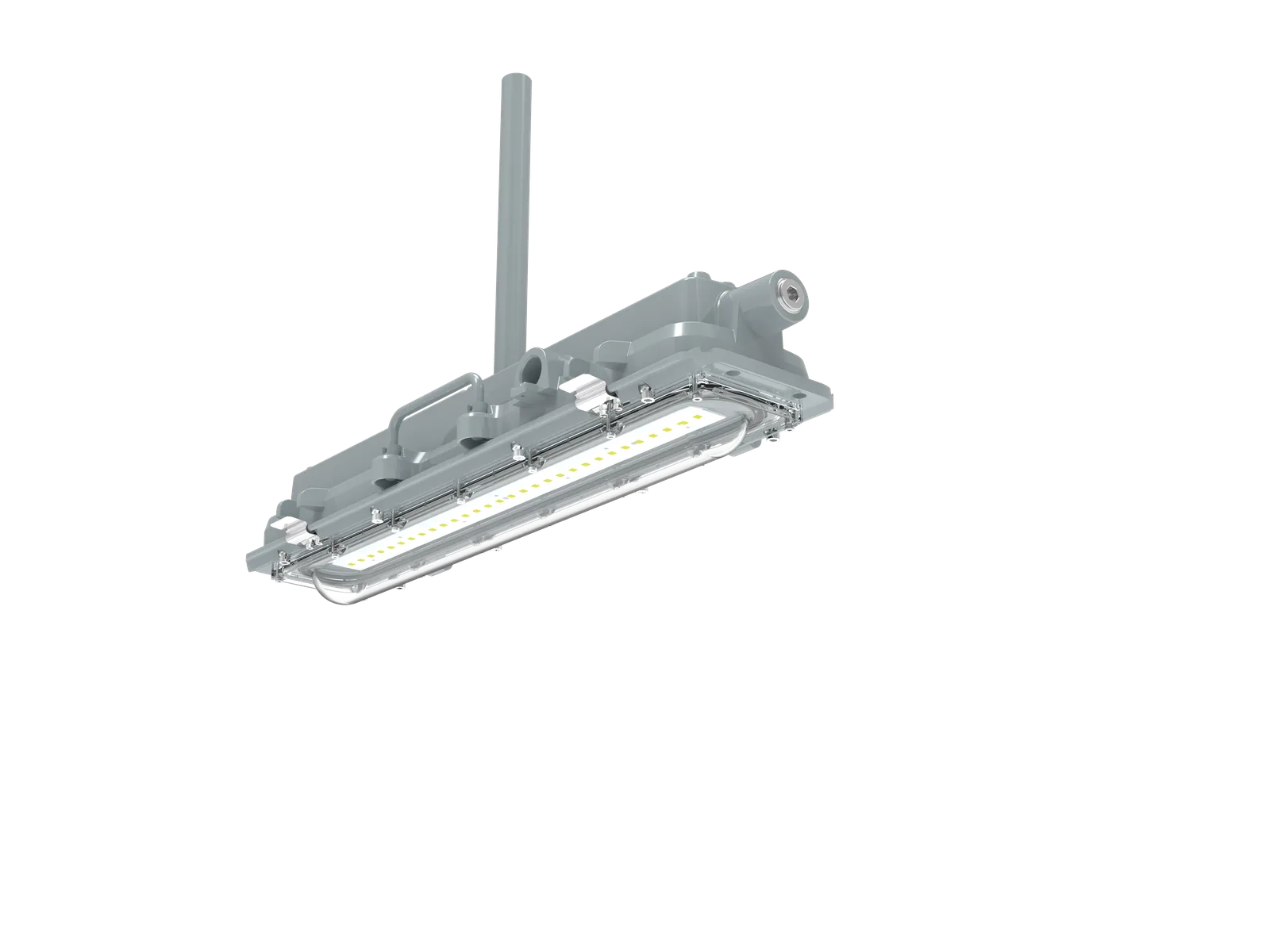

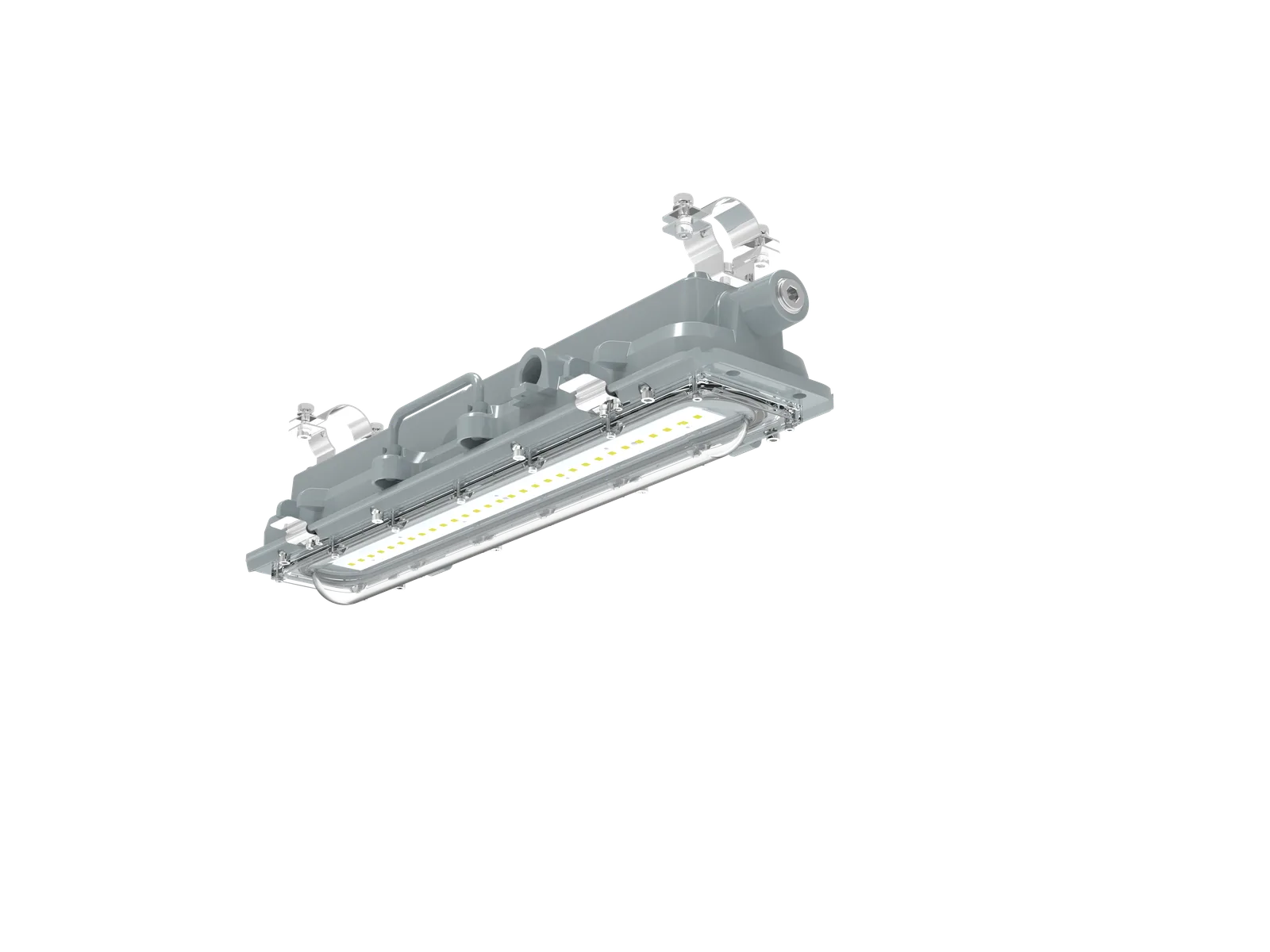

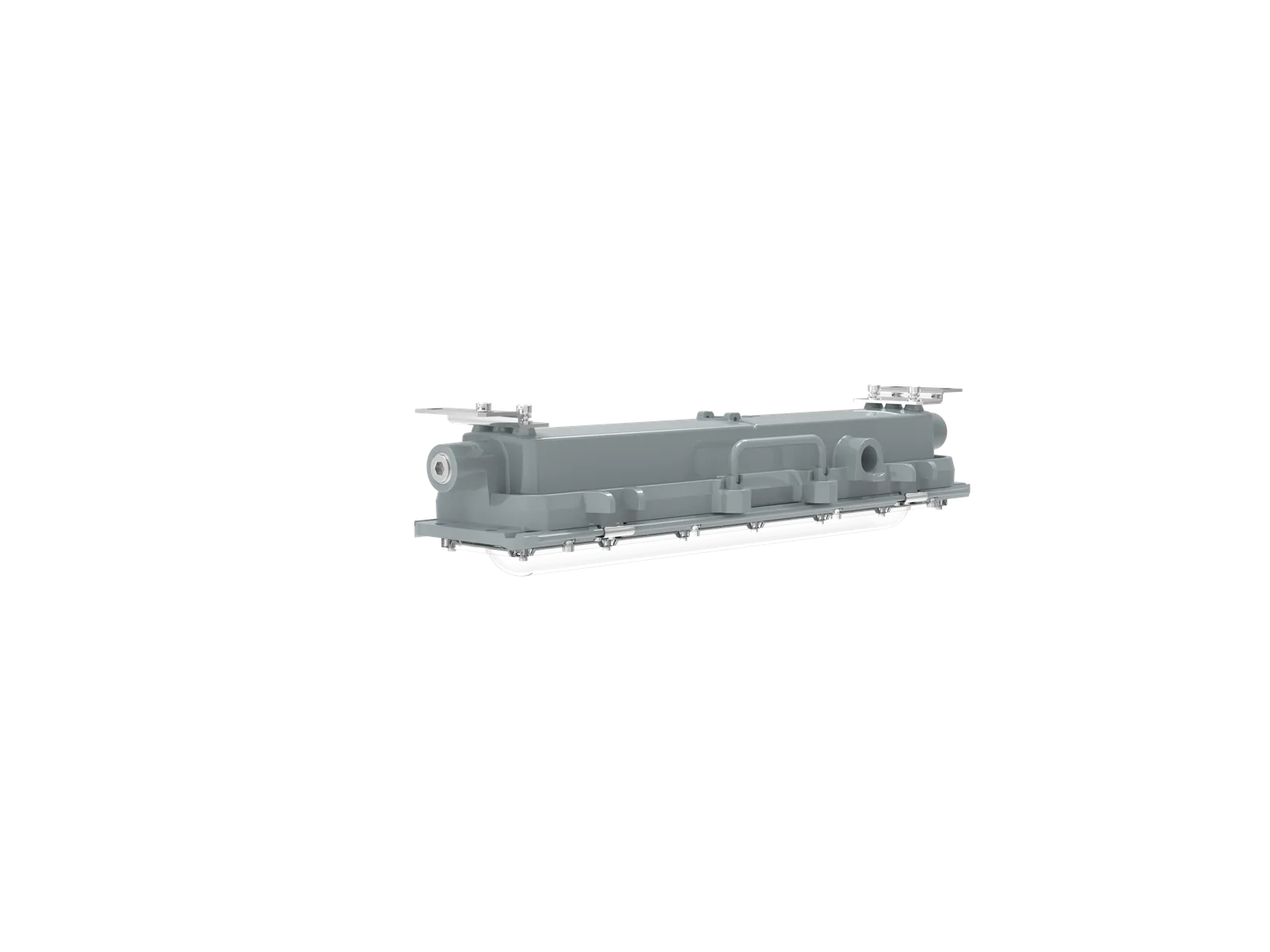

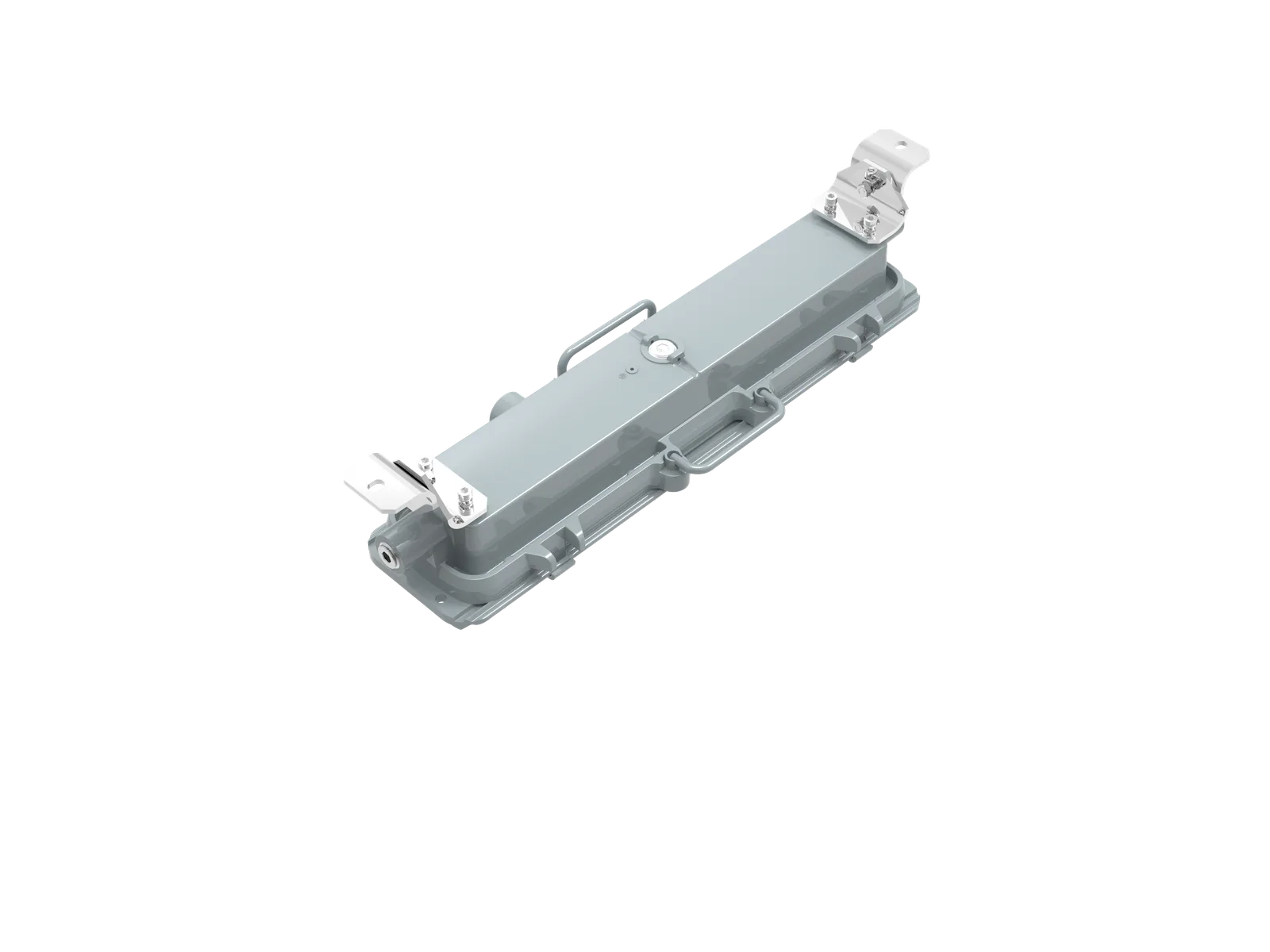

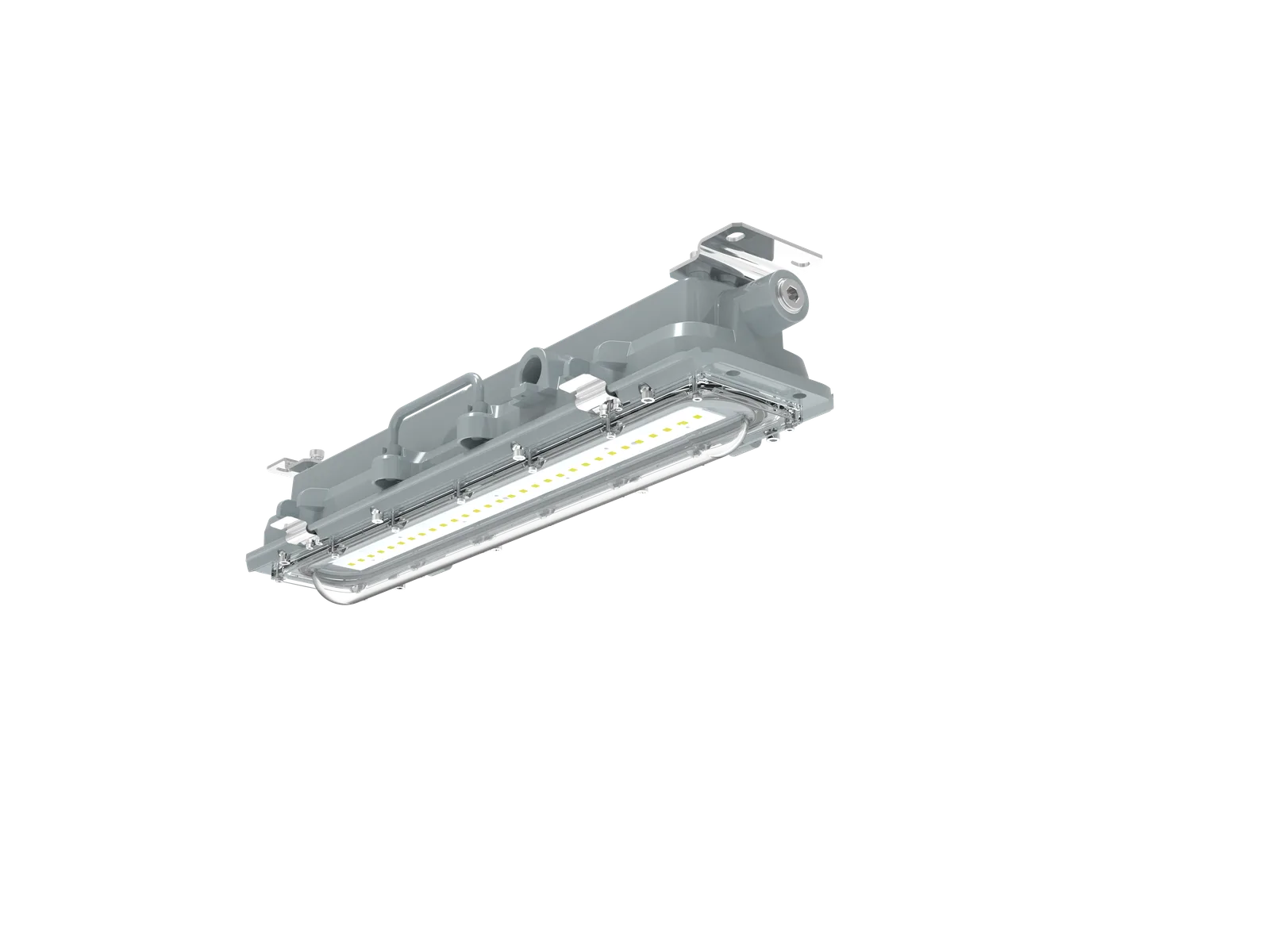

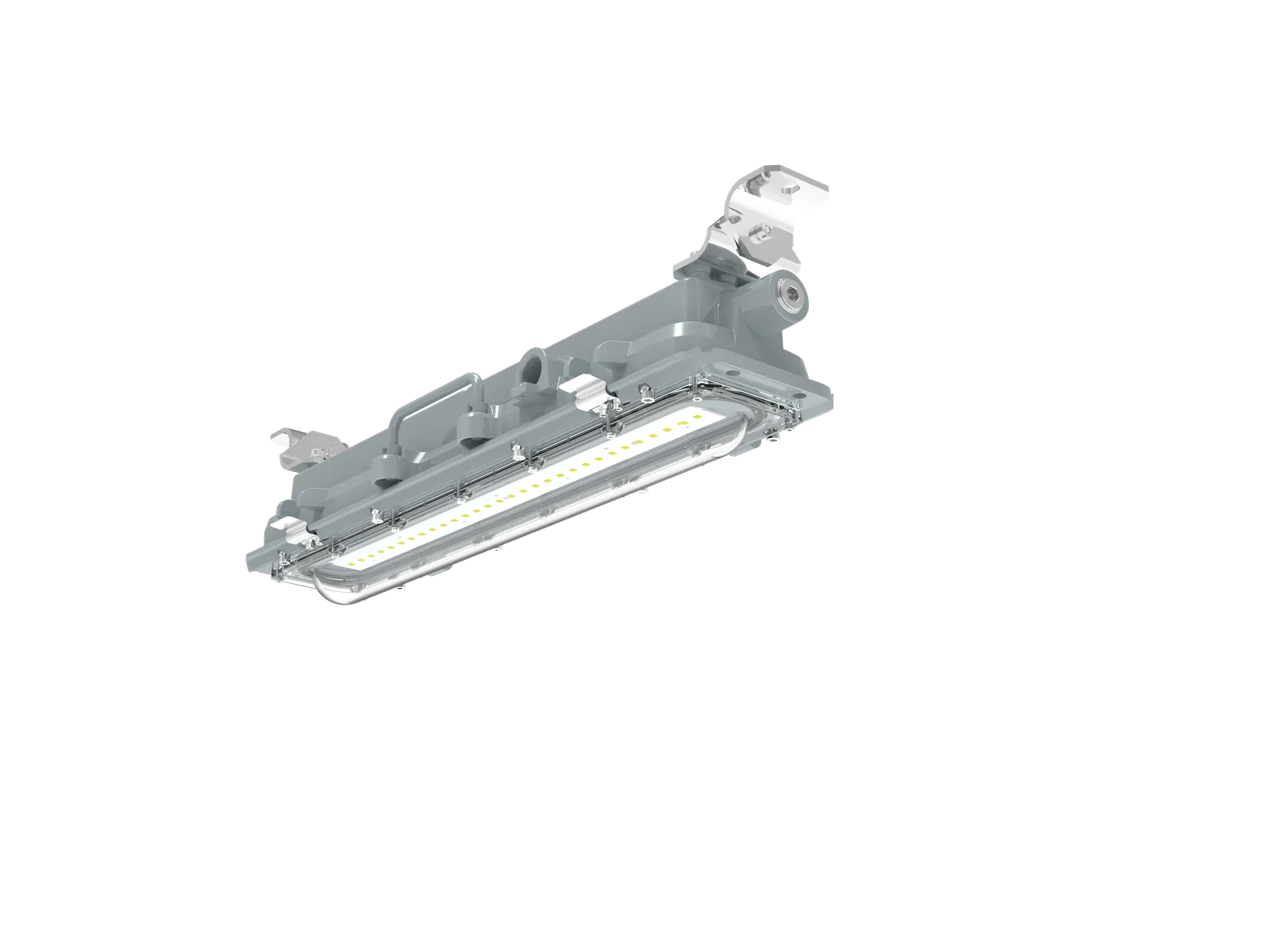

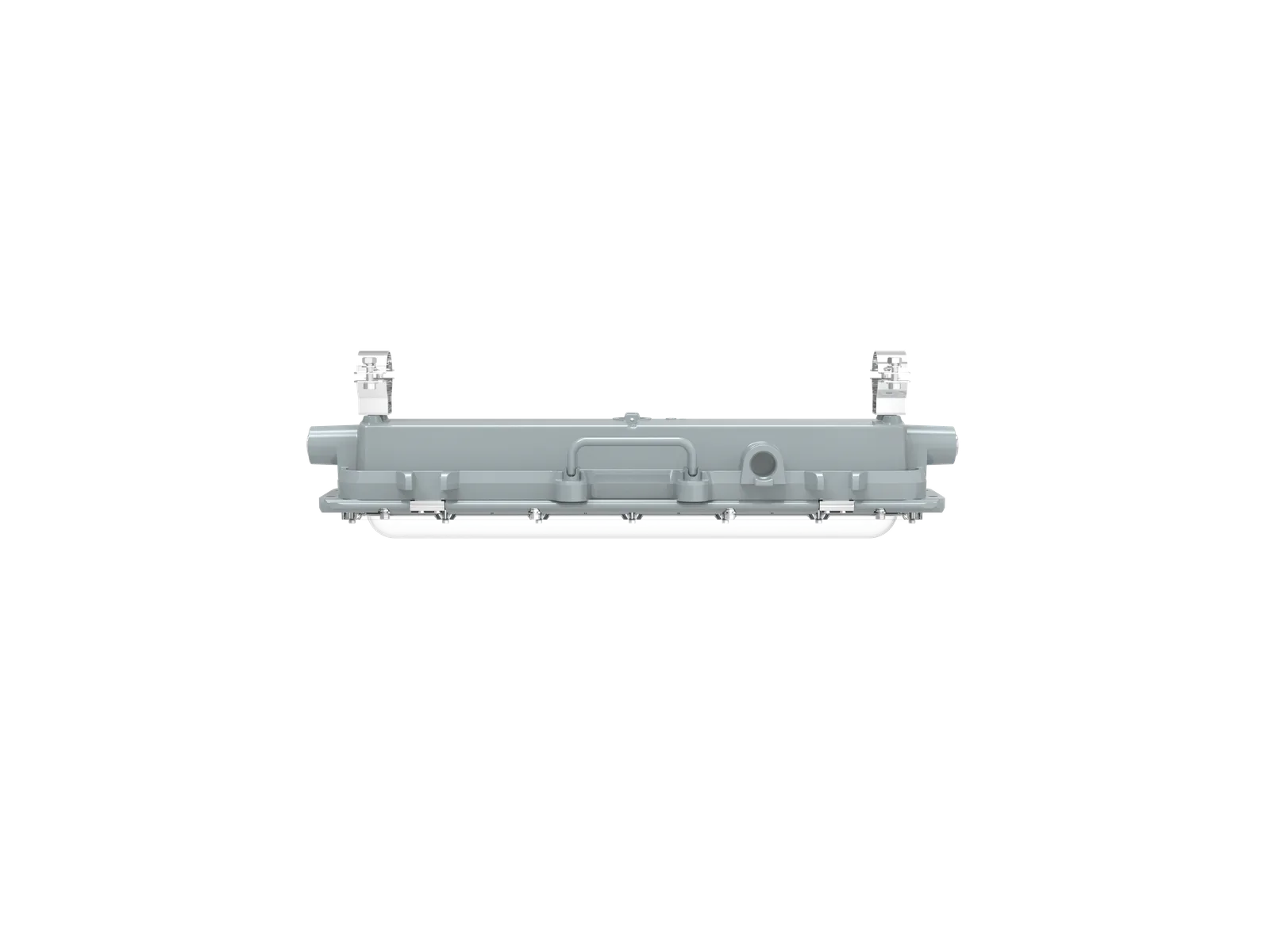

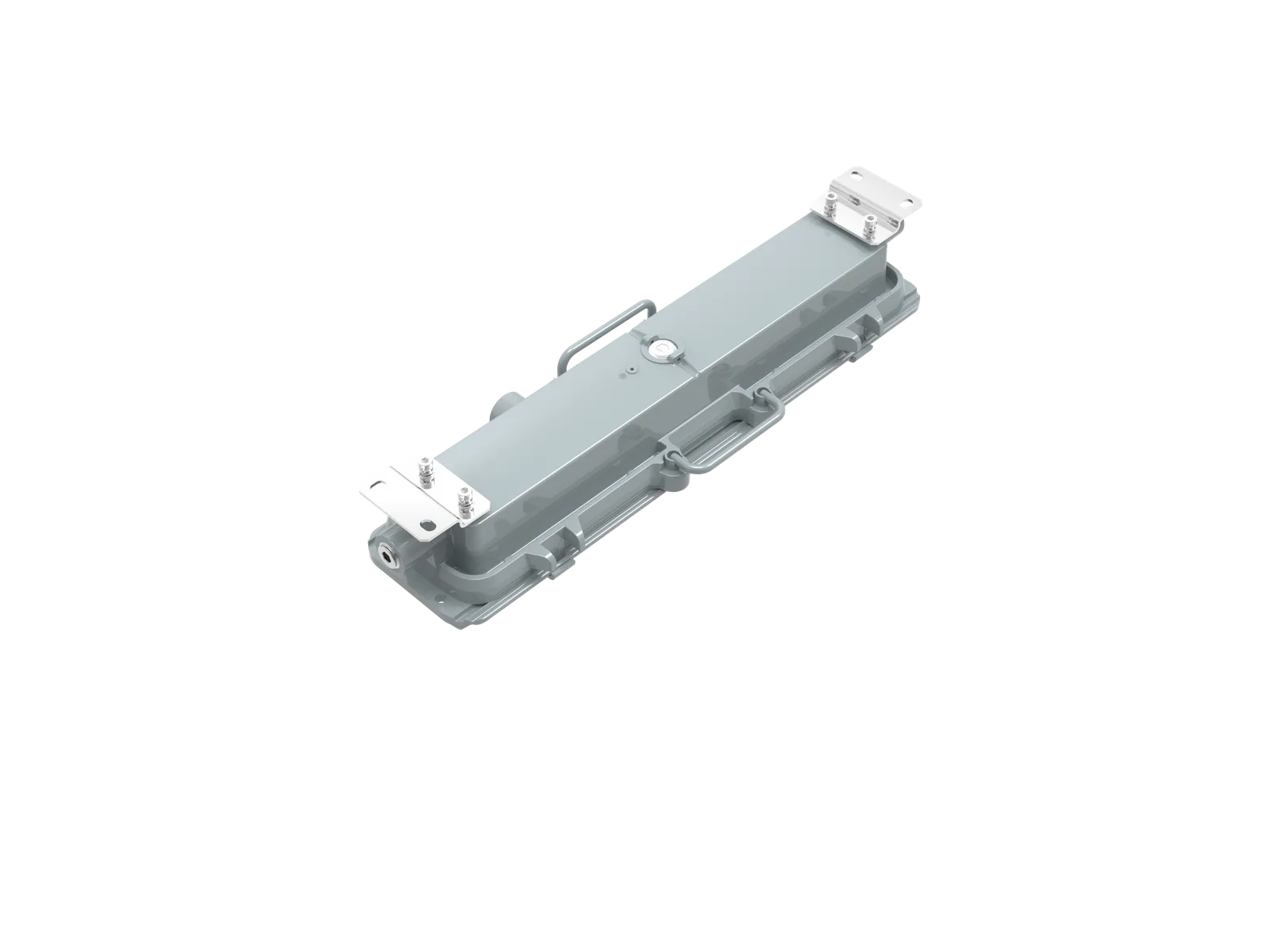

| Mounting | Ceiling, wall, pole, hook, pendant, stanchion, trunnion |
|---|---|
| Diffuser / lens | Polycarbonate or glass |
| Beam angle | 30°, 45°, 60°, 90°, 120°, T2, T3, T4, T5 |
| Impact rating | IK10 with PC cover · IK07 with glass cover · IK10 glass with wire guard |
|---|---|
| Ambient temperature | −40 °C to +65 °C |
Class I, Division 2 area, site photographyDownloads
Photometric Files (IES)
IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 6 IES files
