Low Bay Q1A Series

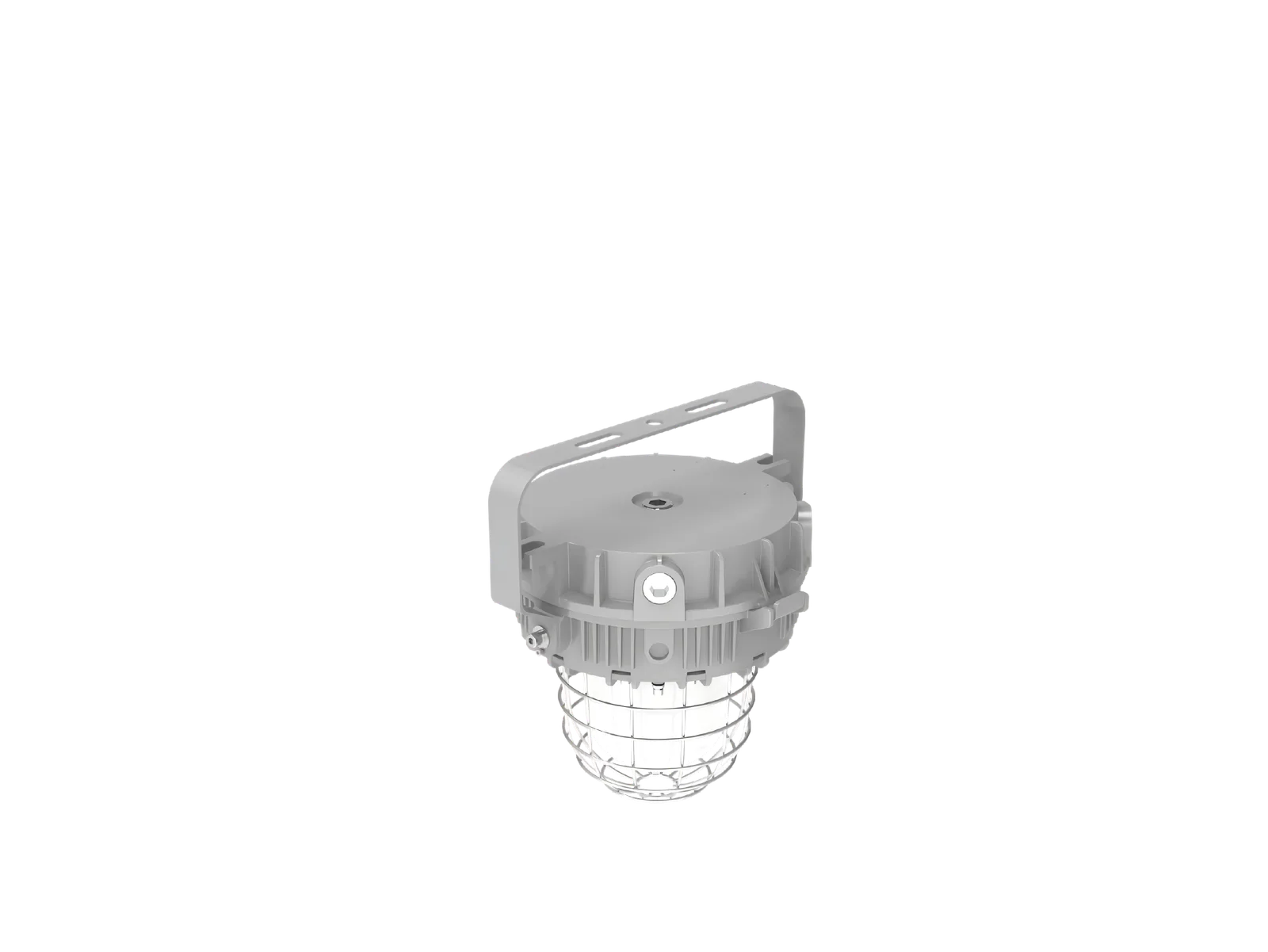

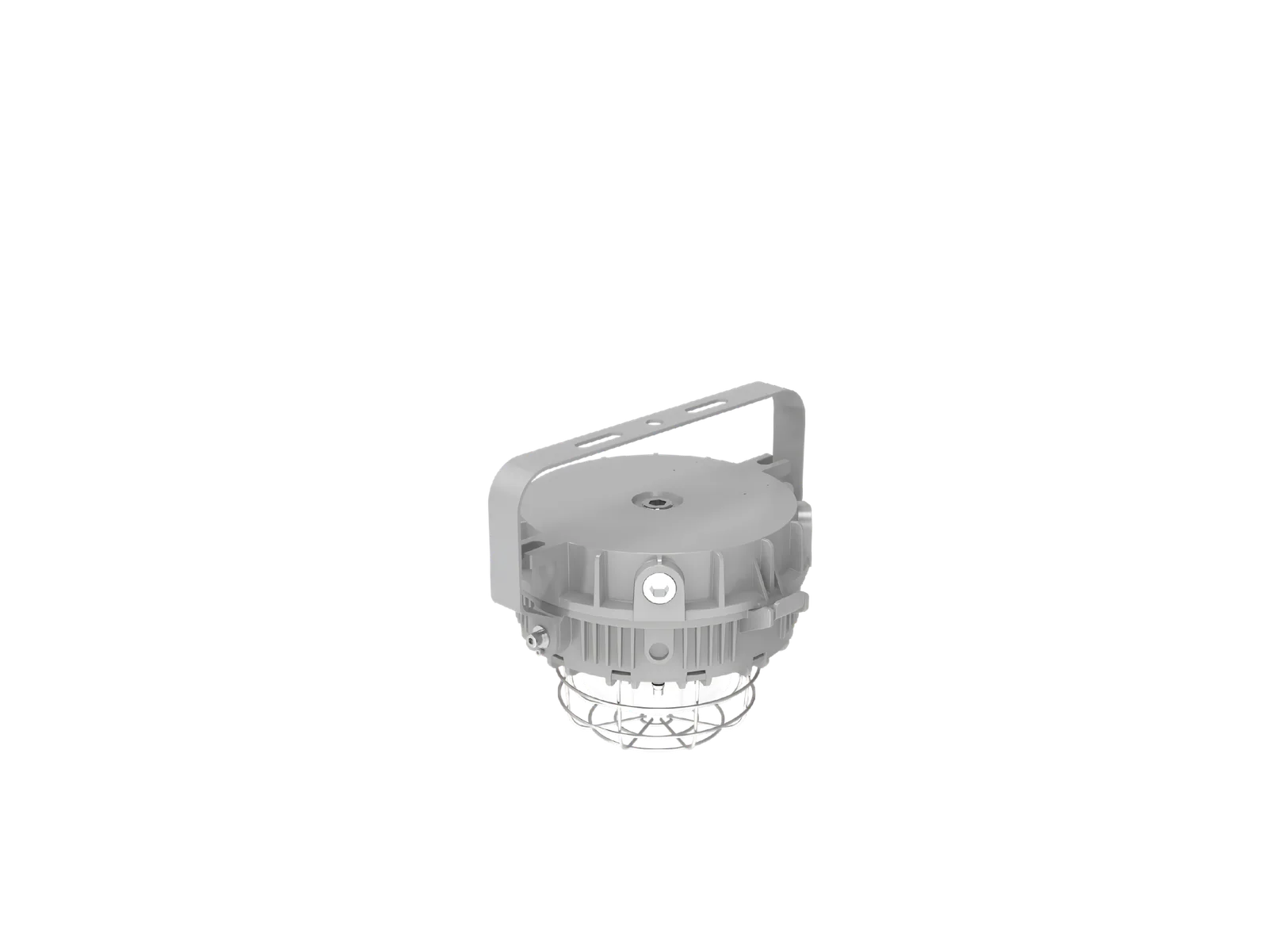

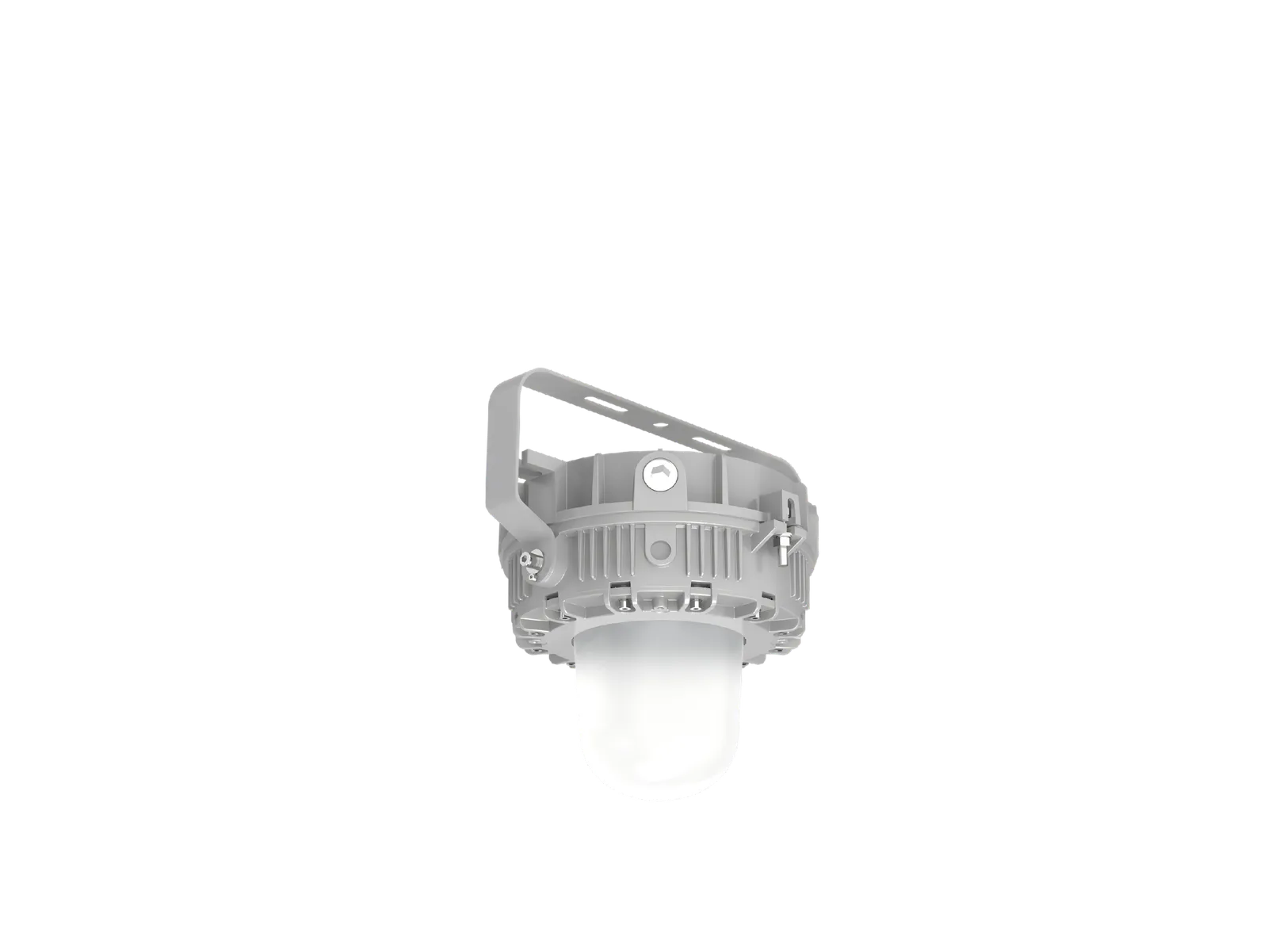

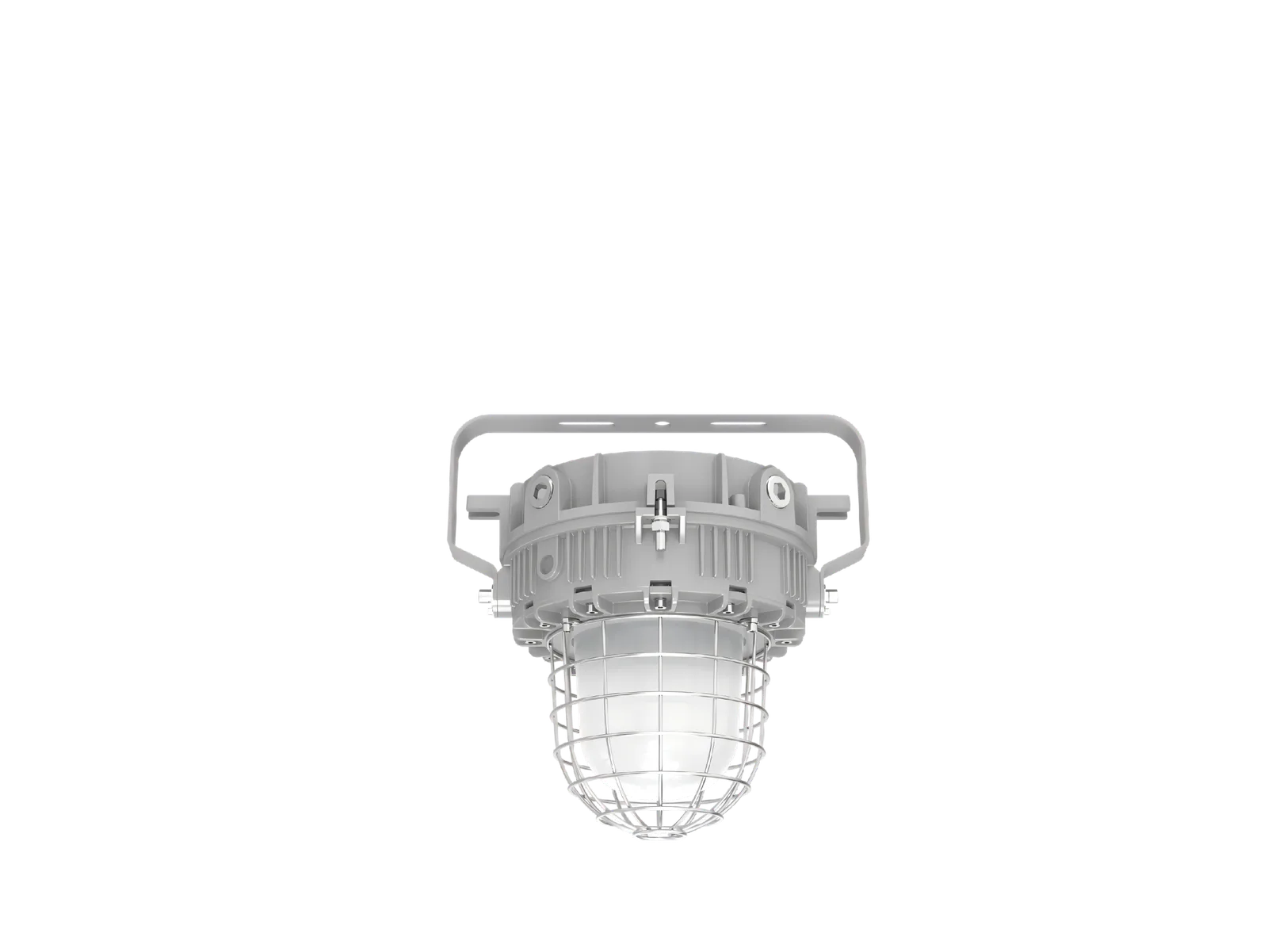

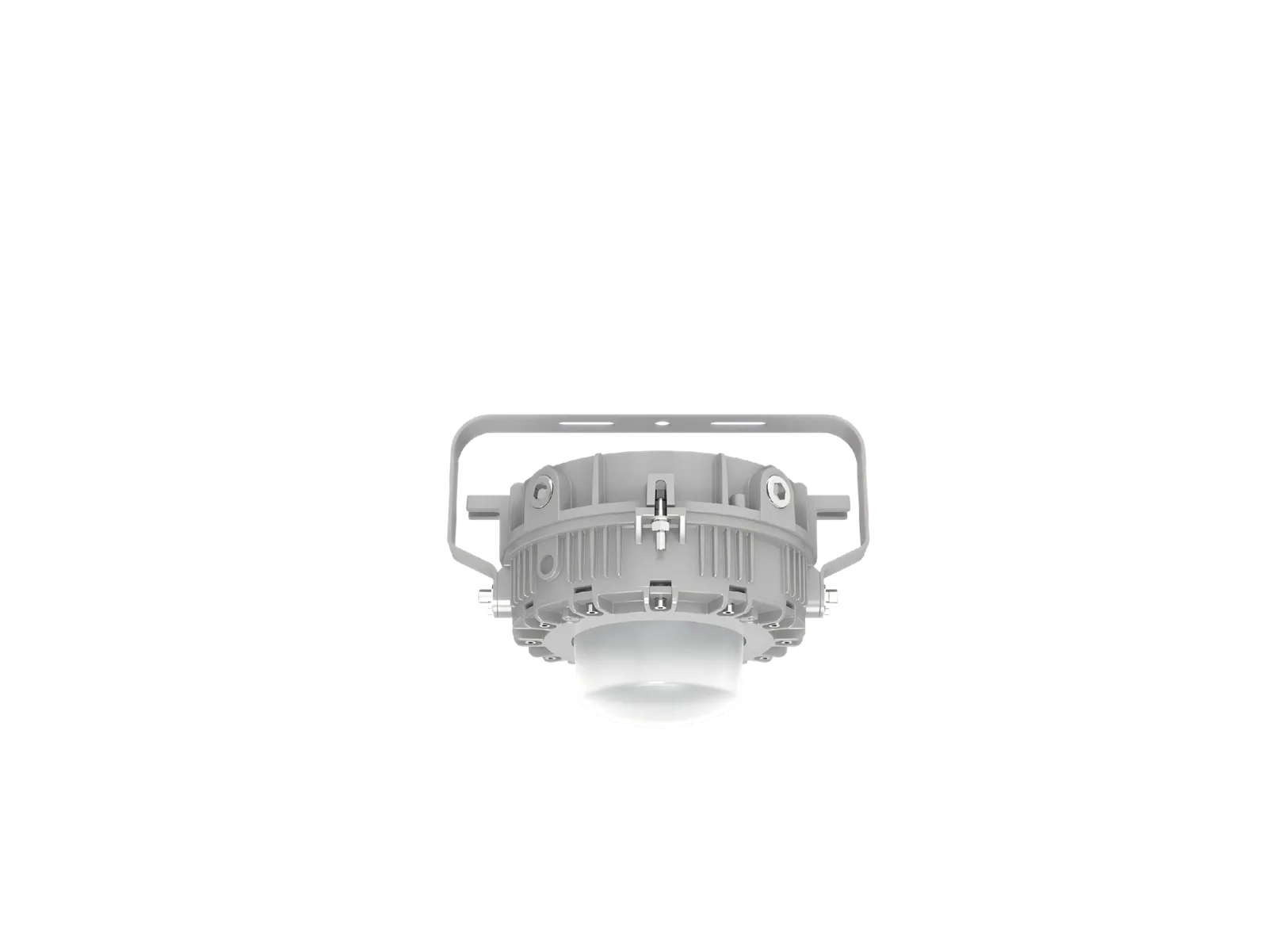

EX-Q1A Low Bay

Class II, Division 1 High Bay Low Bay

Class I, Div 2 · A B C DClass II, Div 1 · E F GClass II, Div 2 · F GClass IIIZone 2 · IIA IIB IIC / Zones 21, 22

Rated power20 to 60 W

Lumen output3,000 to 9,000 lm

ProtectionIP66 / IK08

150 lm/W · adjustable power and CCT · ceiling, surface, pendant, wall, stanchion 25°

Select Variant

Request a Quote Spec Sheet

Talk to a Specialist → IES photometric files (5)

A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.

Request a Quote

Ratings on the spec sheetIP66IK08 · IK10 with wire guard−40 to +65 °CUL 844

Product Description

The Q1A Series LED luminaire is a dust-ignition-proof choice for hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected. Featuring various shapes of driver box cover, this series is designed to meet different requirements of installations.

Class II, Division 1 covers areas where combustible dust is present continuously or intermittently during normal operation — typical applications include grain elevators, flour and feed mills, coal handling, and metal-powder plants.

For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.

Technical specifications

From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.

General
Series	EX-Q1A low bay
Hazardous rating	Class I, Division 2, Groups A, B, C, D · Class II, Division 1, Groups E, F, G · Class II, Division 2, Groups F, G · Class III · Class I, Zone 2, Groups IIA, IIB, IIC · Zones 21, 22
Listings and standards	UL 844
Housing	Copper-free aluminum
Warranty	5 years

Electrical
Rated power	20 (30) W, 40 (50) W, 60 W, adjustable in three steps
Input voltage	100-277 V AC / 277-480 V AC
Lumen output	3,000 to 9,000 lm
Efficacy	150 lm/W
Colour temperature	4000 K, 5000 K, 6000 K, adjustable
CRI	> 70
Dimming	0-10 V, optional
Emergency backup	Optional

Mechanical
Mounting	Ceiling, surface, pendant, wall, stanchion 25° (set by the driver-cover option)

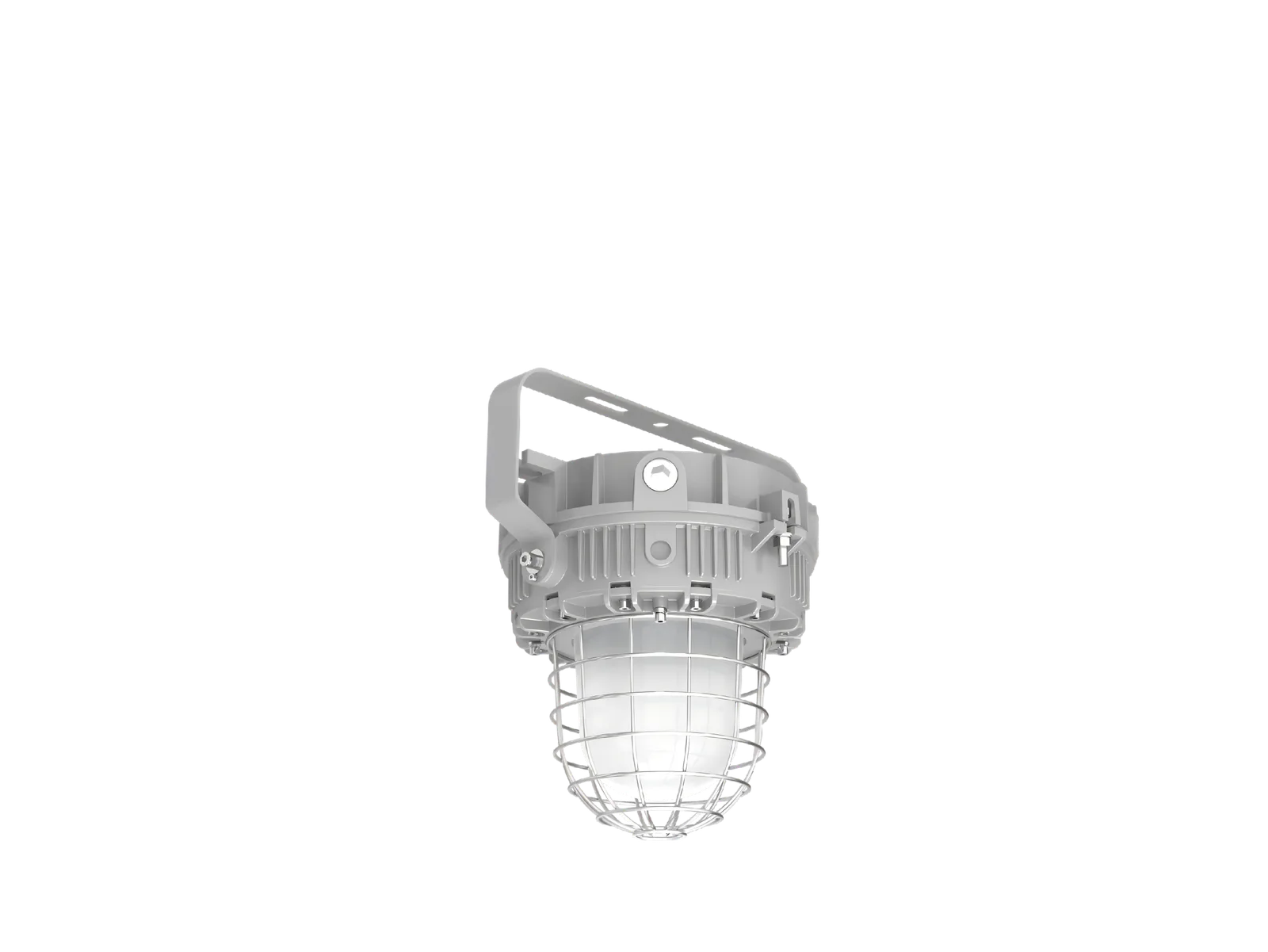

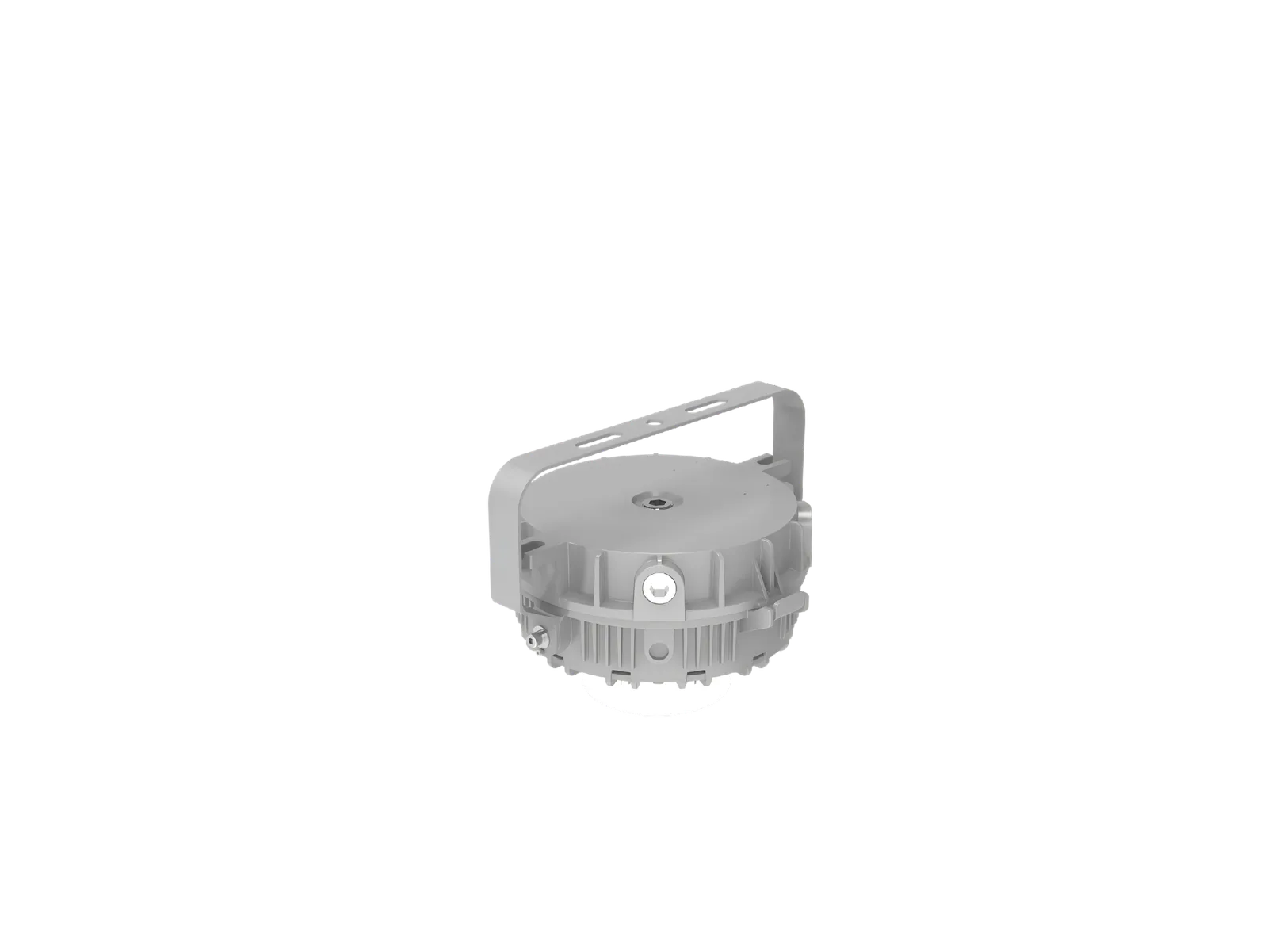

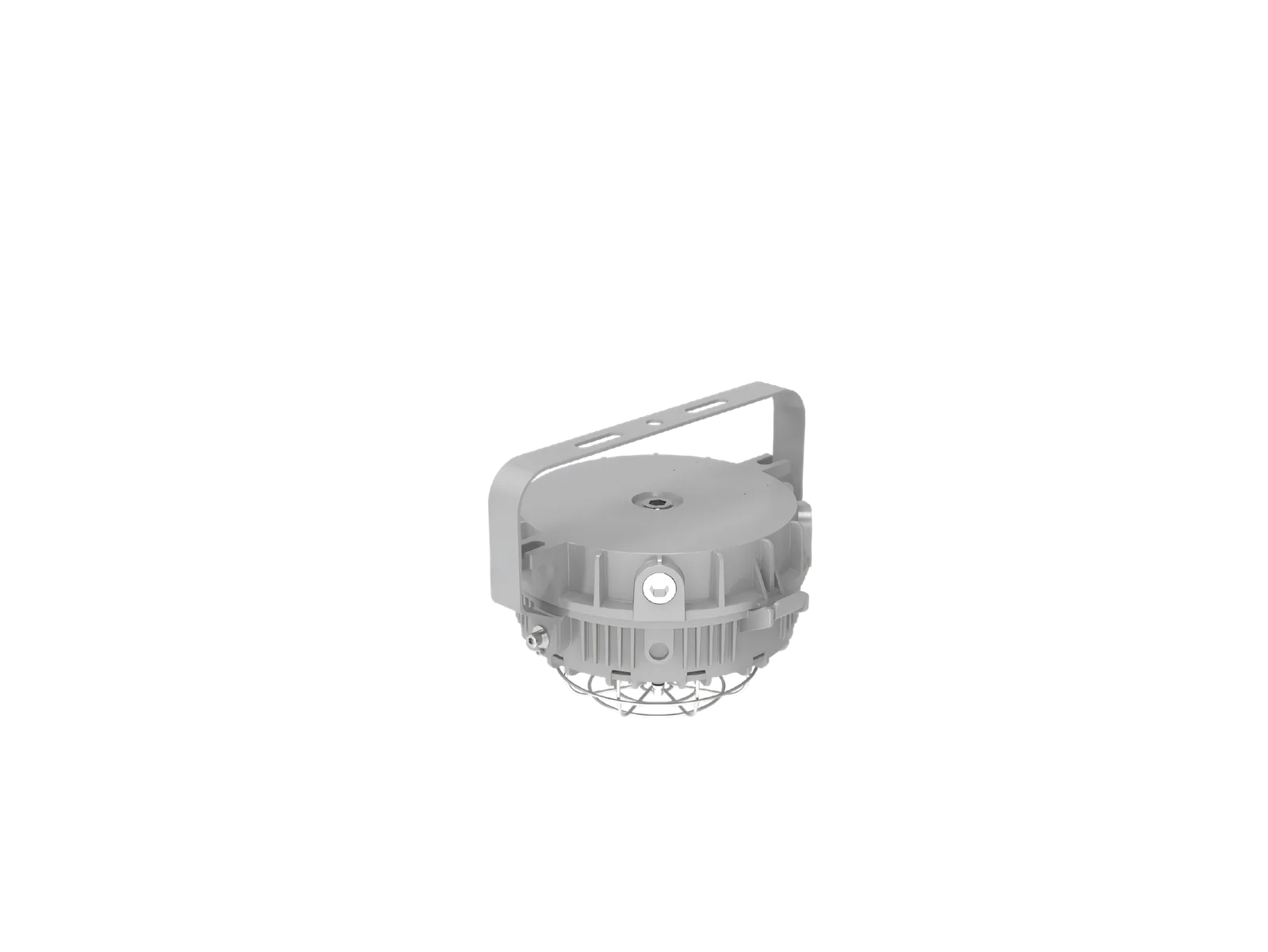

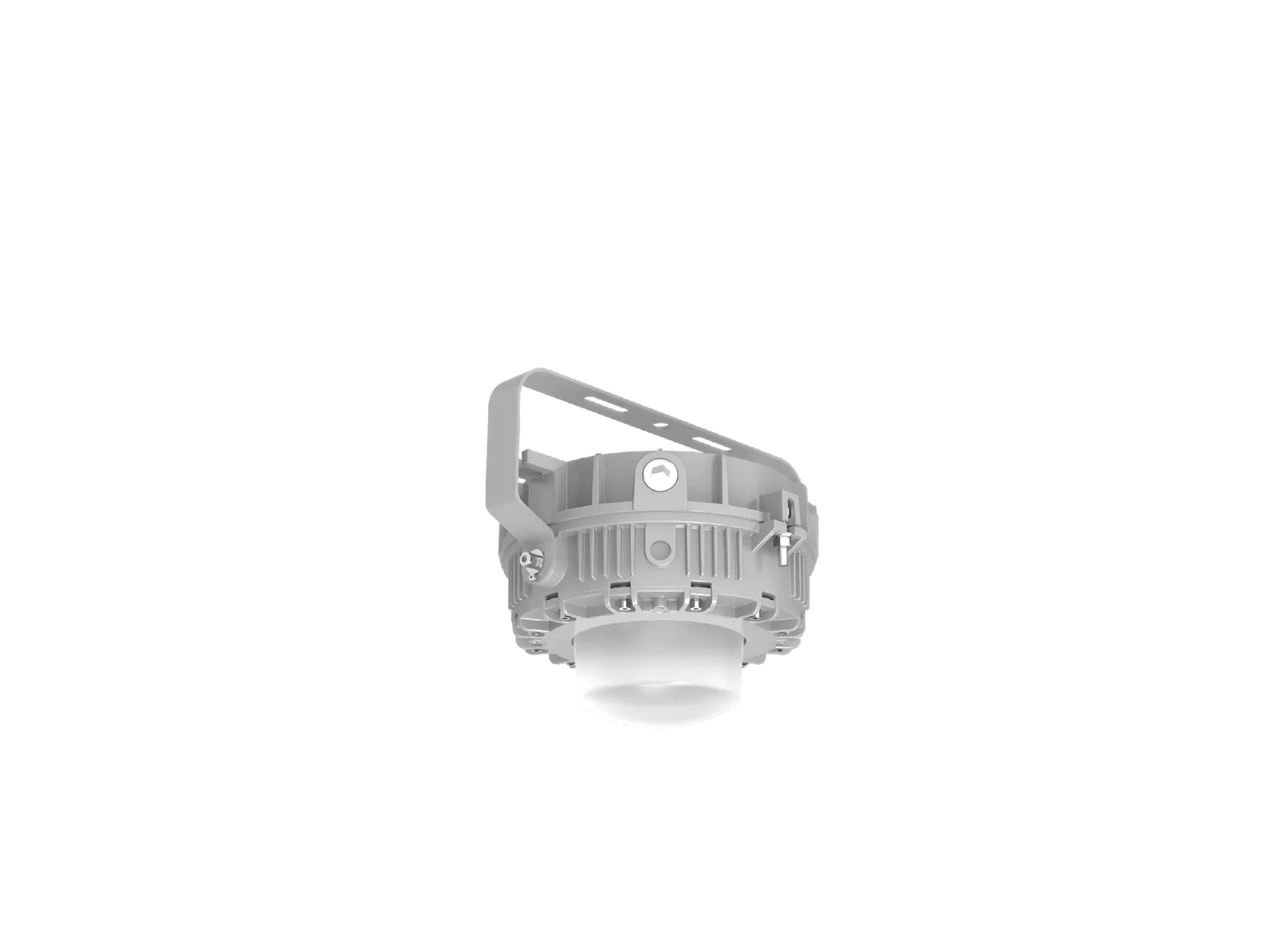

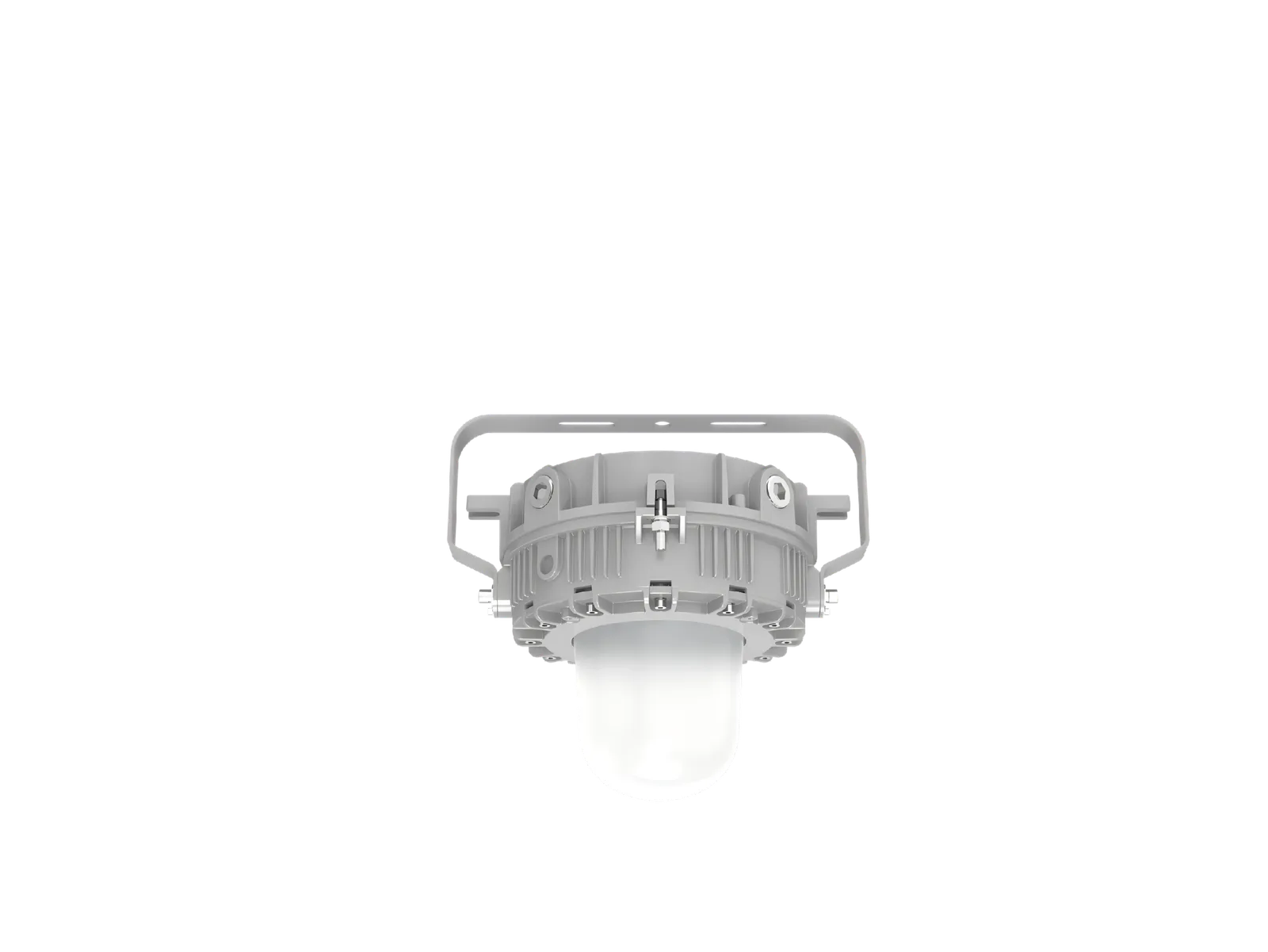

Diffuser / lens	Flat glass or flat polycarbonate · convex and spherical glass options
Beam angle	120°
Notes	Cable entries 3/4 in. NPT standard · 1/2 in. NPT, M20 or M25 optional

Ratings and environment
Ingress protection	IP66

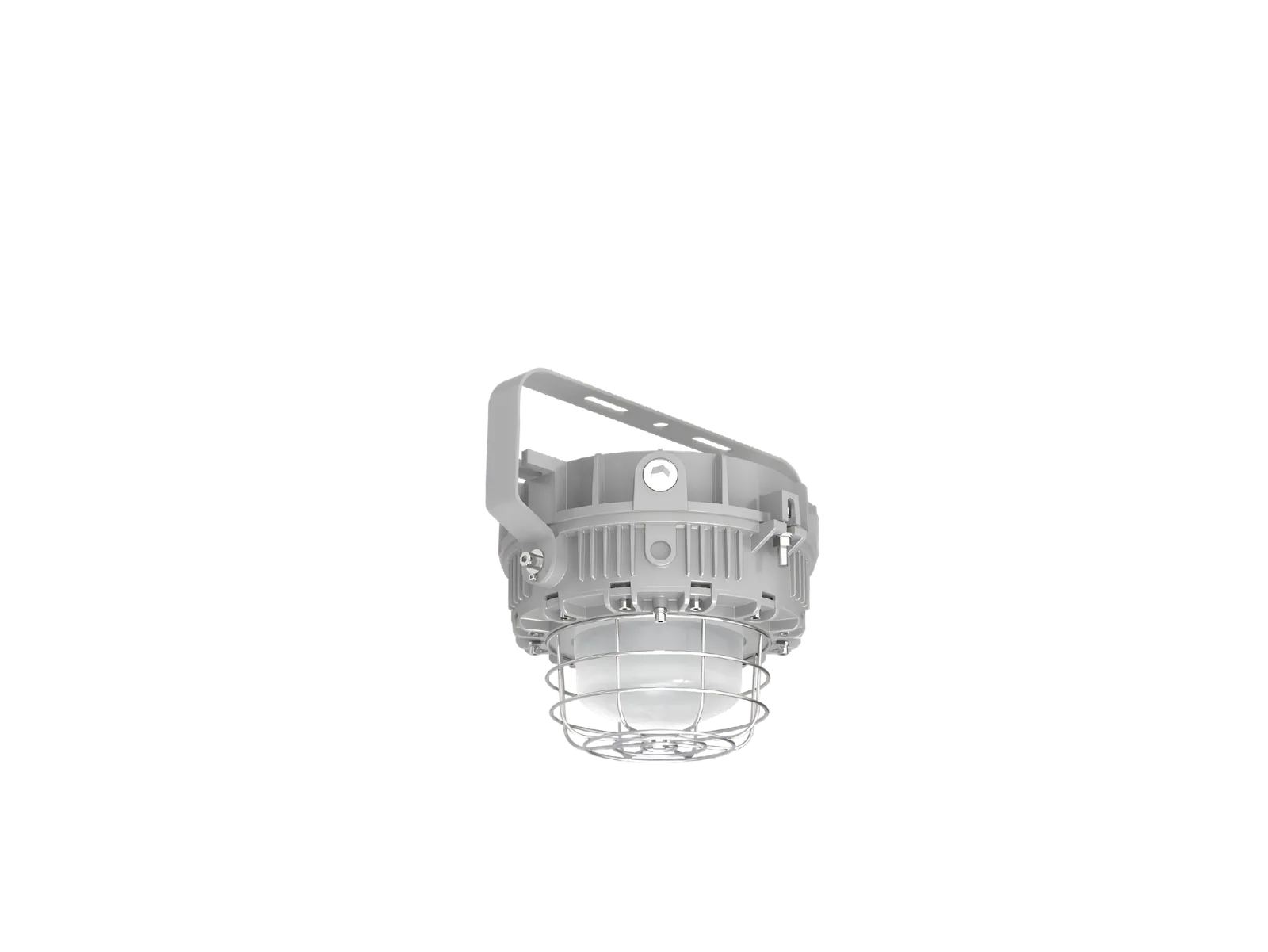

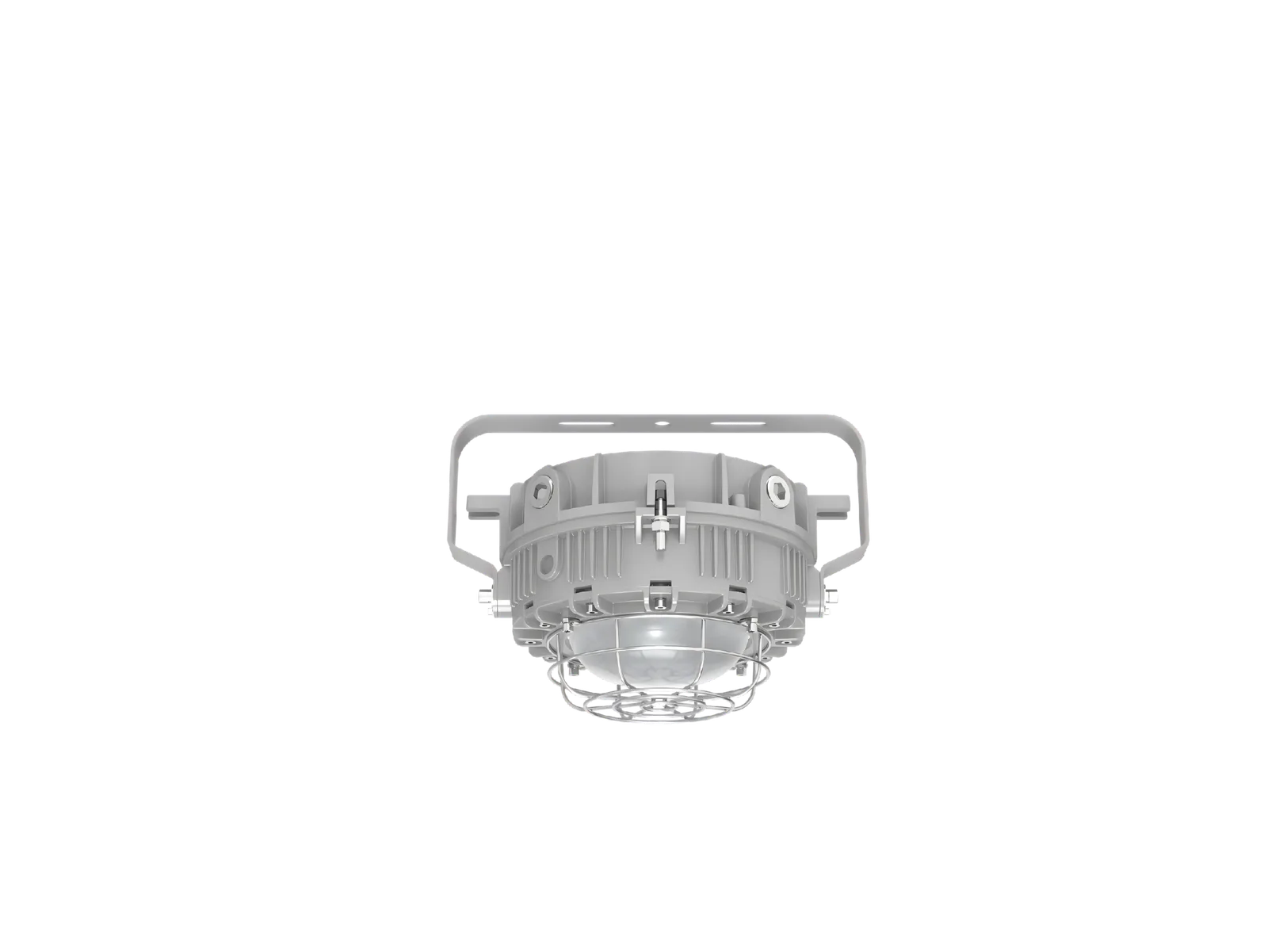

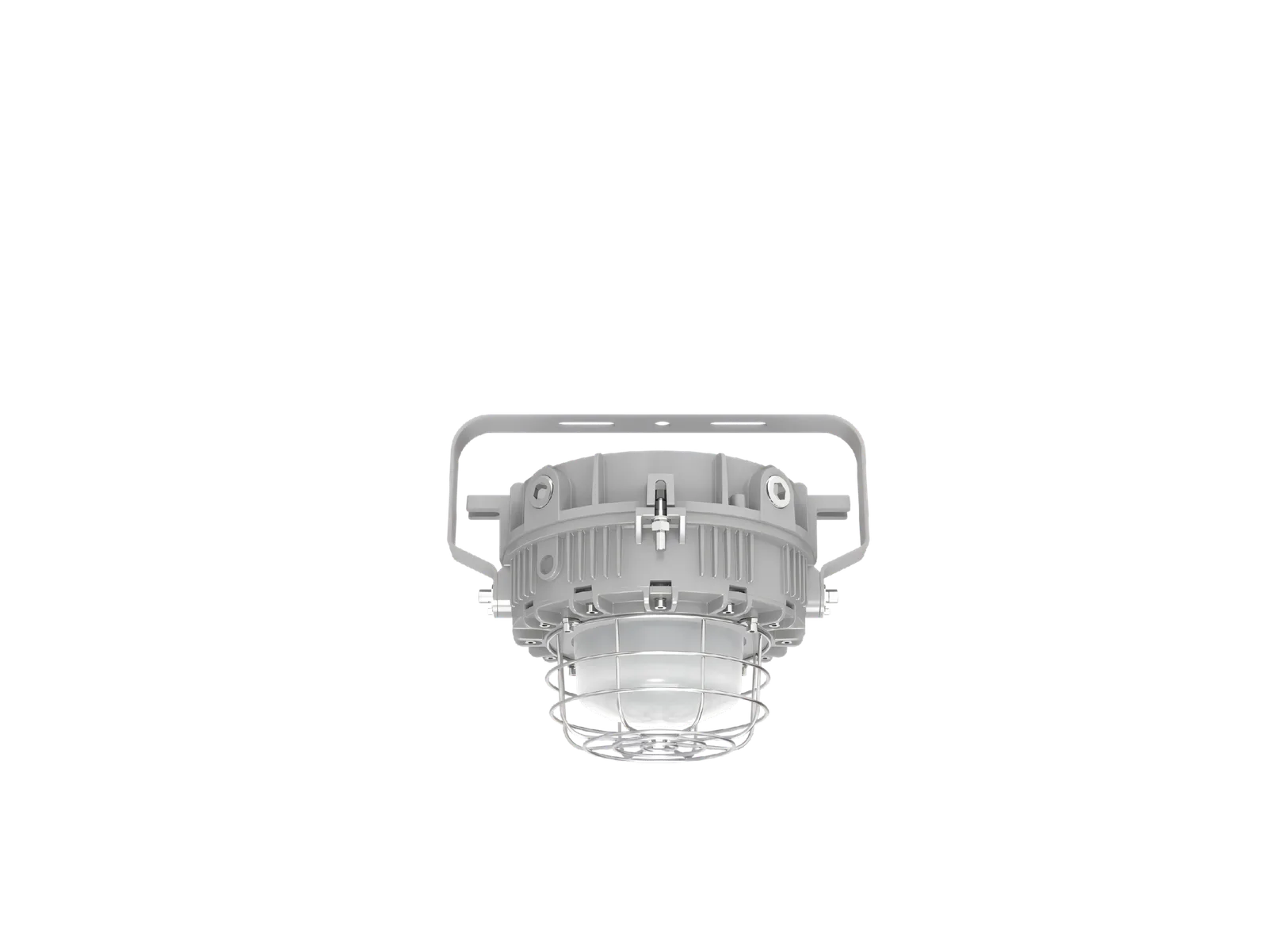

Impact rating	IK08 · IK10 with wire guard
Ambient temperature	−40 °C to +40 / +50 / +65 °C by model

View Spec Sheet

Class II, Division 1 area, site photography

Downloads

NemaLED EX-Q1A Low Bay Spec Sheet.pdfFull technical data, opens in new tab

Photometric Files (IES)

IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 5 IES files
