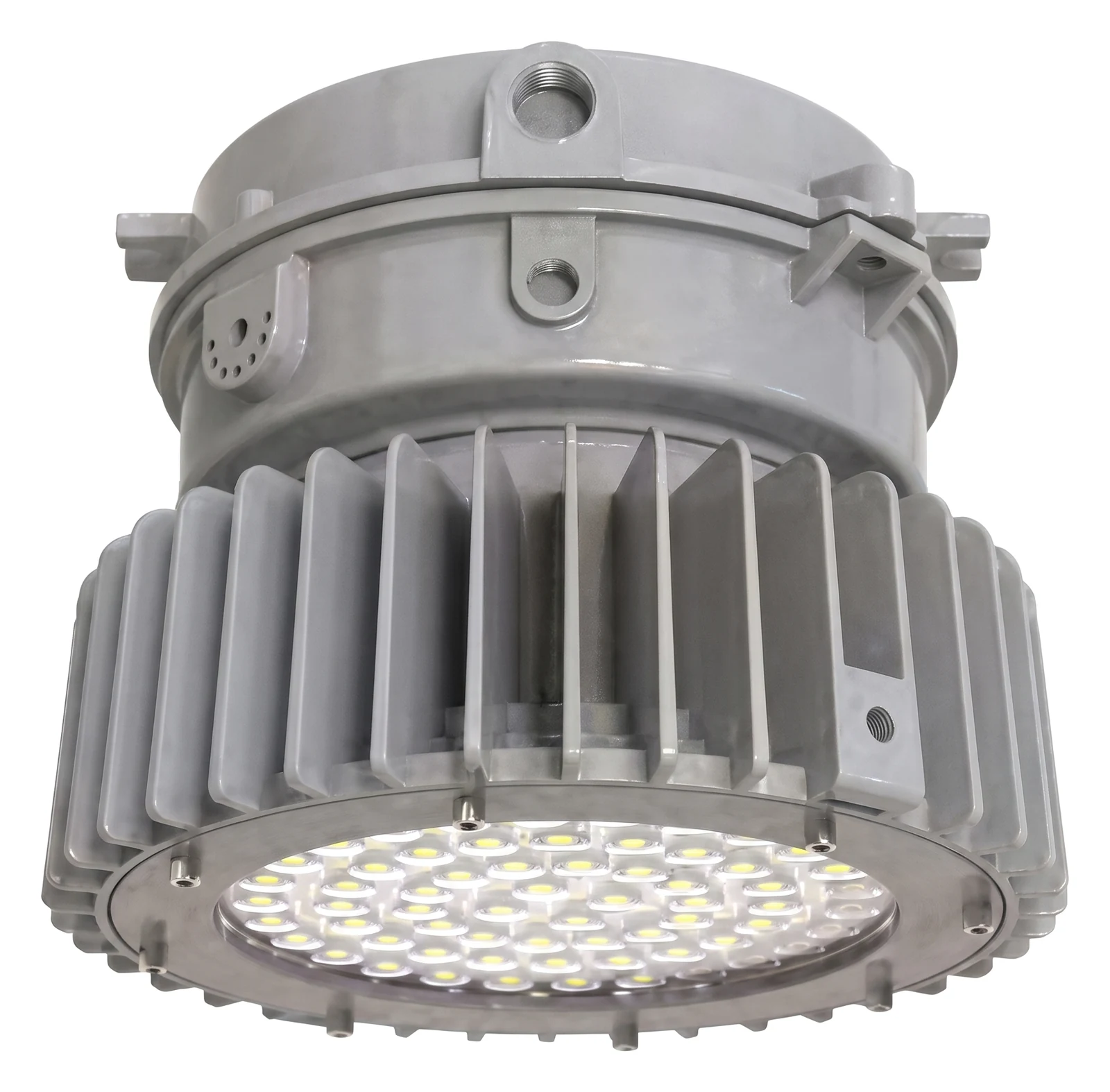

EX-Q1/Q2 High Bay
Class II, Division 1 High Bay Low Bay
Talk to a Specialist →Key Features- Class I, Division 2 (Groups A, B, C, D); Class II, Division 1 (E, F, G) and Division 2 (F, G); Class III; Class I, Zone 2 and Zones 21/22
- 20 W to 200 W at up to 160 lm/W, with 120–277 V, 120–347 V or 200–480 V input
- Copper-free aluminum housing, IP66, IK08 (IK10 with wire guard), rated -40°C to +65°C
- Four driver-cover options, flat or convex glass and polycarbonate diffusers, 5-year standard warranty
Product Description
The Q1 and Q2 housings cover the full 20 W to 200 W range in one family, so a single series can replace legacy explosion-proof high bays and low bays across a plant. The driver-box cover chosen at ordering sets the mounting method, and the 120–347 V option suits Canadian 347 V circuits directly.
Class I, Division 2 covers areas where flammable gases or vapours are present only under abnormal conditions; the Class II ratings extend the same fixture to combustible-dust locations such as grain, coal and metal-powder handling. Typical applications include petrochemical processing, power plants, wastewater treatment, loading docks and offshore environments.
For full electrical, photometric and mechanical specifications, including the ordering guide, driver-cover and diffuser options, dimensions and packing data, download the spec sheet linked above.
Technical Specifications
Full electrical, optical, mechanical, and ambient-temperature specifications — including IP rating, mounting options, color-temperature range, and certifications — are in the spec sheet.
