EX-C High Bay

Class II, Division 1 High Bay Low Bay

Class I, Div 1 · C DClass I, Div 2 · A B C DClass II, Div 1 · E F GClass II, Div 2 · F GClass IIIZone 1 · IIB / Zone 21 · IIIC

Rated power20 to 280 W

Lumen output2,800 to 39,200 lm

ProtectionIP66 / IK08

140 lm/W · T4, −40 to +60 °C · UL 844, CSA C22.2 No. 137 · ceiling, wall, hook, pole

Select Variant

Request a Quote Spec Sheet

Talk to a Specialist → IES photometric files (13)

A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.

Key Features

0-10V dimming
High luminous efficacy - Up to 140 lumens per watt
Battery backup function available
Compact and robust structure, excellent reliability

Request a Quote

Ratings on the spec sheetIP66IK08 · IK10 with wire guard−40 to +60 °C (T4)UL 844CSA C22.2 No. 137 / 250.0ETLDLC (some models)

Product Description

The B Series LED luminaire is a dust-ignition-proof choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.

Class II, Division 1 covers areas where combustible dust is present continuously or intermittently during normal operation — typical applications include grain elevators, flour and feed mills, coal handling, and metal-powder plants.

For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.

Technical specifications

From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.

General
Series	EX-C, three housing sizes: 20 to 80 W, 100 to 150 W, 200 to 280 W
Hazardous rating	Class I, Division 1, Groups C, D · Class I, Division 2, Groups A, B, C, D · Class II, Division 1, Groups E, F, G · Class II, Division 2, Groups F, G · Class III · Class I, Zone 1, Group IIB · Class II, Zone 21, Group IIIC
Listings and standards	UL 844 · UL 1598 · UL 1598A · UL 924 · CSA C22.2 No. 137:2018 · CSA C22.2 No. 250.0:2021 · ETL · ABS · DLC on listed variations · 1000 hours salt spray
Housing	Copper-free aluminum
Warranty	5-year standard · L70 > 150,000 hours at 55 °C

Electrical
Rated power	20, 40, 60, 80, 100, 150, 200, 250, 280 W
Lumen output	2,800 to 39,200 lm
Efficacy	140 lm/W
Colour temperature	2700 K to 7000 K
CRI	> 70
Dimming	0-10 V
Emergency backup	Optional · 3 hours on 200 to 280 W models

Mechanical

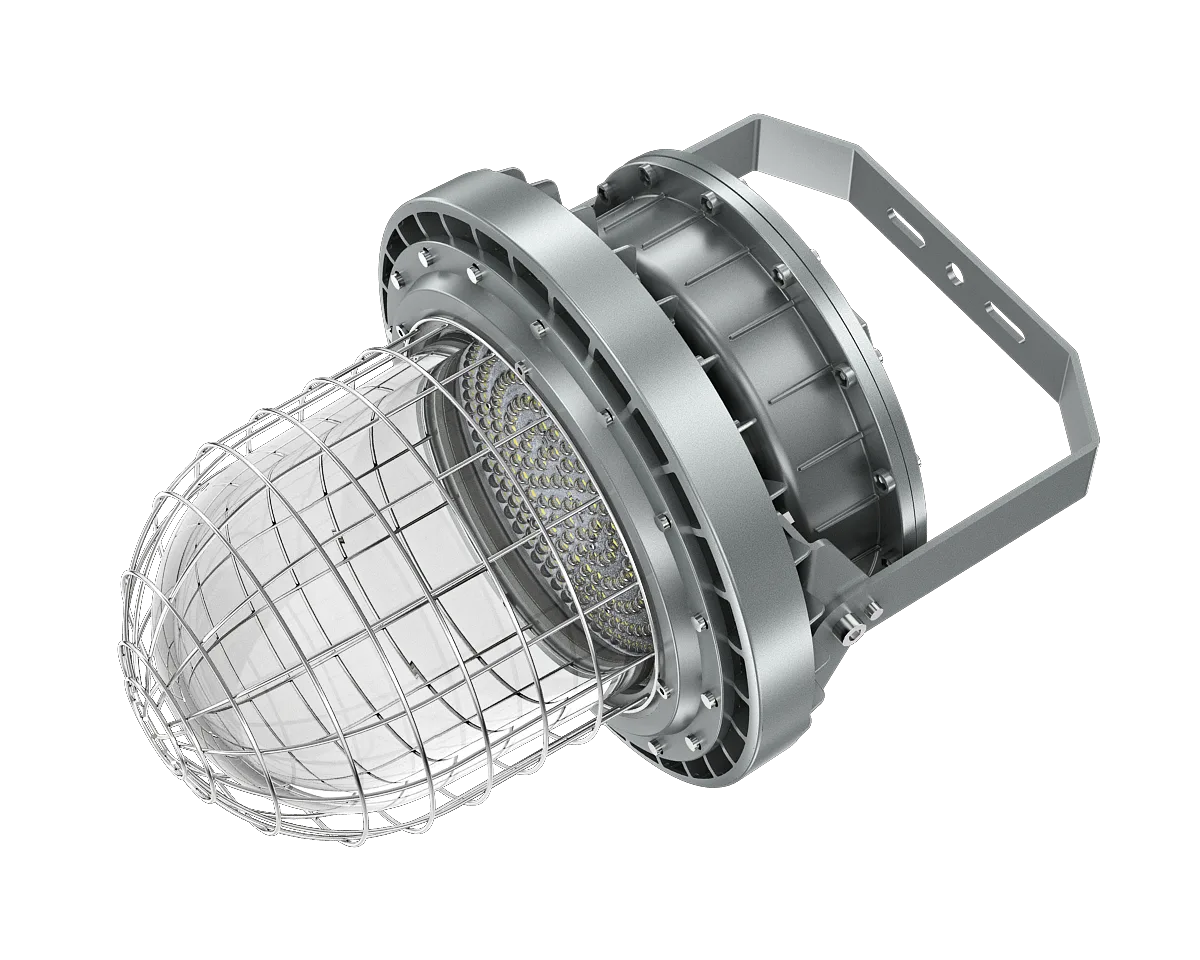

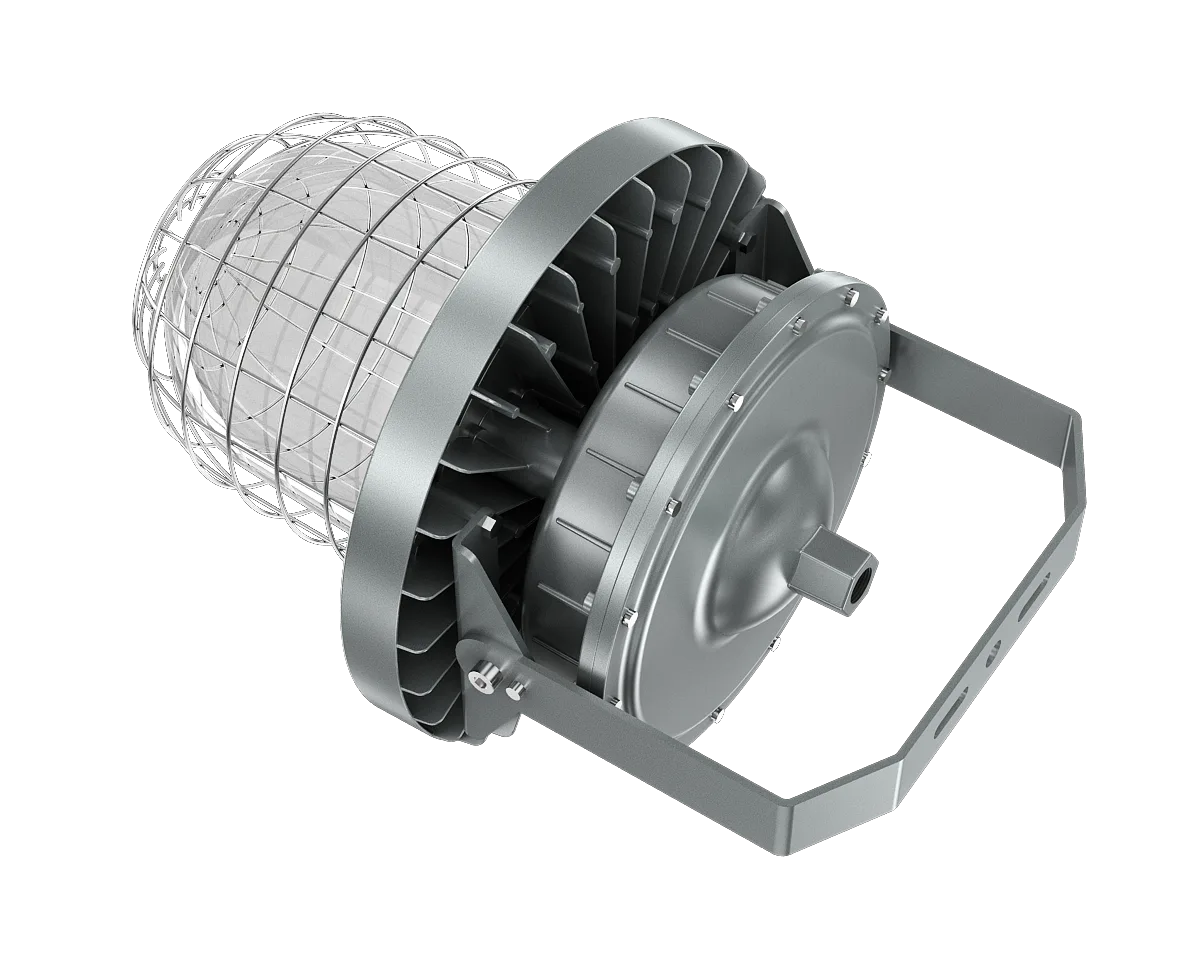

Mounting	Ceiling, wall, hook, pole · trunnion on C2
Diffuser / lens	Tempered glass cover
Beam angle	40°, 60°, 90°, 120°

Ratings and environment
Ingress protection	IP66

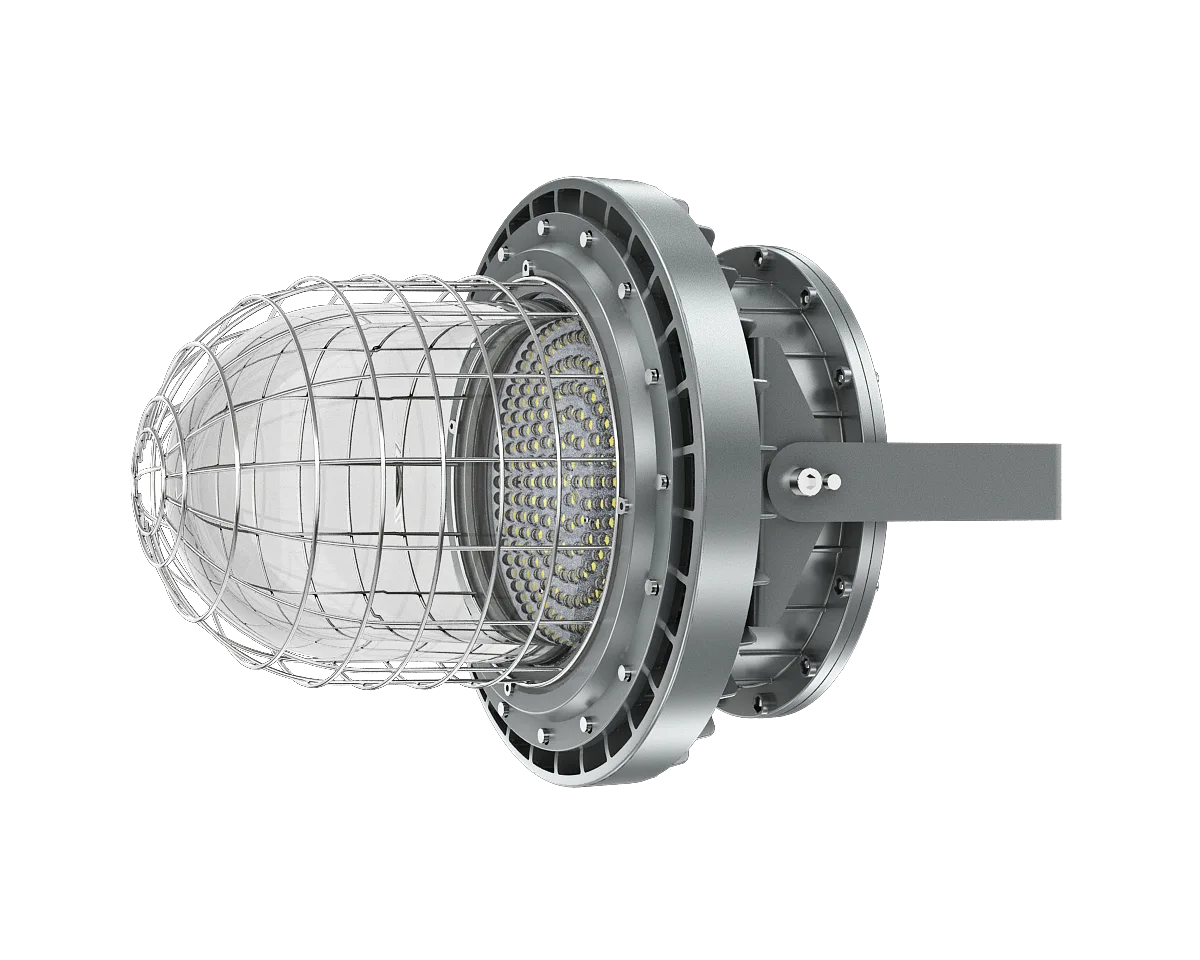

Impact rating	IK08 with glass cover · IK10 with wire guard
Ambient temperature	T4: −40 °C to +60 °C

View Spec Sheet

Class II, Division 1 area, site photography

Downloads

NemaLED EX-C High Bay Spec Sheet.pdfFull technical data, opens in new tab

Photometric Files (IES)

IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 13 IES files
