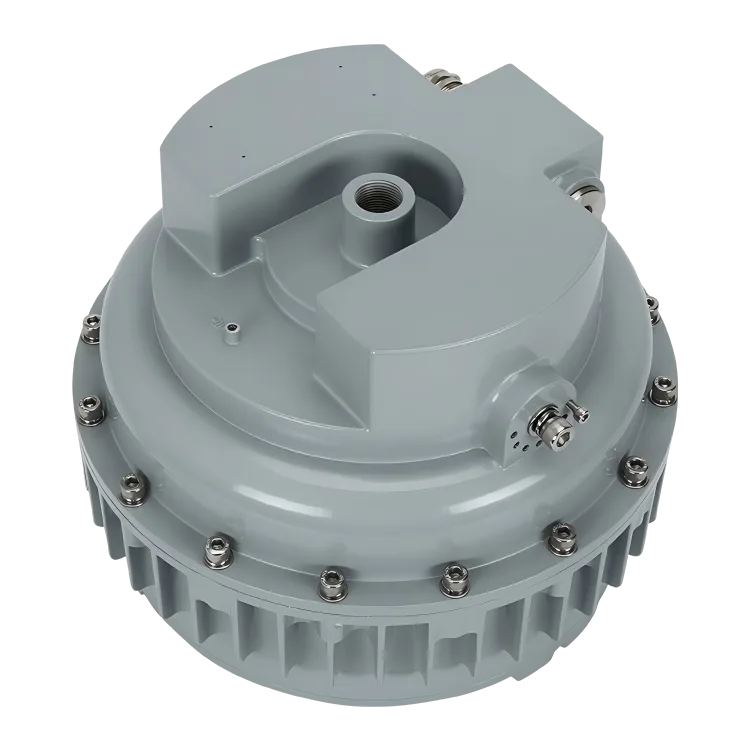

EX-S High Bay

Class II, Division 1 High Bay Low Bay

Class I, Div 1 · B C DClass I, Div 2 · A B C DClass II, Div 1 · E F GClass II, Div 2 · F GClass IIIZones 1, 2, 21, 22

Rated powerUp to 100 or 200 W

Lumen outputUp to 26,000 lm

ProtectionIP66 / IK08

130 lm/W · −40 to +65 °C · 3G vibration · pole 25° / 90°, jib, U-bracket, pendant

Select Variant

Request a Quote Spec Sheet

Talk to a Specialist → IES photometric files (46)

A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.

Key Features

●Great impact resistance with IK08/IK10 certified
●Copper-free aluminum housing, great corrosion resistance and cooling performance
●Tempered glass for high heat resistance
Flame-proof and Increased Safe Type

Request a Quote

Ratings on the spec sheetIP66IK08 · IK10 with wire guard−40 to +65 °CUL 844UL 1598 / 1598AABS

Product Description

The S Series LED luminaire is designed for installations in hazardous area where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected. Flame-proof and increased safe functions enhance safety and reliability, which makes this dust-ignition-proof fixture an ideal lighting solution for hazardous locations.

Class II, Division 1 covers areas where combustible dust is present continuously or intermittently during normal operation — typical applications include grain elevators, flour and feed mills, coal handling, and metal-powder plants.

For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.

Technical specifications

From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.

General
Series	EX-S, two sizes: max. 100 W and max. 200 W
Hazardous rating	Class I, Division 1, Groups B, C, D · Class I, Division 2, Groups A, B, C, D · Class II, Division 1, Groups E, F, G · Class II, Division 2, Groups F, G · Class III · Zones 1, 2, 21, 22
Listings and standards	UL 844 · UL 1598 wet locations · UL 1598A marine outside type · ABS · 3G vibration
Housing	Aluminum alloy ADC12
Warranty	5-year standard · L70 > 150,000 hours at 55 °C

Electrical
Rated power	Max. 100 W · Max. 200 W
Input voltage	120-277 V / 200-480 V AC
Lumen output	Max. 13,000 lm · Max. 26,000 lm
Efficacy	130 lm/W
Colour temperature	3000 K, 4000 K, 5000 K, 6500 K
CRI	> 70

Mechanical

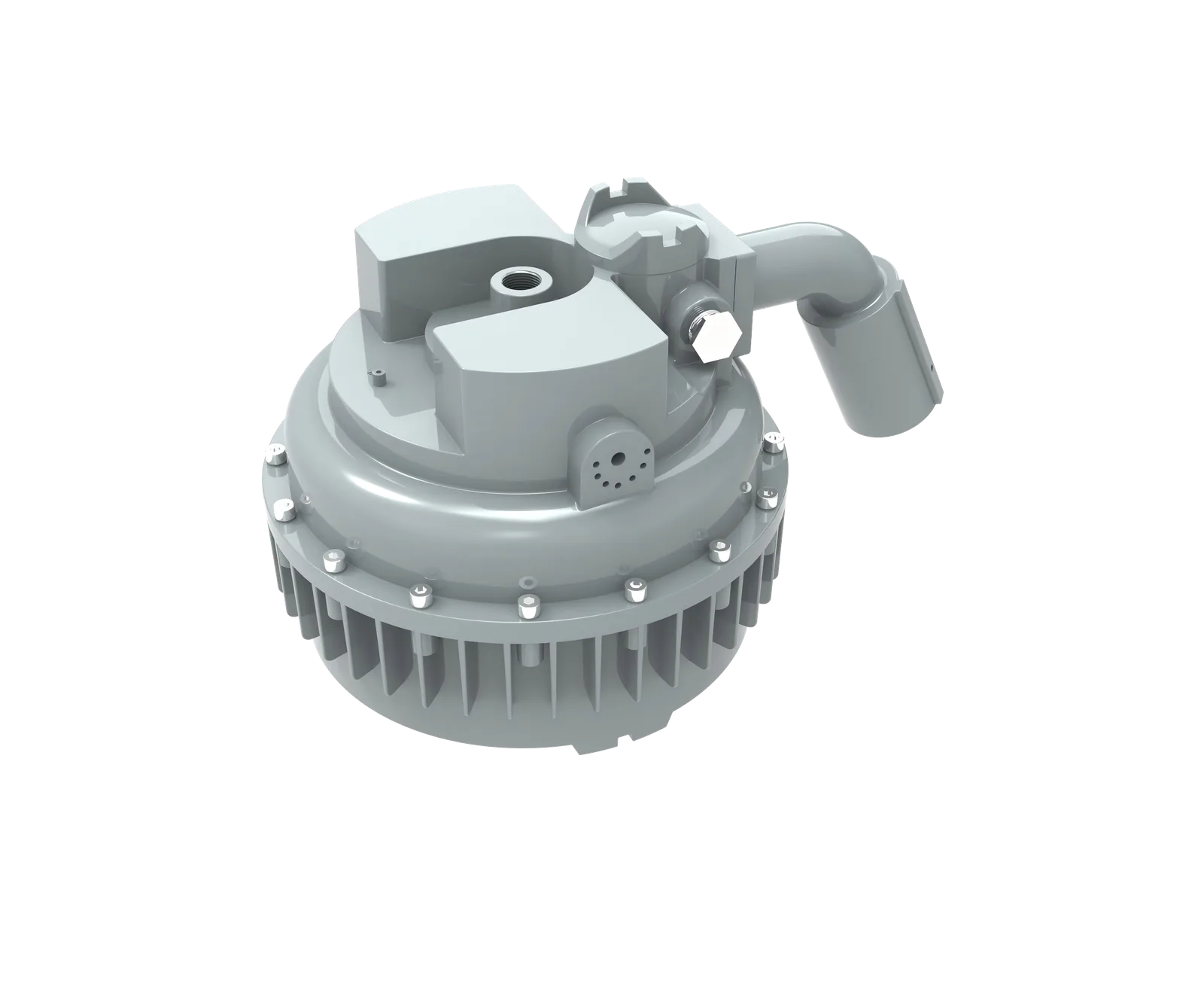

Mounting	Pole (25° or 90°), jib, U-bracket, pendant

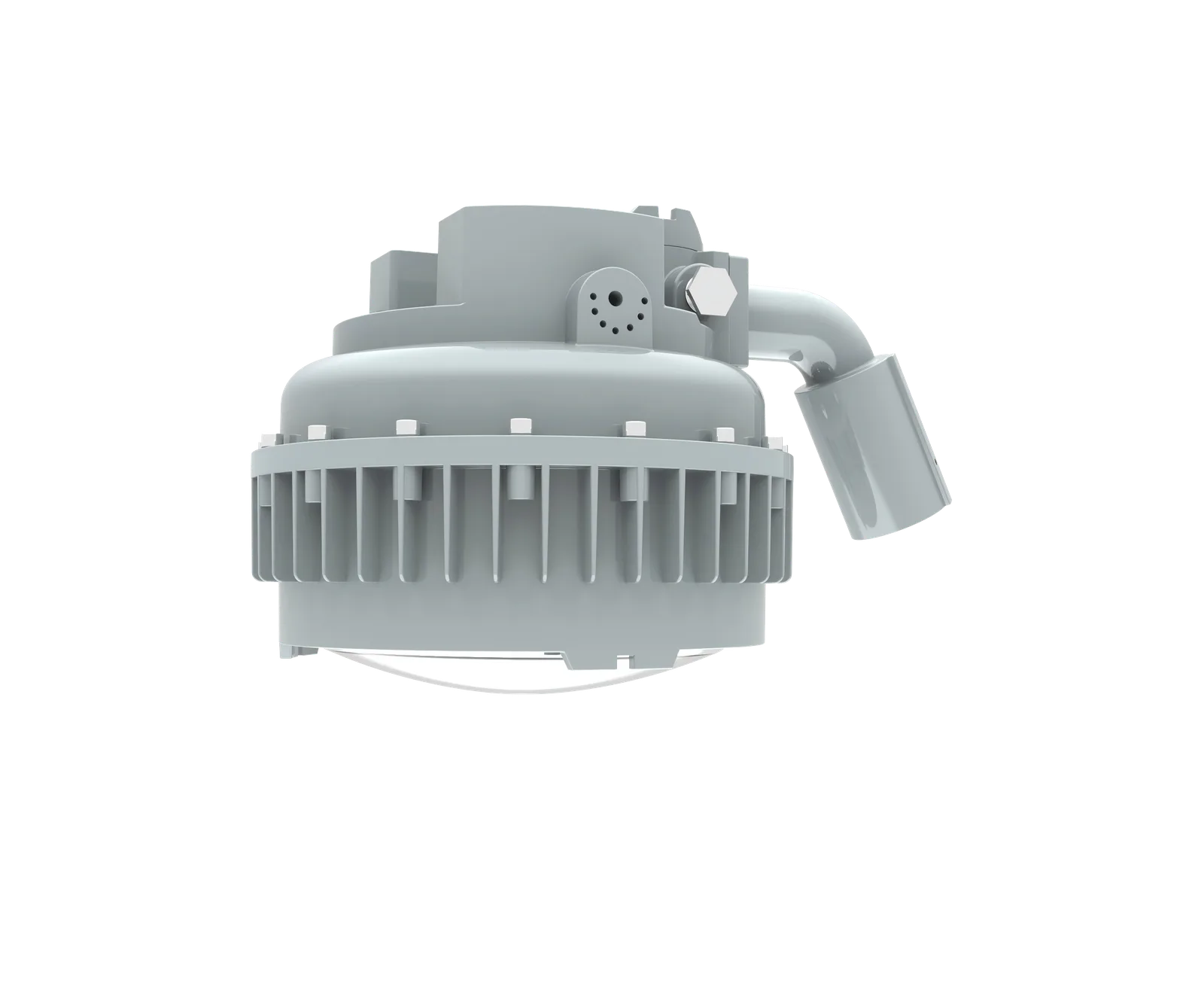

Diffuser / lens	Tempered glass, flat standard or convex optional
Beam angle	40°, 60°, 90°, 120°

Ratings and environment
Ingress protection	IP66
Impact rating	IK08 with glass cover · IK10 with wire guard
Ambient temperature	−40 °C to +65 °C

View Spec Sheet

Class II, Division 1 area, site photography

Downloads

NemaLED EX-S High Bay Spec Sheet.pdfFull technical data, opens in new tab

Photometric Files (IES)

IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 46 IES files
