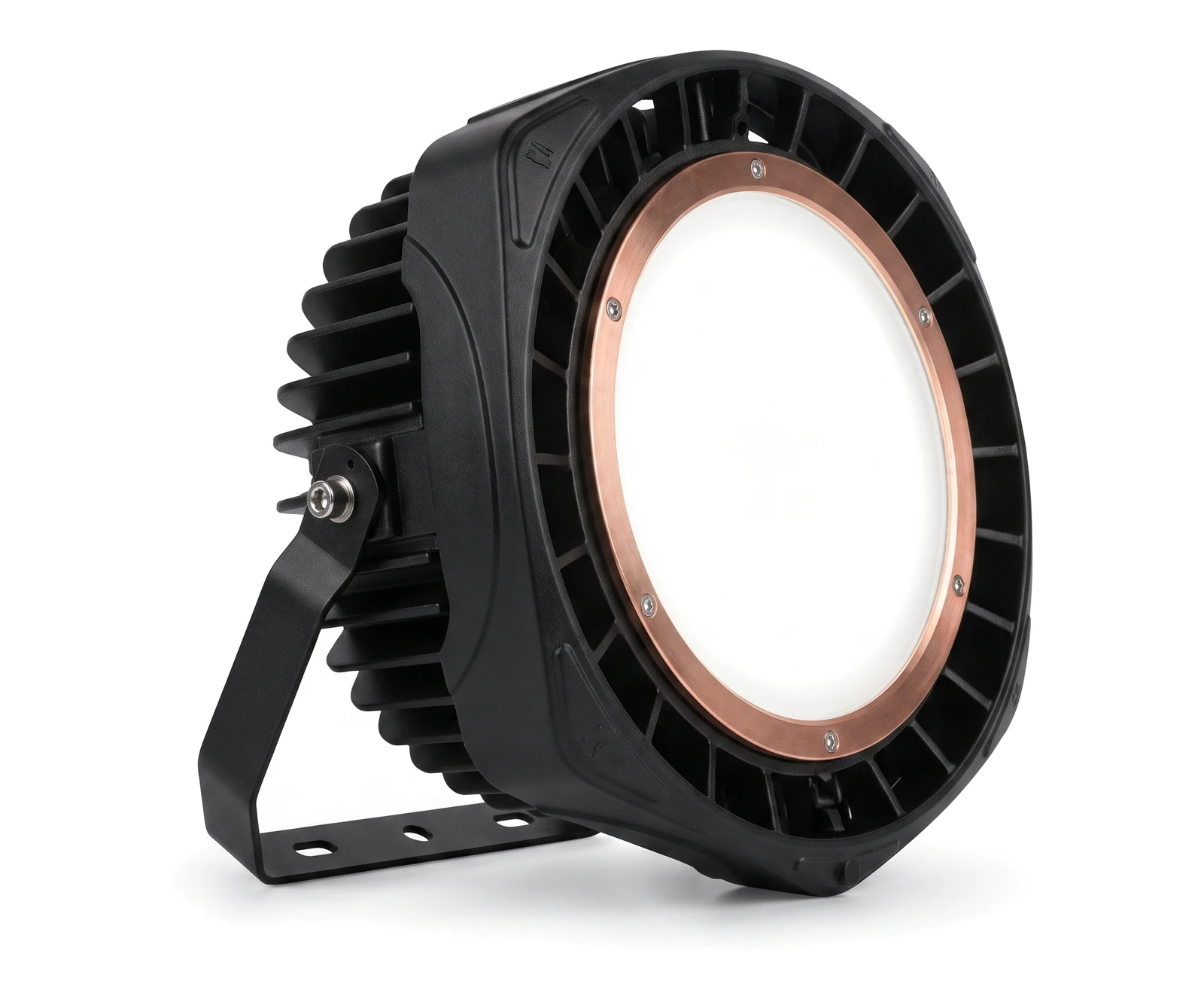

UFO-I LED High Bay

Product Description

The UFO-I Series LED High Bay is engineered for high-temperature, high-ambient industrial spaces. The power supply and lamp body are separated to prevent mutual heat transfer, and an anti-dust sloped heat sink keeps thermal performance high over the life of the fixture. Delivering up to 150 lm/W with field-adjustable wattage and colour temperature, it runs reliably at ambient temperatures up to 80°C.

Built for warehouses, manufacturing plants, foundries and other demanding industrial sites where high output, heat resistance and long service life are required. The die-cast aluminium housing, glass diffuser, IP66 sealing and 500-hour salt-spray rating stand up to moisture, dust, corrosion and vibration, while waterproof male and female connectors between the driver and lamp body make maintenance and replacement straightforward.

For full electrical, photometric and mechanical specifications — including wattage and lumen packages (7,500–36,000 lm), input voltage (120–277 V / 277–480 V), adjustable CCT range, ring or U-bracket mounting, ambient-temperature ratings, certifications (UL/cUL listed) and ordering codes — download the spec sheet linked above.

Technical Specifications

Downloads

Photometric Files (IES)

IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 9 IES files
