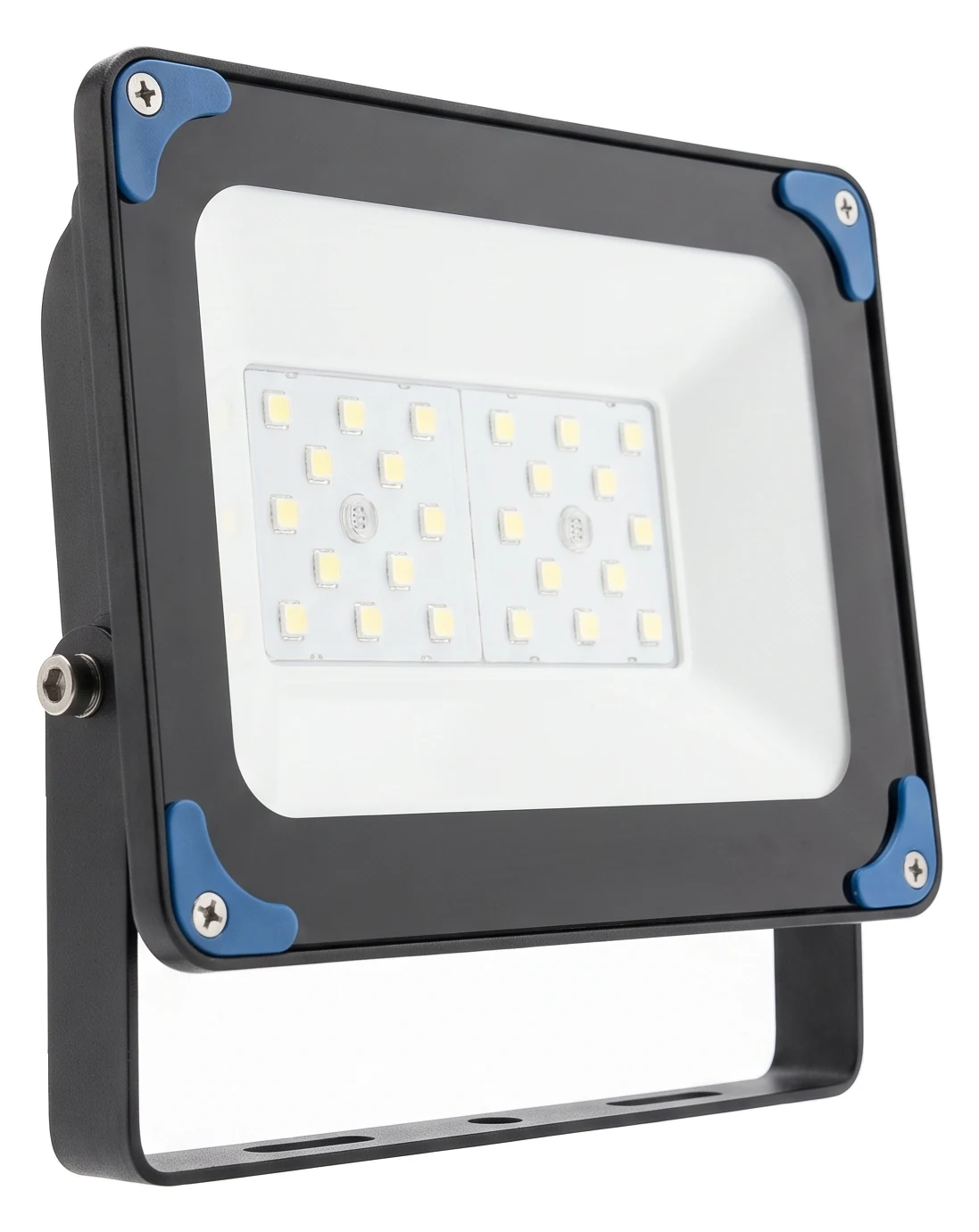

FL-D Industrial Flood Light
Industrial Flood Light
Talk to a Specialist →Key Features- 20 W to 400 W (D1 to D7 housings) at 130 or 160 lm/W
- IP66 and IK08 die-cast aluminum housing with a tempered glass lens, rated -40°C to +50°C
- 30°, 45°, 60°, 90°, 120°, T30x90 and asymmetric beam options; 3000 K to 6000 K
- DALI / DMX512 control and tunable CCT options, photocell or motion sensor options, 5-year warranty
Product Description
A fin-shaped heat sink keeps the LED module cool at full output, the slim housing installs on the supplied yoke bracket, and screw-fixed or screw-free snap-fit options simplify service. The optic range lets one fixture family cover wide-area flood lighting and directed asymmetric throws.
Typical applications include outdoor parking lots, walkways and building areas, warehouse and loading-dock exteriors, industrial yards and large signage. Its 50,000-hour rated life and wide ambient range suit year-round Canadian outdoor duty.
For full electrical, photometric and mechanical specifications, including the ordering code, optic, control and sensor options, dimensions and packing data, download the spec sheet linked above.
Technical Specifications
Full electrical, optical, mechanical, and ambient-temperature specifications — including IP rating, mounting options, color-temperature range, and certifications — are in the spec sheet.
View Spec SheetDownloads
Need help spec'ing for your project?
Our specialists handle the technical side — certifications, lead times, and project-specific configurations.
