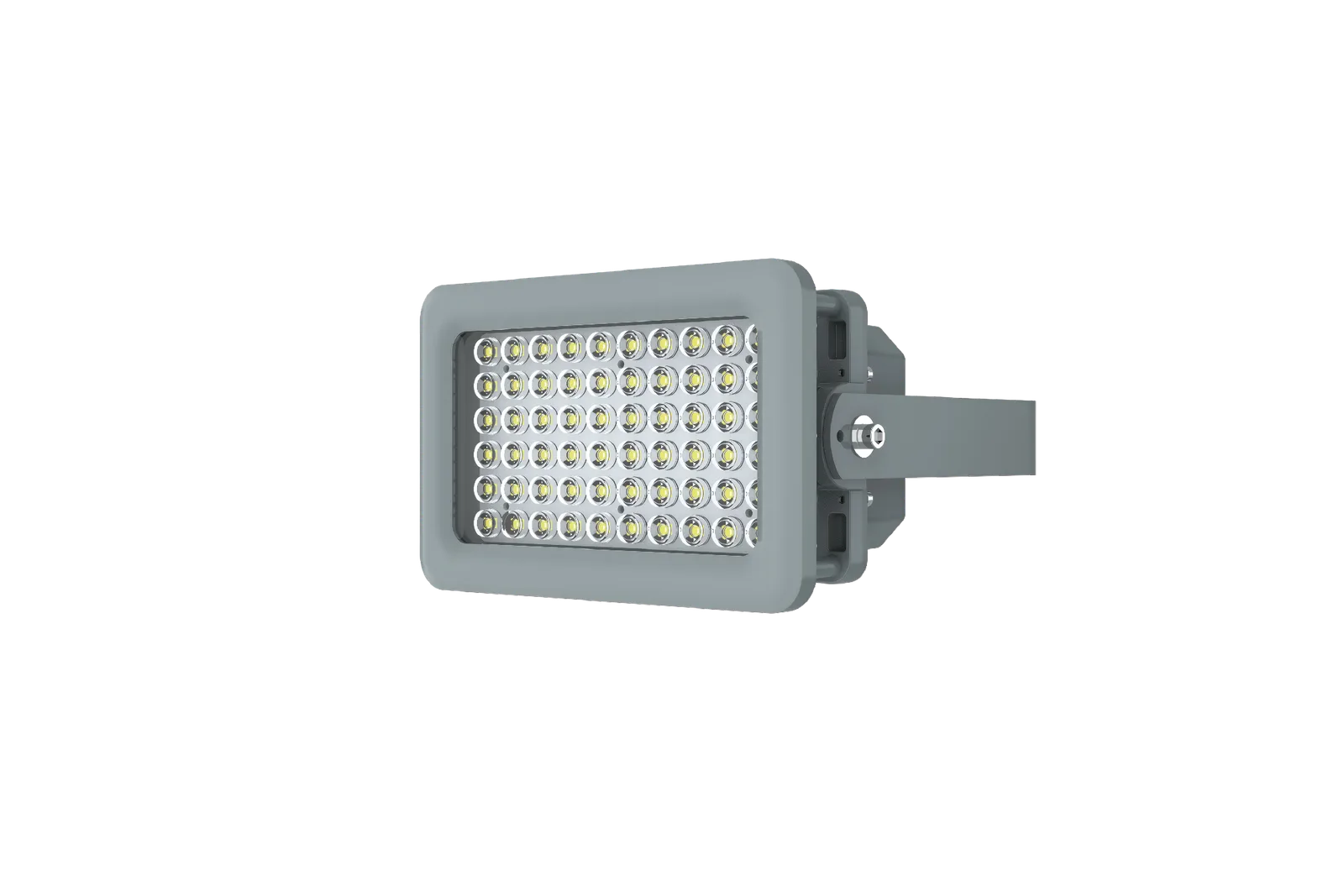

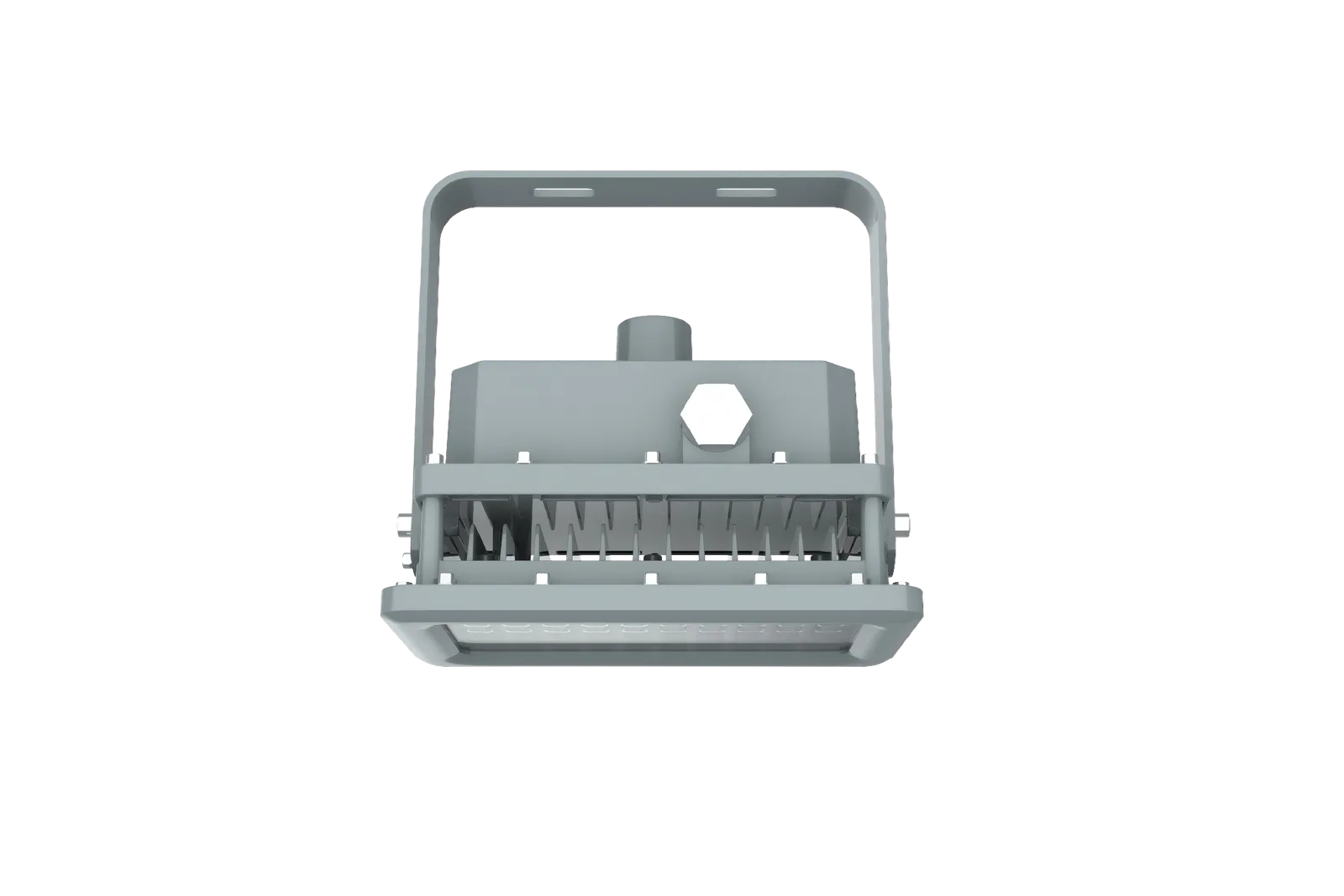

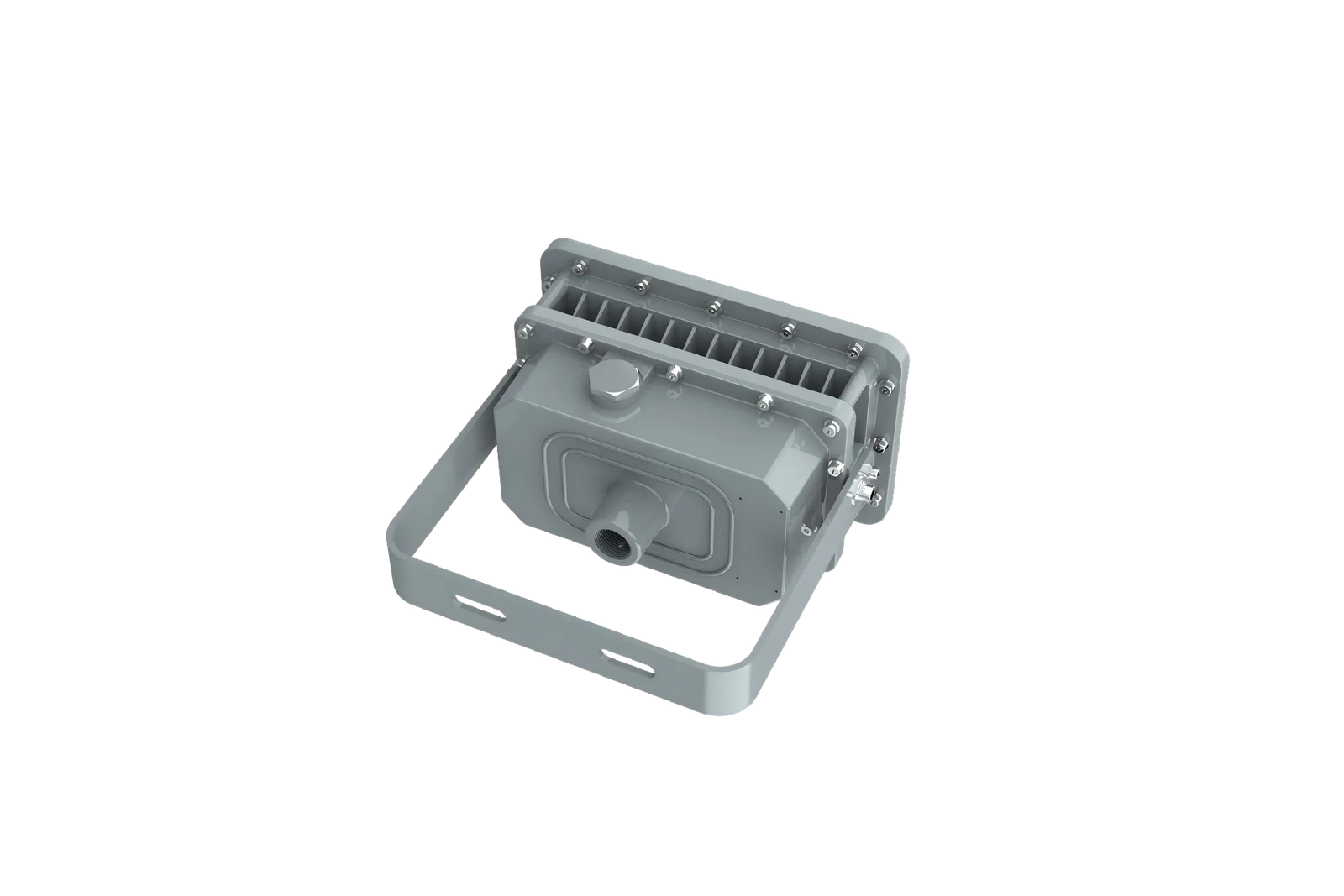

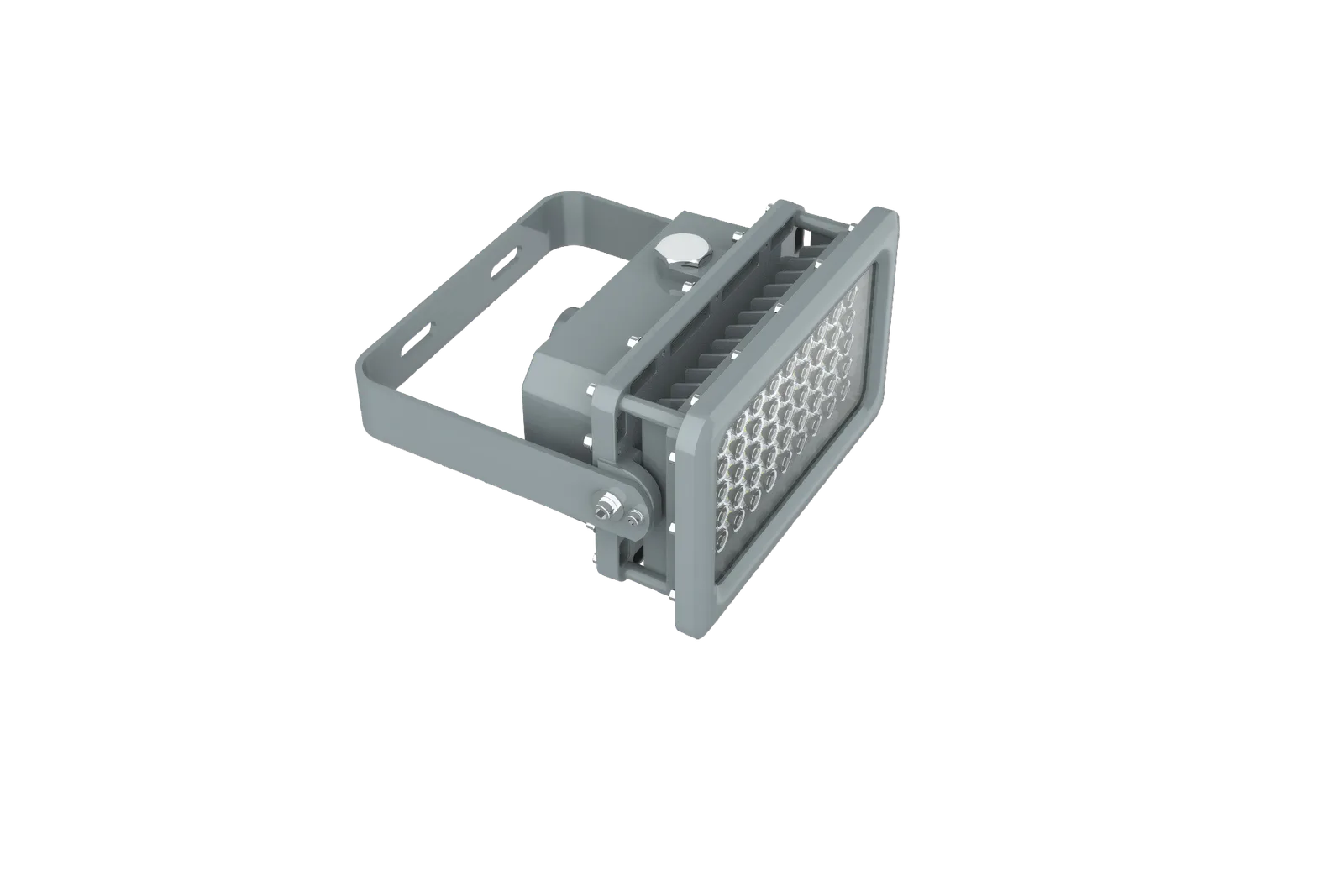

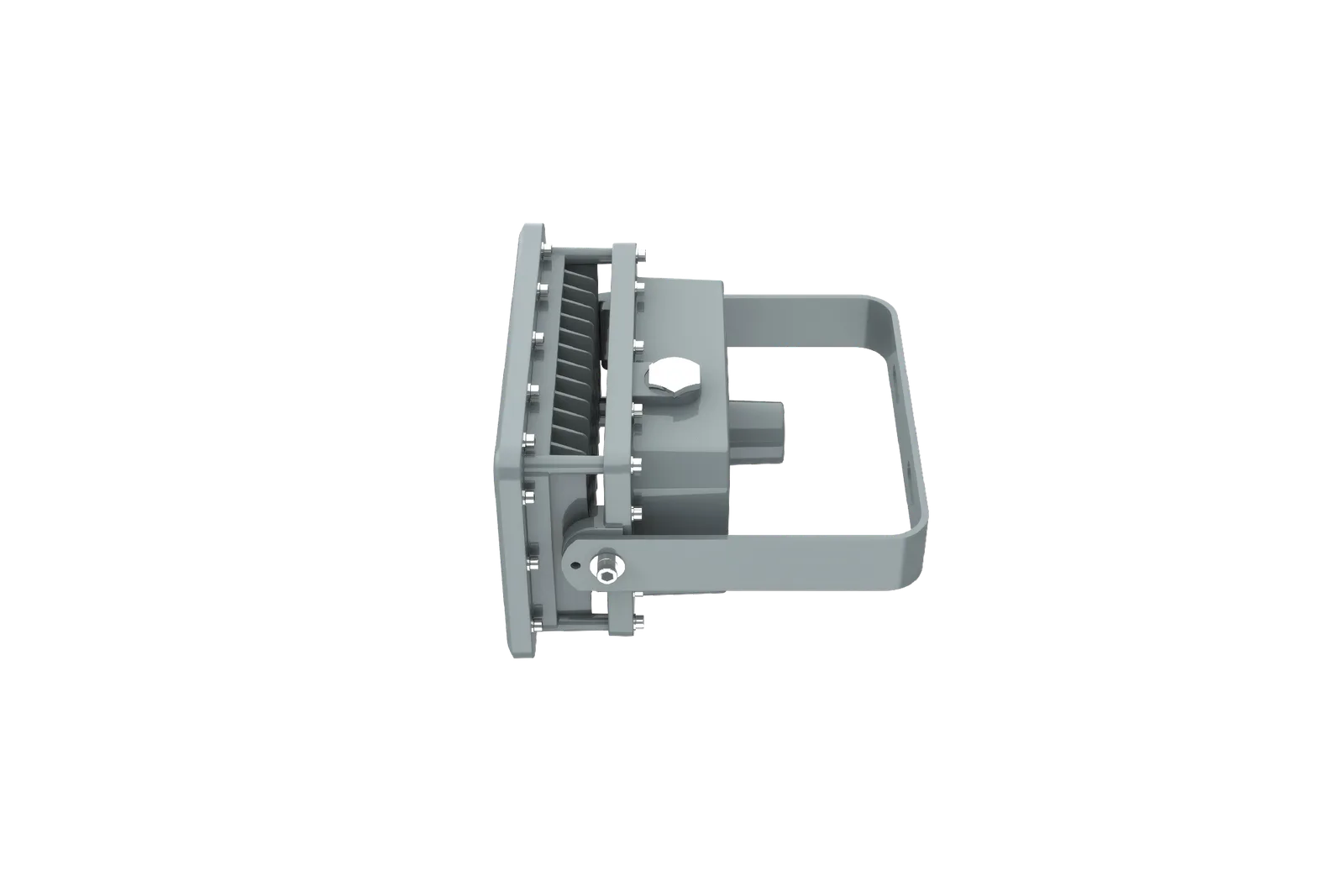

Flood Light A Series

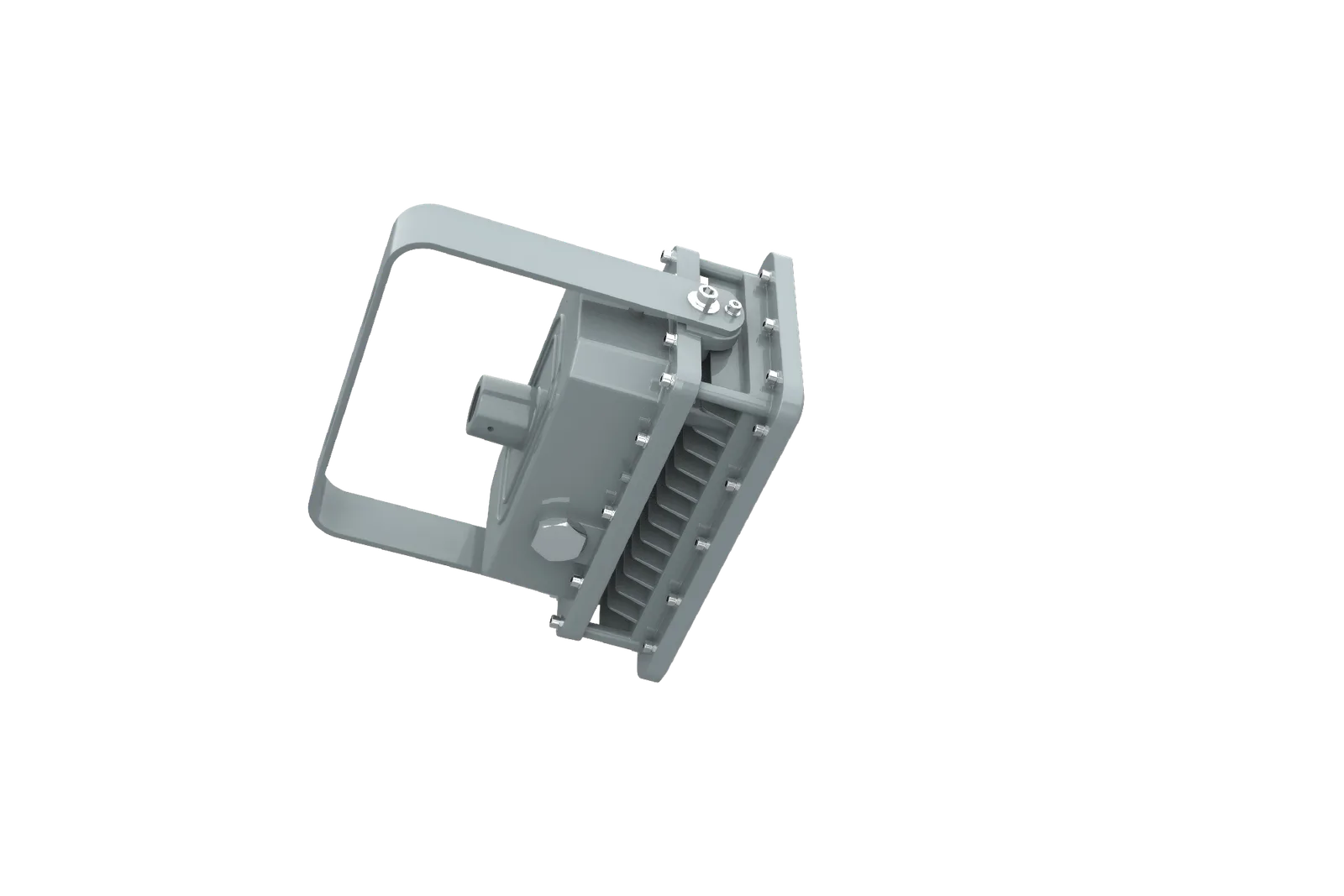

EX-A Flood Light

Class II, Division 1 Flood Light

Class I, Div 2 · A B C DClass II, Div 1 · E F GClass II, Div 2 · F GClass III

Rated powerFrom 20 W

Lumen output2,800 to 56,000 lm

ProtectionIP66 / IK08

140 lm/W · beam 30° to 120° and T2, T3, T5 · ceiling, wall, hook, trunnion, pole, stanchion

Select Variant

Request a Quote Spec Sheet

Talk to a Specialist → IES photometric files (27)

A specialist replies within one business day with budgetary pricing, lead time and the spec match for your area.

Key Features

0-10V dimming optional
High luminous efficacy - Up to 140lumens per watt
Compact and robust structure, excellent reliability
Various installation ways for different applications

Request a Quote

Ratings on the spec sheetIP66IK08 · IK10 with wire guard−40 to +65 °C by modelUL 844UL 1598 / 1598A

Product Description

The A Series LED luminaire is a dust-ignition-proof choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.

Class II, Division 1 covers areas where combustible dust is present continuously or intermittently during normal operation — typical applications include grain elevators, flour and feed mills, coal handling, and metal-powder plants.

For full electrical, photometric, and mechanical specifications — including IP rating, mounting options, ambient-temperature range, certifications, and ordering codes — download the spec sheet linked above.

Technical specifications

From the published spec sheet. Ordering guide, dimensions and packing data are in the PDF.

General
Series	EX-A2, A, A3, A4 (four housing sizes)
Hazardous rating	Class I, Division 2, Groups A, B, C, D · Class II, Division 1, Groups E, F, G · Class II, Division 2, Groups F, G · Class III
Listings and standards	UL 844 · UL 1598 wet locations · UL 1598A marine outside type
Housing	Die-cast aluminum
Warranty	5 years

Electrical
Rated power	A2: 20 to 40 W · A: 20 to 80 W · A3: 60 to 150 W · A4: from 150 W
Input voltage	120-277 V AC, or 120-347 V / 200-480 V AC
Lumen output	A2: 2,800 to 9,800 lm · A: 2,800 to 21,000 lm · A3: 8,400 to 33,600 lm · A4: 21,000 to 56,000 lm
Efficacy	140 lm/W
Colour temperature	2000 K to 7500 K
CRI	> 70
Dimming	0-10 V, optional
Emergency backup	Backup power option (ordering code E)

Mechanical

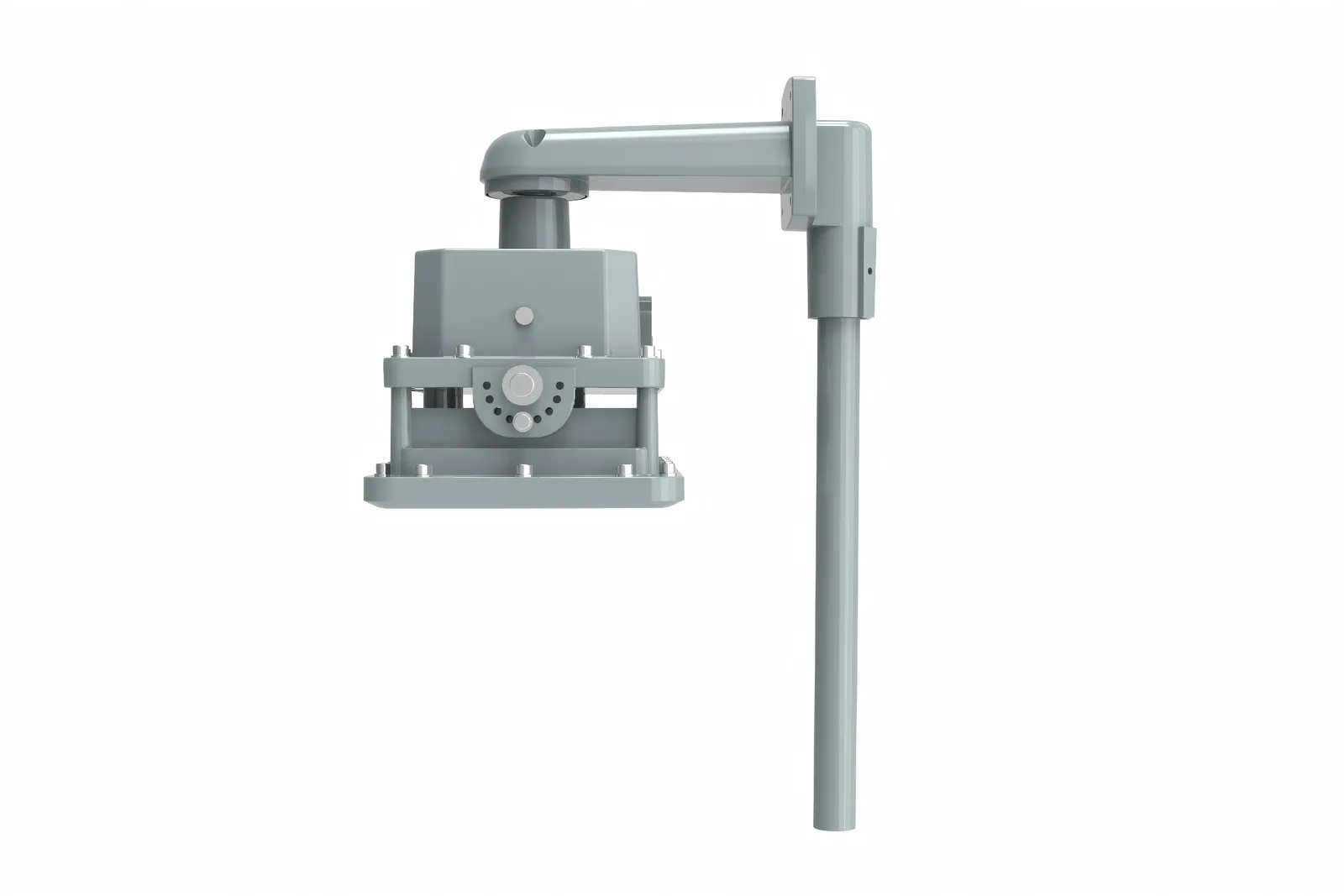

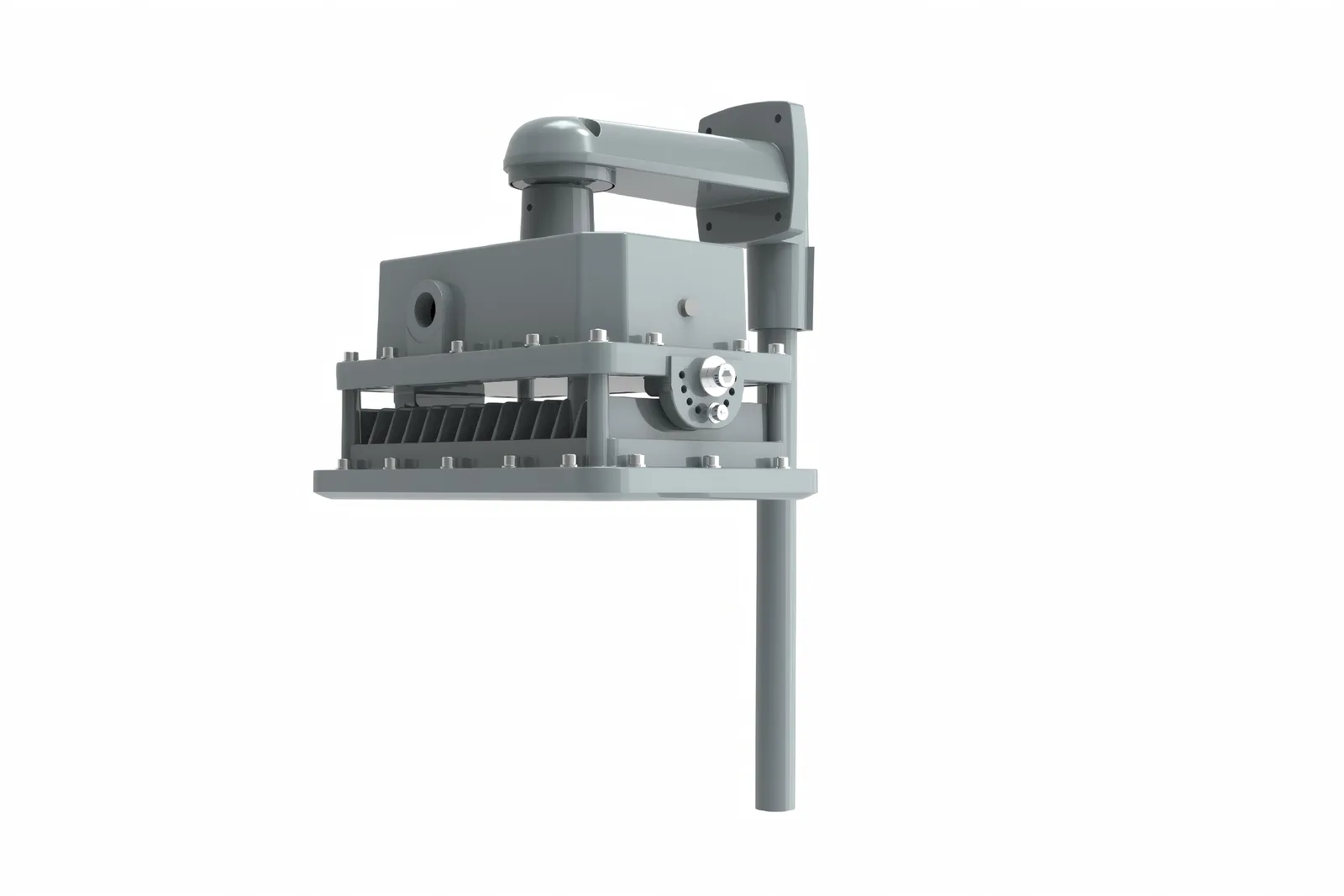

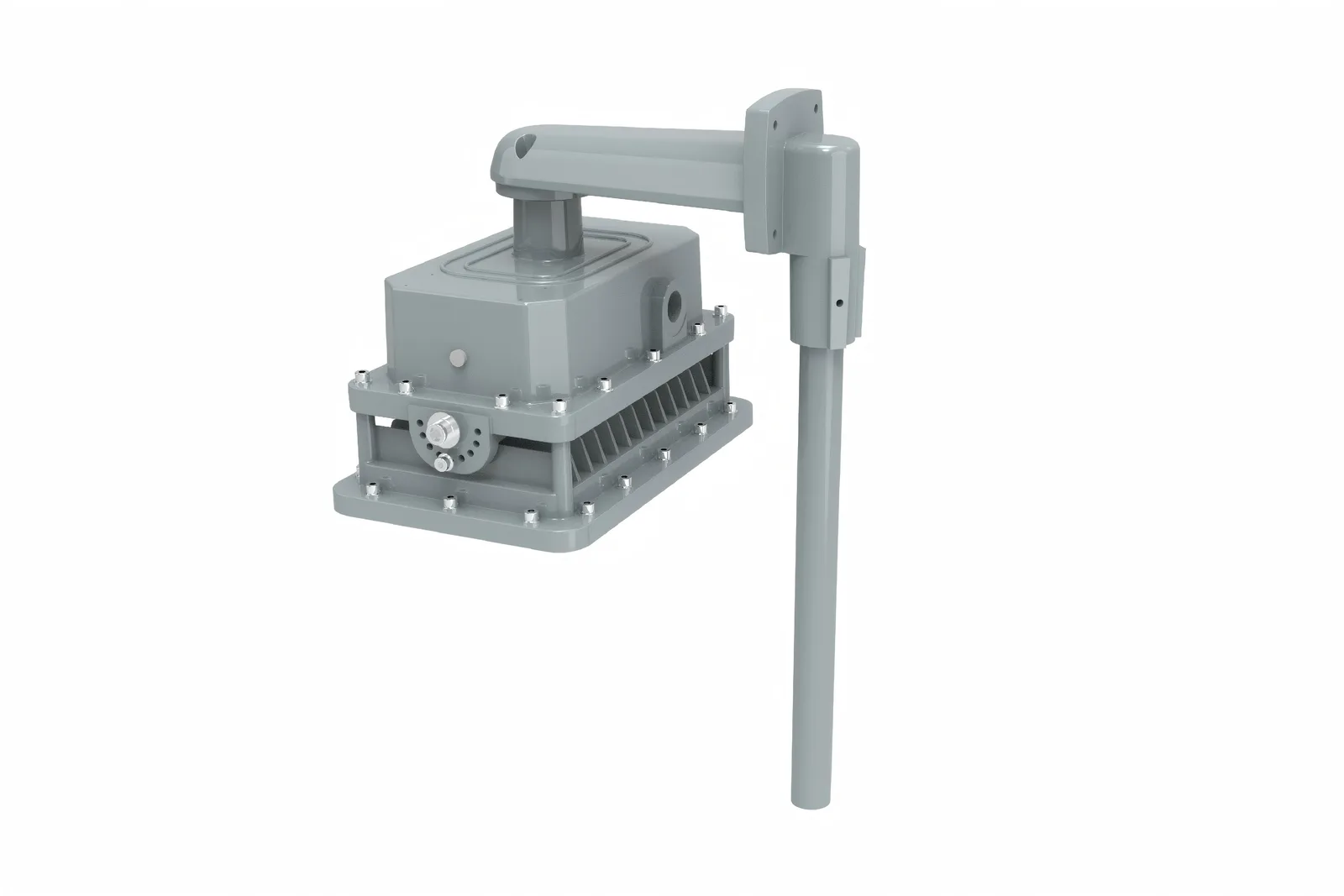

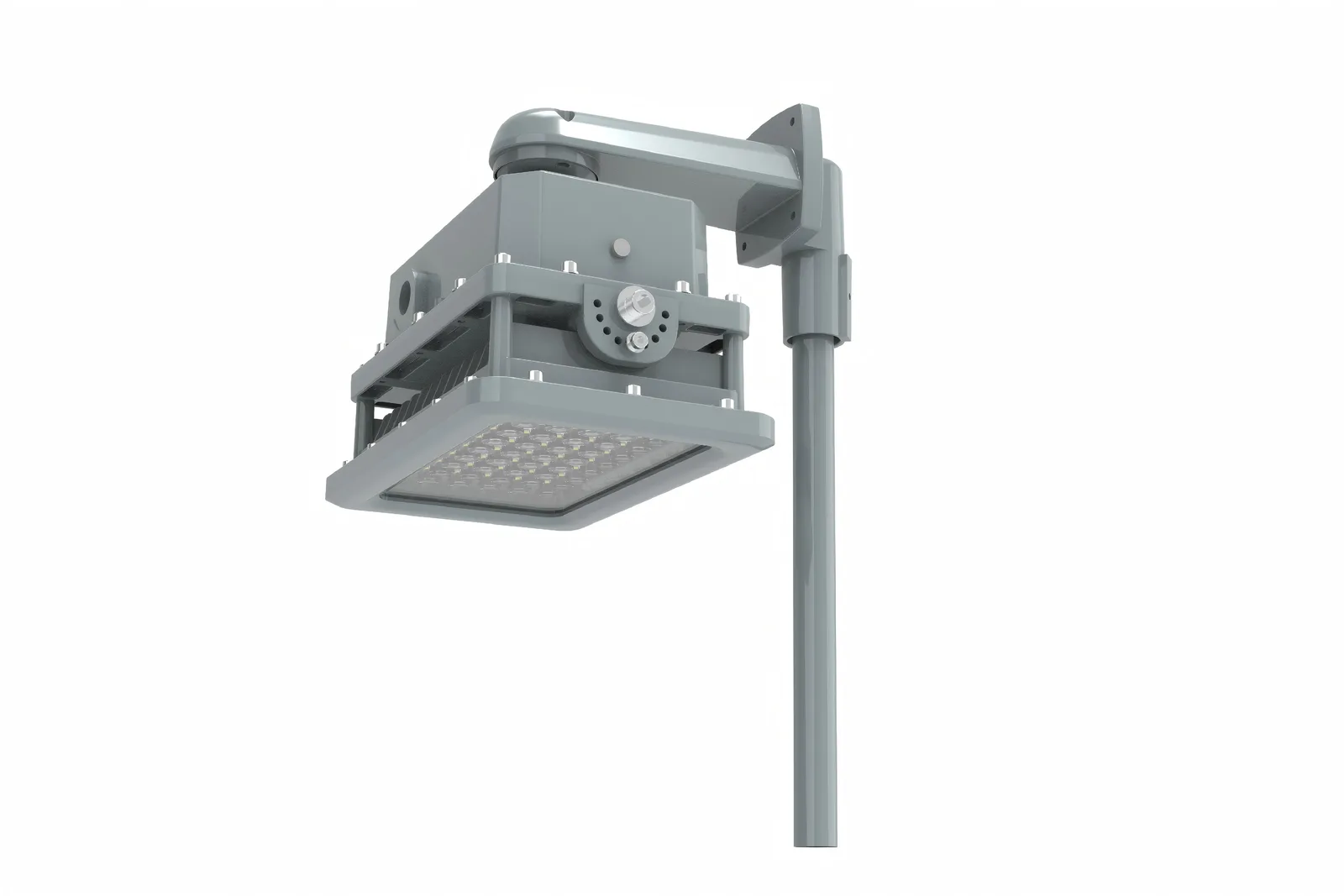

Mounting	Ceiling, wall, hook, trunnion, pole, stanchion, wall with junction box
Diffuser / lens	Tempered glass, clear or frosted, flat · polycarbonate on Class I, Division 2 models
Beam angle	30°, 40°, 60°, 90°, 120°, T2, T3, T5

Ratings and environment
Ingress protection	IP66
Impact rating	IK08 with glass cover · IK10 with wire guard
Ambient temperature	−40 °C to +40 / +50 / +55 / +60 / +65 °C depending on model and T-code

View Spec Sheet

Class II, Division 1 area, site photography

Downloads

NemaLED EX-A Flood Light Spec Sheet.pdfFull technical data, opens in new tab

Photometric Files (IES)

IES photometric files for lighting design and layout in DIALux, AGi32, Visual, and other tools. Download the model that matches your wattage, optic, and voltage. 27 IES files

Installation guide and certificatesOn request, ask in the quote form
