IP69K Wash-Down LED Lighting
The SWD Wash-Down High Bay and HB12 Linear are built for daily high-pressure, high-temperature washdown in meat, dairy, beverage, and bakery plants. Both carry IP69K ingress protection — the toughest sealing rating in the industry — so cleaning crews can blast them with steam and caustic cleaner without risking water ingress or fixture failure.
- IP69K sealed against high-pressure, high-temperature wash-down and steam cleaning
- Corrosion-resistant, gasketed, smooth housing that sheds water and resists buildup
- HB12 linear adds CRI 90+ for color-accurate inspection on production lines
- Built for food and beverage plants, packaging lines, and cold-storage areas
Specifications
| IP rating | IP69K — sealed against high-pressure, high-temperature wash-down and steam cleaning |
|---|---|
| Fixture types | SWD sealed round high bay · HB12 linear (2 ft and 4 ft) |
| HB12 wattage | 30 W–70 W (2 ft), 60 W–140 W (4 ft) |
| HB12 efficacy | Up to 170 lm/W |
| HB12 optics | Polycarbonate lens, CRI 90+, 110° beam angle |
| HB12 lifespan / warranty | L70 rated over 100,000 hours · 5-year warranty |
| Construction | Corrosion-resistant, gasketed, smooth non-shedding housing |
Where it's used
- Meat and poultry processing lines
- Dairy and bottling plants
- Bakery and beverage production
- Cold storage and packaging areas
- Commercial kitchens
- CIP / wash-down corridors
Common questions
What does IP69K actually mean?
IP69K is the highest ingress-protection rating for dust and water — it means the fixture is tested against close-range, high-pressure, high-temperature spray from four angles. See our full IP69K vs IP67 explainer for the exact test parameters.
Do I need IP69K in every zone of my plant?
No. IP69K matters in direct wash-down and CIP zones — production floor, packaging lines, anywhere a hose or foam cannon reaches. Dry storage and office areas typically only need IP65/IP66. We spec each zone to its actual cleaning regimen rather than over-building the whole plant.
Can these fixtures go in a dust-hazard area, like a flour or sugar line?
IP69K is a wash-down and sealing rating, not a combustible-dust classification. Dry-ingredient handling areas (flour, sugar, milk powder) may need a separate Class II dust-rated fixture — tell us your zone and dust type and we'll spec accordingly.

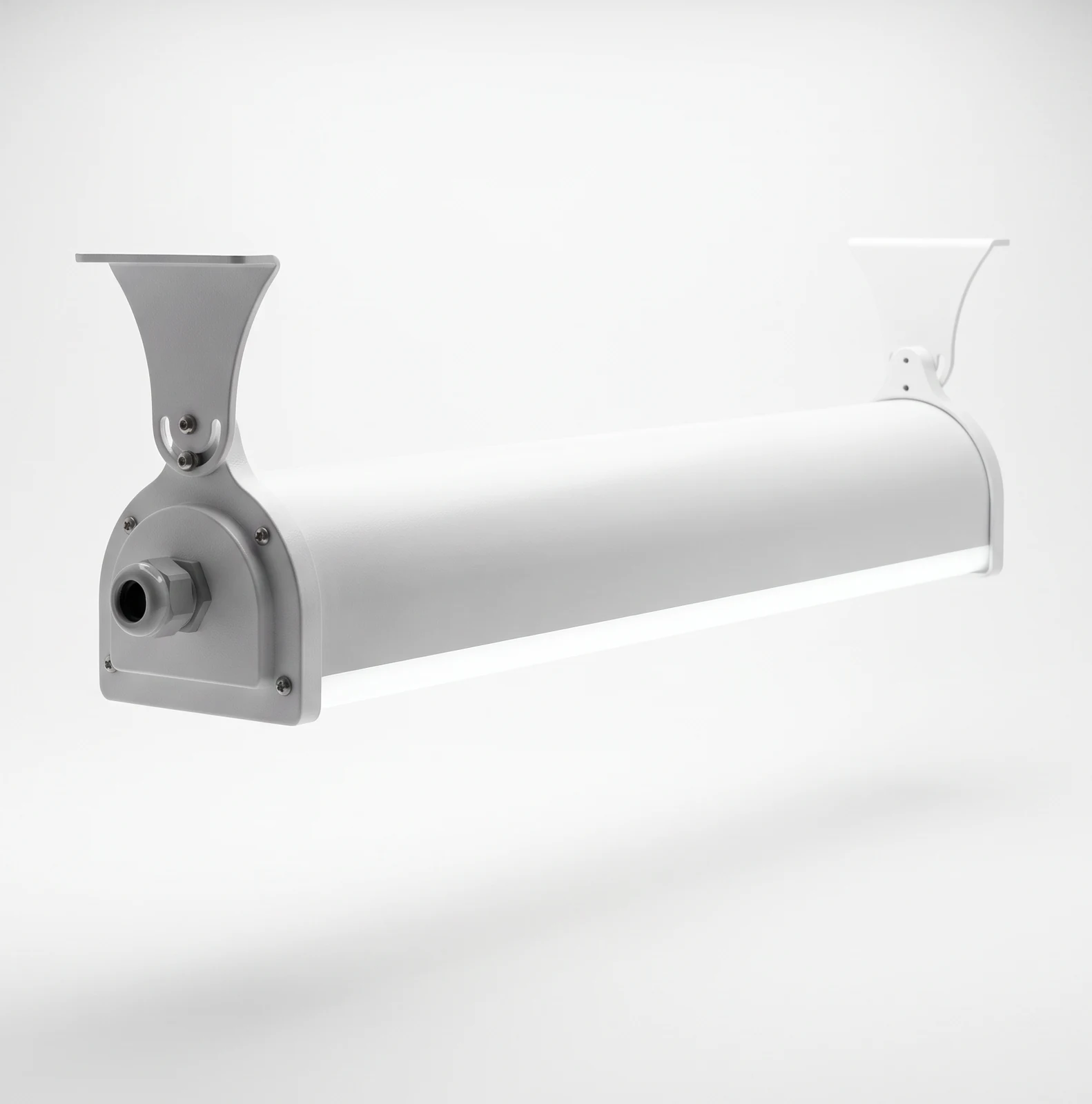

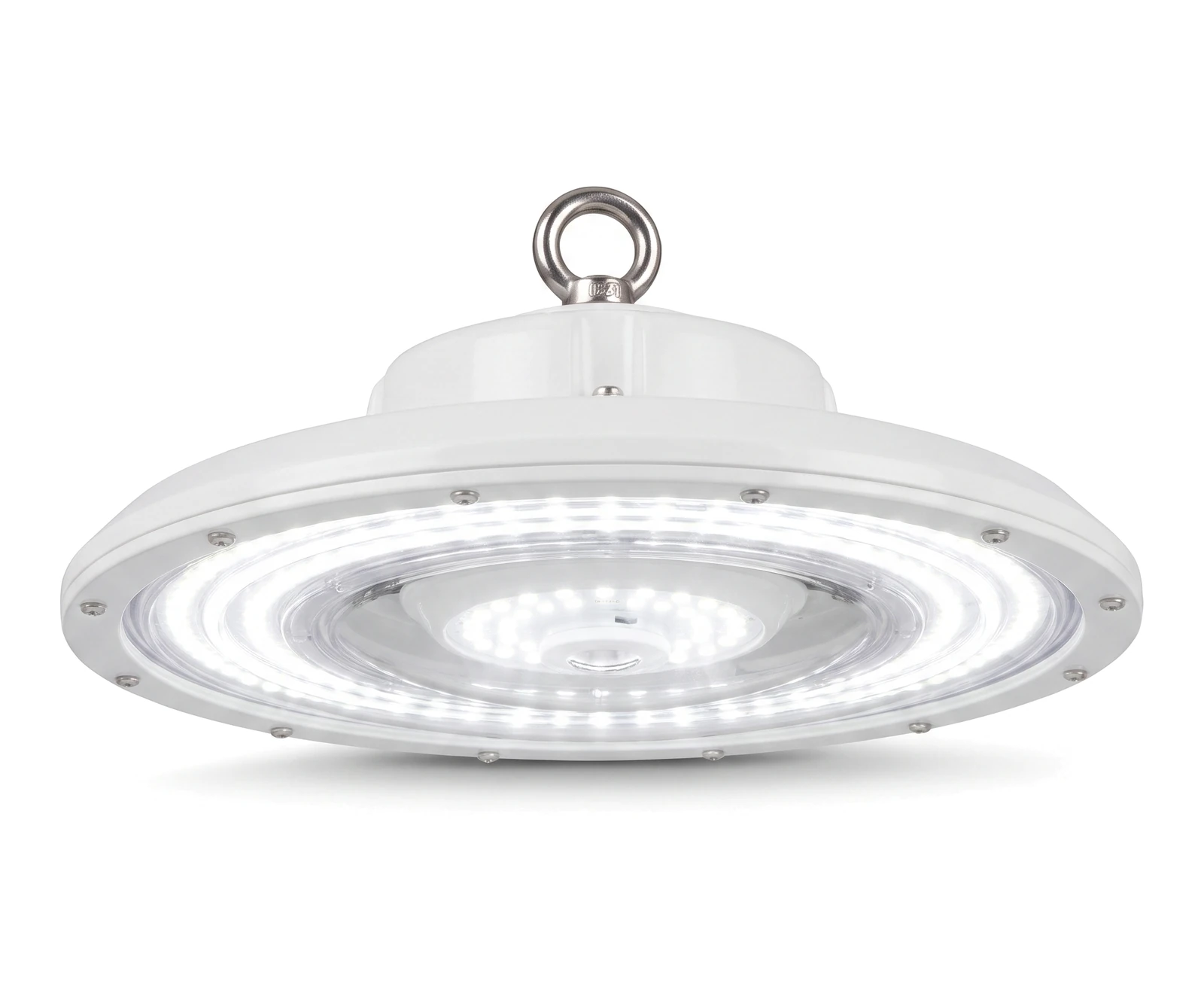

What's the difference between the SWD and the HB12?
The SWD is a round sealed high bay suited to higher-ceiling production halls. The HB12 is a linear fixture built for lower-clearance lines, cold rooms, and inspection tables, where CRI 90+ color accuracy matters for grading and quality control.
How fast can I get a quote?
Send your zone dimensions and current fixture count through the quote form and we respond the same business day. For a full lighting layout with fixture count and spacing, use our free photometric layout request instead.
Get a wash-down lighting quote
Tell us your zone dimensions and current fixtures — we'll spec IP69K fixtures for your line and quote same day.
